Titan Impact X 440 Drive Assembly Parts and OEM Components
Shop Titan Impact X 440 Drive Assembly Parts for genuine OEM crankshaft and gear assemblies, connecting rods, main housings, motor fan components, pressure controls, circuit boards and related hardware. Use the factory exploded diagram and Titan part numbers to identify the correct replacement for your airless sprayer.
Browse 23 listed components for mechanical drive repairs, electrical servicing, pump-related maintenance and equipment restoration.
Buy Genuine Titan Impact X 440 Drive Assembly Replacement Parts
The Titan Impact X 440 drive assembly transfers mechanical motion from the motor toward the pump. The main housing, crankshaft and gear components, connecting rod and related mechanical parts work together to operate the pumping mechanism during spraying.
The factory drive assembly category also includes electrical control components, motor cooling parts, fluid-handling components and associated service hardware. These listings allow contractors and technicians to locate the components shown in the applicable exploded diagram without assuming that every item performs a mechanical drive function.
AllTitanParts lists genuine Titan OEM replacement components including Titan 2425405A Main Housing Assembly, Titan 2426582A Connecting Rod Assembly, Titan 704-173A Crankshaft/Gear Assembly and Titan 704-176 2nd Stage Gear. Match the exact part number and diagram callout before ordering.
Shop Titan Impact X 440 Drive Assembly Components
Main Housing and Connecting Rod
Replace the specified housing or connecting rod assembly after confirming the affected mechanical component.
2425405A / 2426582ACrankshaft and Gear Components
Find the crankshaft/gear assembly, second-stage gear and thrust washer for the applicable drive mechanism.
704-173A / 704-176 / 704-174Motor Cooling and Power
Locate the motor fan assembly, power switch, power cord and electrical service components.
2425488A / 2420453 / 2423443Pressure and Electronic Controls
Browse the control knob, potentiometer, PCB assembly and main control assembly.
805-354 / 2423449 / 2425503AFluid and Filter Components
Find the fluid section assembly, fluid hose, filter housing and filter cover listed in this breakdown.
2440559 / 2426228 / 2424887ADrive Hardware and Fasteners
Identify the drive hardware kit, nut with seal, set screw, mounting screw and grounding hardware.
2440399 / 700-176 / 704-598Titan Impact X 440 Drive Assembly OEM Parts Reference

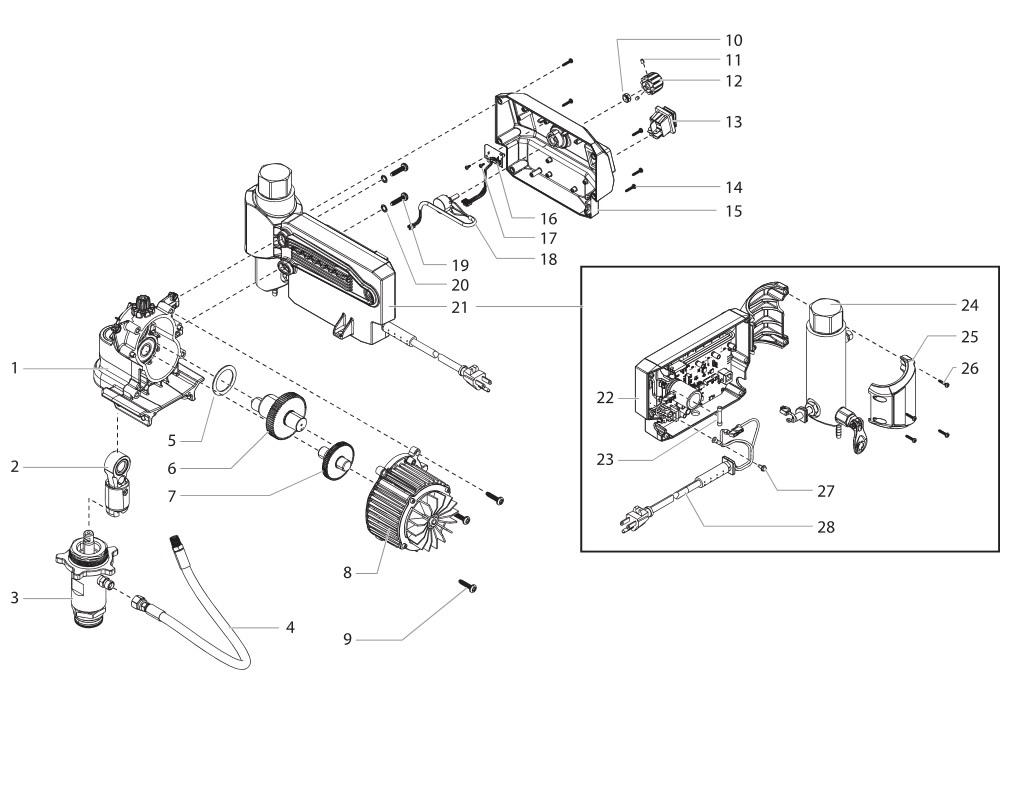

Use the factory exploded diagram to match the numbered callout with the correct Titan part number. This category currently lists 23 components. A dash indicates an additional listing without a numbered diagram callout.
| Item | Titan Part Number | OEM Component |
|---|---|---|
| - | 2440399 | Drive Assembly Hardware Kit |
| 1 | 2425405A | Main Housing Assembly |
| 2 | 2426582A | Connecting Rod Assembly |
| 3 | 2440559 | Fluid Section Assembly |

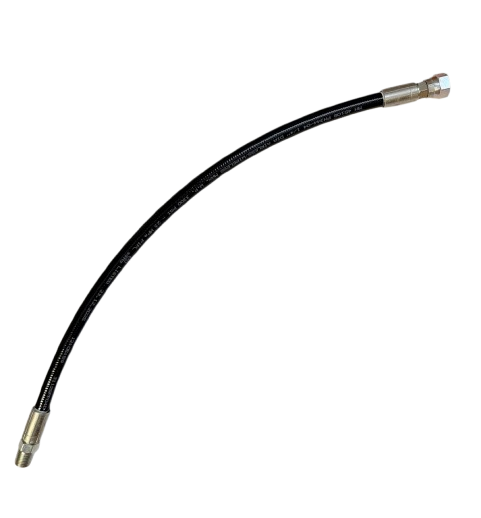

| 4 | 2426228 | Fluid Hose |
| 5 | 704-174 | Thrust Washer |
| 6 | 704-173A | Crankshaft/Gear Assembly |
| 7 | 704-176 | 2nd Stage Gear |
| 8 | 2425488A | Motor Fan Assembly |
| 10 | 700-176 | Nut with Seal |
| 11 | 704-598 | Set Screw |
| 12 | 805-354 | Control Knob, Replaces 704-488A |
| 13 | 2420453 | Power Switch |
| 15 | 2425501A | Front Enclosure |
| 16 | 2425503A | PCB Assembly |
| 17 | 2426221 | Screw |
| 18 | 2423449 | Potentiometer |
| 22 | 2425490A | Main Control Assembly |
| 23 | 800-929 | 15A Fuse, Replaces 0551627 |
| 24 | 2424887A | Filter Housing Assembly |
| 25 | 2425498 | Filter Assembly Cover |
| 27 | 9800340 | Ground Screw |
| 28 | 2423443 | Power Cord Assembly |
Replacement references shown in the listings include Titan 805-354 replacing 704-488A and Titan 800-929 replacing 0551627. Verify the current manufacturer supersession information before ordering.
How to Order the Correct Titan Impact X 440 Drive Part
Determine whether the fault involves the gearbox, connecting rod, motor, electrical controls or another assembly.
Find the affected component on the Titan Impact X 440 Drive Assembly exploded drawing.
Compare the diagram item number with the listed Titan part number and product description.
Confirm the Impact X 440 model, relevant equipment configuration and any replacement part information.
Drive Assembly, Fluid Section or Electrical Control Repair?
The Impact X 440 drive assembly category contains parts from several connected machine systems. Identifying the affected system helps prevent unnecessary replacement of unrelated components.
Mechanical Drive
Includes the main housing, crankshaft and gears, connecting rod, thrust washer and mechanical drive hardware. Inspect this system when diagnosing abnormal mechanical noise, vibration or motion transfer.
Fluid Section
Contains pump-side components that draw in, move and pressurize coating. Investigate the fluid section when troubleshooting pump leakage, valve problems or worn packings.
Electrical and Pressure Controls
Includes the power switch, fuse, PCB, control assembly, potentiometer and related wiring or grounding components. Electrical diagnosis should follow Titan service instructions.
Titan Impact X 440 Drive Assembly Troubleshooting Guide
Abnormal operation does not automatically indicate a failed gearbox or connecting rod. Inspect the relevant mechanical, electrical and pump systems before ordering replacement parts.
| Observed Symptom | Components to Inspect | Inspection Guidance |
|---|---|---|
| Grinding or unusual mechanical noise | Crankshaft, gears, connecting rod and housing | Inspect for wear, damage, contamination or abnormal mechanical play. |
| Excessive vibration | Drive components, mounting points and fasteners | Check for loose hardware, damaged components and improper alignment. |
| Motor operates but pump action is abnormal | Drive mechanism and fluid section | Determine whether motion transfer or pump-side resistance is affected. |
| Sprayer does not power on | Power supply, cord, switch, fuse and control system | Follow electrical troubleshooting procedures; use qualified personnel. |
| Pressure control does not respond normally | Control knob, potentiometer, PCB and main control | Verify the cause before replacing electrical components. |
| Repeated mechanical component failure | Mating drive parts, alignment and pump loading | Inspect related components for underlying damage or excessive load. |
Explore Related Titan Impact X 440 Replacement Parts
If the required component is not in the drive assembly diagram, browse the appropriate Impact X 440 parts category. The links below use model-specific URLs rather than the older Impact 440 parts catalog.
Maintaining Your Titan Impact X 440 Drive Assembly
Inspect accessible drive components, protective enclosures, mounting points and fasteners for damage, abnormal wear or looseness. Investigate unusual mechanical noise or vibration before continued operation.
When replacing a worn gear, crankshaft or connecting rod, inspect associated mating components for related damage. Follow Titan instructions for any required lubrication, component positioning and fastener tightening.
Electrical components such as the PCB, main control assembly, power switch and power cord require appropriate diagnostic and service procedures. Do not replace electrical parts based solely on symptoms without confirming the cause.
Why Choose Genuine Titan Impact X 440 Drive Parts?
Genuine Titan OEM components are identified by manufacturer part numbers and factory assembly references. These references help contractors, repair technicians and maintenance departments identify the correct replacement for the affected machine system.
Accurate part identification is especially important for gears, housings, connecting rods, electrical controls and model-specific assemblies. Verify the diagram callout, machine model and current OEM part number before installation.
Drive Assembly Repair and Safety Guidance
Before servicing the Titan Impact X 440, shut down the sprayer, disconnect electrical power and complete the manufacturer's pressure-relief procedure. Never inspect moving drive components while the equipment is energized. Follow the applicable Titan service manual for mechanical disassembly, lubrication, electrical diagnosis, component replacement and reassembly. Electrical repairs should be performed by appropriately qualified personnel.
Titan Impact X 440 Drive Assembly Parts FAQ
Answers to common questions about Titan OEM gears, connecting rods, housings, electrical controls and drive-system repairs.
What parts are included in the Titan Impact X 440 Drive Assembly?
The category includes the main housing, connecting rod, crankshaft and gear components, motor fan, control assemblies, electrical parts, fluid-handling components and associated hardware.
What is the Titan Impact X 440 main housing part number?
Titan 2425405A is the Main Housing Assembly listed under item 1 of the Impact X 440 drive assembly diagram.
Which crankshaft and gear assembly is listed for the Impact X 440?
Titan 704-173A is the Crankshaft/Gear Assembly listed under item 6. Titan 704-176 is separately listed as the 2nd Stage Gear under item 7.
What is the Titan Impact X 440 connecting rod assembly part number?
Titan 2426582A is the Connecting Rod Assembly listed under diagram item 2. Confirm the part number and application before ordering.
Does Titan 805-354 replace the older Titan 704-488A control knob?
The current category listing identifies Titan 805-354 as replacing Titan 704-488A. Verify the latest manufacturer replacement information before purchasing.
Why is my Titan Impact X 440 making unusual mechanical noise?
Possible causes include worn or damaged gears, connecting rod problems, loose hardware, misalignment or excessive load from the fluid section. Follow the Titan service manual to diagnose the problem before replacing parts.
Can I use drive assembly parts from the older Titan Impact 440?
Do not assume interchangeability between the older Impact 440 and Impact X 440. Match the exact Titan OEM part number and verify the application using the correct factory diagram.
Shop Genuine Titan Impact X 440 Drive Assembly Parts
Find genuine Titan crankshaft and gear assemblies, connecting rods, main housings, motor components, electrical controls and replacement hardware. Compare factory part numbers and use the exploded diagram to identify the correct Impact X 440 drive assembly component.
SHOP IMPACT X 440 DRIVE ASSEMBLY PARTSNeed help identifying a replacement part? Call 713-931-0006.
