Titan Impact X 440 Suction Set Assembly Parts and OEM Components
Shop Titan Impact X 440 Suction Set Assembly Parts for genuine OEM siphon tube assemblies, return tubes, inlet screens, O-rings and retaining hardware. Use the factory exploded diagram and manufacturer part numbers to identify components for fluid intake, return-line maintenance and suction-system repairs.
Browse eight listed components, including Titan 2426336 Siphon Tube Assembly, 2426337 Return Tube and 700-805 Inlet Screen Filter.
Buy Genuine Titan Impact X 440 Suction Set Replacement Parts
The suction set assembly provides the material intake path from the coating container to the pump on the applicable Titan Impact X 440 configuration. Its siphon tube, inlet screen and connection components help supply material to the sprayer, while the return tube carries fluid back toward the container during applicable operating procedures.
Damaged suction tubing, restricted inlet screens, worn seals or loose connections can contribute to priming difficulties, air entering the intake system or reduced material delivery. Correct diagnosis is important because similar symptoms may also originate in the inlet valve, fluid section or other components.
AllTitanParts lists genuine Titan OEM suction set components individually, allowing technicians to identify the affected part without automatically replacing the complete assembly. Compare the numbered factory diagram, part description and applicable equipment configuration before ordering.
Shop Titan Impact X 440 Suction Set Components
Siphon Tube Assembly
The factory-listed intake assembly that provides a path for coating material to enter the sprayer from its supply container.

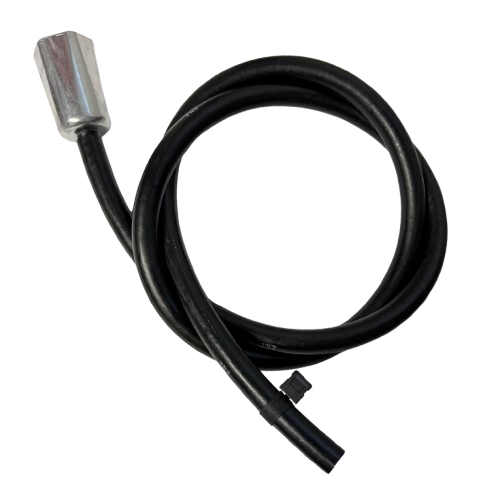

Titan 2426336Return Tube
Routes returning fluid toward the material container during the applicable priming or circulation procedure.
Titan 2426337Inlet Screen Filter
Screens material entering the suction system and helps prevent larger debris from entering downstream components.
Titan 700-805Suction Connection O-Rings
Find OEM sealing components for designated connection points. Confirm the exact sealing location before ordering.
Titan 9871105 / 704-109Retaining Clip
OEM retaining hardware for securing the specified connection or component in its designated position.
Titan 9822526Clips and Tie Wraps
Replacement retaining and routing hardware used at the locations indicated by the equipment parts diagram.
Titan 2427391 / 9850638Titan Impact X 440 Suction Set Assembly OEM Parts Reference

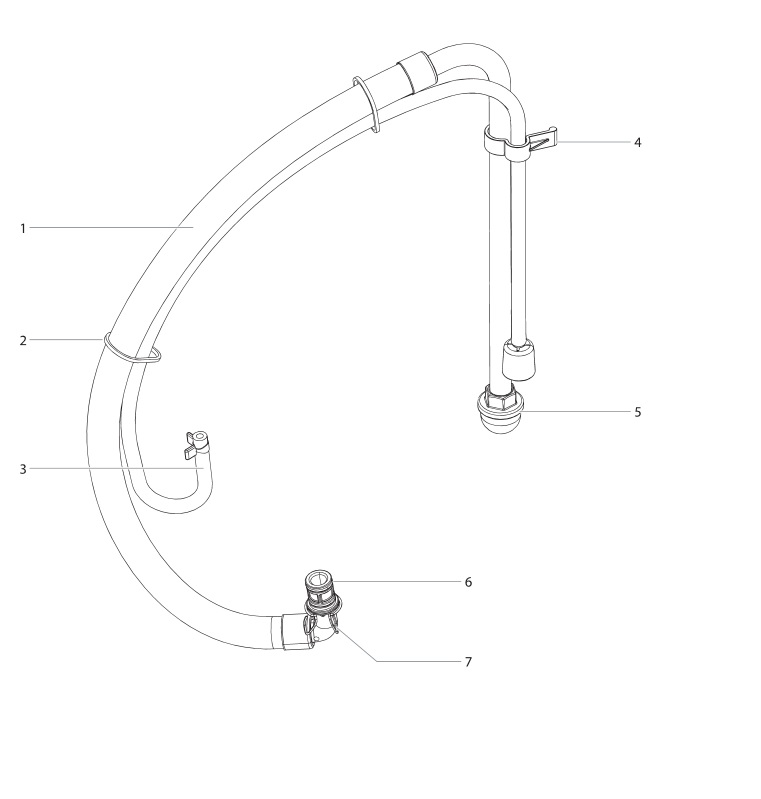

Match each factory-listed component to the suction set exploded diagram. The first seven products have numbered diagram references; Titan 704-109 is an additional O-ring listing without a displayed callout number.
| Diagram Item | Titan Part Number | OEM Component | Application |
|---|---|---|---|
| 1 | 2426336 | Siphon Tube Assembly | Material intake |
| 2 | 9850638 | Tie Wrap | Component retention |
| 3 | 2426337 | Return Tube | Return fluid routing |
| 4 | 2427391 | Clip | Component retention |
| 5 | 700-805 | Inlet Screen Filter | Intake screening |
| 6 | 9871105 | O-Ring, Replaces 704-121 | Connection sealing |
| 7 | 9822526 | Retaining Clip | Connection retention |
| Not shown | 704-109 | O-Ring | Verify sealing location |
Titan 9871105 is listed as replacing 704-121. Do not assume that Titan 704-109 is interchangeable with either number. Confirm the correct sealing location and manufacturer part reference.
How to Choose the Correct Impact X 440 Suction Set Part
Determine whether the issue involves a blocked screen, damaged tubing, leaking connection or missing retaining hardware.
Locate the component using the factory suction set exploded view and numbered callout.
Compare the diagram reference, product description and exact Titan part number.
Verify the Impact X 440 model, equipment configuration and any replacement part information.
Common Titan Impact X 440 Suction System Repairs
Different symptoms require different inspections. Replacing a suction component without identifying the cause may not resolve a pump or pressure-related problem.
Siphon Tube Damage
Inspect the intake assembly for cracks, deformation, damaged connections or other visible defects.
Blocked Inlet Screen
Check the screen for accumulated coating material, debris or physical damage.
Leaking Suction Connections
Inspect designated O-rings, retaining clips and mating connection surfaces.
Return Tube Problems
Examine the return tube for cracks, restrictions, poor routing or missing retaining hardware.
Suction Set Troubleshooting and Inspection Guide
Use the applicable Titan Impact X 440 operating and service instructions when diagnosing priming or fluid intake problems.
| Observed Symptom | Components to Inspect | Recommended Guidance |
|---|---|---|
| Sprayer will not prime | Siphon tube, inlet screen, suction seals and inlet valve | Check for restrictions, air leaks and intake-system faults. |
| Reduced material intake | Inlet screen and siphon tube | Inspect for blockage, damage or an improperly positioned intake. |
| Air entering the suction system | O-rings, connections and siphon assembly | Inspect sealing surfaces and connection integrity. |
| Return line leakage | Return tube, clips and retaining hardware | Check for damage, incorrect routing or loose connections. |
| Intermittent material delivery | Suction assembly, filters and fluid section | Follow the manufacturer diagnostic procedure before replacing components. |
Explore Related Titan Impact X 440 Replacement Parts
If the problem involves another area of your sprayer, browse the corresponding Impact X 440 parts category. Use the correct model-specific diagram rather than selecting parts from an older Impact 440 or a different Impact X model.
Maintaining Your Titan Impact X 440 Suction Set
Inspect the siphon tube, return tube and inlet screen before operation. Look for accumulated coating material, cracks, damaged connections and missing retaining components.
Clean the inlet screen according to the manufacturer instructions. Replace damaged seals, tubing and clips with correctly identified components rather than attempting to repair unsuitable or deteriorated parts.
When replacing an O-ring or retaining clip, use the specified part number and installation procedure. Inspect the connection for correct seating before returning the equipment to service.
Why Choose Genuine Titan Impact X 440 Suction Parts?
Genuine Titan replacement components are identified by manufacturer part numbers and corresponding factory assembly references. This helps contractors, technicians and maintenance departments select the correct parts using the applicable equipment documentation.
Proper part identification is particularly important for intake seals, retaining clips and model-specific suction assemblies. Verify the required component before installation.
Suction Set Repair and Safety Guidance
Before servicing the Titan Impact X 440, shut down the sprayer, disconnect electrical power and complete the manufacturer's pressure-relief procedure. Never disconnect fluid-handling components while the system is pressurized. Follow the appropriate service instructions when removing the siphon tube, return tube, inlet screen or sealing hardware.
Titan Impact X 440 Suction Set Assembly Parts FAQ
Answers to common questions about Titan OEM siphon tubes, inlet screens, return tubes, O-rings and suction-system replacement parts.
What parts are included in the Titan Impact X 440 Suction Set Assembly?
The category lists a siphon tube assembly, return tube, inlet screen filter, O-rings, retaining clips and a tie wrap. Use the factory diagram to identify each component.
What is the Titan Impact X 440 siphon tube assembly part number?
Titan 2426336 is the Siphon Tube Assembly listed under item 1 of the suction set category.
Which inlet screen filter is listed for the Impact X 440?
Titan 700-805 is the Inlet Screen Filter listed under diagram item 5. Confirm the correct model and application before ordering.
What is the Titan Impact X 440 return tube part number?
Titan 2426337 is the Return Tube listed under diagram item 3. Inspect its routing and connection points before replacement.
Does Titan 9871105 replace Titan 704-121?
Yes. The category identifies Titan 9871105 as an O-ring replacing Titan 704-121. Confirm the required sealing location and manufacturer documentation before purchase.
Why is my Titan Impact X 440 not priming correctly?
Possible causes include a blocked inlet screen, damaged siphon tube, leaking suction connection or an inlet valve problem. Follow the Titan troubleshooting procedure to identify the cause.
Can I use suction set parts from another Titan Impact model?
Do not assume that parts from the older Impact 440 or another Impact X model are interchangeable. Match the exact Titan OEM number and verify the application using the correct factory parts diagram.
Shop Genuine Titan Impact X 440 Suction Set Assembly Parts
Find genuine Titan siphon tube assemblies, return tubes, inlet screen filters, O-rings and retaining hardware. Compare factory part numbers and use the exploded diagram to identify the replacement components required for your Impact X 440.
SHOP IMPACT X 440 SUCTION SET PARTSNeed help identifying a replacement part? Call 713-931-0006.
