Shop Genuine OEM Titan ControlMax Sprayers
Shop genuine OEM Titan ControlMax High Efficiency Airless sprayers, a complete line of HEA technology systems engineered for DIYers, handymen, and small contractors who want pro-level results with less mess. The HEA system operates at half the pressure of traditional airless tips, delivering up to 55% less overspray, a softer spray pattern for improved control, and up to 3X longer pump life than comparable sprayers. Select the correct ControlMax model by matching coating requirements, required output, maximum tip size, sprayer capacity, and the applicable configuration.
Choose the Correct Titan ControlMax Sprayer
Choosing ControlMax technology is only the first step. Individual ControlMax models combine different motors, flow rates, maximum tip sizes, and configurations, which changes spray coverage and production capacity. Select by coating + required output + maximum tip size + sprayer capacity + configuration + exact model number.
A higher flow rate does not automatically mean a sprayer is correct for your application, and two ControlMax units are not interchangeable simply because they share the Titan brand. Your coating requirements, project size, and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan ControlMax Model Guide
Titan's current ControlMax lineup spans multiple models engineered for different production levels and project sizes. The chart below summarizes key specifications. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Model | Max Flow Rate | Max Operating Pressure | Max Tip Size | Motor | Recommended Gallons Per Year |
|---|---|---|---|---|---|
| ControlMax 1500 | 0.29 GPM | 1500 PSI | 0.015 inch | 0.55 HP | 175 gallons |

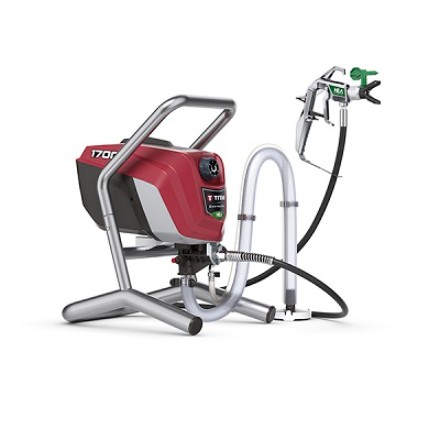

| ControlMax 1700 | 0.33 GPM | 1500 PSI | 0.017 inch | 0.60 HP | 300 gallons |
| ControlMax 1900 Pro | 0.40 GPM | 1600 PSI | 0.019 inch | 0.70 HP | 500 gallons |
| ControlMax 1650 | 0.24 GPM | 1500 PSI | 0.015 inch | 18V Battery | Medium projects |
How Titan ControlMax HEA Technology Works
Titan ControlMax sprayers use High Efficiency Airless technology, an innovative spray tip design that operates at half the pressure of traditional airless tips, resulting in longer equipment life, improved control, and up to 55% less overspray. This softer spray pattern is more forgiving and puts the paint where it belongs, providing a more consistent finish with reduced paint waste and cost.
HEA tip technology operates at half the pressure, dramatically reducing paint waste and cleanup.
More forgiving fan pattern improves control and delivers a more consistent finish.
Durable pump lasts up to 3X longer than comparable airless sprayers.
Ensures priming every time for reliable starts.

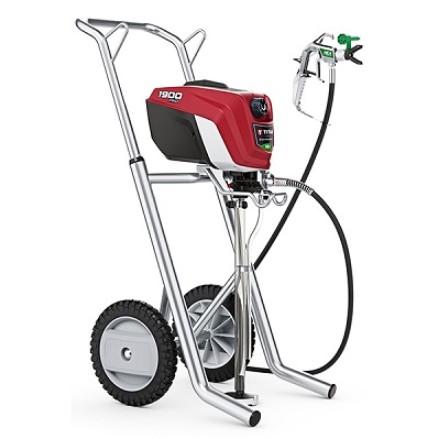

ControlMax sprayers feature easily replaceable inlet and outlet valves that maximize sprayer life, along with a repairable fluid section and integrated storage for tips and tools. The 1900 Pro model includes an all-metal gun and a fully portable cart design with wheels and a 50-foot hose for large projects.
Understanding ControlMax Pressure Ratings
ControlMax models operate at 1500 PSI for the 1500 and 1700, and 1600 PSI for the 1900 Pro, optimized for HEA tip technology.
ControlMax sprayers range from the 1500 at 0.29 GPM to the 1900 Pro at 0.40 GPM for larger production work.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each ControlMax model for specific coating types and project requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan ControlMax vs Standard Airless Sprayers
| Buying Consideration | Titan ControlMax | Standard Airless Sprayer |
|---|---|---|
| Technology positioning | High Efficiency Airless low-pressure platform | Conventional airless platform |
| Operating pressure | 1500 to 1600 PSI | Typically 3000 PSI or higher |
| Overspray | Up to 55% less overspray | Higher overspray typical |
| Spray pattern | Softer, more forgiving fan pattern | Sharper, less forgiving pattern |
| Pump life | Up to 3X longer than comparable sprayers | Standard pump life |
| Selection | Coating + output + tip size + sprayer capacity | Coating + output + tip size + sprayer capacity |
ControlMax is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements, and equipment capability.
Titan ControlMax Compatibility
Titan ControlMax sprayers work with HEA spray tips, industry-standard airless guns, hoses, and accessories. This describes the system interface; it should not be interpreted as a statement that every ControlMax model is suitable for every coating or application.
ControlMax sprayers use HEA tips designed for lower pressure operation. Confirm the correct tip size for your coating and project.
Confirm the sprayer uses the appropriate ControlMax gun and that the gun is correctly configured.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan ControlMax Sprayer?
ControlMax sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include fluid section packings, inlet and outlet valves, filters, hoses, tips, and spray gun components. ControlMax models feature easily replaceable inlet and outlet valves that maximize sprayer life, a repairable fluid section, and integrated storage for tips and tools. The Sureflo Pusher Valve ensures priming every time for reliable starts. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance, and usage conditions.
How to Order the Correct Titan ControlMax Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Check the sprayer's maximum supported tip size and available output.
- Confirm the spray gun, hose, and tip configuration.
- Locate the corresponding Titan ControlMax model in the lineup.
- Verify the current manufacturer ordering number for that model.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer model, equipment capability, and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
ControlMax is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan ControlMax sprayer is coating + required output + max tip size + sprayer capacity + configuration + exact current model number. Choosing "ControlMax" alone is not enough: a 1500, 1700, and 1900 Pro have substantially different flow and project capabilities.
FAQ Section
Use these answers to narrow the correct Titan ControlMax sprayer before ordering.
