Shop Genuine OEM Titan AirCoat Sprayers
Shop genuine OEM Titan AirCoat air assisted airless sprayers, precision finishing systems engineered for professionals who need the speed of airless spraying with the finish quality of air-assisted technology. By combining hydraulic or electric airless delivery with a controlled stream of compressed air at the gun, AirCoat systems produce superior atomization, reduced overspray, and smoother finishes than standard airless sprayers. The AirCoat AAA delivers up to 0.35 GPM and 2,800 PSI maximum operating pressure, with a built-in air compressor engineered for quiet operation. Select the correct AirCoat configuration by matching coating requirements, required output, maximum tip size, sprayer capacity, and the applicable gun/hose setup.
Choose the Correct Titan AirCoat Sprayer
Choosing AirCoat technology is only the first step. Individual AirCoat configurations combine different power platforms, pressure capabilities, and gun options, which changes spray coverage and finish quality. Select by coating + required output + maximum tip size + sprayer capacity + gun/hose setup + exact model number.
AirCoat systems are complete air-assisted airless sprayer units designed for single-gun fine-finish operation. They are compatible with AirCoat spray guns, precision tips, fluid hoses, and low-pressure air supply systems. Two AirCoat units are not interchangeable simply because they share the Titan brand, and your coating requirements and jobsite conditions determine the right configuration.
Titan AirCoat Model & Specifications Guide
Titan's current AirCoat lineup includes bare unit and complete system configurations. The chart below summarizes key specifications. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Model / Part | Max Flow Rate | Max Operating Pressure | Power | Configuration | Notes |
|---|---|---|---|---|---|

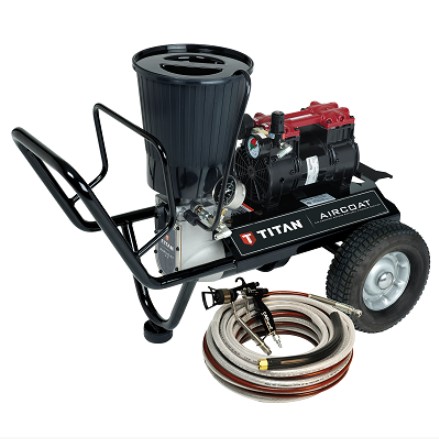

| AirCoat AAA 0550039 | 0.35 GPM | 2,800 PSI | 120V Electric | Bare Unit | Gun and accessories sold separately |
| AirCoat AAA-Complete 0508074A | 0.35 GPM | 2,800 PSI | 120V Electric | Complete System | Includes complete gun assembly |
How Titan AirCoat Sprayers Work
Titan AirCoat sprayers use air assisted airless technology, combining hydraulic or electric airless delivery with a controlled stream of compressed air at the gun. The diaphragm paint pump and air compressor work together to provide the versatility to switch between air-assisted mode for ultra-fine atomization and airless mode for high-speed application. This hybrid approach delivers superior atomization, reduced overspray, and smoother finishes than standard airless sprayers, while maintaining higher transfer efficiency than traditional air spray systems.
Switch between air-assisted mode for ultra-fine atomization and airless mode for high-speed production.
Prevents shearing when handling sensitive coating materials for consistent results.
Ensures consistent, high-quality spray patterns with every trigger engagement.
Quiet operation with integrated air supply for portability and simplicity.
Titan also states that AirCoat sprayers feature an automatic pressure relief valve to prevent over-pressurization, along with durable construction and easy maintenance for long-lasting performance. Actual performance in service still depends on coating viscosity, tip selection, operating pressure, and user technique.
Understanding AirCoat Pressure Ratings
The AirCoat AAA is rated for a maximum operating pressure of 2,800 PSI, suitable for both fine finish work and high-pressure airless spraying.
The AirCoat AAA delivers up to 0.35 GPM, optimized for precision finishing rather than high-volume production spraying.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each AirCoat configuration for specific coating types and finish requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan AirCoat vs Standard Airless Sprayers
| Buying Consideration | Titan AirCoat | Standard Airless Sprayer |
|---|---|---|
| Technology positioning | Air assisted airless precision finishing platform | Conventional airless platform |
| Operating modes | Air-assisted mode and airless mode | Airless mode only |
| Atomization | Compressor-assisted for softer, refined pattern | Hydraulic atomization only |
| Overspray | Reduced overspray and bounce-back | Higher overspray typical |
| Finish quality | Superior finish with minimal texture | Good but less refined |
| Coating versatility | Lacquers, clear coats, enamels, urethanes, stains, latex | Latex, primers, stains, enamels |
| Selection | Coating + output + tip size + sprayer capacity | Coating + output + tip size + sprayer capacity |
AirCoat is not automatically the correct technology for every application. Choose according to the coating, desired finish, production requirements, and equipment capability.
Titan AirCoat Compatibility
Titan AirCoat sprayers work with AirCoat spray guns, precision tips, fluid hoses, and low-pressure air supply systems. This describes the system interface; it should not be interpreted as a statement that every AirCoat configuration is suitable for every coating or application.
Confirm the sprayer uses the appropriate AirCoat gun and that the gun is correctly configured with the right air cap.
Use precision tips designed for air-assisted airless operation. Confirm the correct fluid tip and air cap combination for your application.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan AirCoat Sprayer?
AirCoat sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include spray tips, gun seals, filters, hoses, fluid section parts, inlet and outlet valves, and compressor components. AirCoat sprayers are designed to be maintained, not replaced, with common wear components serviceable individually to help professionals maximize uptime and protect long-term equipment value. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance, and usage conditions.
How to Order the Correct Titan AirCoat Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine whether air-assisted mode or airless mode is appropriate for your application.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Confirm the spray gun, hose, and tip configuration.
- Verify the current manufacturer ordering number for the platform.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer configuration, equipment capability, and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
AirCoat is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan AirCoat sprayer is coating + required output + max tip size + sprayer capacity + gun/hose setup + exact current model number. Choosing "AirCoat" alone is not enough: understand which mode fits your coating and confirm the gun setup and tip compatibility for your specific finishing application.
FAQ Section
Use these answers to narrow the correct Titan AirCoat configuration before ordering.
