Shop Genuine OEM Titan Impact Series Sprayers
Shop genuine OEM Titan Impact Series electric airless paint sprayers, piston-driven platforms built for painters who need dependable airless performance in a compact, easy-to-manage design. These Titan paint sprayers deliver consistent pressure, clean spray patterns and efficient coverage on everyday painting jobs. Impact Series units range from 0.47 GPM to 1.20 GPM with up to 3,300 PSI maximum pressure, supporting tip sizes up to 0.034 inch. For tougher workloads and longer spray sessions, Impact X models offer reinforced components, brushless motors and improved longevity. Select the correct Titan Impact sprayer by matching coating requirements, required output, maximum tip size, sprayer capacity and the applicable gun/hose configuration.
Choose the Correct Titan Impact Series Sprayer
Choosing Impact Series technology is only the first step. Individual Titan Impact models combine different motors, flow rates, maximum tip sizes and gallons-per-week capacities, which changes spray coverage and production capacity. Select by coating + required output + maximum tip size + sprayer capacity + gun/hose configuration + exact model number.
A higher flow rate does not automatically mean a sprayer is correct for your application, and two Impact units are not interchangeable simply because they share the Titan brand. Your coating requirements, production speed and jobsite conditions determine the right platform, and the coating manufacturer's sprayer recommendation should also be checked.
Titan Impact Series Model Guide
Titan's current Impact lineup spans multiple models engineered for different production levels. The chart below summarizes key specifications. Confirm the current orderable model number when selecting a sprayer, particularly where an updated packaged or suffixed number may be shown in parts channels.
| Model | Max Flow Rate | Max Pressure | Max Tip Size | Motor | Gallons Per Week |
|---|---|---|---|---|---|
| Impact 440 | 0.47 GPM | 3,300 PSI | 0.021 inch | Brushless DC | 50 to 100 |
| Impact 540 | 0.60 GPM | 3,300 PSI | 0.024 inch | Brushless DC | 100 to 150 |
| Impact 640 | 0.70 GPM | 3,300 PSI | Model dependent | 1.55 HP Brushless DC | 150 to 200 |
| Impact 740 | 0.80 GPM | 3,300 PSI | 0.029 inch | 2.0 HP Brushless DC | 200 to 300 |
| Impact 840 | 1.0 GPM | 3,300 PSI | 0.032 inch | 2.3 HP Brushless DC | 300 to 400 |

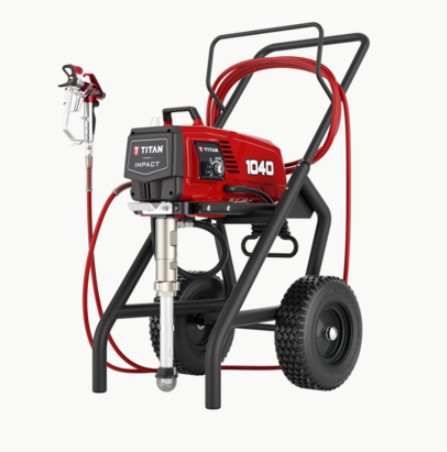

| Impact 1040 | 1.15 GPM | 3,300 PSI | 0.033 inch | 2.5 HP Brushless DC | 400 to 500 |
| Impact 1140 | 1.2 GPM | 3,300 PSI | 0.034 inch | 2.6 HP Brushless DC | 500+ |
| Impact 1640 | Model dependent | 3,300 PSI | 0.039 inch | 240V Electric | 300 to 400 |
| Impact X 410 | 0.47 GPM | 3,300 PSI | 0.021 inch | 7/8 HP DuraLife HE Brushless | 50 to 100 |
| Impact X 440 | 0.54 GPM | 3,300 PSI | 0.023 inch | 1.2 HP DuraLife HE Brushless | 100 to 150 |
How Titan Impact Series Sprayers Work
Titan Impact Series sprayers use a motor-driven piston pump to push coating at high pressure through a spray tip, atomizing the material without compressed air. This airless method delivers uniform coverage and high productivity on large surfaces. Impact X models add DuraLife HE brushless motors that maintain higher working pressure with minimal maintenance, plus MaxFX fluid sections that change in minutes on the job with just your hands.
Pushes material at high pressure through a spray tip for uniform coverage.
High-efficiency brushless motor maintains higher working pressure with minimal maintenance.
MaxFX fluid section changes in minutes on the job with just your hands.
Logix adaptive pressure control with tip sensing minimizes pressure while maximizing efficiency.
Titan also states that Impact Series sprayers provide Quad+ Packings designed to wipe abrasive coatings clean during operation, preventing damage to the piston or main sealing lip. The PermaLife Cylinder never wears and never needs replacing. Actual performance in service still depends on coating viscosity, tip selection, operating pressure and user technique.
Understanding Impact Series Pressure Ratings
Titan Impact Series sprayers operate at up to 3,300 PSI maximum for maximum atomization and production speed.
Impact Series sprayers range from compact units at 0.47 GPM to heavy-duty multi-gun models at 1.20 GPM.
Do not interpret the maximum pressure rating as evidence that a sprayer should always operate at that pressure. Titan optimizes each Impact model for specific coating types and production requirements. Every pressure-bearing component in the spray system must also remain within its own working-pressure rating; the complete system is limited by its lowest-rated component.
Titan Impact vs Impact X Series
| Buying Consideration | Impact Series | Impact X Series |
|---|---|---|
| Technology positioning | Dependable everyday airless performance | Reinforced components for tougher workloads |
| Motor | Brushless DC | DuraLife HE Brushless |
| Fluid section | Field serviceable; no cylinder to wear | MaxFX fluid section changes in minutes |
| Pressure control | Electronic pressure control with Rapid Clean | Logix adaptive pressure control with tip sensing |
| Durability | Standard professional use | Reinforced components and improved longevity |
| Selection | Coating + output + tip size + sprayer capacity | Coating + output + tip size + sprayer capacity |
Impact X is not automatically the correct choice for every application. Choose according to the coating, desired finish, production requirements and equipment capability.
Titan Impact Series Compatibility
Titan Impact Series sprayers work with industry-standard airless guns, hoses and spray tips. This describes the system interface; it should not be interpreted as a statement that every Impact model is suitable for every coating or application.
Confirm the sprayer uses the appropriate Titan airless gun and that the gun is correctly configured.
Confirm the machine can support the selected tip size and required material output.
Confirm the coating manufacturer permits the selected sprayer and tip configuration.
When Should You Service a Titan Impact Series Sprayer?
Impact Series sprayers are mechanical systems with wear components. Inspect the sprayer when pressure drops, the spray pattern loses definition, priming becomes difficult, or material consumption rises. Common service items include fluid section packings, inlet and outlet valves, filters, hoses and tips. Titan Impact models feature a field serviceable fluid section that does not have a cylinder to wear out, along with an AutoOiler that delivers oil to the packings with the push of a button. Actual service intervals vary with coating abrasiveness, operating pressure, cleaning, maintenance and usage conditions.
How to Order the Correct Titan Impact Series Sprayer
- Identify the coating and check the coating manufacturer's recommended sprayer range.
- Determine the required flow rate and production speed.
- Determine the maximum tip size needed for your application.
- Check the sprayer's maximum supported tip size and available output.
- Confirm the spray gun, hose and tip configuration.
- Locate the corresponding Titan Impact model in the lineup.
- Verify the current manufacturer ordering number for that model.
- Check documented supersession information when replacing an older model.
- Order only after the sprayer model, equipment capability and current part number are confirmed.
Physical similarity, the Titan brand name, or matching model names alone do not prove complete equipment or coating compatibility.
Compare Related Titan Spraying Equipment
Impact Series is one part of Titan's broader professional spraying system. Compare the technology required for your coating and application before selecting an individual sprayer.
The safest way to select a Titan Impact sprayer is coating + required output + max tip size + sprayer capacity + gun/hose configuration + exact current model number. Choosing "Impact" alone is not enough: an Impact 440, Impact 740 and Impact 1040 have substantially different flow and tip capabilities.
FAQ Section
Use these answers to narrow the correct Titan Impact Series sprayer before ordering.
