Titan 330 Pump Block Assembly Parts
Shop genuine Titan 330 Pump Block Assembly Parts using the exploded diagram and OEM references. Identify filter components, outlet fittings, seals and prime-spray valve parts by callout, then match the part number to the component required for your repair.
Identify the Correct Pump Block Service Component

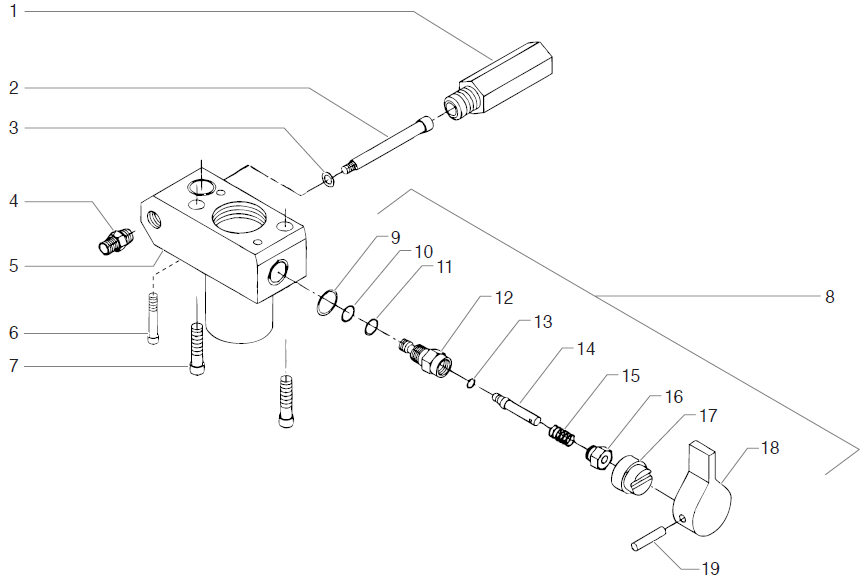

Use the assembly drawing to locate the part at its installed position. The numbered reference connects the physical component with its ordering information, helping you distinguish a housing, filter element, fitting or valve service part.
Plan the repair around inspection findings. Review the condition of adjoining surfaces and connections before choosing an individual seal or a larger service assembly.
Order the Correct Part in Three Steps
01 • CHECK THE MACHINE
Confirm your Titan 330 identification and relevant pump or valve configuration.
02 • FIND THE CALLOUT
Locate the component on the exploded pump block drawing.
03 • VERIFY THE OEM NUMBER
Match the part number and check supplied contents and quantity before checkout.
Titan 330 Pump Block Component Reference
Confirm the seal required for your exact valve configuration. The shared callout for 700-721 and 700-897 does not establish that the two O-rings are interchangeable.
Understand the Filtration and Fluid Connections
The 0532360A filter housing contains the filter element. Inspect the housing and its sealing surfaces separately from the element when checking for damage or restrictions.
The 227-006 outlet fitting provides the identified fluid outlet connection. Check the fitting and mating connection when assessing leaks or thread damage, and follow the specified installation method.
Choose the Right Prime-Spray Valve Repair
The Titan 700-258 PrimeSpray Valve Assembly belongs to the priming and fluid-routing system. Use the component breakdown to identify the relevant seal, housing or operating part after diagnosing the fault.
Compare the contents of a replacement assembly with separately ordered service parts. A damaged sealing surface or housing may require a different repair from a worn seal, so inspect the associated components before purchasing.
Inspect the Fluid System Before Replacing Parts
For priming or pressure concerns, inspect the material supply, intake path, filtration and relevant valve operation using the machine’s troubleshooting procedure. Several conditions can produce similar symptoms.
For visible leakage, identify the source before disassembly. Check the seal and its contact surfaces rather than assuming a new O-ring will correct a damaged fitting. Use the specified filter selection and assembly instructions for your equipment and coating.
Before servicing: Follow the manufacturer’s pressure-relief procedure and disconnect electrical power before opening housings, removing fittings or servicing valves. Never loosen a pressurized connection to investigate a leak.
Continue to Related Titan 330 Parts Diagrams
Choose another assembly when inspection identifies a component outside the pump block breakdown.
Order Titan 330 Pump Block Parts with Confidence
Confirm the machine configuration, diagram callout and OEM number before ordering. Have your existing part reference, serial details where available and clear component photographs ready if you need identification assistance.
