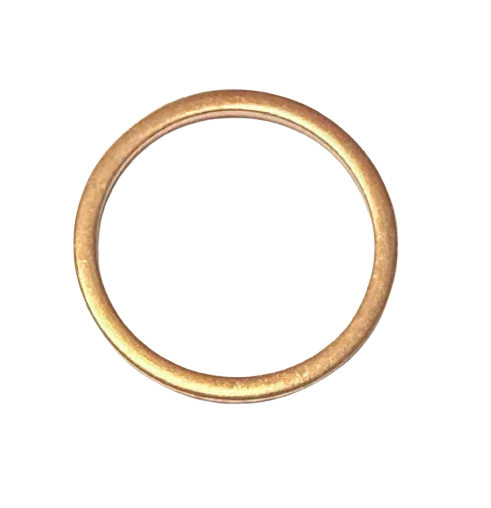

Titan 700-537 Gasket
OEM Titan Sealing Component
Titan 700-537 Gasket is a genuine OEM metal (copper) gasket used in the bypass valve and fluid section assemblies of compatible Titan airless sprayers, creating a fluid-tight seal to prevent leaks and maintain pressure.
Compatibility
Replace if you notice fluid leaks from the prime/spray valve area, pressure loss, or material seepage. Always replace the gasket when the sealed joint is disassembled.
Titan Sealing Component Replacement
Titan 700-537 Gasket for Bypass Valve & Fluid Section Service
Titan 700-537 is a genuine OEM metal (copper) gasket used in the fluid section and bypass (prime/spray) valve assembly of compatible Titan airless sprayers. It creates a critical fluid-tight seal between mating surfaces to prevent leaks, stop material bypass, and maintain consistent operating pressure.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM Titan copper gasket for the bypass valve and fluid section. Listed in the 1200GXC and Epic 690GX manuals as a serviceable gasket. |
| Function | Provides a critical seal between components such as the bypass valve (prime/spray valve) and the pump housing or manifold. Prevents external fluid leaks, stops material bypass, and maintains consistent operating pressure. |
| Compatible Titan Machines | Titan 440IX (primary fit); Titan 330; Titan 440; Titan 540IX; Titan 640IX. Also compatible with a very broad range of models including the 340, 400, 410, 440E, 447EX, 450, 550XC, 600, 660EX, 740, 840, 1040, 1100XC, 1140IX, 1200GXC, 2800, 3100, Epic, and Helix series. Always confirm fitment using your exact model's parts diagram and serial number. |
| OEM Part Number | 700-537 Gasket (Copper). Bedford Precision cross-reference: 10-2109. |
| Replacement Indicators | Fluid leaks from the prime/spray valve area; pressure loss; material bypass from the return hose when in SPRAY mode; visible fluid seepage around the valve or fluid section; hardened, cracked, or compressed gasket. |
| Related Parts Commonly Serviced Together | Bypass Valve Seat (800-910); O-Ring (700-721); Bypass Cam Base (0507735); Relief Valve Knob (0507662); Teflon p-ring. |
| Common Problems Solved | Restores leak-free sealing, prevents fluid loss and pressure instability, improves priming, and extends equipment service life. |
| Why Genuine OEM | Exact material (copper) and dimensions ensure proper compression and sealing. A damaged or incorrect gasket can cause persistent leaks and pressure loss. |
Service guidance: When replacing, carefully clean both mating surfaces. Use the correct torque specifications for fasteners. Always replace the gasket whenever the sealed joint is disassembled to ensure a proper seal. The metal gasket may require pliers during installation.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
