Titan 330 Motor Assembly Parts – OEM Parts by Diagram
Shop genuine Titan 330 Motor Assembly Parts using the exploded motor diagram and Titan OEM part numbers. Identify the 700-040 Motor Brush by its numbered callout, confirm the application and select the replacement component required for your motor service.
Identify the Correct Titan 330 Motor Component

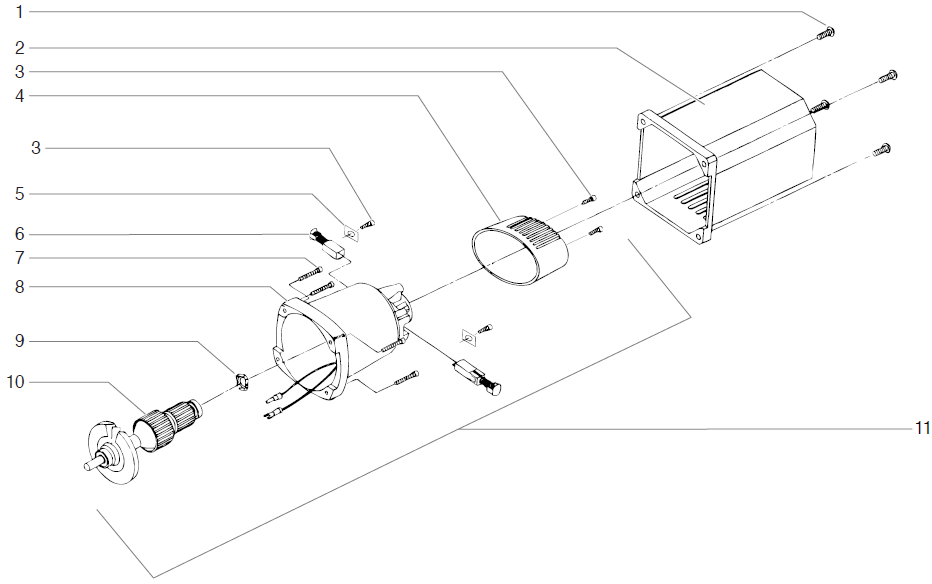

The motor assembly breakdown connects the component’s position in the drawing with its ordering reference. Use the numbered diagram to identify the motor brush, then match the callout to the Titan part number before selecting your replacement.
Motor servicing should address the diagnosed fault. Confirm brush condition and the motor’s overall service requirements before deciding whether an individual component or a more extensive repair is appropriate.
Select Your Replacement in Three Steps
01 • CONFIRM THE MACHINE
Check the Titan 330 model identification and motor configuration on your equipment.
02 • LOCATE THE CALLOUT
Identify the motor brush at reference 6 in the exploded motor assembly drawing.
03 • MATCH THE OEM NUMBER
Confirm part number 700-040 and review package contents and required quantity before checkout.
Titan 330 Motor Brush Reference
Use the component reference together with your motor identification to confirm the correct application.
How the Motor Brush Supports Motor Operation
The motor brush provides electrical contact with the rotating commutator. Its condition matters when assessing the motor’s ability to start and run correctly. Wear, damage or restricted brush movement can warrant attention during motor inspection.
Replacing a worn brush is appropriate when inspection confirms that it is the required repair. The condition of the contact surface and associated motor components should also be assessed according to the applicable service instructions.
Confirm the Motor Application Before Ordering
Choose the specified OEM number for your machine and motor. Similar brush dimensions or another Titan model name do not establish compatibility. If the motor has been replaced or its identification differs from the expected configuration, resolve the fitment question before purchasing.
Motor Symptoms and Inspection Priorities
Use symptoms to guide diagnosis, then identify the service component. Have a qualified technician investigate electrical faults.
Service safety: Follow the manufacturer’s pressure-relief procedure, disconnect electrical power and follow the applicable service instructions before opening the equipment.
Continue to the Assembly Your Repair Requires
For components outside the motor brush breakdown, select the relevant Titan 330 parts section.
Order Titan 330 OEM Motor Service Parts
Match your motor diagram callout to the Titan OEM number and choose the component required for your repair. For fitment assistance, have your machine details, motor identification and existing part reference ready.
Call 713-931-0006 for Parts HelpTitan 330 Motor Assembly Parts FAQ
