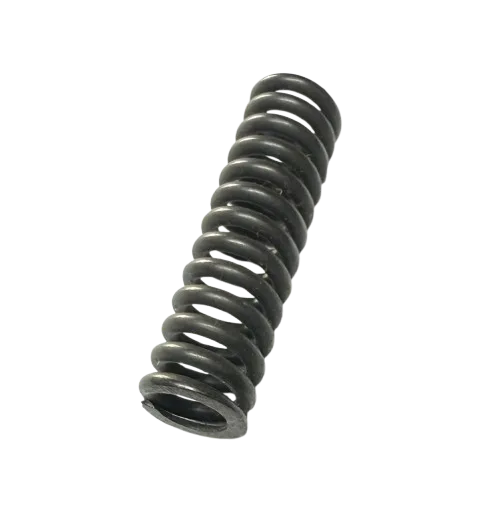

Titan 700-244 Spring
OEM Titan Mechanical Component
Titan 700-244 Spring is a genuine OEM prime/spray valve spring that provides the return force for the bypass valve stem in the filter block assembly of compatible Titan airless sprayers, ensuring proper mode switching between prime and spray functions.
Compatibility Overview
Replace if the spring is weakened, sagged, broken, corroded, or if the prime/spray valve fails to return properly or operates inconsistently.
Titan Mechanical Component Replacement
Titan 700-244 Spring for Prime/Spray Valve and Filter Block Service
Titan 700-244 is a genuine OEM prime/spray valve spring engineered to provide the precise return force required for the bypass valve stem in the filter block assembly of compatible Titan airless sprayers. Official Titan documentation for the 1200GXC identifies it as the "Spring" (item #16) in the Filter Block Assembly, and Bedford Precision cross-references confirm its specific function as the "Spring, prime/spray valve" across a broad range of Titan platforms [citation:2][citation:1]. This spring ensures the valve stem returns to its correct position after actuation, enabling reliable switching between prime (recirculation) and spray (high-pressure) modes.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM prime/spray valve spring for compatible airless sprayers. Provides return force for the bypass valve stem in the filter block assembly. |
| Function | Provides calibrated spring force to return the bypass valve stem to its correct position after the handle is actuated. Ensures reliable switching between PRIME mode (recirculation) and SPRAY mode (high-pressure delivery). Maintains proper valve seating and prevents leakage. |
| Compatible Airless Sprayers | 330, 340, 440 i, 440 XC, 550 XC, 640 i, 660 XC, 690 GXC, 1100 XC, 1200 GXC. |
| Compatible Epic / Performer Models | Epic 447HPX, Epic 660HPX, Epic 1200 HPG; Performer 640 i Airless Sprayer. |
| Compatible PowrLiner / RentSpray Models | PowrLiner 3100; RentSpray Plus. |
| OEM Part Number | 700-244 Spring. |
| Replacement Indicators | Spring appears weakened, sagged, or compressed; visible corrosion, rust, or pitting; broken or fractured coils; prime/spray valve fails to return properly; inconsistent mode switching or valve handle feels loose. |
| Related Parts Commonly Serviced Together | Bypass Valve Stem, Bypass Valve Housing (800-924), Bypass Cam, Groove Pin, Bypass Valve Handle, O-Rings (700-721, 221-012). |
| Common Problems Solved | Restores proper valve return action, eliminates mode switching failures, ensures consistent prime/spray function, and prevents leaks caused by a valve stem that does not seat properly. |
| Why Genuine OEM | Exact wire diameter, coil count, free length, and spring rate ensure proper calibrated force for reliable valve operation. A low quality or incorrect spring may be too weak to return the valve, too stiff to actuate properly, or corrode prematurely. |
During service of the prime/spray valve, inspect the 700-244 spring for weakness, corrosion, or breakage. Replace if compromised. Always relieve system pressure before disassembling the valve. Ensure the spring is properly seated during reassembly and that the valve stem moves freely through its full range of motion.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
