Titan 550xc Replacement Parts for Your Next Repair
Keep your Titan 550xc Airless Sprayer ready for service with genuine Titan OEM replacement parts. Explore dedicated assembly diagrams to identify components, compare part numbers and build an accurate parts order for your equipment.
Make Your Parts Search Easier
Start with the assembly containing the component you need. Follow its numbered diagram to the parts list, then check the orderable part number against your sprayer’s documentation. Keep your model and serial number nearby, especially when selecting electrical components or frame parts.
Identify the Configuration
Check whether your sprayer has a Low Rider frame, High Rider frame or skid base.
Choose an Assembly
Use the links below to open the relevant diagram and component list.
Match the Reference
Match the diagram callout to the Titan part number. A diagram position is not an ordering number.
Review the Listing
Confirm fitment, quantity, replacement-number notes and included contents before purchasing.
Shop Titan 550xc Parts by Assembly
Motor Assembly

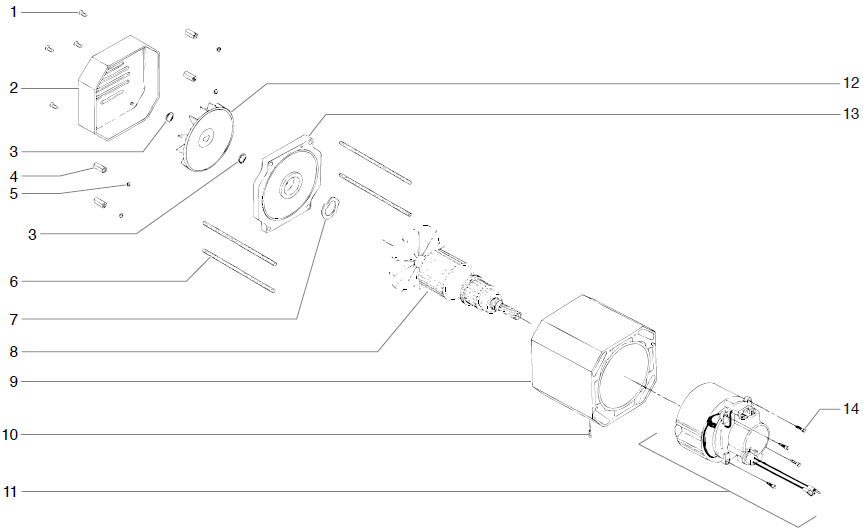

Find listed motor-area components, including the rear cover, rear motor housing and lock washer. Compare the diagram with the installed motor before selecting a replacement.
Browse Motor Assembly PartsGear Box Assembly

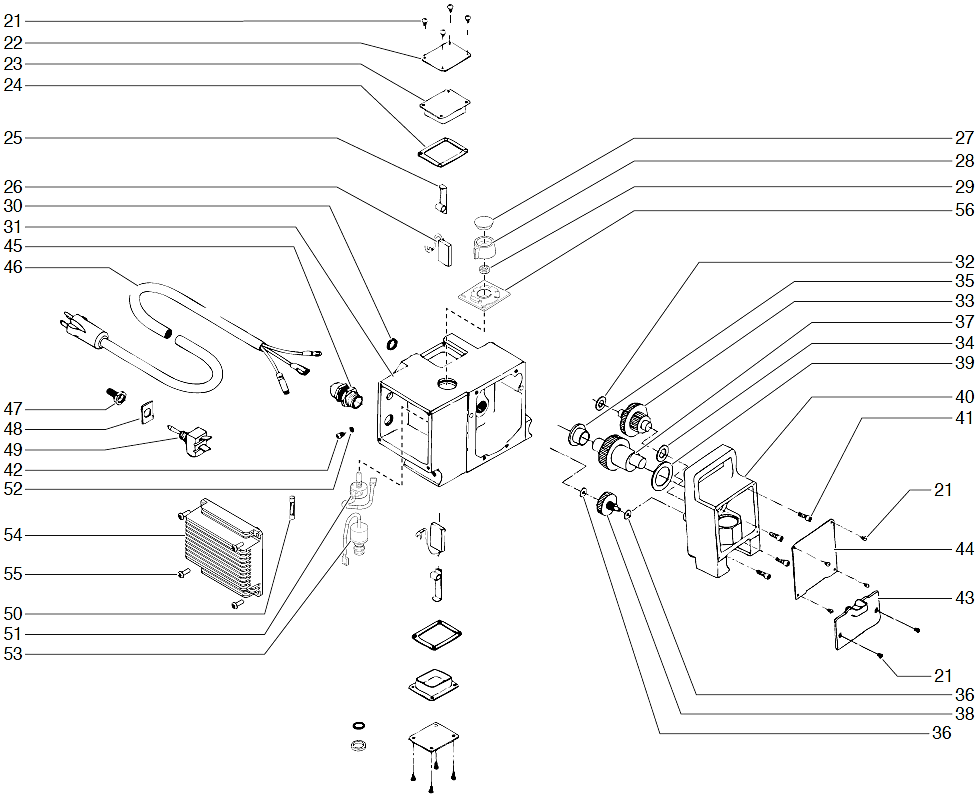

Consult the gearbox diagram to locate the required component and its ordering reference. Check applicable configuration notes before choosing drive or control-related parts.
Browse Gear Box PartsFluid Section Assembly
Use the fluid section diagram when planning pump service. Confirm the installed pump and individual component references before ordering replacement parts.
Browse Fluid Section PartsSiphon Assembly

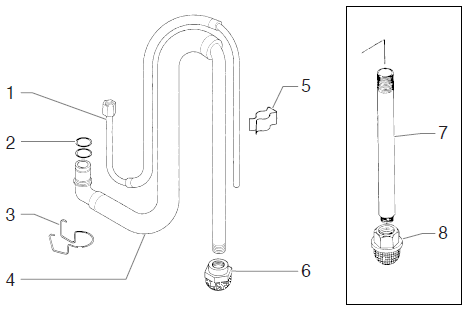

Explore the siphon assembly referenced as P/N 700-1025. Verify the required component, connections and listed contents against your existing intake arrangement.
Browse Siphon Assembly PartsFilter Block Assembly
Locate filter-block components using the dedicated diagram. Review each product’s part number and specifications when selecting a replacement.
Browse Filter Block PartsLow Rider Frame Assembly

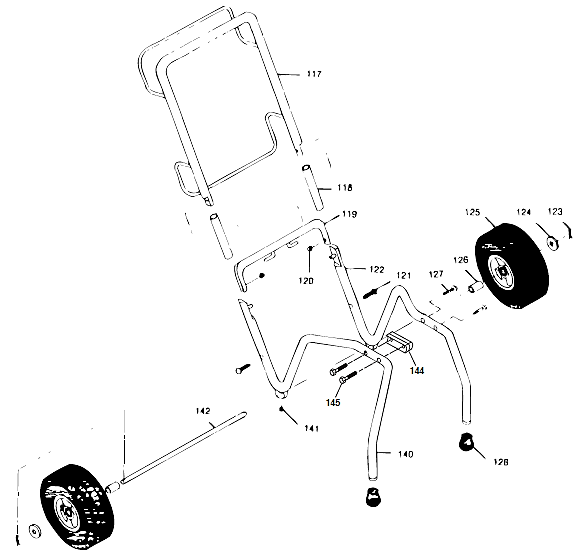

Check the Low Rider frame listing for components associated with this configuration. Match the frame and mounting references to your machine.
Browse Low Rider Frame PartsHigh Rider Frame Assembly
Find the High Rider frame category referenced as P/N 702-125. Confirm your installed frame before selecting its replacement components.
Browse High Rider Frame PartsSkid Assembly
Use the skid diagram to identify components for the skid-mounted configuration. Check diagram references and required quantities before ordering.
Browse Skid Assembly PartsAirless Sprayer Accessories
Review the dedicated accessories listing. Verify each accessory’s connection requirements and suitability for your equipment before purchasing.
Browse 550xc AccessoriesA Practical Guide to Ordering Replacement Parts
| Check Before Ordering | Why It Matters |
|---|---|
| Model and serial number | Help identify the applicable parts documentation and equipment version. |
| Installed assembly and frame type | Guide selection between configuration-specific components. |
| Titan part number | Provides a more reliable ordering reference than appearance alone. |
| Package contents and quantity | Clarify which components are included and which require separate purchases. |
An exploded diagram illustrates component locations and relationships. It does not establish that every illustrated item is included in one assembly or kit purchase.
Featured Motor Component: Titan 765-032 Rear Cover
Titan 765-032 Rear Cover is listed in the 550xc motor assembly catalog. When replacing this component, compare the diagram reference and installed motor configuration before ordering.
View Titan 765-032 Rear CoverPrepare for Accurate Repairs
Inspect and diagnose the equipment using the applicable Titan manual before choosing replacement parts. Changes in pressure, priming or spray output can have several causes; a symptom alone does not identify the component that needs replacement.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before service. Follow the manual’s instructions for disassembly, cleaning, reassembly and inspection. Use a qualified technician for repairs beyond your training.
Confirm cross-model compatibility by part number and applicable documentation. Similar model names, frame styles or component shapes do not establish interchangeability.
Find the Parts Your 550xc Needs
Open an assembly above to begin your parts search. For help confirming a component, have your model, serial number, configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
