Shop Titan 550xc Low Rider Frame Assembly Parts
Find service components for the Titan 550xc Low Rider Frame Assembly. Browse the listed hexagonal washer cap screw and boot, compare each component with your installed arrangement, and select the correct replacement for your equipment.
Find Your Low Rider Replacement Component

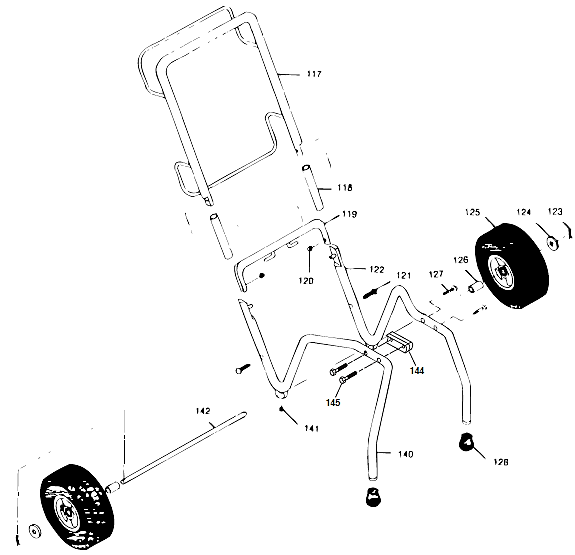

Identify the damaged or missing component before ordering. Use the assembly drawing to confirm its position, then review the individual listing for supplied contents and required quantity.
Titan 0509550 is the fastener listed at diagram position 127. Match the specified screw to the correct attachment point before replacement.
Shop Titan 0509550 Washer Cap ScrewTitan 710-047, also displayed as 710047, is the boot listed at diagram position 128. Confirm its installation location and fit before ordering.
View Titan 710-047 BootLow Rider Frame Parts Reference
Check package contents: These individual service listings do not establish that a complete frame, wheel arrangement or additional mounting hardware is included. Diagram positions identify components rather than order quantities.
Confirm Your Frame Configuration Before Buying
Record your sprayer model and serial number, then confirm that you are using the Low Rider assembly breakdown. Compare the installed component with the drawing and individual part number before adding a replacement to your cart.
Inspect the surrounding attachment area when replacing hardware. A new screw cannot correct damaged mating threads, a distorted mounting point or a structural problem. Have those conditions assessed before reassembly.
If your sprayer has been modified or previously repaired, provide photographs of the installed arrangement when requesting help. Similar appearance alone is insufficient to confirm compatibility.
Inspect the Frame and Service Components
Check the equipment when mounting hardware is missing, a component is loose or visible damage is present. Identify the cause before selecting replacements and confirm that the supporting structure remains serviceable.
Inspect the screw and attachment point for damaged threads, corrosion or deformation.
Check for damage, displacement or a missing component. Follow the specified installation arrangement.
Have cracks, distortion or damaged connections assessed before returning the equipment to use.
Before service: Relieve system pressure, disconnect power and support the equipment securely. Follow the specified handling, tightening and assembly instructions. Do not operate equipment with an unstable or damaged frame.
Explore Other Titan 550xc Repair Sections
Use the model overview to locate additional service components or open the relevant assembly for pump and motor repairs.
Titan 550xc Low Rider Frame Assembly FAQ
Review these component-selection questions before ordering.
Does an individual part listing include the complete Low Rider frame?
No complete frame should be assumed from an individual service listing. Review the product contents and request assistance if you need a larger assembly.
How do I confirm the correct screw?
Match the individual part number and attachment location in the assembly drawing. Check the mating threads and use the specified installation procedure.
Will new hardware repair a damaged frame?
Replacement hardware does not correct structural damage. Have cracked, bent or damaged frame areas assessed before operation.
Are Low Rider and High Rider parts interchangeable?
Do not assume interchangeability. Confirm the same component number in the correct assembly breakdown for your sprayer configuration.
What information should I provide for parts assistance?
Provide the sprayer model, serial number, frame configuration and existing part number, along with a clear photograph when available.
Need Help Matching Your Low Rider Part?
Have your equipment details and component information ready so we can help identify the correct replacement before you order.
Call 713-931-0006 for Parts Help
