Titan 550xc Motor Assembly Parts for Targeted Repairs
Shop Titan 550xc Motor Assembly service components by part number and diagram position. Find the rear cover, lock washer and rear motor housing for this sprayer category, then match the required component to your equipment before ordering.
Find the Motor Component You Need

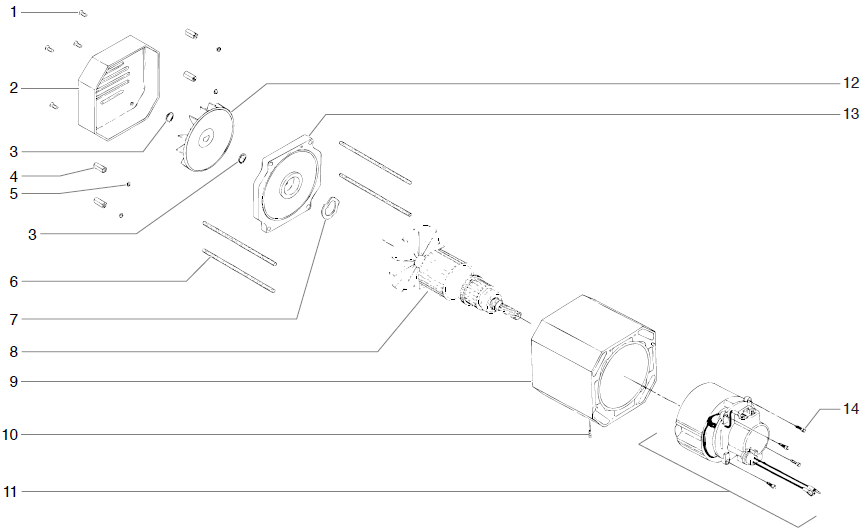

Use the numbered drawing alongside the product listings. Diagram positions identify components; they do not indicate the quantity supplied with an order.
Rear Cover
Select Titan 765-032 for the rear cover shown at diagram position 2. Compare the existing cover and its attachment points before replacement.
View Titan 765-032 Rear CoverLock Washer
Titan 0533449 is the lock washer at diagram position 5. Match the washer to the specified fastening location and check the associated hardware.
Shop Titan 0533449 Lock WasherRear Motor Housing
Titan 765-029 identifies the rear motor housing at diagram position 13. Confirm that the housing is the component required for your repair.
Find Titan 765-029 Rear Motor HousingMotor Assembly Parts Reference
Check package contents: A rear cover, washer or housing listing does not establish that a complete motor, electrical components or additional mounting hardware is included.
Confirm the Repair Before Buying
Record your sprayer model and serial number, identify the damaged component and compare its location with the assembly drawing. Check the individual product description for supplied contents and confirm the quantity needed.
A cracked cover or damaged housing can require a mechanical replacement. Starting difficulties, unusual noise or interrupted operation require diagnosis before selecting parts. Replacing an external component alone does not confirm that an underlying motor fault has been corrected.
Before service: Follow the sprayer pressure-relief procedure and disconnect the electrical supply. Have electrical faults and internal motor repairs assessed by a qualified service technician.
Explore Related Titan 550xc Assemblies
Locate parts in the assembly that matches the repair area. Use the model overview when you need to compare several sections of the sprayer.
Titan 550xc Motor Assembly FAQ
Get answers about component selection, package contents and repair planning.
Does this category sell a complete replacement motor?
The displayed listings are individual service components. Contact us to confirm a complete motor option for your exact sprayer configuration.
How do I choose the correct component?
Match your sprayer model, the diagram position and the individual part number. Provide the serial number when requesting fitment assistance.
Are mounting screws included with a cover or housing?
Check the individual listing contents before ordering. Do not assume screws, washers or other hardware are supplied with a cover or housing.
Will a new rear cover fix a motor that will not start?
A replacement cover does not diagnose a starting fault. Have the cause assessed before purchasing motor or electrical components.
Can I use these parts on another Titan model?
Confirm the same part number in the assembly breakdown for the other model. Similar appearance alone is insufficient to establish compatibility.
Get Help Matching Your Motor Assembly Part
Have your model, serial number and damaged component details ready for assistance choosing the correct replacement.
Call 713-931-0006
