Shop Titan 550xc Gear Box Assembly Parts
Find Titan 550xc Gear Box Assembly replacement components for planned maintenance and diagnosed repairs. Browse the pinion gear, thrust washers, pressure adjustment components and associated hardware, then match the individual part number to your sprayer configuration.
Choose Parts by Repair Area
Identify whether the repair involves the mechanical drive, the pressure adjustment mechanism or supporting hardware. This helps you select the correct component without confusing separate parts with a complete assembly.
Pinion Gear
Titan 765-046 is the pinion gear listed in this assembly category. Confirm the required gear before ordering and have the surrounding drive components inspected during repair.
Shop Titan 765-046 Pinion GearPressure Control Knob
Titan 700-159 replaces pressure control knob 507740. Check the knob and its connection to the adjustment mechanism when the original component is damaged or missing.
View Titan 700-159 Control KnobPotentiometer Assembly
Titan 700-158 is listed as the replacement for potentiometer assembly 507973. Confirm the component through the correct assembly breakdown before purchasing.
Find Titan 700-158 Potentiometer AssemblySelected Gear Box Assembly Components

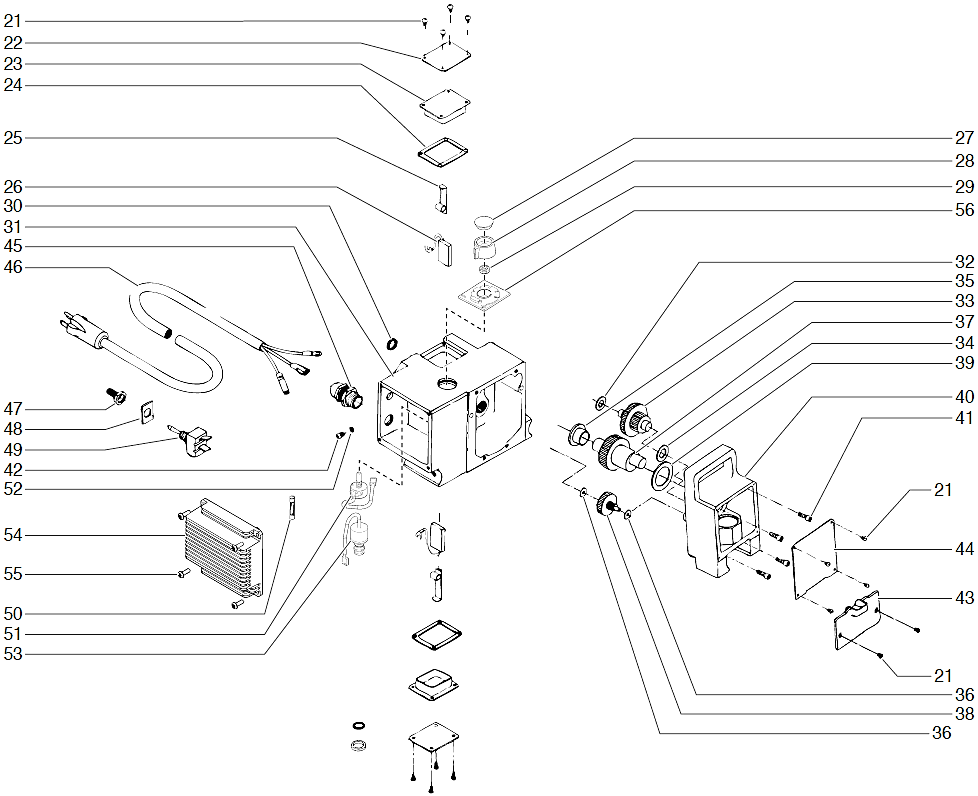

Use these part numbers as a selection reference alongside the drawing and individual product listings.
Order by individual part number: Grouped numbers above identify separate products. Do not assume the thrust washers are interchangeable or supplied together.
Match the Component Before Ordering
Start with the model and serial number on your sprayer. Locate the component in the assembly drawing, compare its part number and check the required quantity. A diagram callout identifies a position rather than the number of pieces included in a purchase.
Review the product contents before adding an item to your cart. A gear, washer, knob or mounting component should be treated as an individual replacement unless its listing expressly includes additional parts.
If the existing part number differs from the current listing, confirm the replacement relationship before ordering. Similar dimensions or appearance alone do not establish a correct fit.
Plan the Repair Around a Confirmed Diagnosis
Unusual drive noise, interrupted operation or difficulty adjusting pressure can have several causes. Have the affected system inspected before deciding which component to replace. A new pressure knob does not establish that an internal control fault has been repaired.
Have gear engagement, associated washers and mounting conditions checked during drive repairs.
Identify whether the problem involves the external knob or another part of the control system.
Check for missing or damaged hardware and follow the specified installation order.
Service preparation: Follow the sprayer pressure-relief procedure and disconnect power before opening the equipment. Use the specified lubrication, assembly and service instructions. Electrical diagnosis and internal repairs should be performed by a qualified technician.
Continue Your Titan 550xc Parts Search
Use the model overview to locate other repair areas, or open the appropriate assembly category for motor and pump components.
Titan 550xc Gear Box Assembly FAQ
Review these selection and repair questions before purchasing.
Does an individual listing include the complete gear box assembly?
Check the individual product contents. A separately listed component does not imply that a complete gearbox, motor or control system is included.
Can I replace only the damaged component?
An individual replacement may be appropriate after inspection confirms the fault and the condition of associated parts. Follow the service procedure for the repair.
Are the different thrust washers interchangeable?
Do not assume interchangeability. Match each washer to its specified part number and position in the assembly.
Does unstable spray pressure prove that the gearbox is damaged?
No. Pressure problems require diagnosis across the relevant sprayer systems. Confirm the cause before purchasing drive or control components.
What information should I provide for fitment help?
Provide your sprayer model, serial number, existing part number and the diagram position or a clear photograph of the component.
