Shop Titan 550xc Fluid Section Assembly Parts
Find Titan 550xc Fluid Section Assembly parts for pump inspection, sealing repairs and component replacement. Browse packings, piston components, pump housings and valve parts, then match the correct item to your sprayer and the repair you need to complete.
Choose Fluid Section Parts by Repair Area
Locate the affected area before selecting parts. A sealing repair, piston replacement and valve repair can require different components, even when the operating symptoms appear similar.
Titan 700-603A is the upper packing assembly listed for this fluid section. Confirm the required packing before beginning pump service.
Shop Titan 700-603A Upper PackingSelect Titan 700-601A when the lower seal assembly is required. Review the individual contents and any additional parts needed for the repair.
View Titan 700-601A Lower SealTitan 704-560 is the listed piston assembly. Check its supplied contents before deciding between an assembly and individual piston components.
Find Titan 704-560 Piston AssemblyFluid Section Part Number Reference

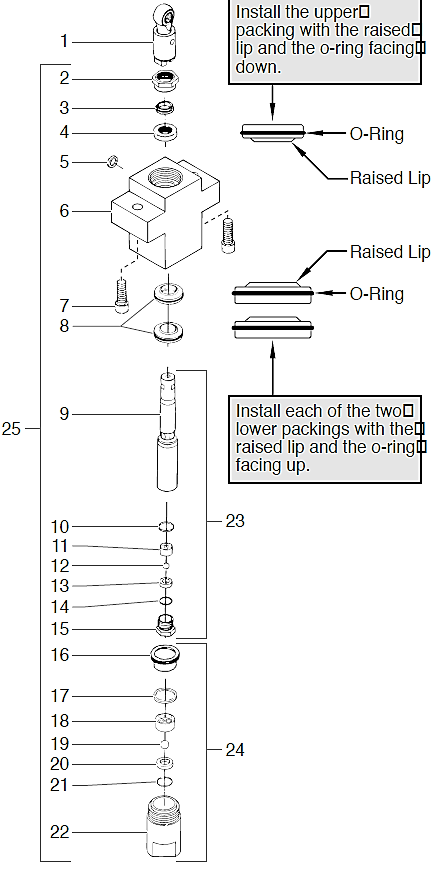

Compare these selected components with the numbered drawing and your existing pump configuration.
Confirm what is included: A piston rod, packing assembly or valve component does not automatically include a complete fluid section. Review each product listing before ordering.
Match Your Pump Parts Before Purchase
Record the sprayer model and serial number, identify the component in the assembly drawing and compare the individual part number. Check whether the pump has previously been repaired or changed, as the installed configuration may require additional verification.
Decide which parts are needed after inspection. Replacing seals without checking the surfaces they contact can leave the cause of a recurring problem unresolved. Likewise, a valve repair should account for the condition of the associated components.
Check package contents and required quantities before checkout. Diagram positions identify component locations rather than the quantity supplied. If you are unsure whether an individual part or a larger assembly suits your repair, request assistance with your equipment details.
Inspect the Fluid System Before Selecting Replacements
Difficulty priming, reduced delivery or visible leakage requires inspection rather than an assumed diagnosis. Follow the troubleshooting procedure for your sprayer to identify the repair area before buying replacement parts.
Locate the source of leakage and inspect the affected seals and adjoining surfaces.
Have piston components and their contact surfaces assessed during pump disassembly.
Check for contamination or damage using the specified valve inspection procedure.
Service preparation: Relieve system pressure and disconnect power before removing pump components. Follow the specified seal orientation, lubrication, tightening and testing instructions. Have repairs completed by a qualified technician when needed.
Explore Other Titan 550xc Repair Sections
Continue through the model overview when your repair involves additional areas of the sprayer.
Titan 550xc Fluid Section Assembly FAQ
Review these questions about pump repair planning and component selection.
Can I replace individual fluid section parts?
Individual replacement may be appropriate when inspection confirms the fault and the remaining components are serviceable. Follow the repair procedure for your pump.
Does a packing assembly include every part needed for a pump rebuild?
Do not assume a packing assembly includes all rebuild components. Review its contents and identify any additional worn parts before ordering.
Are a piston rod and a piston assembly the same purchase?
Treat them as separate listings. Compare the supplied contents to determine which option matches your repair.
Does difficulty priming mean the packings need replacement?
Difficulty priming alone does not identify a packing fault. Follow the sprayer troubleshooting procedure to establish the cause before replacing components.
How can I confirm the correct replacement?
Match the sprayer model, serial number, assembly drawing and individual part number. Provide photographs or details of previous pump changes when requesting help.
Get Help Matching Your Fluid Section Parts
Have your sprayer details and existing component number ready so we can help you select the appropriate replacement.
Call 713-931-0006 for Parts Assistance
