Shop Titan 550XC Filter Block Assembly Parts

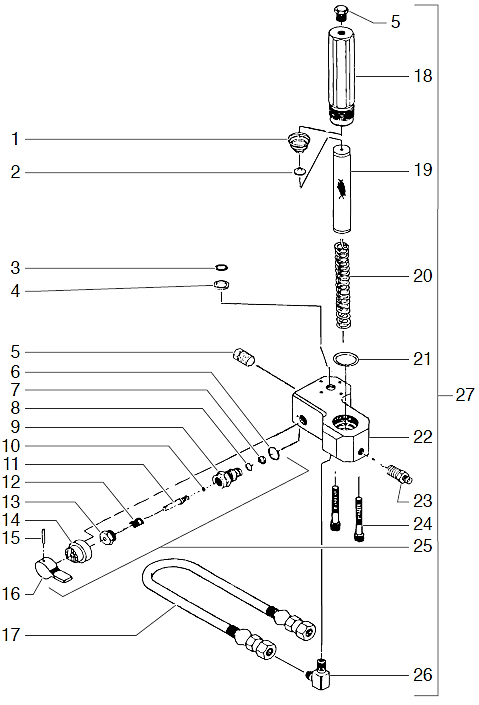

The 550XC Filter Block Assembly is a precision-engineered fluid management component designed to support reliable filtration and controlled bypass operation in high-performance spray and fluid-handling systems. Built around a robust block architecture, the assembly integrates critical sealing, retention, and pressure-management components to ensure consistent flow, leak prevention, and long service life under demanding operating conditions.

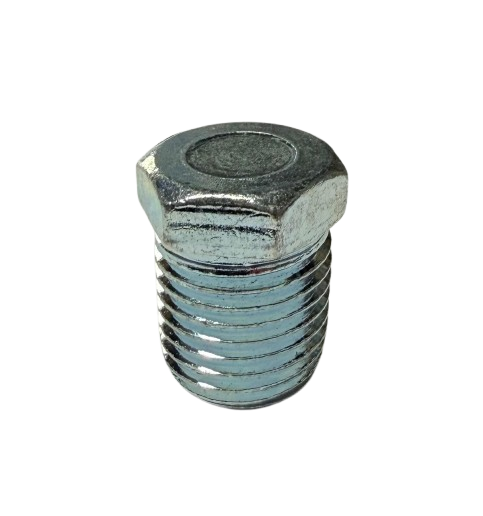

This assembly incorporates the Titan 800-924 Bypass Housing, which regulates fluid flow during pressure spikes or filter restriction, protecting downstream components from damage. Sealing integrity is maintained through the Titan 221-012 Viton O-Ring, selected for its excellent chemical resistance and durability in solvent- and coating-compatible environments. The Titan 227-027 Pipe Plug provides a secure, leak-resistant closure for service ports, while the Titan 700-759 Groove Pin ensures precise component alignment and mechanical retention within the block.
Designed for serviceability and reliability, the 550XC Filter Block Assembly is well-suited for professional-grade equipment where uptime, pressure stability, and fluid cleanliness are critical.
FAQs
-
What is the primary function of the 550XC Filter Block Assembly?
The assembly manages fluid filtration and bypass flow, helping maintain consistent system pressure while protecting pumps, hoses, and spray components from debris-related damage or overpressure conditions. -
Why is a Viton O-ring (Titan 221-012) used in this assembly?
Viton O-rings offer superior resistance to chemicals, solvents, heat, and wear, making them ideal for high-demand fluid systems where standard elastomers may degrade prematurely. -
What role does the Titan 800-924 Bypass Housing play?
The bypass housing allows fluid to reroute when the filter becomes restricted or pressure exceeds a set threshold, preventing system strain and reducing the risk of component failure. -
Is the Titan 227-027 Pipe Plug a serviceable component?
Yes. The pipe plug can be removed and reinstalled during routine maintenance or inspection, provided proper sealing practices are followed to maintain leak-free operation. -
Why is a groove pin (Titan 700-759) used instead of a threaded fastener?
Groove pins provide reliable alignment and vibration-resistant retention without loosening over time, making them ideal for internal positioning and structural stability within the filter block assembly.
