Shop Titan 550xc High Rider Frame Parts for 702-125
Find service components for the Titan 550xc High Rider Frame Assembly (P/N 702-125). Browse replacement screws, an end cap and a plug, then match each component to its position in your frame arrangement before ordering.
Find the Frame Component You Need
Identify the missing or damaged component first. Compare the fastening location or frame opening with the drawing, then select the corresponding part number.
Titan 700-069 is the screw at diagram position 4. Check the mating connection and required quantity before purchase.
Shop Titan 700-069 ScrewTitan 700-674 identifies the end cap at diagram position 11. Match the cap to the designated frame location.
View Titan 700-674 End CapHigh Rider Frame Parts Reference

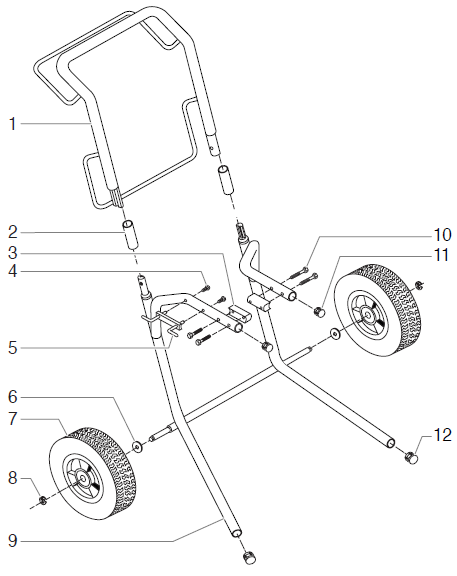

Use this reference alongside the numbered drawing. Diagram positions identify locations rather than quantities supplied.
Check the supplied contents: A screw, end cap or plug does not include a complete frame. Confirm larger assembly requirements separately.
Match Your High Rider Configuration Before Ordering
Record the model and serial number on your sprayer and confirm that it has the High Rider frame arrangement. Check the component location and individual part number before selecting a replacement.
When replacing a fastener, inspect the mating threads and connected parts. A new screw alone may not resolve a damaged connection. For caps and plugs, check the receiving opening and confirm that the replacement seats correctly.
Review the quantity and contents on each product listing. If previous repairs have changed the frame arrangement, provide photographs when requesting assistance. Do not assume that High Rider, Low Rider and skid components share the same fitment.
Inspect the Frame Before Returning the Sprayer to Use
Check for loose connections, missing hardware, damaged closures and visible frame deformation. Identify the cause of movement or instability before choosing replacement parts.
Inspect screws and mating connections for damage. Follow the specified tightening instructions.
Check for missing, cracked or loose closures. Inspect the opening before installing a replacement.
Have bent sections or damaged mounting areas assessed. Replacement closures do not repair structural damage.
Service preparation: Relieve system pressure, disconnect power and support the equipment securely before frame work. Follow the sprayer handling instructions and do not operate or transport equipment with an unstable frame.
Explore Other Titan 550xc Service Sections
Open the model overview or the appropriate repair section when your service work includes additional components.
Titan 550xc High Rider Frame Assembly FAQ
Review these questions before selecting frame service components.
What does P/N 702-125 identify on this page?
It identifies the High Rider frame assembly covered by this category. Select each service component using its individual part number.
Does a listed frame component include the entire frame?
Do not assume an individual component includes a complete frame. Review the product contents and request assistance for larger assembly requirements.
Will replacing a plug correct frame instability?
A plug replacement does not establish that an instability problem has been repaired. Inspect the frame and its connections to identify the cause.
Are High Rider parts interchangeable with Low Rider parts?
Confirm each component by part number and assembly position. Similar appearance alone does not establish compatibility between frame configurations.
What information helps confirm the correct replacement?
Provide the sprayer model, serial number, frame configuration, existing part number and a clear photograph or diagram position.
Need Help Matching Your High Rider Frame Part?
Have your sprayer details and component information ready so we can help you select the correct replacement.
Call 713-931-0006 for Parts Assistance
