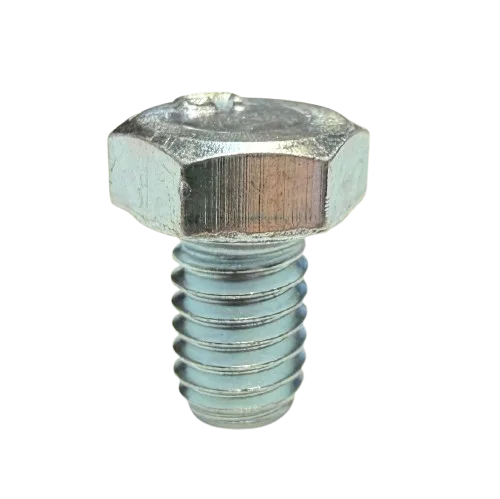

Part number 710-033 is a pail bracket bolt. This is a specific fastener used to secure the pail support bracket to the frame of compatible airless sprayers. It is compatible with numerous models including 440 IX, 540 IX, 550 XC, 640 i/IX, 660 XC, 690 GXC, 740 i/IX, 1100 XC, Advantage series, Elite series, Epic series, Impact series, RentSpray series, and SprayTech GPX 85. The bolt ensures the material pail or container is held securely in place during operation.
| Part Number | 710-033 |
|---|---|
| Part Description | Pail Bracket Bolt |
| Condition | New |
Part number 710-033 is a pail bracket bolt. This is a specialized threaded fastener designed to attach the metal bracket that holds the 5-gallon (or similar) material pail to the main frame of the sprayer. It is a critical, though small, component that ensures the heavy container of paint or coating remains stable and does not detach during transport or operation.
This bolt is used across a wide array of sprayer models from various series, including the 440 IX, 540 IX, 550 XC, 640 i/IX, 660 XC, 690 GXC, 740 i/IX, 1100 XC, Advantage (400, 500, 600, GPX 85), Elite (E15, G40), Epic (447HPX, 1200 HPG), Impact (400, 410, 440 service, 640 I/IA, 640), RentSpray (500, 600, 600 Impact, 650, Plus), and SprayTech GPX 85. A missing or loose bolt can allow the pail bracket to detach, creating a safety hazard and operational failure.
| Bracket Attachment | Securely fastens the pail support bracket to the sprayer's frame or cart. |
|---|---|
| Load Bearing | Designed to handle the weight and dynamic forces of a full material pail. |
| Safety | Prevents the bracket and pail from separating from the sprayer, which could cause injury or spillage. |
| Alignment | Helps maintain the correct position of the bracket for easy pail placement and removal. |
| Missing | Bolt is lost or was not reinstalled during previous service. |
|---|---|
| Stripped Threads | Threads on the bolt or in the receiving hole are damaged and will not hold torque. |
| Corroded or Sheared | Bolt is rusted beyond cleaning or has broken under stress. |
| During Bracket Service | Whenever the pail bracket is removed for any reason, a new bolt is recommended for reassembly. |
Pail bracket bolt 710-033 is a standard hardware component used across many airless sprayer models. The following is a partial list of compatible equipment.
| Compatible Sprayer Models (Partial List) |
|---|
| 440 IX Airless Sprayer |
| 540 IX Airless Sprayer |
| 550 XC, 660 XC, 690 GXC, 1100 XC Airless Sprayers |
| 640 i, 640 IX, 740 i, 740 IX series |
| Advantage 400, 500, 600, GPX 85 |
| Airless Sprayer1200 GXC |
| Elite E15, Elite G40 |
| Epic 447HPX, Epic 1200 HPG |
| Impact 400, 410, 440 service, 640 I/IA, 640 |
| RentSpray 500, 600, 600 Impact, 650, Plus |
| SprayTech GPX 85 |
When servicing the pail bracket assembly, these components are often involved.
The main metal bracket that holds the pail; inspect for cracks or deformation.
Hardware used with the bolt to distribute load and prevent loosening.
Components that run into the pail, often accessed by removing the bracket.
