Titan RentSpray Plus Airless Sprayer Parts
Find replacement components for your Titan RentSpray Plus Airless Sprayer at AllTitanParts. Browse motor, gear box, fluid section, suction set, stand, low rider, high rider and siphon tube assemblies. Compare individual component references with the appropriate parts diagram before selecting items for maintenance or repair.
Find the Right RentSpray Plus Replacement Components
The Titan RentSpray Plus Airless Sprayer uses interconnected motor, drive and fluid-handling assemblies to support pressurized coating application. Its individual components must be correctly matched when servicing the equipment or replacing worn parts.
AllTitanParts organizes the RentSpray Plus parts catalog into dedicated assembly categories. These sections help equipment owners, painting contractors and service technicians identify components by their illustrated locations and associated part references.
Before purchasing, determine which assembly requires attention, identify the specific component and review the product listing. Confirm whether the item is supplied individually or as part of a larger assembly.
Shop Titan RentSpray Plus Parts by Assembly
Select the assembly that matches the area of your sprayer requiring service. Each category provides a more focused starting point for finding replacement components.

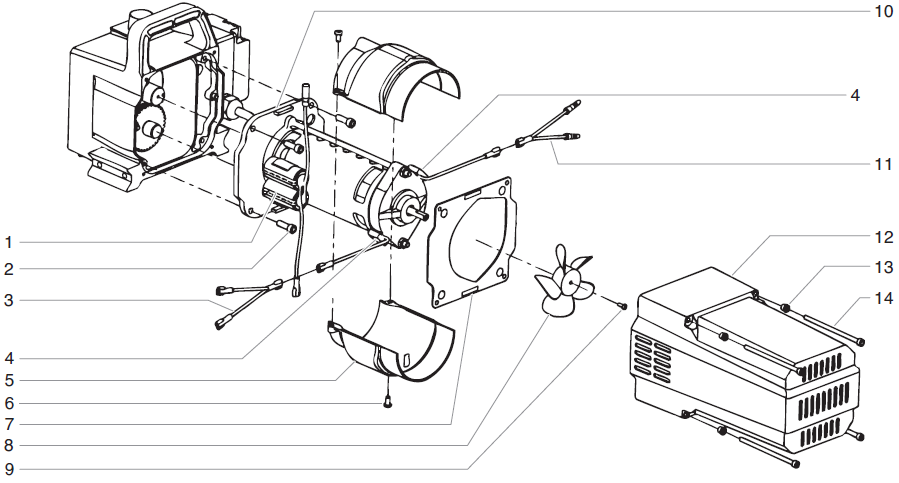

Motor Assembly Parts
Explore RentSpray Plus motor assembly components, including rectifier kit and motor brush kit references. Identify the appropriate electrical and motor-related service parts using the motor assembly diagram.

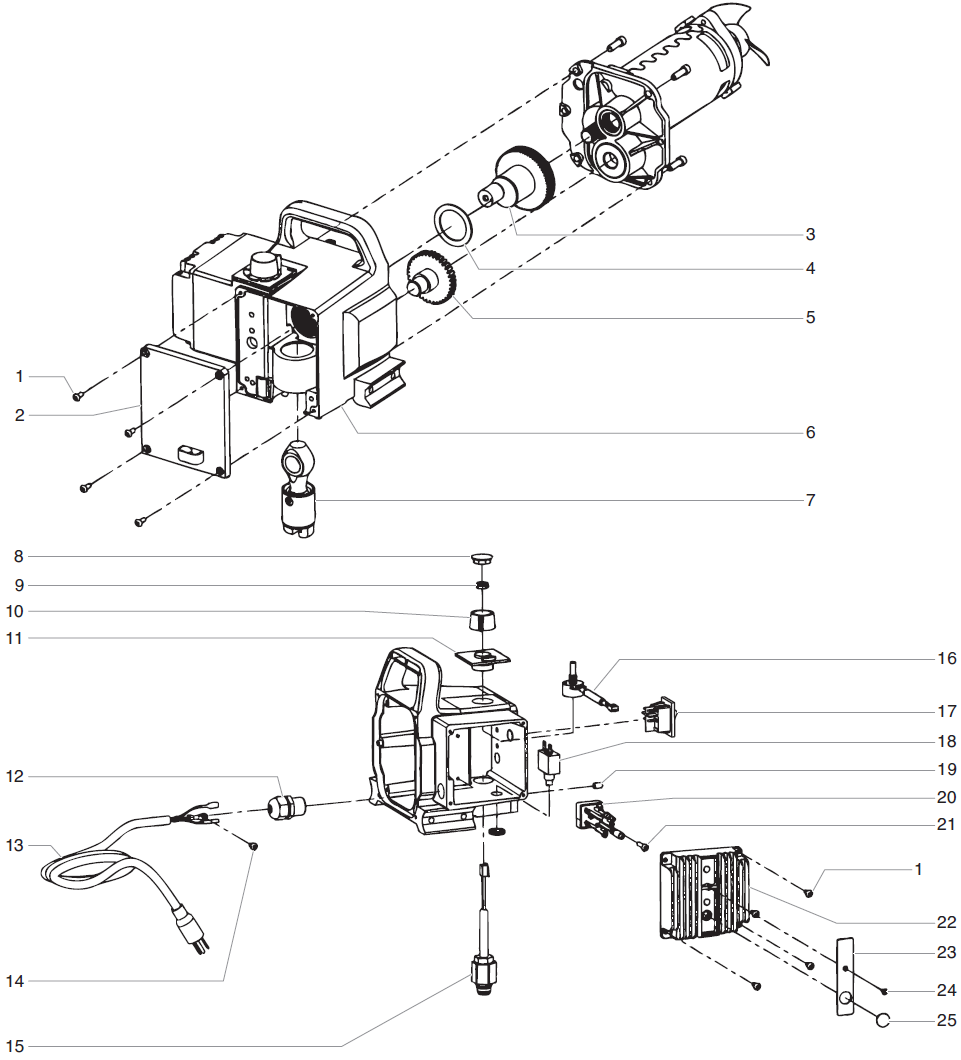

Gear Box Assembly Parts
Locate gear box components such as the gear assembly and second-stage gear. Review the relevant drawing when investigating mechanical drive wear or damaged transmission components.

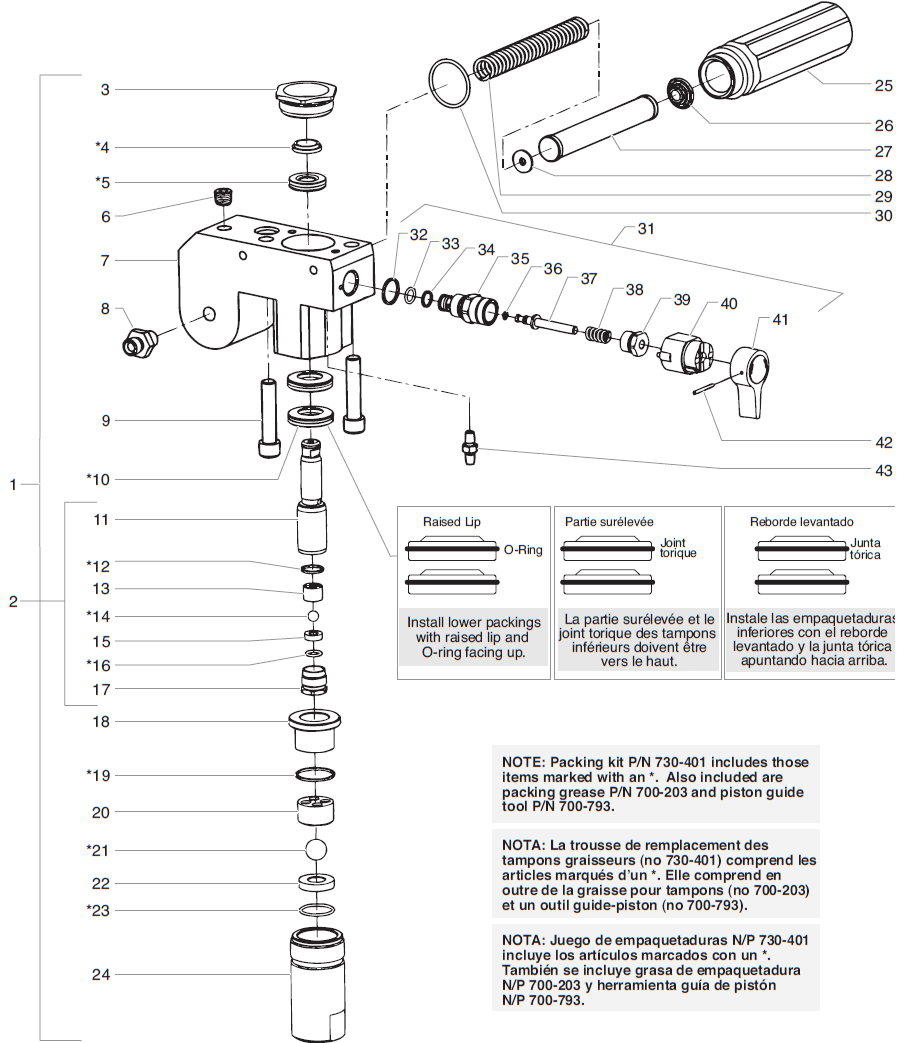

Fluid Section Assembly Parts
Browse fluid section components, including fluid section screws and lower seal assembly references. Match each replacement to the illustrated position and the applicable repair requirements.

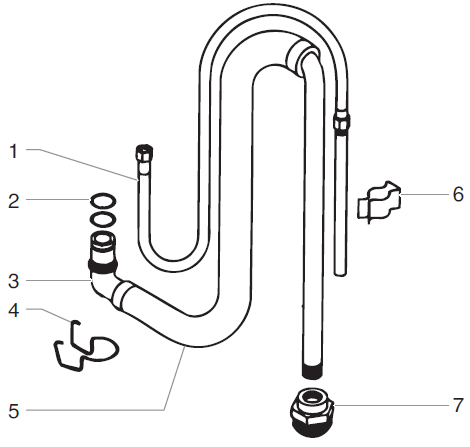

Suction Set Assembly Parts
Find suction set components such as retaining clips and inlet screen filters. Inspect the suction arrangement when servicing fluid intake components or replacing damaged fittings.

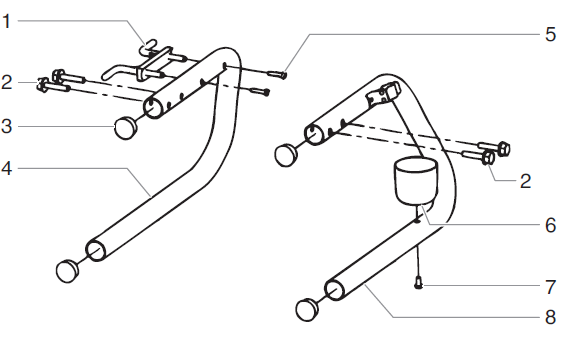

Stand Assembly Parts
Review stand assembly components, including drip cup and leg assembly references. Identify the required support components and hardware before replacing damaged or missing pieces.

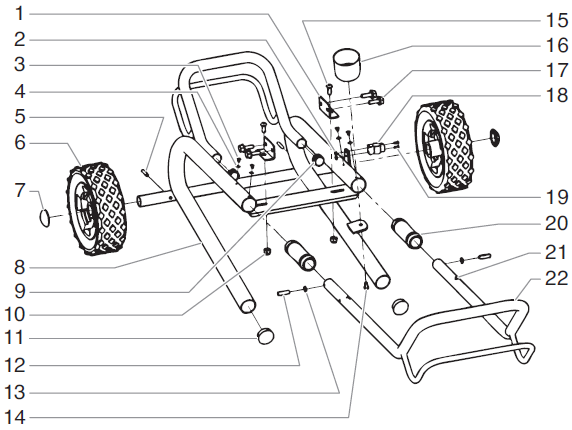

Low Rider Assembly Parts
Explore low rider configuration components such as slotted spring pins and sleeve handles. Match replacements to the low rider drawing rather than assuming compatibility with other frame configurations.

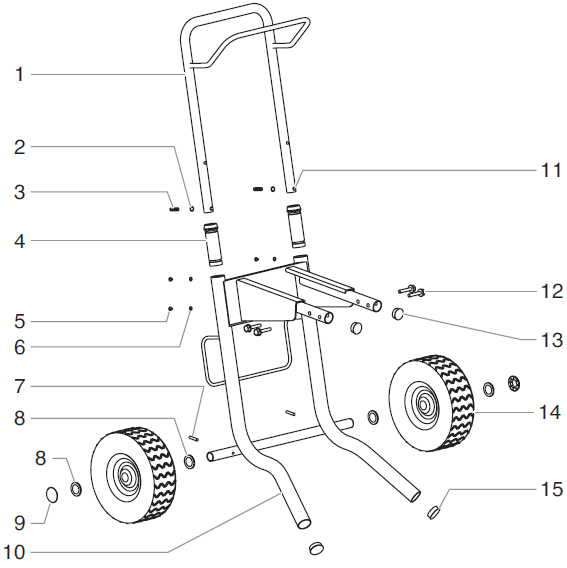

High Rider Assembly Parts
Locate high rider components, including wheel spacers and snap buttons. Check the illustrated wheel, handle and frame positions to identify individual parts needed for service.

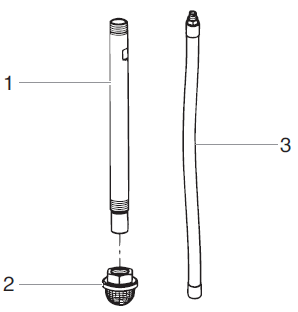

Siphon Tube Assembly Parts
Browse the high rider siphon tube assembly, including down tube and bypass hose references. Confirm the correct fluid-routing configuration and associated connections before ordering.
RentSpray Plus Accessories
Review the dedicated accessories category for additional equipment-related items. Check each accessory's specifications, connection requirements and compatibility before purchase.
RentSpray Plus Parts and Assembly Reference Guide
The following component descriptions help identify the correct assembly category. These are component names, not complete kit contents or diagram position numbers.
Parts selection tip: Identify the exact part number within the appropriate assembly category. A component description alone does not confirm fitment, revision or the quantity supplied.
How to Select the Correct RentSpray Plus Repair Parts
Confirm the Sprayer Model
Check the equipment identification label and confirm that the sprayer is a RentSpray Plus. Record any relevant serial or revision details.
Choose the Assembly
Determine whether your repair concerns the motor, gear box, fluid section, suction set, stand or cart configuration.
Compare Part Numbers
Match the component with its diagram position and complete part number. Check suffixes and any documented replacement references.
Verify the Order Contents
Review whether the listing supplies an individual component, kit or complete assembly, including any separately required hardware.
RentSpray Plus Maintenance and Troubleshooting
Equipment symptoms can help identify which assembly needs inspection, but they do not establish that a specific part is defective. Follow the applicable troubleshooting instructions before disassembly or replacement.
Motor Does Not Operate
Check the power supply and follow the electrical troubleshooting procedure. Motor assembly components may require qualified inspection.
Sprayer Does Not Prime
Investigate the fluid supply, suction connections, inlet screen and relevant fluid section components according to the service procedure.
Fluid Leakage
After safely relieving pressure, inspect the affected fluid section seals, fittings and associated connections to identify the source.
Cart or Stand Damage
Inspect the correct low rider, high rider or stand assembly and compare damaged components with their illustrated references.
Safety reminder: Switch off and disconnect the equipment, then follow the specified pressure relief procedure before servicing. Never touch a suspected pressurized fluid leak. Electrical repairs and other specialized procedures should be performed by appropriately qualified personnel.
Frequently Asked Questions
What assemblies are included in the RentSpray Plus parts catalog?
The catalog includes motor, gear box, fluid section, suction set, stand, low rider, high rider and high rider siphon tube assembly categories, plus an accessories section.
Where can I find RentSpray Plus motor repair parts?
Open the RentSpray Plus Motor Assembly category to review components such as the rectifier kit and motor brush kit. Confirm the correct part number before purchasing.
Are low rider and high rider components interchangeable?
Do not assume interchangeability. These configurations have separate assembly categories. Compare the exact part numbers and equipment configuration before ordering.
Can I purchase individual fluid section components?
The fluid section category provides individual component references, including screws and sealing components. Review each listing to confirm whether it is sold separately or as part of a kit.
How do I identify the correct RentSpray Plus suction parts?
Review the Suction Set Assembly or, for the applicable high rider configuration, the Siphon Tube Assembly. Match the component and part number to the correct drawing.
Where can I get help identifying RentSpray Plus replacement parts?
Contact AllTitanParts at 713-931-0006 with your equipment model, required assembly and any available part number for assistance.
Order Titan RentSpray Plus Airless Sprayer Parts
Browse the RentSpray Plus assembly categories, identify the replacement components required for your repair and confirm individual product details before placing your order.
Call 713-931-0006 for Parts Assistance
