Titan RentSpray Plus Gear Box Assembly Parts
Find replacement components for the Titan RentSpray Plus Gear Box Assembly at AllTitanParts. Browse crankshaft and gear assemblies, second stage gears, thrust washers, motor baffle screws and related mechanical drive components. Compare illustrated diagram positions and complete Titan part numbers to select the replacement parts required for your RentSpray Plus airless paint sprayer maintenance or repair.
Find the Right Titan RentSpray Plus Gear Box Replacement Parts
The Titan RentSpray Plus Gear Box Assembly is part of the mechanical drive system that transfers power from the electric motor to the pumping mechanism. The gearbox uses interacting gears and crankshaft components to support the motion required for fluid pumping during airless spraying operations.
Over time, repeated mechanical loading can contribute to wear in gears, washers and related drive components. Unusual operating noises, damaged gear teeth or interrupted mechanical movement may indicate that further inspection is necessary. Correct identification of the affected component helps determine the appropriate replacement.

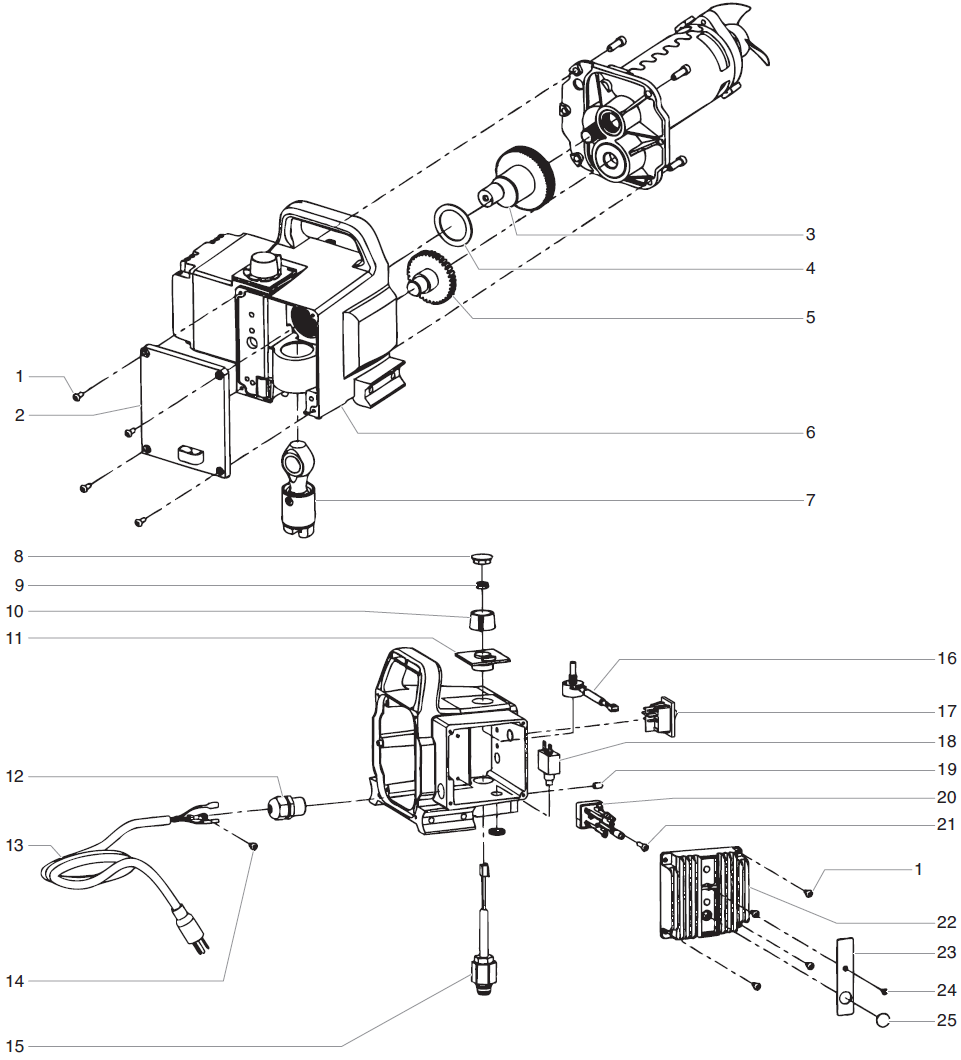

AllTitanParts provides individual gearbox component references to support maintenance and repair of the RentSpray Plus Airless Sprayer. Use the illustrated assembly drawing and exact part numbers when selecting replacement gears, crankshaft components, washers and related hardware.
Explore Titan RentSpray Plus Gear Box Assembly Components
The gearbox category includes components associated with mechanical power transmission, component spacing, fastening and nearby control hardware. Review the following replacement references to identify the correct service area.
Crankshaft and Gear Assembly
Titan 704-173A Crankshaft/Gear Assembly is identified at diagram position 3. This component participates in transferring mechanical movement from the gearbox into the sprayer's pumping drive system. Inspect its condition when investigating damaged gear teeth or drive-related wear.
Second Stage Gear
Titan 704-176 2nd Stage Gear is listed at diagram position 5. It is part of the gear train responsible for transferring motor rotation through the mechanical drive system. Confirm the complete part number before selecting a replacement.
Thrust Washer
Titan 704-174 Thrust Washer appears at diagram position 4. The washer helps manage axial loading and maintain component spacing in the gearbox arrangement. Its condition should be considered when inspecting adjacent moving parts.
Motor Baffle Screw
Titan 700-139 Motor Baffle Screw is listed at diagram position 1. This fastening component is associated with the illustrated motor and gearbox arrangement. Match the exact screw reference rather than substituting unverified hardware.
Potentiometer Cap
Titan 700-175 Potentiometer Cap is identified at diagram position 8. It is associated with the pressure control potentiometer and is listed as replacing Titan 507748. Confirm the replacement reference before ordering.
Associated Drive Hardware
When servicing the gearbox, inspect the condition of related mounting hardware, mating gears and supporting components. Use the applicable assembly illustration to determine which additional items are required for the repair.
Titan RentSpray Plus Gear Box Assembly Part Numbers
The following reference table identifies selected gearbox components and their diagram positions. Use these details alongside the appropriate exploded assembly drawing and individual product listings.
Parts identification: Diagram positions identify locations, not quantities. The table lists selected references and does not represent every component in the complete assembly. Confirm product availability, part suffixes and supplied contents before purchasing.
How the Titan RentSpray Plus Gear Box Assembly Works
The gearbox forms the mechanical connection between the electric motor and the pumping mechanism of the Titan RentSpray Plus Airless Sprayer. Motor rotation passes through the drive arrangement, where gears transmit movement and help provide the mechanical action required by the fluid section.
The second stage gear participates in power transmission through the gearbox. The crankshaft and gear assembly contributes to converting rotational movement into the reciprocating action needed by the pumping mechanism. The thrust washer supports the mechanical arrangement by managing axial forces and spacing between components.
Proper gearbox operation depends on correctly matched components, suitable lubrication, accurate assembly and the condition of interacting parts. When one gear is damaged, adjacent components should also be inspected before the repair is completed.
Titan RentSpray Plus Gearbox Troubleshooting and Maintenance
Gearbox problems may affect the movement of the pump or produce unusual mechanical sounds. These symptoms provide a starting point for inspection but do not confirm that a particular part requires replacement.
Grinding or Unusual Gear Noise
Abnormal noise may indicate worn gear teeth, damaged mating surfaces or other drive-related problems. Inspect the second stage gear and crankshaft assembly as part of the diagnosis.
Motor Runs but Pump Does Not Cycle
A loss of mechanical movement may involve the gearbox, drive connections or pump mechanism. Follow the equipment troubleshooting procedure to locate the cause.
Excessive Vibration
Check for damaged gear components, loose mounting hardware, abnormal wear or mechanical misalignment before selecting replacement parts.
Repeated Gear Wear
Review lubrication condition, component alignment, contamination and mating part wear. Replacing only one damaged gear may not resolve an underlying mechanical problem.
Safety reminder: Disconnect the sprayer from its electrical supply and complete the manufacturer's pressure relief procedure before servicing. Follow the applicable RentSpray Plus service instructions for gearbox disassembly, lubrication and reassembly.
How to Select the Correct RentSpray Plus Gear Box Parts
1. Confirm Your Sprayer
Identify the Titan RentSpray Plus model and record any relevant serial number or equipment revision information.
2. Identify the Diagram Position
Locate the required component on the gearbox assembly drawing and record its corresponding reference position.
3. Match the Complete Part Number
Compare the exact Titan number, including suffixes such as the A in 704-173A, with the individual replacement listing.
4. Verify the Repair Requirements
Check the quantity needed, related hardware, mating component condition and whether the product is supplied individually or as a kit.
Related Titan RentSpray Plus Airless Sprayer Assemblies
If your equipment requires service outside the gearbox, explore other RentSpray Plus assembly categories. The motor assembly contains electrical and motor-related components, while the complete RentSpray Plus category provides access to the sprayer's additional service sections.
Frequently Asked Questions About Titan RentSpray Plus Gear Box Assembly Parts
What parts are listed for the Titan RentSpray Plus Gear Box Assembly?
Identified components include Titan 700-139 Motor Baffle Screw, 704-173A Crankshaft/Gear Assembly, 704-174 Thrust Washer, 704-176 2nd Stage Gear and 700-175 Potentiometer Cap. Consult the full assembly listing for additional parts.
What is the Titan RentSpray Plus second stage gear part number?
Titan 704-176 is the second stage gear identified at diagram position 5 in the RentSpray Plus Gear Box Assembly.
Which crankshaft and gear assembly is used in the RentSpray Plus gearbox?
Titan 704-173A Crankshaft/Gear Assembly is identified at diagram position 3. Verify the complete part number and equipment configuration before purchasing.
What is the function of the Titan 704-174 Thrust Washer?
The thrust washer helps manage axial forces and maintain spacing within the gearbox arrangement. It is identified at diagram position 4.
Can damaged gearbox components affect sprayer performance?
Yes. Damaged gears or other drive components can interrupt the transfer of mechanical movement to the pump. Inspect the drive mechanism to determine the cause of the problem.
Are RentSpray Plus gearbox parts interchangeable with other RentSpray models?
Interchangeability should not be assumed. Confirm the complete part number and documented compatibility for the specific sprayer model before ordering.
Where can I get assistance identifying RentSpray Plus gearbox replacement parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, diagram position and the available component part number.
Order Titan RentSpray Plus Gear Box Assembly Parts
Browse replacement crankshaft and gear assemblies, second stage gears, thrust washers and associated gearbox hardware for the Titan RentSpray Plus Airless Sprayer. Compare part numbers and assembly diagrams to select the correct components for your equipment repair.
Shop Gear Box Parts Call 713-931-0006
