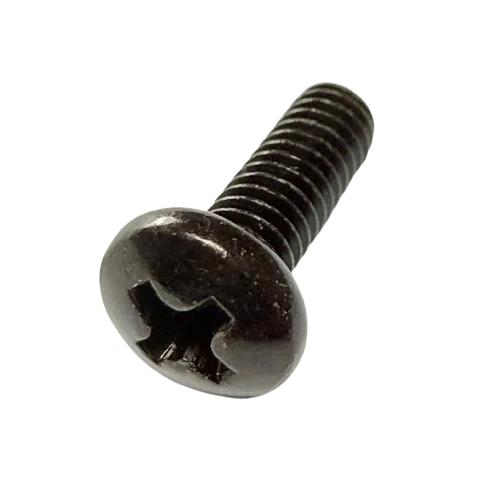

This Titan 700-139 motor baffle screw is a direct replacement fastener designed for use on compatible Airless Sprayer, Advantage, Helix, Impact, Performer, PowrLiner, ProMark II, RentSpray, and SprayTech equipment. It secures the motor baffle in place, ensuring proper airflow for motor cooling and preventing debris from entering critical components. Replacing a missing, stripped, or damaged motor baffle screw restores proper cooling, prevents motor overheating, and ensures reliable equipment operation.
| Part Number | 700-139 |
|---|---|
| Part Description | Motor Baffle Screw |
| Brand | Airless Sprayer, Advantage, Helix, Impact, Performer, PowrLiner, ProMark II, RentSpray, SprayTech |
| Compatible Models | Airless Sprayer: 1200 GXC, 330, 340, 440 I and IX, 550 XC, 600 XC, 690 GXC, 640 IX, 740 I and IX Advantage: 400, 500, 600, GPX 85 Helix: LP, FR, VR Impact: 840 I and IA, 1140 I and IA, 1040, 1140, 340, 440, 640 I and IA, 640, 740, 840 Performer: 640 I PowrLiner: 2850, 4955, 6955, 8955, 2800, 1800M, 2800M, 4900, 4900 XLT, 4950, 6900 XLY sp, 8900 XLT SP, 8900 XLT, 8900, 6950 ProMark II RentSpray: 450, 500, 600, 650, 700 SprayTech: GPX 85 |
| Condition | New |
Â
The Titan 700-139 Motor Baffle Screw is a genuine replacement screw designed to secure the motor cooling baffle and related housing parts on a vast array of Titan airless sprayers. The motor baffle directs cooling air over the armature and windings; a loose or missing screw can cause the baffle to shift, disrupting airflow and allowing dust and paint mist to enter the motor. Over time, this leads to overheating, insulation breakdown, and premature motor failure. Installing a new 700-139 screw restores the rigid mounting that keeps the baffle in place and the motor running at safe temperatures.
| Secures baffle | Fastens the air baffle to the motor housing, preventing vibration and shifting |
|---|---|
| Directs airflow | Keeps the baffle in correct position to channel cooling air across motor components |
| Prevents debris entry | A tight baffle seal blocks dust and overspray from bypassing the filter |
| Missing screw | Baffle rattles or is visibly loose; airflow may be compromised |
|---|---|
| Stripped threads | Screw won’t tighten, or backs out repeatedly after use |
| Corrosion | Rust or paint has seized the screw, preventing adjustment |
| Overheating motor | Motor frequently overheats, possibly due to baffle misalignment |
The 700-139 screw is used across an extensive range of Titan airless sprayers. The following confirmed models share this screw. Always verify exact placement and quantity with your sprayer’s illustrated parts list.
| Model Family | Compatible Models |
|---|---|
| Airless Sprayer | 1200 GXC, 330, 340, 440 I, 440 IX, 550 XC, 600 XC, 690 GXC, 640 IX, 740 I, 740 IX |
| Advantage | 400, 500, 600, GPX 85 |
| Helix | Helix LP, Helix FR, Helix VR |
| Impact | Impact 340, 440, 640, 640 I, 640 IA, 740, 840, 840 I, 840 IA, 1040, 1140, 1140 I, 1140 IA |
| Performer | Performer 640 I |
| PowrLiner | PowrLiner 1800M, 2800, 2800M, 2850, 4900, 4900 XLT, 4950, 4955, 6950, 6955, 8900, 8900 XLT, 8900 XLT SP, 8955, 6900 XLT SP |
| ProMark | ProMark II |
| RentSpray | RentSpray 450, 500, 600, 650, 700 |
| SprayTech | SprayTech GPX 85 |
Titan part number 700-139 is the current active designation for this motor baffle screw. It may supersede earlier hardware numbers used in the same location on older models. If your manual specifies a different screw but the dimensions and application match, the 700-139 is the direct replacement—confirm with your dealer.
| Table | Description |
|---|---|
| Product overview | The Titan 700-139 Motor Baffle Screw is a specialized OEM fastener used to clamp the motor cooling baffle tightly against the housing on dozens of Titan sprayer models. This baffle is essential for routing air across the motor windings to dissipate heat; even a slightly loose screw can cause the baffle to flutter and reduce cooling efficiency. Replacing a missing or damaged screw restores the original clamping force, guaranteeing that the motor breathes clean, directed air and stays within its safe temperature range throughout continuous spraying. |
| Function | The screw threads into the motor housing, securing the plastic or metal baffle plate in position. A tight baffle prevents recirculation of warm air inside the housing and stops overspray from sneaking past the filter. It also minimizes vibration noise and keeps the motor’s cooling system functioning as engineered by Titan. |
| Industrial Applications | The extensive model list shows the screw is used in residential, commercial, and industrial painting: home construction, apartment repaints, heavy‑duty protective coating, line striping (PowrLiner), and high‑volume spraying. Any job that demands the sprayer run for hours relies on a properly secured baffle to avoid thermal shutdown. |
| Compatible Equipment | Confirmed fitments span Airless Sprayer, Advantage, Helix, Impact, Performer, PowrLiner, ProMark II, RentSpray, and SprayTech models. The full list is provided in the compatibility table above. Always cross‑reference your machine’s specific parts diagram to confirm the screw’s exact location and quantity. |
| Compatible Parts & Assemblies | The screw works directly with the motor baffle, motor housing, cooling fan, and sometimes the filter assembly. It is often removed during motor brush changes or full motor overhauls. |
| Related Parts Commonly Serviced Together | When replacing the baffle screw, technicians frequently inspect the motor brushes, clean or replace the air filter, and check the baffle for cracks. If the screw was missing, nearby fasteners may have been over‑tightened, so they should be inspected as well. |
| Common Problems Solved | A loose or missing baffle screw can cause overheating, intermittent motor shutoffs, unusual vibration, and contaminated motor internals. Replacing the screw restores proper cooling and prevents these issues. |
| Use with Coating Systems | The screw’s material is unaffected by paint chemistry. It maintains its clamping force regardless of whether latex, epoxy, lacquer, or elastomeric coatings are being sprayed. |
| OEM & Brand Information | Titan is a world‑leader in spray equipment, and the 700-139 Motor Baffle Screw is an exact‑spec OEM part. Using genuine Titan hardware ensures the correct thread pitch, strength, and corrosion resistance, which generic hardware store fasteners cannot guarantee. |
| Commercial Benefits | Keeping a pack of 700-139 screws in your service inventory means a quick, foolproof fix for a common issue that can sideline a sprayer. For rental stores and contracting fleets, it’s an inexpensive way to maintain cooling system integrity across dozens of sprayer units. |
| Detailed Technical & Commercial Overview | The motor on a Titan airless sprayer generates significant heat during extended use. The air baffle works with the cooling fan to create a directed stream of cool air over the motor windings. If the baffle becomes loose because a screw is missing or stripped, the airflow pattern collapses, allowing hot spots to form. This can degrade the insulation on the armature windings, leading to shorts and motor failure. The 700-139 screw is designed to resist vibration and thermal cycling. During routine maintenance like brush replacement, it's common for a screw to be misplaced or accidentally cross‑threaded. Replacing it with a fresh OEM screw ensures the baffle is perfectly flush and secure. The small investment in the correct screw prevents expensive motor repairs that can cost hundreds of dollars and cause days of downtime. For contractors and facility managers who depend on their sprayers for daily productivity, a simple screw like the 700-139 is a prime example of how preventive maintenance on small parts protects major capital equipment. |
When replacing the 700-139 screw, inspect these related components to ensure the motor’s cooling system is fully functional.
Brushes are often changed at the same time as baffle work. Worn brushes cause arcing and heat, compounding cooling issues.
A dirty filter restricts airflow and mimics a loose baffle. Replace the filter whenever the baffle area is opened.
If the original baffle is cracked or distorted, a new screw alone won’t fix cooling. Replace the baffle as needed.
