Titan RentSpray Plus Fluid Section Assembly Parts
Find replacement components for the Titan RentSpray Plus Fluid Section Assembly at AllTitanParts. Browse upper and lower seals, piston guides, inlet and outlet valve components, filter housings, manifold filters, PrimeSpray valve parts and associated fluid section hardware. Compare exact Titan part numbers and illustrated assembly positions to identify the components required for airless sprayer maintenance and repair.
Find the Right RentSpray Plus Fluid Section Replacement Parts
The fluid section is a central component of the Titan RentSpray Plus Airless Sprayer pumping system. It works with the mechanical drive to draw coating material from the supply and deliver pressurized fluid toward the spray hose and gun. Seals, valve balls, seats, fittings and other components support the controlled movement of material through the pump.
Repeated pumping cycles expose fluid section components to pressure, friction and contact with coating materials. Worn seals, contaminated valve seats, damaged valve balls or restricted filters can contribute to fluid leakage, inconsistent pressure or priming difficulties. These symptoms require proper diagnosis before a replacement component is selected.
AllTitanParts organizes RentSpray Plus Fluid Section Assembly components by illustrated diagram position and Titan part number. This makes it easier to locate specific replacement seals, inlet and outlet valve components, filter parts and related service hardware.
Explore Titan RentSpray Plus Fluid Section Components
The RentSpray Plus fluid section category includes components for sealing, fluid intake, pressure delivery, filtration and priming. Review these groups when identifying the part required for a specific repair.
Upper and Lower Seals
Titan 700-072A Upper Seal and Titan 700-601A Lower Seal Assembly are listed fluid section sealing components. They help maintain sealing around the pumping mechanism. Check their individual listings and the assembly drawing before replacement.
Piston Guides and Bushings
Titan 700-587 Upper Piston Guide and Titan 704-289 Piston Bushing are associated with piston guidance and support. Inspect related components for wear and verify the appropriate replacement reference.
Outlet Valve Components
The outlet valve group includes Titan 762-135 Outlet Cage, 762-144 Outlet Valve Ball, 762-134 Upper Valve Seat and 762-073 Outlet Valve Retainer Housing. These components are associated with controlling fluid movement through the pump outlet.
Inlet and Foot Valve Parts
Titan 762-145 Inlet Valve Ball, 762-137 Foot Valve Seat and the listed foot or inlet valve housings are associated with the fluid intake side. Confirm the correct housing configuration before ordering.
Filter Housing and Manifold Filter
Titan 704-252 Filter Housing, 730-067 60 Mesh Manifold Filter, 730-083 Filter Spring and 702-251 Filter Screen Adapter are listed filtration components. Their correct installation supports filtration within the fluid delivery system.
PrimeSpray Valve Assembly
Titan 700-258 PrimeSpray Valve Assembly is listed at diagram position 31. The prime and spray valve arrangement supports switching between priming or pressure relief and spraying functions.
O-Rings and Gaskets
The category includes Titan 762-057 O-Ring, 762-058 Seat O-Ring, 700-537 Gasket and additional sealing references. Match each seal to its exact diagram position and part number.
Fittings and Fasteners

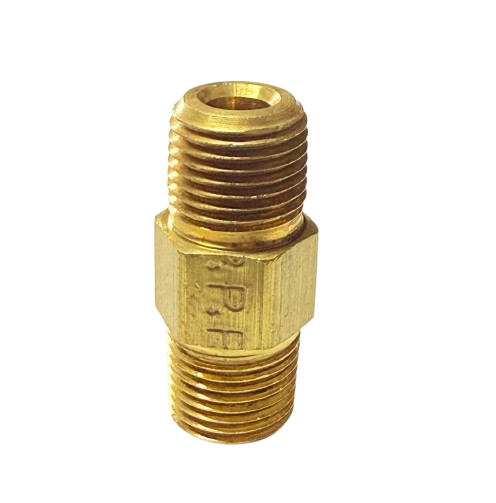

Titan 227-006 Outlet Fitting, 704-117 Fluid Section Screw, 227-028 Pipe Plug and 704-273 Fitting are among the listed connection and fastening components. Confirm thread specifications and assembly positions before replacement.
Titan RentSpray Plus Fluid Section Assembly Part Numbers

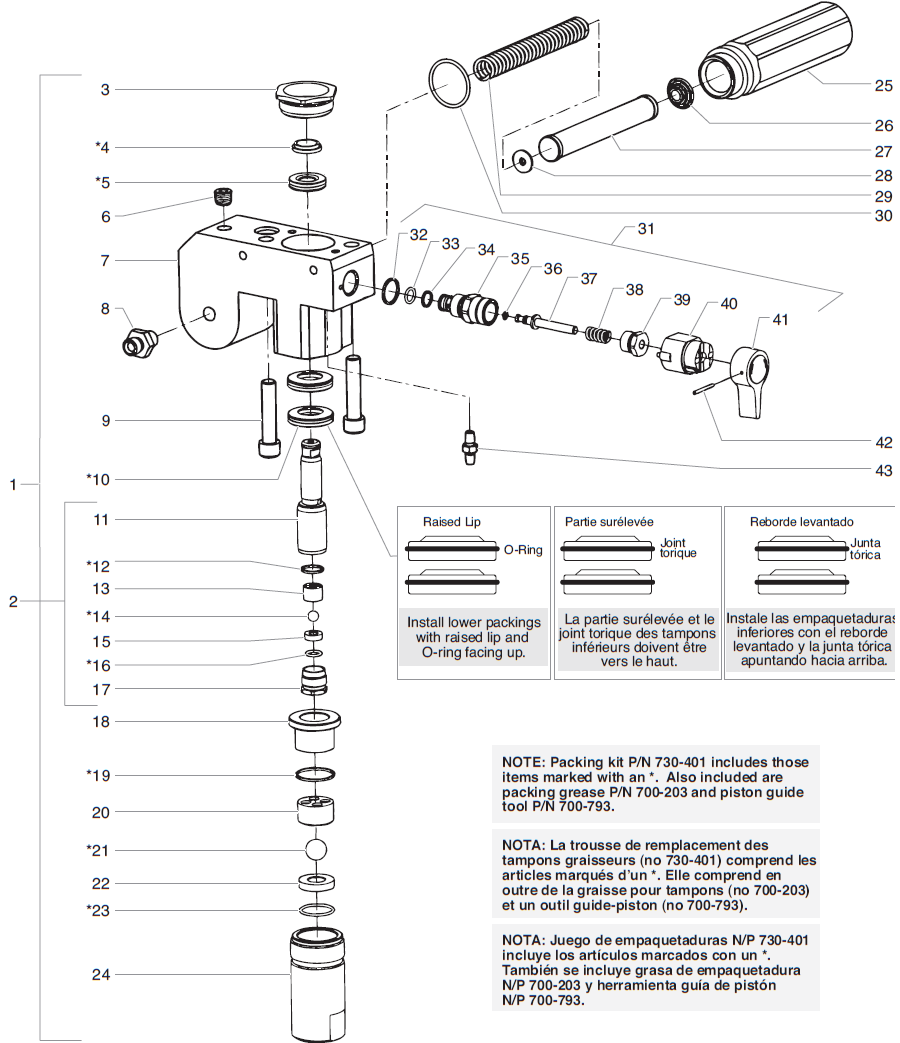

The following reference table includes components identified in the RentSpray Plus Fluid Section Assembly category. Diagram positions refer to the illustrated parts listing and do not represent quantities supplied.
Important: Positions 24 and 24A identify different valve housing references. Confirm the equipment configuration before selecting a housing. Product names, replacement numbers and kit contents should be checked on their individual listings.
How the RentSpray Plus Fluid Section Assembly Works
The fluid section converts mechanical pumping movement into pressurized fluid delivery. During the intake portion of a pumping cycle, the inlet valve arrangement permits coating material to enter the pump. During the pressure-producing portion, the inlet and outlet valve components help control the direction of fluid flow.
Upper and lower seals help maintain pressure around the moving pumping components. Valve balls and seats provide sealing surfaces that help control fluid movement, while the filter assembly captures certain contaminants before material continues through the fluid delivery system.
The PrimeSpray valve arrangement supports priming and pressure relief functions. Correct operation depends on the condition of the sealing surfaces, valve components, filter elements and associated connections. Each component should be inspected using the applicable equipment service procedure.
RentSpray Plus Fluid Section Troubleshooting
Fluid section problems can affect priming, pressure delivery and fluid containment. Symptoms should guide inspection rather than serve as proof that a particular component has failed.
Sprayer Does Not Prime
Inspect the fluid supply, suction connections, inlet valve ball, foot valve seat and priming arrangement according to the applicable troubleshooting procedure.
Low or Inconsistent Pressure
Check for restricted filtration, worn valve components, damaged seals or other fluid delivery problems. Determine the cause before replacing parts.
Fluid Leakage
After safely relieving pressure, inspect upper and lower seals, fittings, O-rings and other relevant sealing locations for visible damage.
Filter Restriction
Inspect the manifold filter, filter housing and related components. Follow the recommended cleaning and replacement procedure for the equipment.
Safety reminder: Turn off and disconnect the sprayer, then complete the manufacturer's pressure relief procedure before servicing the fluid section. Never attempt to stop a pressurized leak with your hand. High-pressure fluid injection injuries require immediate emergency medical attention.
How to Select the Correct RentSpray Plus Fluid Section Parts
1. Confirm the Sprayer Model
Verify the equipment is a Titan RentSpray Plus and record any relevant serial or configuration information.
2. Locate the Component
Use the fluid section diagram to identify the required valve, seal, filter, fitting or hardware position.
3. Match the Exact Part Number
Compare the full Titan reference, including suffixes such as those in 700-072A and 700-601A.
4. Verify the Supplied Contents
Check whether the product is an individual component, a repair kit or an assembly, and confirm any separately required parts.
Frequently Asked Questions About RentSpray Plus Fluid Section Parts
What parts are included in the RentSpray Plus Fluid Section Assembly category?
The category lists upper and lower seals, piston guides, valve balls, valve seats, filter components, PrimeSpray valve parts, fittings, O-rings and associated hardware. Individual product listings determine what is supplied with each purchase.
What is the Titan RentSpray Plus upper seal part number?
Titan 700-072A Upper Seal is listed at diagram position 5.
Which lower seal assembly is listed?
Titan 700-601A Lower Seal Assembly appears at diagram position 10. Review its listing for supplied contents.
What are the inlet and outlet valve ball part numbers?
Titan 762-145 is listed as the Inlet Valve Ball at position 21, while Titan 762-144 is the Outlet Valve Ball at position 14.
Which manifold filter is listed for the RentSpray Plus fluid section?
Titan 730-067 60 Mesh Manifold Filter is identified at diagram position 27. Confirm the filter requirements for your coating and equipment.
What is the PrimeSpray valve assembly part number?
Titan 700-258 PrimeSpray Valve Assembly is listed at diagram position 31.
Where can I get help identifying RentSpray Plus fluid section parts?
Contact AllTitanParts at 713-931-0006 with your equipment model, component description and available part number.
Related Titan RentSpray Plus Assembly Parts
If your repair involves components outside the fluid section, explore the motor and gear box assemblies or return to the complete RentSpray Plus equipment category.
Shop Titan RentSpray Plus Fluid Section Assembly Parts
Browse Titan RentSpray Plus replacement seals, piston guides, inlet and outlet valve components, manifold filters, PrimeSpray valve parts and fluid section hardware. Compare part numbers and assembly positions to identify the correct components for your repair.
Shop Fluid Section Parts Call 713-931-0006
