Titan RentSpray 600 Airless Sprayer Parts and Assembly Diagrams
Find Titan RentSpray 600 Airless Sprayer Parts at AllTitanParts. Browse seven dedicated assembly categories covering the main assembly, skid, siphon system, fluid section, drive mechanism, high rider cart and accessories. Identify replacement parts using illustrated diagrams, manufacturer part numbers and assembly-specific listings. Shop components such as piston guides, pump blocks, gears, pressure sensors, siphon hoses, filters, electrical controls and mounting hardware for RentSpray 600 maintenance and repairs.
Shop Titan RentSpray 600 Replacement Parts by Assembly
The Titan RentSpray 600 is an airless paint sprayer with multiple mechanical, electrical and fluid-handling systems that work together during spraying operations. Each system contains components that may require inspection, maintenance or replacement as the equipment ages or experiences normal service wear.
Finding the correct replacement begins with identifying the assembly in which the component is installed. AllTitanParts organizes the Titan RentSpray 600 Airless Sprayer Parts catalog into seven categories, allowing equipment owners, painting contractors, rental operators and service technicians to locate parts according to their function and position in the sprayer.
The Main Assembly category contains principal equipment components and supporting hardware. The Skid Assembly covers designated support and mounting components, while the High Rider Cart Assembly addresses the alternative cart configuration and its mobility-related parts.
The Siphon Assembly includes components associated with material intake and return flow. The Fluid Section Assembly contains pumping-related components, while the Drive Assembly includes mechanical motion-transfer parts and certain electrical or pressure-control components. The Accessories category provides an additional location for supplementary products associated with the sprayer.
Each category helps narrow the search for the correct Titan part number. This distinction is particularly useful when several components have similar names or when a replacement is available under a revised manufacturer reference.
Examples of parts appearing in the RentSpray 600 catalog include the Titan 704-173A Crankshaft/Gear Assembly, Titan 704-176 2nd Stage Gear, Titan 704-492A Pressure Sensor Assembly, Titan 700-1023A Siphon Hose, Titan 704-263A Return Hose Assembly and Titan 704-499 Power Cord Assembly.
When replacing a part, compare the complete manufacturer number with the appropriate assembly diagram and product listing. Check whether the listing identifies a replacement number, whether the product is sold individually or as an assembly, and whether the sprayer configuration matches the intended application.
Use this parent category page to explore the RentSpray 600 parts system, understand the functions of its major assemblies and navigate directly to the section containing the replacement components required for your repair.
Explore All Seven Titan RentSpray 600 Assembly Categories
Choose the assembly that corresponds to the component you need. Each category provides a more focused parts selection for the RentSpray 600.
RentSpray 600 Main Assembly Parts

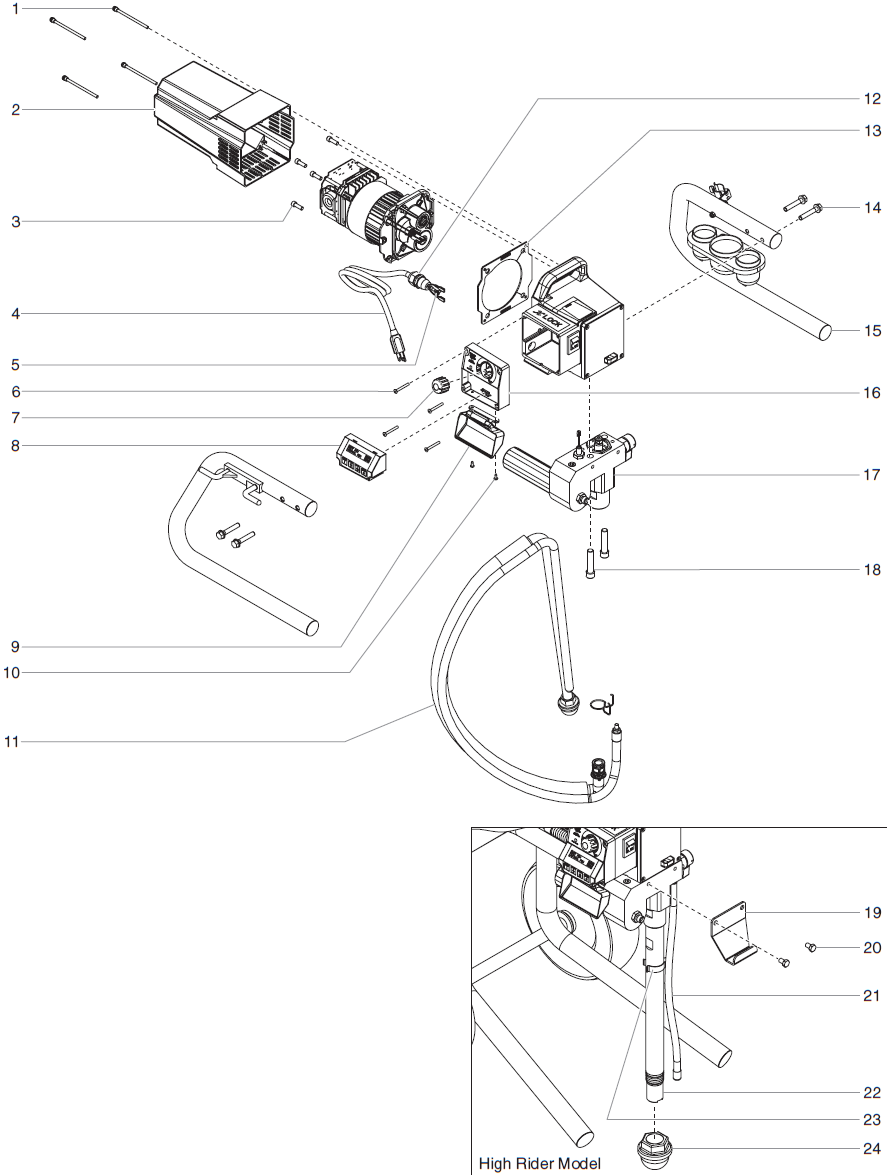

Find primary equipment components, power cord assemblies, pressure control components, mounting hardware and other parts identified in the RentSpray 600 Main Assembly diagram.
Examples: Titan 700-681 Motor Mount Screw, Titan 704-499 Power Cord Assembly and Titan 704-488A Pressure Control Knob.
Shop Main Assembly PartsRentSpray 600 Skid Assembly Parts

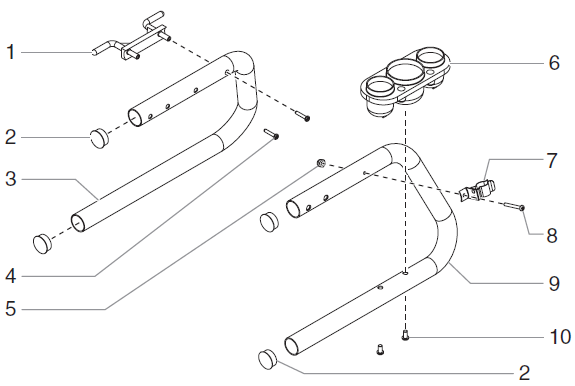

Explore the support and mounting components associated with the skid configuration, including drip cups, screws, clips, plugs and leg assembly hardware.
Examples: Titan 700-642 Cord Wrap Screw, Titan 700-1043 Drip Cup and Titan 704-179A Leg Assembly.
Shop Skid Assembly PartsRentSpray 600 Siphon Assembly Parts
Browse material intake and return-system components, including siphon hoses, return hose assemblies, inlet screens, elbow connections and sealing components.
Examples: Titan 700-1023A Siphon Hose, Titan 704-263A Return Hose Assembly and Titan 700-805 Inlet Screen Filter.
Shop Siphon Assembly PartsRentSpray 600 Fluid Section Assembly Parts
Locate pumping-related components used in the fluid section. The category is relevant when inspecting piston movement, pumping performance, sealing arrangements or damaged pump components.
Component types: Upper piston guides, pump blocks and other illustrated fluid section parts. Confirm individual references in the diagram.
Shop Fluid Section PartsRentSpray 600 Drive Assembly Parts

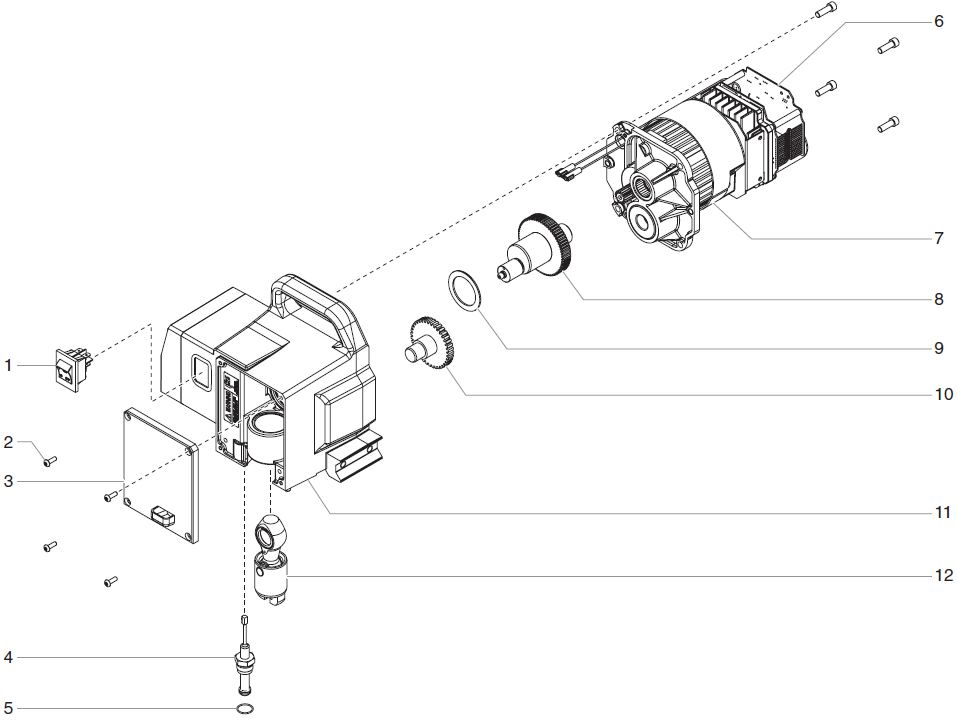

Find mechanical drive components and related controls, including gears, crankshaft assemblies, thrust washers, pressure sensors, rocker switches and electronic control components.
Examples: Titan 704-173A Crankshaft/Gear Assembly, Titan 704-176 2nd Stage Gear and Titan 704-492A Pressure Sensor Assembly.
Shop Drive Assembly PartsRentSpray 600 High Rider Cart Assembly Parts

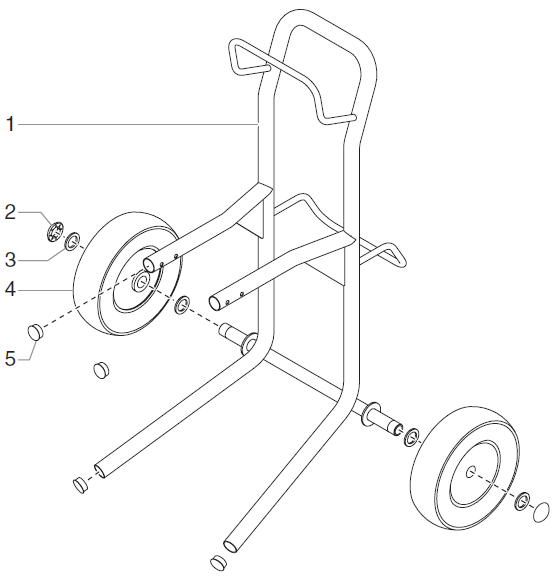

Explore the cart support and mobility components associated with the high rider configuration. Use this section when identifying wheel-related hardware or damaged cart components.
Component types: Wheel spacers, plugs and related cart hardware. Check the diagram for complete part numbers.
Shop High Rider Cart PartsRentSpray 600 Accessories Parts
Review the accessories category for supplementary products associated with the RentSpray 600. Verify each product's intended application, technical specifications and compatibility before purchasing.
Selection tip: Check individual accessory listings rather than assuming universal compatibility with all Titan sprayers.
Shop Accessories PartsTitan RentSpray 600 Replacement Parts Identification Guide
Use this table as a starting point when identifying common RentSpray 600 parts. The examples are drawn from the corresponding assembly listings and do not represent the complete parts inventory.
Important: Confirm current product availability, supersession details, exact equipment configuration and individual part compatibility before ordering. The appearance of a part number in an assembly listing does not establish compatibility with every RentSpray 600 revision or another Titan sprayer model.
How the Titan RentSpray 600 Airless Sprayer Systems Work Together
The RentSpray 600 depends on coordinated operation between its electrical system, mechanical drive, fluid intake components and pumping mechanism. Understanding these functions can help identify the assembly most relevant to a repair.
Electrical Power and Equipment Controls
The electrical system supplies and controls the power required for sprayer operation. Components appearing in the RentSpray 600 parts catalog include power cord assemblies, switches, electronic controls and pressure-related components. Electrical faults should be diagnosed using the applicable service procedure before replacement parts are selected.
Mechanical Drive and Pump Movement
The mechanical drive transfers movement from the motor toward the pumping mechanism. The crankshaft/gear assembly and second-stage gear are examples of components associated with this function. Wear or damage in the drive mechanism may affect pump cycling, but similar symptoms can originate in the fluid section.
Material Intake and Return Flow
The siphon system provides a pathway for coating material entering the equipment and includes designated return-flow components. Siphon hoses, inlet screens, elbow connections and related seals should be inspected when investigating material supply restrictions or leakage.
Fluid Section and Pressure Development
The fluid section performs the pumping action required to move coating material under pressure. Its performance depends on correctly functioning pumping components, sealing surfaces and associated fluid connections. Loss of pressure may require inspection of several systems rather than immediate replacement of a single component.
Skid and High Rider Support Configurations
The skid and high rider cart categories address different equipment support arrangements. When ordering a leg, wheel spacer, mounting screw or other structural component, confirm the configuration installed on your sprayer.
Correct operation requires the individual assemblies to remain properly connected, serviced and maintained. Use the appropriate parts diagram and manufacturer instructions when evaluating or replacing any component.
Common Titan RentSpray 600 Problems and Parts to Inspect
The following symptoms may help narrow your search to the relevant assembly. They are diagnostic starting points, not confirmation that a specific component is defective.
Sprayer Will Not Start
Investigate the electrical supply, power cord, switch, controller and related connections. Electrical inspection should follow the prescribed diagnostic procedure.
Sprayer Will Not Prime
Inspect the material supply, siphon hose, inlet screen, intake connections and applicable fluid section components. Identify the restriction or pumping fault before replacing parts.
Low or Inconsistent Pressure
Evaluate the pumping system, fluid supply, pressure-control components and connected spraying accessories. A pressure sensor should not be replaced without diagnosis.
Unusual Mechanical Noise
Inspect the drive mechanism for possible gear wear, damaged supporting components or abnormal mechanical contact. Follow the approved disassembly procedure.
Fluid Leakage
Complete the pressure relief procedure and identify the actual leak source. Potential areas include fluid connections, siphon components, seals and pumping-system interfaces.
Damaged Cart or Skid Hardware
Identify whether your sprayer uses the skid or high rider configuration, then check the corresponding structural hardware and illustrated replacement references.
High-pressure safety: Airless paint sprayers can cause serious fluid injection injuries. Switch off the equipment, disconnect electrical power and follow the manufacturer's pressure relief procedure before inspection or repair. Never check leaks with your hands. Seek immediate emergency medical care for suspected injection injuries.
Maintaining Your Titan RentSpray 600 Airless Sprayer
Routine inspection and maintenance can help identify wear, contamination and component damage. Follow the applicable RentSpray 600 operating instructions and use the specified replacement parts and maintenance products.
Clean the Fluid Pathway
Flush the equipment using the specified procedure and compatible cleaning materials. Do not allow coating residue to accumulate in designated fluid-handling components.
Inspect the Siphon System
Check accessible hoses, inlet screens and connections for contamination, damage or leakage after completing the required safety procedures.
Monitor Pump Performance
Investigate changes in priming, pressure development and fluid delivery before continued operation leads to additional component wear.
Inspect Mechanical Components
During authorized service, check applicable gears, supporting components and mechanical connections for damage or abnormal wear.
Check Electrical Components
Inspect the power cord and accessible electrical components for visible damage. Disconnect power before servicing electrical connections.
Inspect Support Hardware
Check the applicable skid or high rider cart components for damaged fasteners, loose connections or structural wear.
How to Find and Order the Correct RentSpray 600 Parts
Use the following four-step process to identify the correct replacement component and reduce the risk of ordering a part intended for a different sprayer configuration.
1. Confirm the Model
Verify that the equipment is a Titan RentSpray 600 and record any available model revision or serial information.
2. Select the Assembly
Choose the Main, Skid, Siphon, Fluid Section, Drive, High Rider Cart or Accessories category that matches the component location.
3. Match the Part Number
Locate the illustrated item and compare its complete Titan part number with the product listing. Check documented replacements where applicable.
4. Verify Before Checkout
Review compatibility, product contents, quantity, electrical specifications and current availability before completing the order.
Do not assume that parts from the RentSpray 500, RentSpray 650, Impact series or other Titan equipment are interchangeable with the RentSpray 600. Verify compatibility by the applicable part number and equipment documentation.
Frequently Asked Questions About Titan RentSpray 600 Airless Sprayer Parts
Where can I find Titan RentSpray 600 replacement parts?
AllTitanParts organizes Titan RentSpray 600 replacement parts into seven assembly categories. Select the relevant assembly and use its illustrated parts listing to identify the required manufacturer part number.
What assembly categories are available for the RentSpray 600?
The categories are Main Assembly, Skid Assembly, Siphon Assembly, Fluid Section Assembly, Drive Assembly, High Rider Cart Assembly and Accessories Parts.
Which parts should I inspect if my RentSpray 600 will not prime?
Begin with the prescribed troubleshooting procedure. Depending on the symptoms, inspect the material supply, siphon hose, inlet screen, connections and applicable fluid section components. Do not replace parts without identifying the cause.
Where can I find RentSpray 600 crankshaft and gear parts?
The Drive Assembly category includes the Titan 704-173A Crankshaft/Gear Assembly and Titan 704-176 2nd Stage Gear. Confirm the correct reference and equipment configuration before ordering.
Which RentSpray 600 category contains siphon hoses and inlet filters?
The Siphon Assembly category includes the Titan 700-1023A Siphon Hose, Titan 704-263A Return Hose Assembly and Titan 700-805 Inlet Screen Filter, along with other intake and connection components.
Can I use RentSpray 600 parts on another Titan sprayer model?
Compatibility must be confirmed individually. A part may appear in more than one Titan equipment listing, but that does not establish that all components are interchangeable between models or revisions.
How can I get help identifying the correct RentSpray 600 part?
Contact AllTitanParts at 713-931-0006 with your Titan RentSpray 600 model information, assembly diagram reference and any available manufacturer part number.
Quick Links to Titan RentSpray 600 Parts Diagrams
Navigate directly to the assembly category that matches your replacement or maintenance requirement.
Shop Titan RentSpray 600 Airless Sprayer Parts
Browse Titan RentSpray 600 replacement parts for the main assembly, drive mechanism, fluid section, siphon system, skid, high rider cart and accessories. Use the assembly diagrams to locate the correct component, compare manufacturer part numbers and select the replacement required for your sprayer repair.
Browse RentSpray 600 Parts Call 713-931-0006
