Titan RentSpray 500 Airless Sprayer Parts
Find replacement parts for the Titan RentSpray 500 Airless Sprayer at AllTitanParts. Browse model-specific Main Assembly, Drive Assembly, Cart Assembly, Fluid Section Assembly and Accessories categories to identify the components needed for equipment maintenance and repair. Use the illustrated parts diagrams to locate worn or damaged components, compare complete Titan part numbers and select the correct replacements for your RentSpray 500 airless paint sprayer.
Shop Titan RentSpray 500 Airless Sprayer Replacement Parts
The Titan RentSpray 500 Airless Sprayer is supported by a range of replacement components organized into five equipment categories. These categories help painters, equipment owners, rental operators and service technicians locate the correct components for repairing and maintaining their RentSpray 500 spraying equipment.
The sprayer depends on several interconnected systems. Its electrical drive components provide mechanical power, the drive assembly transfers motion to the pumping mechanism, and the fluid section pressurizes coating material for delivery through the spray system. The cart assembly supports equipment handling and transportation, while the accessories category covers additional service and application-related items.
Over time, individual components may experience wear, contamination, vibration-related damage or deterioration from operating conditions. These problems can affect sprayer priming, pressure development, fluid delivery, equipment movement and general operating performance.
A successful repair begins with identifying the affected assembly. Replacing an accessory will not correct a damaged internal drive component, while replacing a pumping component may be unnecessary when the problem is caused by a restricted filter or unsuitable spray tip.
AllTitanParts separates the Titan RentSpray 500 Airless Sprayer into individual assembly categories to simplify part identification. Each relevant diagram helps customers locate components according to their position in the equipment and compare the associated Titan part numbers.
This organized approach is particularly useful when servicing components that look similar across different sprayer models. Although some Titan equipment may share individual replacement parts, compatibility must be established using the correct manufacturer reference and applicable model information.
Whether you are replacing a motor-related component, servicing the pump fluid section, repairing the cart or identifying an accessory, begin with the RentSpray 500 model and select the appropriate assembly before ordering.
Explore Titan RentSpray 500 Airless Sprayer Parts by Assembly
The Titan RentSpray 500 parts catalog is organized into five dedicated categories. Each category addresses a different area of the sprayer, allowing customers to narrow their search before reviewing individual components.
RentSpray 500 Main Assembly

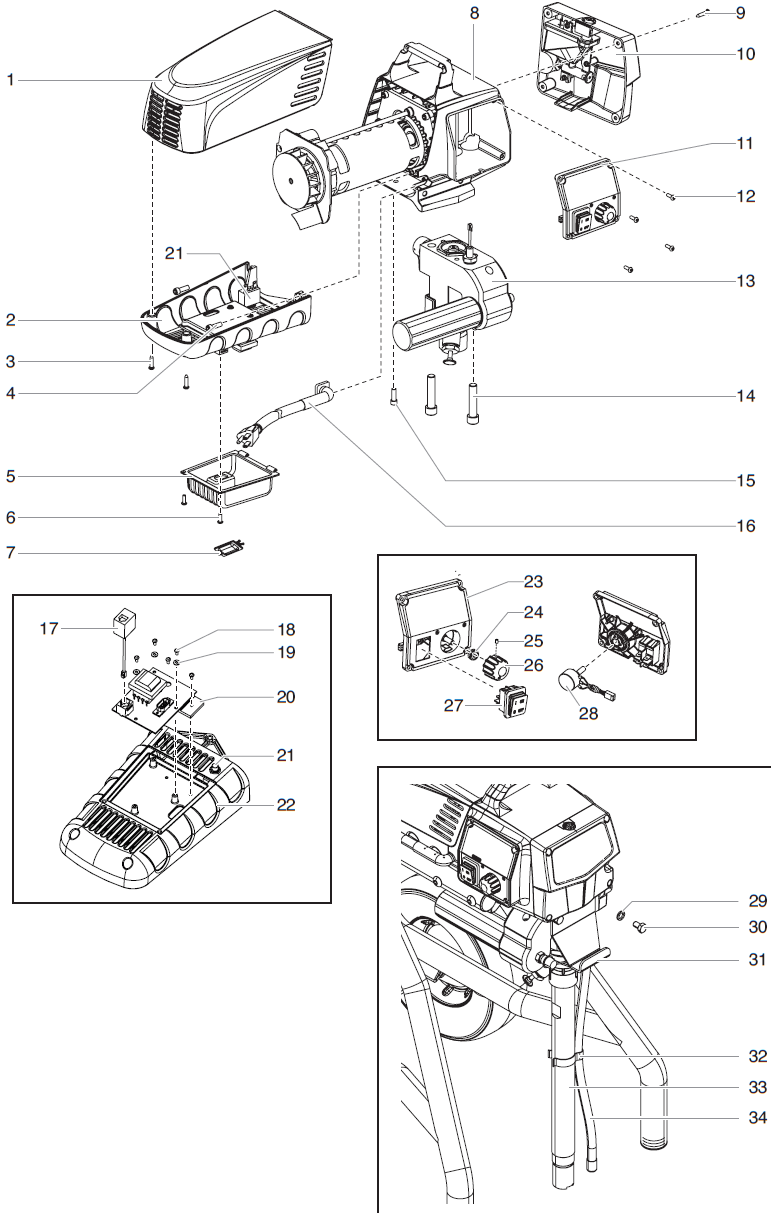

The Main Assembly category contains components associated with the primary sprayer arrangement. Identified examples include the Titan 805-356A Motor Cover, Titan 805-232 BellyPan Assembly PMDC and Titan 9802266 Motor Controller Screw.
Use this category when inspecting protective covers, equipment connections, mounting hardware and components assigned to the main assembly diagram.
Shop Main Assembly PartsRentSpray 500 Drive Assembly
The Drive Assembly contains components involved in transmitting mechanical movement to the pump. Identified parts include the Titan 0508208 Slider Assembly, Titan 704-176 2nd Stage Gear and Titan 704-173A Crankshaft/Gear Assembly.
Review this section when diagnosing mechanical drive problems, damaged gearing, unusual operating noise or worn motion-transfer components.
Shop Drive Assembly PartsRentSpray 500 Cart Assembly

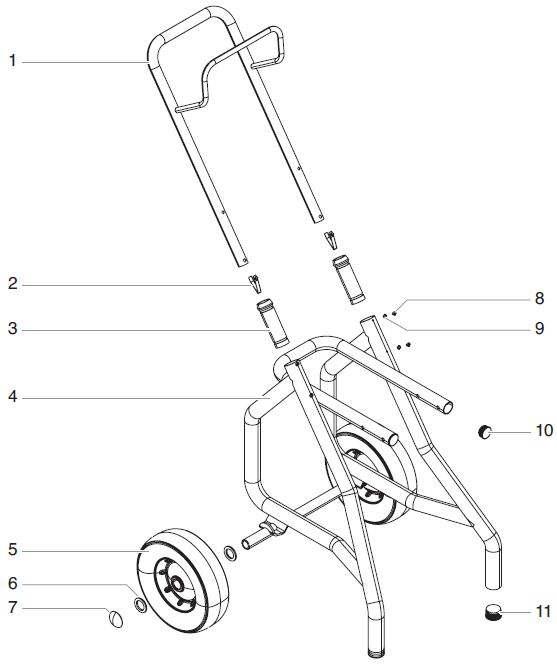

The Cart Assembly supports equipment movement, handling and positioning. Identified examples include the Sleeve Handle and Hub Cap, which are associated with the sprayer's transportation and support arrangement.
Use the cart diagram when inspecting damaged handling components, wheel-related hardware, structural connections or other cart-specific replacement items.
Shop Cart Assembly PartsRentSpray 500 Fluid Section Assembly

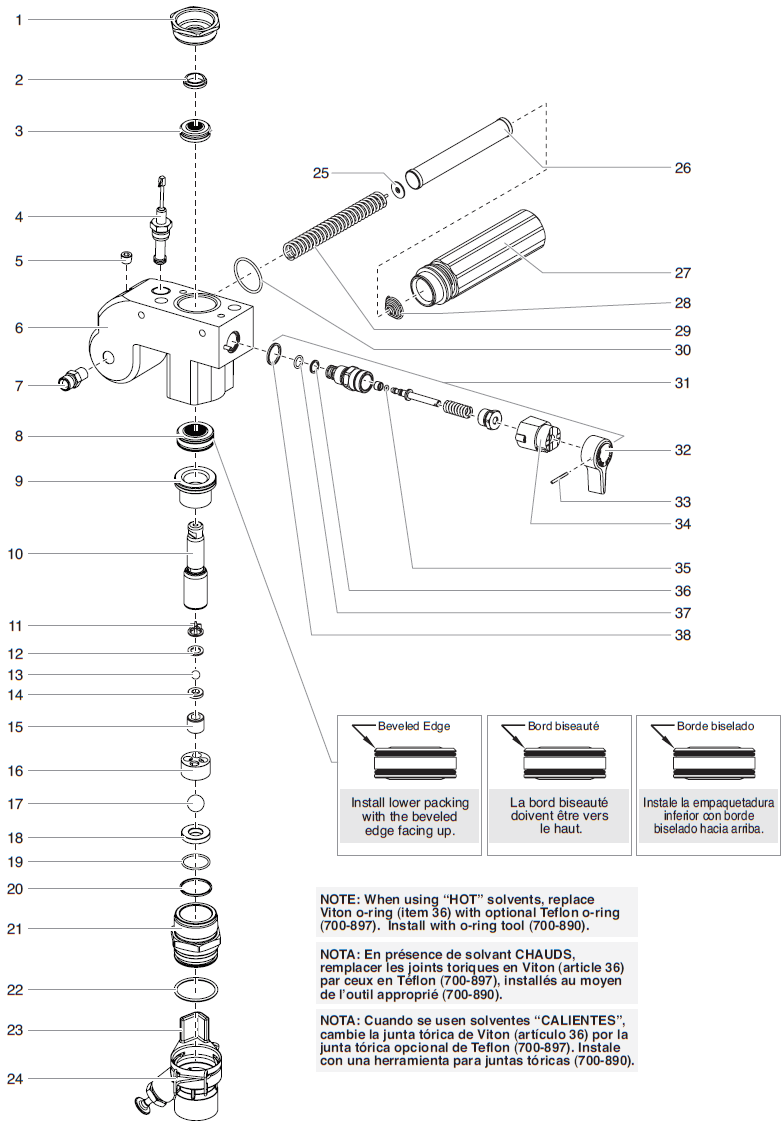

The Fluid Section Assembly contains pumping and pressure-related components. Identified examples include the Titan 704-560 Piston Assembly, Titan 700-587 Upper Piston Guide, Titan 704-492A Pressure Sensor Assembly and Titan 805-324A Pump Block.
Explore this section when investigating pump wear, fluid leakage, inconsistent pressure or components associated with the pumping mechanism.
Shop Fluid Section PartsRentSpray 500 Accessories
The Accessories category contains additional equipment-related products. Identified listings include Titan 314-171 Grease Lubriplate, Titan 314-480 Piston Lube 8oz, Titan 314-481 Piston Lube 4oz and Titan 05045 Fitting.
Check individual product specifications and intended applications before selecting maintenance supplies, fittings or other accessories.
Shop Sprayer AccessoriesTitan RentSpray 500 Parts Identification Guide
Use this guide to determine which assembly category should be reviewed when diagnosing a specific equipment problem.
Parts identification: The component examples above are associated with the corresponding RentSpray 500 categories. Confirm the complete part number, diagram position, equipment revision and product contents before purchasing. Do not assume that every component is interchangeable with another RentSpray model.
How the Titan RentSpray 500 Airless Sprayer Works
The Titan RentSpray 500 operates through the interaction of its drive system, pumping mechanism, fluid delivery components and associated equipment controls. Understanding these functions helps identify which assembly may require attention when a performance problem develops.
The electrical motor provides the power required to operate the pumping mechanism. Mechanical drive components, including the gearing and slider arrangement, transmit and convert movement to support the pumping cycle.
The fluid section receives coating material and develops the pressure needed for airless spraying. Components such as the piston assembly and pump block form part of the pumping arrangement, while pressure-related components contribute to the equipment's control and monitoring functions.
During operation, pressurized coating material is delivered through the designated outlet pathway to the connected spray equipment. The complete fluid system must use components with suitable pressure ratings and verified connection specifications.
The main assembly supports the organization and mounting of the machine's principal components. Protective covers and other equipment hardware help maintain the intended assembly arrangement.
The cart assembly provides the structural handling arrangement for transporting and positioning the sprayer. Damage to its handle, wheels, hubs or supporting hardware may affect equipment mobility even when the pumping system continues to operate.
When a malfunction occurs, inspect the system associated with the observed symptom rather than replacing unrelated components. A drive problem, fluid section fault and accessory restriction may produce different repair requirements.
Common Titan RentSpray 500 Replacement Components
The following component examples are identified in the RentSpray 500 assembly categories. Their functions and service applications should be evaluated using the corresponding diagram and individual product specifications.
Titan 0508208 Slider Assembly
A component of the drive assembly associated with transferring mechanical movement within the pumping mechanism. Inspect its condition when servicing the applicable drive system.
Titan 704-176 2nd Stage Gear
A gear component used within the drive system. Replacement selection should account for the correct gear arrangement, mating components and installation requirements.
Titan 704-560 Piston Assembly
A fluid section component associated with the pumping action. Inspect the piston and related service components when investigating wear or pumping performance problems.
Titan 700-587 Upper Piston Guide
A guide component associated with piston movement in the fluid section. Check the applicable service procedure before determining whether replacement is required.
Titan 704-492A Pressure Sensor Assembly
A pressure-related component identified within the fluid section category. Diagnose pressure-control symptoms according to the applicable electrical and equipment service procedures.
Titan 805-356A Motor Cover
A protective component identified in the main assembly. Inspect for cracks, missing hardware or damage affecting its intended installation.
Titan RentSpray 500 Airless Sprayer Troubleshooting
A RentSpray 500 may develop operational problems due to wear, material restrictions, electrical faults, damaged mechanical components or inadequate maintenance. Use the appropriate troubleshooting procedure to identify the cause before selecting replacement parts.
Sprayer Will Not Start
Verify the power supply and equipment controls according to the operating instructions. Motor-related components and electrical connections may require qualified inspection.
Difficulty Building Pressure
Investigate fluid supply conditions, inlet restrictions, pumping components and the applicable pressure-control system. Do not replace the pressure sensor without establishing the cause.
Reduced Spray Output
Check the spray tip, filters, fluid supply and pump operation. Restricted material flow and worn fluid section components may produce similar symptoms.
Unusual Mechanical Noise
Stop operation and inspect the drive assembly using the applicable service procedure. Gear wear, damaged moving components or loose hardware may require further diagnosis.
Fluid Leakage
Complete the manufacturer's pressure relief procedure before inspection. Identify the leaking component and check the relevant fluid section, fitting or hose connection.
Damaged Cart Components
Inspect the handle, hubs, wheels and structural connections. Locate the damaged component in the Cart Assembly diagram before ordering.
Safety: Switch off and disconnect the equipment from electrical power, then complete the manufacturer's specified pressure relief procedure before inspection or repair. High-pressure fluid injection can cause serious injury. Never place hands near suspected leaks, loosen pressurized fittings or operate the sprayer with damaged safety components.
Maintaining the Titan RentSpray 500 Airless Sprayer
Routine maintenance supports reliable equipment operation and helps identify components that require attention. Follow the applicable RentSpray 500 operating and service instructions, including specified cleaning, inspection and lubrication procedures.
Inspect the Fluid Section
Check for visible leakage, abnormal operation and signs of component wear. Use the specified procedure when servicing pumping components.
Maintain the Drive System
Follow the service instructions for inspecting mechanical components and applying any specified lubrication.
Clean the Fluid Pathway
Flush the sprayer using the prescribed procedure and cleaning materials suitable for the equipment and coating.
Check Electrical Components
Inspect accessible cords and protective covers for visible damage. Refer electrical servicing to qualified personnel.
Inspect the Cart
Examine the handle, wheels, hubs and support hardware for damage or loose connections.
Use Specified Maintenance Products
Use lubricants and maintenance materials only where approved by the applicable equipment instructions.
How to Order the Correct Titan RentSpray 500 Replacement Parts
Correct part selection begins with identifying the equipment model and matching the replacement to the appropriate assembly diagram.
1. Confirm the Model
Verify that the machine is a Titan RentSpray 500 and record available serial number or revision information.
2. Choose the Assembly
Select the Main, Drive, Cart, Fluid Section or Accessories category associated with the required component.
3. Match the Part Number
Locate the item in the relevant diagram and compare its complete Titan part number with the product listing.
4. Verify Product Details
Confirm compatibility, supplied contents, quantity and any documented replacement or supersession reference.
Avoid selecting a replacement solely because it resembles a component from the RentSpray 450, RentSpray 600 or another Titan sprayer. Similar appearance does not establish identical specifications or interchangeability.
Frequently Asked Questions About Titan RentSpray 500 Airless Sprayer Parts
What replacement parts are available for the Titan RentSpray 500?
AllTitanParts organizes RentSpray 500 replacement components into five categories: Main Assembly, Drive Assembly, Cart Assembly, Fluid Section Assembly and Accessories. Browse the relevant category to identify individual parts.
How do I find the correct Titan RentSpray 500 part number?
Identify the affected assembly, locate the component in its illustrated parts diagram and compare the complete Titan part number with the corresponding product listing.
Where can I find RentSpray 500 motor and drive components?
Review the Drive Assembly category for components such as the Slider Assembly, gears and motor-related service parts. Confirm the required component against the diagram.
Which assembly contains the RentSpray 500 Pressure Sensor Assembly?
The Titan 704-492A Pressure Sensor Assembly is identified in the RentSpray 500 Fluid Section Assembly category. Verify the complete reference before ordering.
Where can I buy RentSpray 500 cart parts?
The RentSpray 500 Cart Assembly category includes components associated with handling and mobility, including the Sleeve Handle and Hub Cap. Review the cart diagram for the required replacement.
Are RentSpray 500 and RentSpray 450 parts interchangeable?
Not automatically. Confirm compatibility using the complete Titan part number, documented application and applicable equipment revision before installing a part from another RentSpray model.
Where can I get help identifying Titan RentSpray 500 parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial information, assembly diagram reference and any available Titan part number.
Related Titan RentSpray Parts and Assemblies
Explore the dedicated RentSpray 500 categories or return to the broader Titan RentSpray parts catalog to locate components for other equipment models.
Shop Titan RentSpray 500 Airless Sprayer Parts
Find the replacement components needed to maintain and repair your Titan RentSpray 500 Airless Sprayer. Browse the Main, Drive, Cart, Fluid Section and Accessories categories, identify the required part and verify its Titan reference before ordering.
Shop RentSpray 500 Parts Call 713-931-0006
