Titan RentSpray 600 Impact Airless Sprayer Parts and Assemblies
Find replacement parts for the Titan RentSpray 600 Impact Airless Sprayer at AllTitanParts. Browse model-specific assembly diagrams for the main assembly, suction set, skid, drive, fluid section and high rider cart. Identify Titan part numbers, compare replacement components and select the correct parts for pump repairs, fluid delivery, electrical drive maintenance and equipment restoration.
Shop Titan RentSpray 600 Impact Replacement Parts
The Titan RentSpray 600 Impact is an electric airless paint sprayer with interconnected mechanical, electrical and fluid-handling systems. Its motor and drive mechanism operate the pump, while the suction arrangement supplies coating material to the fluid section. The fluid section then delivers pressurized material through the connected spraying system.
Regular equipment use, coating contamination, wear and accidental damage can create a need for replacement components. Diagnosing the affected assembly before ordering helps distinguish a worn pump component from a drive, suction, electrical or support-system problem.
AllTitanParts organizes RentSpray 600 Impact replacement components into six named assembly sections. Each section helps narrow the search to a particular part of the sprayer and provides a more useful starting point than selecting components solely by appearance.
The Main Assembly covers core equipment components. The Suction Set Assembly contains material intake and return components, including the suction set, return tube and associated retention hardware. The Skid Assembly addresses support components such as the paint cup and foot rubber.
The Drive Assembly includes mechanical and electrical components such as the main housing, slider, gears, crankshaft, motor and motor controller. The Fluid Section Assembly covers the pumping components associated with pressure development and material delivery. The High Rider Cart Assembly contains parts used for the wheeled support and transport arrangement.
Because the standard Titan RentSpray 600 and the Titan RentSpray 600 Impact have separate parts catalogs, customers should confirm the complete model designation before selecting replacements. Similar component names do not establish interchangeability.
Use the appropriate exploded diagram, identify the component's illustrated position and compare the full Titan part number. Check replacement references, assembly contents and any applicable equipment revisions before checkout.
Browse RentSpray 600 Impact Parts by Assembly
Choose the assembly that matches the area of your sprayer requiring inspection or repair.
RentSpray 600 Impact Main Assembly
Explore the central equipment assembly and associated structural or operational components. Use this category when a repair involves the main equipment arrangement rather than the separately identified suction, drive, fluid section or cart systems.
Match the diagram position and part number before replacing housings, connections or other main assembly components.
Shop Main Assembly PartsRentSpray 600 Impact Suction Set Assembly
Find components involved in drawing coating material into the pump and routing returned material. Identified products include Titan 0558672A Suction Set Assembly, Titan 0558659A Return Tube, Titan 700-805 Inlet Screen Filter and associated clips and seals.
Inspect this system when troubleshooting poor suction, restricted intake or leakage at suction connections.
Shop Suction Set PartsRentSpray 600 Impact Skid Assembly
Browse support and base-related components for the skid configuration. The model category identifies paint cup and foot rubber components within this assembly.
Check the skid arrangement when inspecting damaged support hardware, missing protective components or equipment instability. Confirm each component using its model-specific diagram.
Shop Skid Assembly PartsRentSpray 600 Impact Drive Assembly
Locate drive components including Titan 805-204A Main Housing Assembly, Titan 0508208 Slider Assembly, Titan 704-176 Second Stage Gear, Titan 704-173A Crankshaft/Gear Assembly, Titan 805-264A Motor Assembly and Titan 805-837 Motor Controller Complete.
This section supports identification of parts associated with motor operation and the mechanical transmission of motion to the pump.
Shop Drive Assembly PartsRentSpray 600 Impact Fluid Section Assembly
Explore pump and fluid-control components. The category identifies parts such as the piston rod, inlet valve cage, slider pipe plug, pressure sensor assembly and pump block components.
Use the fluid section breakdown when investigating pumping wear, material leakage, valve operation or pressure-related faults after appropriate diagnosis.

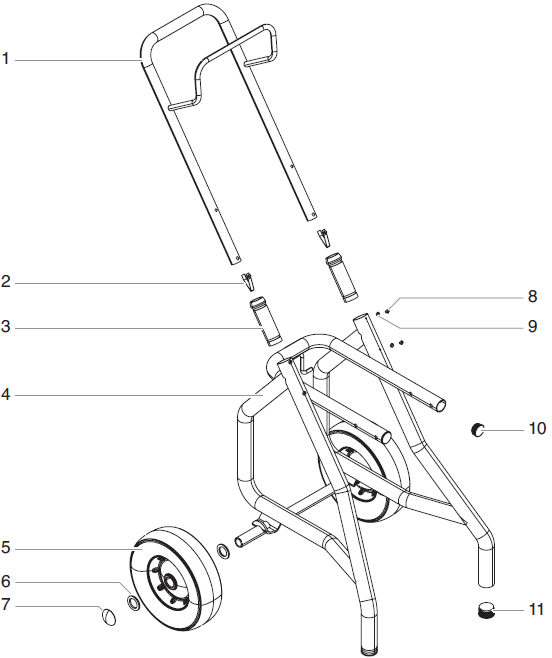

Shop Fluid Section PartsRentSpray 600 Impact High Rider Cart Assembly
Find components associated with the wheeled support arrangement. Identified cart-related examples include sleeve handle and hub cap components.
Inspect this assembly when replacing damaged handling parts or restoring the mobility and stability of a high rider cart configuration.
Shop High Rider Cart PartsIdentified Titan RentSpray 600 Impact Replacement Parts
The following references appear in the RentSpray 600 Impact suction set and drive assembly listings. They are useful examples of how to match a repair requirement with the correct component category.
| Titan Part Number | Description | Assembly | Function |
|---|---|---|---|
| 0558672A | Suction Set Assembly | Suction Set | Material intake arrangement |
| 0558659A | Return Tube | Suction Set | Returned fluid routing |
| 700-805 | Inlet Screen Filter | Suction Set | Intake debris screening |
| 9850638 | Tie Wrap | Suction Set | Component retention |
| 0279459 | Clip | Suction Set | Retention hardware |
| 805-204A | Main Housing Assembly | Drive | Drive system structure |
| 0508208 | Slider Assembly | Drive | Reciprocating drive linkage |
| 704-176 | Second Stage Gear | Drive | Gear reduction |
| 704-173A | Crankshaft/Gear Assembly | Drive | Rotary-to-reciprocating motion |
| 805-264A | Motor Assembly | Drive | Mechanical power |
| 805-837 | Motor Controller Complete | Drive | Motor control |
Ordering note: This is a selected parts reference, not the complete bill of materials. Confirm diagram item numbers, product contents, replacement references and current availability on the applicable assembly page.
How the Titan RentSpray 600 Impact Systems Work Together
Electric Motor and Drive Transmission
The electric motor provides power to the drive system. Gears, the crankshaft and the slider mechanism transfer motion to the pumping arrangement. Problems in these components may affect the pump's ability to cycle correctly. Motor or controller faults require diagnosis using the appropriate electrical service procedure.
Suction Set and Material Intake
The suction set draws coating material toward the pump. The inlet screen helps intercept debris, while the return tube forms part of the fluid return arrangement. Damaged connections, restrictions or air entry may interfere with priming.
Fluid Section and Pressure Development
The fluid section uses reciprocating pump components and valves to move coating material through the system. Packing components help maintain sealing. Wear or contamination may contribute to leakage, irregular fluid delivery or reduced pressure.
Skid and High Rider Cart Support
The skid and high rider cart categories address different support configurations. Their components contribute to equipment positioning, stability and transportation. Identify the installed configuration before ordering support or mobility hardware.
Common RentSpray 600 Impact Problems and Inspection Areas
Difficulty Priming
Inspect the suction set, inlet screen, intake connections and relevant inlet valve components.
Loss of Spray Pressure
Investigate fluid supply, pump valves, packing condition, pressure sensing and connected spraying components.
Motor Does Not Operate
Follow electrical diagnostics for the power supply, motor controller, motor and associated wiring.
Abnormal Drive Noise
Inspect the drive mechanism for wear or damage according to the service procedure.
Fluid Leakage
After relieving pressure, identify the source at the pump, seals, return tube or other fluid connections.
Unstable Support
Inspect the skid or high rider cart, mounting hardware and support components for damage.
RentSpray 600 Impact Troubleshooting Reference
| Symptom | Assembly to Check | Next Step |
|---|---|---|
| Poor material intake | Suction Set | Check the inlet screen, suction connections and return arrangement. |
| Low or inconsistent pressure | Fluid Section and controls | Follow the model-specific pressure and pump diagnostic procedure. |
| Motor runs but pump does not cycle correctly | Drive Assembly | Inspect the transmission and mechanical linkage during authorized service. |
| Motor fails to start | Drive and electrical system | Check electrical components using the appropriate diagnostic procedure. |
| Pump leakage | Fluid Section | Relieve pressure and inspect the specified seals and connections. |
| Cart or base instability | Skid or High Rider Cart | Identify damaged support components and confirm the installed configuration. |
Safety: Airless paint sprayers can cause serious high-pressure fluid injection injuries. Turn off the equipment, disconnect power and complete the manufacturer's pressure relief procedure before inspection or repair. Never check for leaks with your hands. Suspected fluid injection injuries require immediate emergency medical attention. Electrical and internal drive repairs should be performed by appropriately qualified personnel.
Maintaining Your Titan RentSpray 600 Impact
Flush the Fluid System
Use the specified flushing procedure and suitable cleaning materials after spraying.
Inspect the Inlet Screen
Check for debris or damage that may interfere with coating intake.
Check Pump Leakage
Inspect accessible areas for signs of leakage after completing the required safety steps.
Monitor Drive Performance
Investigate unusual mechanical noise or abnormal cycling using approved service procedures.
Inspect Hoses and Connections
Replace damaged fluid connections and verify all replacement components are pressure-rated for the system.
Check Equipment Support
Inspect skid or cart hardware and ensure the sprayer remains securely supported.
How to Find the Correct RentSpray 600 Impact Part
1. Confirm the Model
Verify the equipment label identifies the RentSpray 600 Impact, not the standard RentSpray 600.
2. Select the Assembly
Choose Main, Suction Set, Skid, Drive, Fluid Section or High Rider Cart according to the repair location.
3. Match the Part Number
Compare the illustrated diagram position and complete Titan reference with the replacement listing.
4. Check Before Ordering
Verify fitment, replacement references, kit contents, quantity and any applicable serial-number restrictions.
Frequently Asked Questions About Titan RentSpray 600 Impact Parts
What assemblies are available for the Titan RentSpray 600 Impact?
The model page identifies Main Assembly, Suction Set Assembly, Skid Assembly, Drive Assembly, Fluid Section Assembly and High Rider Cart Assembly. Each has a separate parts category.
Where can I find RentSpray 600 Impact suction parts?
Open the Suction Set Assembly category. Identified products include Titan 0558672A Suction Set Assembly, Titan 0558659A Return Tube and Titan 700-805 Inlet Screen Filter.
Which RentSpray 600 Impact parts are used in the drive assembly?
The Drive Assembly listing includes the main housing, slider assembly, second stage gear, crankshaft and gear assembly, motor assembly and motor controller, among other components.
What should I inspect if my RentSpray 600 Impact loses pressure?
Follow the appropriate troubleshooting procedure. Possible inspection areas include the material supply, suction set, fluid section valves, packing components, pressure sensing and connected spray equipment.
Are RentSpray 600 and RentSpray 600 Impact parts interchangeable?
Not automatically. They have separate parts categories. Only use a component across models when its exact part reference and compatibility have been confirmed.
Can I replace an individual component instead of a complete assembly?
Individual replacement may be appropriate when the affected assembly is serviceable and the correct component is available separately. Check the product contents and applicable repair procedure.
How do I get help identifying a RentSpray 600 Impact replacement part?
Contact AllTitanParts at 713-931-0006 with your complete model designation, serial number, diagram item and any available manufacturer part reference.
Explore Related Titan RentSpray Models
Browse the broader RentSpray family or the standard RentSpray 600 category when researching a different equipment configuration. Verify the exact model before ordering.
Shop Titan RentSpray 600 Impact Airless Sprayer Parts
Browse RentSpray 600 Impact assembly diagrams, identify the correct Titan replacement part and order components for pump maintenance, suction system service, drive repairs and cart restoration. Need help confirming fitment? Contact AllTitanParts before purchasing.
Browse RentSpray 600 Impact Parts Call 713-931-0006
