Shop Titan RentSpray 600 Impact Fluid Section Replacement Parts
The Titan RentSpray 600 Impact Fluid Section Assembly is the pumping portion of the RentSpray 600 Impact airless paint sprayer. It receives coating material from the suction arrangement and uses reciprocating mechanical movement to transfer that material through the pump's internal fluid passages.
The fluid section is essential to the sprayer's ability to prime, generate pressure, and deliver coating material toward the spray hose and gun. Its performance depends on the condition of internal moving components, sealing surfaces, and valve mechanisms.
During operation, the drive assembly supplies reciprocating movement to the pumping mechanism. The fluid section uses this movement together with its inlet and outlet valve arrangements to control the direction of coating material flow.
Fluid section components are subject to mechanical loading, repeated movement, and contact with coating materials. Wear or contamination can affect sealing performance, fluid transfer, and the ability of the pump to maintain pressure.
The RentSpray 600 Impact Fluid Section Assembly category helps equipment owners, contractors, and service technicians identify replacement components associated with the pump's fluid-handling mechanism.
Typical piston-pump service areas include the piston, cylinder or pump body, inlet and outlet valves, packing assemblies, seals, retaining components, and other parts identified in the relevant assembly illustration.
The exact components included in the RentSpray 600 Impact fluid section, along with their individual part numbers, must be confirmed using the model-specific diagram and current product listings. Not every general piston-pump component is necessarily supplied as a separate replacement item.
When a sprayer fails to prime, the fluid section is one of several systems that may require inspection. Valve contamination, worn sealing components, or internal pump damage can interfere with material movement. However, suction restrictions and air entering the intake pathway may produce similar symptoms.
Low spraying pressure can also have several possible causes. Worn packings, valve leakage, material supply restrictions, or drive-related problems may affect the pump's ability to maintain the desired operating pressure.
Visible fluid leakage around a pump component should be investigated before continued operation. The location and cause of the leakage must be identified before selecting replacement packings, seals, or other parts.
A complete pump replacement is not always necessary when a fluid section problem occurs. Depending on the condition of the equipment and the availability of compatible components, a repair may involve an individual valve component, sealing item, or service kit.
Conversely, extensive wear or damage to major pumping surfaces may require a broader repair. Replacement decisions should be based on inspection findings and the applicable service information.
The fluid section must be distinguished from the drive assembly. The drive system provides mechanical movement, while the fluid section performs the material pumping function. Identifying the affected system helps prevent unnecessary parts replacement.
The Titan RentSpray 600 Impact and the standard Titan RentSpray 600 have separate equipment parts categories. Similar model names do not establish that their fluid section components are interchangeable.
Before ordering a replacement, confirm the full sprayer model, relevant serial or revision information, illustrated component position, and complete Titan part number. Check whether the selected product is an individual component, a repair kit, or a larger assembly.
Fluid section repairs involve equipment capable of producing high-pressure material discharge. The manufacturer's pressure relief, disassembly, inspection, and reassembly procedures must be followed. Repairs should be performed by personnel familiar with airless sprayer servicing.
AllTitanParts organizes RentSpray 600 Impact replacement parts by assembly to make it easier to identify components associated with specific equipment systems. The fluid section category provides a focused starting point for pump-related repair requirements.
Browse the Titan RentSpray 600 Impact Fluid Section Assembly parts listing to compare available pump components, review product references, and select the appropriate replacement for your equipment.
Understanding RentSpray 600 Impact Fluid Section Components
The following sections explain common functional areas of an airless piston pump. They are intended to support parts identification and troubleshooting. Exact component availability must be confirmed in the RentSpray 600 Impact Fluid Section Assembly diagram.
Piston Components
The piston moves within the pumping mechanism and contributes to the displacement of coating material.
Surface wear, scoring, or damage can affect pump performance. Confirm the correct piston reference and associated service requirements before replacement.
Inlet Valve Components
The inlet valve arrangement allows coating material to enter the pumping chamber during the appropriate part of the pump cycle.
Contamination, wear, or poor sealing may interfere with priming and fluid intake. Use the specified valve components for the applicable model.
Outlet Valve Components
The outlet valve arrangement helps direct coating material toward the pump discharge pathway.
Worn sealing surfaces or trapped debris can interfere with correct valve operation and should be investigated during pump diagnostics.
Packing Components
Pump packings provide sealing at designated locations around moving or stationary fluid section components.
Worn packings may contribute to leakage or reduced pumping efficiency. Select the appropriate replacement packing arrangement or kit where available.
Pump Body and Cylinder
The pump body or cylinder provides the internal structure through which coating material moves during the pumping cycle.
Inspect applicable surfaces for wear, scoring, or damage during authorized service. Confirm which components are individually replaceable.
Seals and Retaining Parts
Seals and retaining components help maintain the specified fluid pathway and secure designated parts within the pump assembly.
Use the exact diagram reference when replacing O-rings, retainers, washers, or other related components.
Parts identification note: These cards describe general piston-pump service areas and do not constitute a verified bill of materials for the RentSpray 600 Impact Fluid Section Assembly. Confirm exact components and part numbers before ordering.
Titan RentSpray 600 Impact Fluid Section Parts Identification Guide
Use the table below to understand common pump repair areas and the details that should be checked when selecting replacement parts.
| Component Area | Primary Function | What to Verify |
|---|---|---|
| Piston | Displaces coating material during reciprocating movement. | Exact piston part number and applicable model. |
| Inlet Valve | Controls material entry into the pumping chamber. | Valve components, seat condition, and replacement reference. |
| Outlet Valve | Directs pumped material toward the discharge pathway. | Correct valve and sealing component identification. |
| Packings | Provide sealing at specified pump locations. | Compatible packing components and kit contents. |
| Pump Body | Provides the structure for the fluid pumping mechanism. | Serviceability, component condition, and part number. |
| O-Rings and Seals | Seal designated fluid connections and interfaces. | Correct dimensions, material compatibility, and part reference. |
| Retaining Components | Secure specified components in their installed positions. | Exact fastener or retainer specified by the diagram. |
How the Titan RentSpray 600 Impact Fluid Section Works
1. Coating Material Enters the Pump
The suction arrangement supplies coating material to the pump inlet. During the appropriate part of the pumping cycle, the inlet valve allows material to enter the fluid section.
2. The Drive Moves the Piston
The drive mechanism provides reciprocating movement to the pump. The piston uses this movement to displace material through the pumping chamber.
3. Valves Control Fluid Direction
The inlet and outlet valve arrangements respond to pressure differences during the pumping cycle. Their operation helps direct coating material through the intended fluid pathway.
4. Packings Maintain Sealing
Packing and sealing components help limit unwanted leakage at designated locations. Wear or damage can reduce the effectiveness of the pumping process.
5. Pressurized Material Moves Toward the Spray System
Material discharged from the pump passes through the sprayer's downstream fluid system toward the spray hose and gun, subject to the equipment's operating controls and pressure settings.
Common RentSpray 600 Impact Fluid Section Problems
Pump symptoms can originate from several different systems. Use this table to identify possible inspection areas before replacing fluid section components.
| Observed Symptom | Possible Cause | Recommended Inspection |
|---|---|---|
| Sprayer does not prime | Inlet valve problem, suction restriction, or air entry | Inspect the suction pathway and pump inlet valve. |
| Low or unstable spraying pressure | Valve leakage, packing wear, or material supply problem | Evaluate the fluid section, intake system, and pressure controls. |
| Fluid leakage near the pump | Damaged seal, worn packing, or loose connection | Relieve pressure and identify the exact leak location before repair. |
| Pump cycles excessively | Internal leakage or external fluid loss | Inspect valves, seals, and the complete fluid pathway. |
| Irregular material delivery | Valve contamination, suction problems, or worn components | Check material intake and follow the applicable pump diagnostic procedure. |
| Pump does not cycle | Drive problem, mechanical obstruction, or electrical fault | Inspect the drive system and pump according to the service procedure. |
High-pressure safety: Airless sprayers can cause serious fluid injection injuries. Switch off the equipment, disconnect electrical power, and follow the manufacturer's pressure relief procedure before inspecting or servicing the fluid section. Never check for leaks with your hands. Suspected fluid injection injuries require immediate emergency medical treatment.
Maintaining the Titan RentSpray 600 Impact Fluid Section
Proper fluid section maintenance depends on the coating material, operating conditions, and the manufacturer's service requirements. The following practices support routine inspection and repair planning.
Flush After Use
Follow the specified flushing procedure and use cleaning materials compatible with the coating and sprayer.
Inspect for Leakage
Check for visible evidence of fluid loss after the equipment is safely depressurized. Identify the source before replacing seals or packings.
Monitor Priming Performance
Investigate persistent priming difficulties by inspecting the suction arrangement and fluid section valves.
Service Worn Packings
Use the correct packing components and follow the specified installation procedure when replacement is required.
Inspect Pump Valves
During authorized service, inspect designated valve components for debris, wear, or damaged sealing surfaces.
Use Specified Pump Lubricants
Follow the applicable lubrication and storage instructions. Do not substitute products without confirming suitability.
Repairing Versus Replacing the Fluid Section
The appropriate repair depends on the condition of the pumping components, the cause of the problem, and the replacement options available for the RentSpray 600 Impact.
Individual Component Replacement
When a specific serviceable component is worn or damaged, replacing that item may be appropriate if the surrounding pump parts remain suitable for continued use.
Examples of general repair areas include seals, packings, valve components, and retainers. Availability must be confirmed for the actual model.
Repair Kit Replacement
A compatible repair kit may provide several components required for a particular service procedure.
Confirm the kit's exact Titan part number, application, and contents. Do not assume that all fluid section kits include the same components.
Larger Assembly Replacement
Extensive damage, multiple worn components, or nonserviceable pump surfaces may justify replacement of a larger assembly when a compatible option is available.
Evaluate the repair requirements and confirm the supplied assembly contents before ordering.
How to Order Titan RentSpray 600 Impact Fluid Section Parts
1. Confirm the Sprayer Model
Verify the Titan RentSpray 600 Impact model and record any applicable serial or revision information.
2. Identify the Pump Component

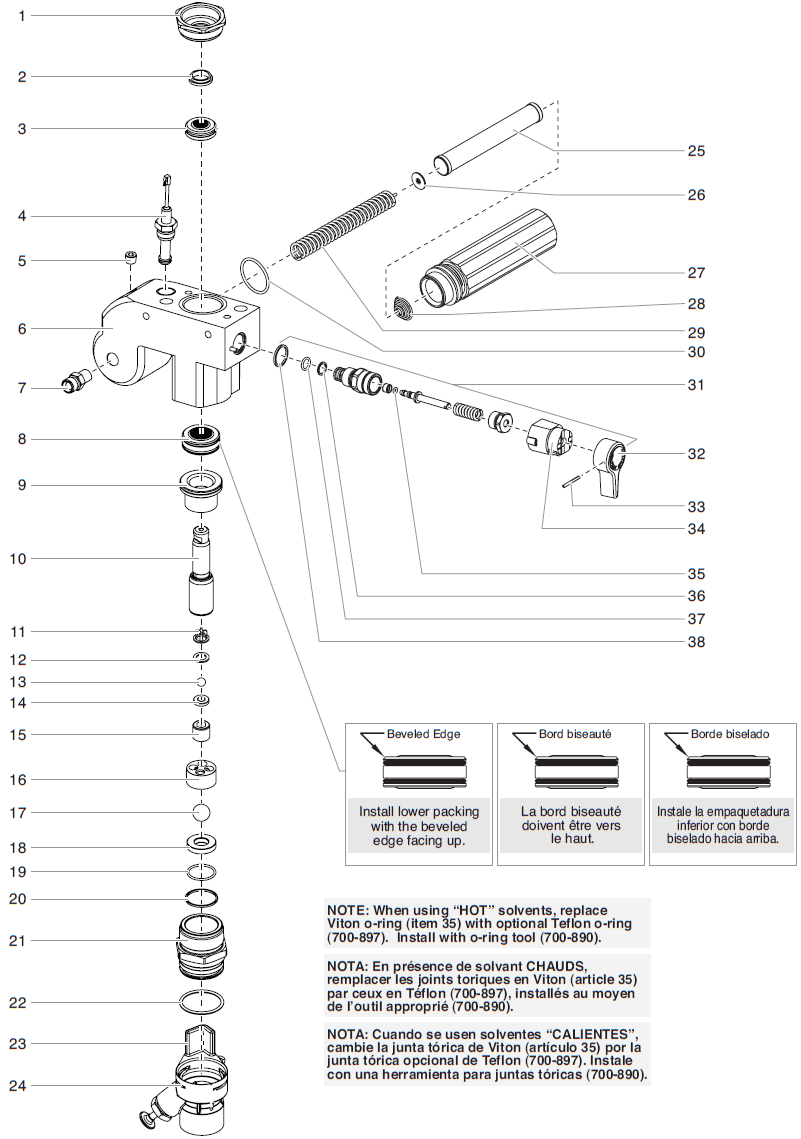

Use the fluid section diagram to locate the valve, piston, packing, seal, or other component requiring replacement.
3. Match the Titan Part Number
Compare the complete manufacturer reference with the current product listing and any confirmed supersession information.
4. Check Contents and Fitment
Confirm the supplied quantity, kit contents where applicable, equipment compatibility, and current availability.
Related Titan RentSpray 600 Impact Parts Categories
Explore the corresponding RentSpray 600 Impact assembly when your repair involves another part of the sprayer.
Frequently Asked Questions About RentSpray 600 Impact Fluid Section Parts
What is the Titan RentSpray 600 Impact Fluid Section Assembly?
It is the pumping portion of the sprayer that receives coating material, uses reciprocating movement to displace it, and directs the material toward the pressurized spray system.
What components are commonly serviced in an airless pump fluid section?
Common piston-pump service areas include inlet and outlet valves, packings, pistons, seals, and related retaining components. Exact RentSpray 600 Impact parts must be confirmed in the applicable diagram.
Why does my RentSpray 600 Impact fail to prime?
Possible causes include suction restrictions, air entering the intake pathway, inlet valve contamination, or internal pump wear. Inspect the suction set and fluid section before replacing components.
Can worn pump packings cause pressure problems?
Worn packings may allow unwanted leakage and reduce pumping efficiency. However, low pressure can also result from valve problems, suction restrictions, or other equipment faults.
Do I need to replace the complete fluid section?
Not necessarily. Some repairs may be completed using individual replacement parts or a compatible repair kit. The appropriate repair depends on the condition of the pump and available service components.
Are RentSpray 600 and RentSpray 600 Impact fluid section parts interchangeable?
Not automatically. Confirm compatibility using the complete Titan part number, applicable model information, and any relevant equipment revision.
Where can I get help identifying RentSpray 600 Impact fluid section parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial number, diagram reference, and the component part number if available.
