Titan RentSpray 600 Impact High Rider Cart Assembly Parts
Shop Titan RentSpray 600 Impact High Rider Cart Assembly replacement parts at AllTitanParts. Find cart frame components, wheels, axle-related parts, handles, mounting hardware, and support accessories for the high rider configuration of your RentSpray 600 Impact airless paint sprayer. Use the assembly diagram and manufacturer part references to identify components for cart maintenance, mobility repairs, and equipment support.
Shop Titan RentSpray 600 Impact High Rider Cart Replacement Parts
The Titan RentSpray 600 Impact High Rider Cart Assembly is the wheeled support arrangement associated with the high rider configuration of the RentSpray 600 Impact airless paint sprayer. It provides a dedicated parts category for identifying cart-related components used to support, position, and move the equipment.
A high rider cart serves a different purpose from the sprayer's fluid section, drive mechanism, or suction system. Rather than generating spraying pressure or moving coating material, the cart provides the structural support and mobility needed for equipment handling.
The cart arrangement helps keep the sprayer positioned during normal operation and provides a wheeled structure for moving the equipment between suitable work areas. Its condition can affect handling, balance, and the ease of relocating the sprayer.
The RentSpray 600 Impact High Rider Cart Assembly category is intended for customers looking for replacement parts associated with the wheeled support configuration. Relevant service areas include cart structures, wheel arrangements, axle retention, handle components, and attachment hardware.
Cart-related parts can experience wear from transportation, repeated handling, vibration, impact, and exposure to working environments. Damaged wheels, loose attachments, or bent support components should be inspected before continued use.
Wheels are important to cart mobility. A damaged or improperly retained wheel may affect movement and stability. During maintenance, inspect the wheel condition, axle area, and applicable retaining components.
The cart frame provides the structural arrangement for supporting the equipment. Visible deformation, cracking, or damage to mounting locations may indicate a need for further inspection or replacement of the affected component.
Handles and related grip areas are important during equipment movement. Inspect accessible handle components for looseness, damage, or deterioration and confirm the correct replacement reference where service is required.
Mounting and retaining hardware should be selected carefully. Fasteners, washers, clips, and other attachment components may look similar while differing in dimensions, thread specifications, or installation requirements.
For that reason, replacement parts should be identified by the applicable Titan part number and illustrated assembly position. Do not substitute hardware based solely on appearance.
The RentSpray 600 Impact also has a separate Skid Assembly category. The skid and high rider cart represent different equipment support configurations, so customers should confirm which arrangement is installed on their sprayer.
The standard Titan RentSpray 600 and the Titan RentSpray 600 Impact are also listed under separate equipment categories. Similar model names do not establish that their cart frames, wheels, or mounting components are interchangeable.
Some high rider cart repairs may require only an individual replacement component. Depending on the affected part and current availability, customers may be able to identify the required wheel, retaining item, or support component without replacing the entire cart arrangement.
Other repairs may involve larger structural components. When a cart frame or mounting area is significantly damaged, the condition of the surrounding assembly should be evaluated before choosing a replacement.
The exact components, part numbers, quantities, and supplied contents for the RentSpray 600 Impact High Rider Cart Assembly should be confirmed using the model-specific parts illustration and current product listings.
Before ordering, check the complete sprayer model, any relevant equipment revision, the diagram item number, and the corresponding manufacturer reference. Confirm whether the selected product is an individual part or a larger assembly.
Routine cart inspection can help identify damaged wheels, missing hardware, loose connections, and structural problems before they interfere with equipment handling. Cleaning accumulated coating residue and debris may also make visual inspection easier.
When moving a cart-mounted sprayer, follow the manufacturer's handling instructions and use appropriate care on slopes, steps, or uneven ground. Do not rely on damaged wheels or loose structural components to support the equipment.
AllTitanParts organizes RentSpray 600 Impact replacement parts by assembly, helping contractors, equipment owners, rental operators, and service technicians identify the components associated with each equipment system.
Browse the Titan RentSpray 600 Impact High Rider Cart Assembly category to compare available cart parts, locate the required manufacturer references, and select suitable components for mobility and support-related repairs.
Understanding RentSpray 600 Impact High Rider Cart Components
The following cards describe common service areas in a wheeled sprayer cart. They are intended as an identification guide, not a verified inventory of every component in the RentSpray 600 Impact High Rider Cart Assembly.

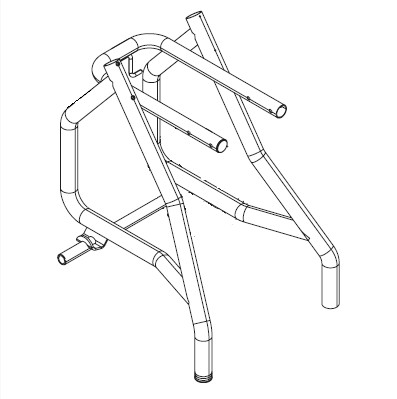

High Rider Cart Frame
The cart frame provides the primary support arrangement for the high rider configuration.
Inspect accessible structural areas for bending, cracks, damaged mounting points, or other deterioration. Confirm the correct frame reference before replacement.
Wheel Components
Wheels support movement of the sprayer cart between suitable work locations.
Inspect wheel surfaces, hubs, and rotation. Check for damage or unusual resistance and match the specified replacement component.
Axle and Retention Areas
The axle arrangement supports the wheels and helps maintain their installed position.
Check for visible damage, looseness, and missing retaining hardware. Use the applicable diagram to identify the required parts.
Cart Handle and Grip Areas
The handle arrangement provides a designated point for controlling equipment movement.
Inspect the handle structure and applicable grip components for looseness, deterioration, or damage.
Fasteners and Attachment Hardware
Mounting hardware secures specified components to the cart structure.
Identify replacement fasteners, washers, clips, and other retaining parts using the exact manufacturer reference.

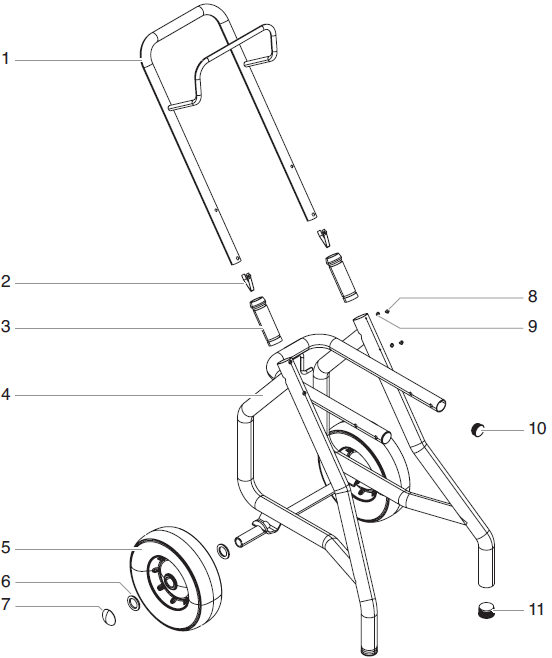

Cart Assembly Diagram
The illustrated parts breakdown helps locate individual components within the high rider cart arrangement.
Use the diagram item number, complete Titan part number, and current product listing to confirm compatibility.
Titan RentSpray 600 Impact High Rider Cart Parts Identification Guide
Use this table to identify the cart area associated with your repair. The exact parts inventory and manufacturer references should be checked against the applicable assembly illustration.
| Component Area | General Function | What to Verify |
|---|---|---|
| Cart Frame | Supports the sprayer in the high rider configuration. | Correct frame design and model compatibility. |
| Wheels | Allow the equipment to be moved on suitable surfaces. | Exact wheel part number and mounting arrangement. |
| Axle Components | Support the installed wheel arrangement. | Correct axle and related retention references. |
| Handle Components | Provide a designated handling point for cart movement. | Handle configuration and any applicable grip components. |
| Mounting Hardware | Secures specified parts to the cart structure. | Correct fasteners, clips, washers, and quantities. |
| Support Attachments | Connect designated equipment components to the cart. | Diagram position and installation requirements. |
Ordering note: This table explains cart service areas rather than listing confirmed part numbers. Check the current RentSpray 600 Impact High Rider Cart Assembly product catalog before purchasing.
How the RentSpray 600 Impact High Rider Cart Supports the Sprayer
Equipment Support
The high rider cart provides a structural arrangement for supporting the sprayer during normal operation and handling. The condition of its frame and mounting areas affects the reliability of that support.
Mobility Between Work Areas
The wheeled configuration allows the equipment to be repositioned without relying solely on manual lifting. Wheels and their supporting components should remain properly installed and in suitable condition.
Wheel and Axle Retention
The wheel arrangement depends on correct axle positioning and applicable retaining hardware. Missing or damaged components may interfere with movement or create an unstable support condition.
Handling and Positioning
The handle area provides a point for controlling the cart while moving it. Damaged or loose handle components should be addressed before equipment transport.
Relationship to the Sprayer's Operating Systems
The cart supports the equipment but does not generate spraying pressure, power the pump, or control coating material flow. Problems with pumping or electrical operation should be investigated through the corresponding drive, fluid section, suction, or main assembly categories.
Common RentSpray 600 Impact High Rider Cart Problems
The following inspection guide covers common issues that can affect wheeled equipment support. Diagnose the actual cause before replacing components.
| Observed Problem | Possible Inspection Area | Recommended Action |
|---|---|---|
| Wheel does not rotate smoothly | Wheel, hub, or axle area | Inspect for damage, debris, and incorrect installation. |
| Wheel feels loose | Axle and retaining components | Check the specified retention hardware and wheel condition. |
| Cart sits unevenly | Wheels, frame, and support alignment | Check the working surface and inspect the cart for damage. |
| Handle moves unexpectedly | Handle attachment or structural component | Inspect mounting hardware and replace damaged components. |
| Visible frame damage | Cart support structure | Stop using the damaged cart and assess the required repair. |
| Loose equipment mounting | Cart attachment hardware | Identify the correct fasteners and follow the specified installation procedure. |
Safety: Switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure relief procedure before equipment servicing. Do not transport the sprayer using damaged wheels, loose mounting hardware, or a compromised cart frame.
Maintaining the Titan RentSpray 600 Impact High Rider Cart
Regular inspection of the cart arrangement can help identify wear, loose hardware, and structural damage before they interfere with equipment handling.
Inspect the Wheels
Check for visible damage, unusual resistance, or excessive looseness during wheel movement.
Check Axle Retention
Inspect the applicable axle and retaining components for damage or missing hardware.
Examine the Cart Frame
Look for deformation, cracks, corrosion, or damaged support locations.
Inspect the Handle
Check the handle and grip areas for looseness, deterioration, or damage before moving the equipment.
Keep the Cart Clean
Remove accumulated debris and coating residue using suitable cleaning methods that do not damage the equipment.
Inspect After Transportation
Check the wheels, frame, and mounting areas after handling or transport, especially if the cart has experienced an impact.
How to Order Titan RentSpray 600 Impact High Rider Cart Parts
1. Confirm the Cart Configuration
Verify that your RentSpray 600 Impact uses the high rider cart rather than the skid arrangement.
2. Identify the Component
Locate the required wheel, frame, handle, axle, or mounting item in the cart assembly diagram.
3. Match the Titan Reference
Compare the full part number and any confirmed replacement reference with the product listing.
4. Review Before Checkout
Confirm compatibility, quantity, product contents, and current availability before ordering.
Related Titan RentSpray 600 Impact Parts Categories
Explore the corresponding assembly category when your repair involves a different part of the RentSpray 600 Impact airless sprayer.
Frequently Asked Questions About RentSpray 600 Impact High Rider Cart Parts
What is the Titan RentSpray 600 Impact High Rider Cart Assembly?
It is the wheeled support arrangement associated with the high rider configuration of the Titan RentSpray 600 Impact airless paint sprayer.
What components should I check when servicing the cart?
Inspect the wheels, axle and retaining areas, frame, handle, and applicable mounting hardware. Use the model-specific diagram to identify the exact replacement parts.
Can I replace an individual wheel instead of the entire cart?
Individual wheel replacement may be possible if the correct component is offered separately. Confirm the part number, mounting arrangement, and product contents before ordering.
Are the skid and high rider cart parts interchangeable?
Not automatically. They are different support configurations. Only use components across configurations when the applicable manufacturer references confirm compatibility.
Why does my RentSpray 600 Impact cart feel unstable?
Possible causes include an uneven surface, damaged wheels, loose retaining hardware, or a distorted frame. Inspect the equipment safely and correct the identified problem before continued use.
Will cart parts from a standard RentSpray 600 fit the RentSpray 600 Impact?
Compatibility cannot be assumed from the model name. Match the exact Titan part number and applicable equipment reference before purchasing.
Where can I get help finding RentSpray 600 Impact cart parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial number, diagram reference, and a description of the component you need.
Shop Titan RentSpray 600 Impact High Rider Cart Assembly Parts
Find replacement parts for the Titan RentSpray 600 Impact high rider cart configuration. Browse cart support components, identify the required manufacturer references, and select parts for equipment mobility, mounting, and structural maintenance.
Shop High Rider Cart Parts Call 713-931-0006
