Titan RentSpray 600 Impact Drive Assembly Parts
Shop Titan RentSpray 600 Impact Drive Assembly replacement parts at AllTitanParts. Find motor components, drive housing parts, gears, crankshaft assemblies, slider components, and related electrical controls for your RentSpray 600 Impact airless paint sprayer. Browse the drive assembly diagram, compare Titan part numbers, and identify the correct replacement components for mechanical transmission, motor operation, and sprayer repair.
Shop Titan RentSpray 600 Impact Drive Assembly Replacement Parts
The Titan RentSpray 600 Impact Drive Assembly is a central mechanical and electrical operating system within the RentSpray 600 Impact airless paint sprayer. Its components help convert motor-generated rotational movement into the reciprocating motion required by the pump's fluid section.
The drive system connects the sprayer's electrical power and motor operation to its mechanical pumping action. A properly functioning drive mechanism is essential for transferring power to the fluid section during priming, spraying, and other operating procedures.
The RentSpray 600 Impact Drive Assembly category includes references for motor-related components, transmission gears, crankshaft mechanisms, slider components, drive housing parts, and electrical control equipment.
Identified drive assembly references include Titan 805-204A Main Housing Assembly, Titan 0508208 Slider Assembly, Titan 704-176 Second Stage Gear, Titan 704-173A Crankshaft/Gear Assembly, Titan 805-264A Motor Assembly, and Titan 805-837 Motor Controller Complete.
Each component performs a different role in the drive system. The motor generates rotational motion, gears transmit that motion through the drive mechanism, and the crankshaft and slider arrangement support the conversion of rotation into the movement required by the pump.
The main housing provides a structural arrangement for specified drive components. Correct component positioning, retention, and alignment are important for the operation of the mechanical transmission.
Electrical control components are also important to sprayer operation. The motor controller is associated with managing the electrical operation of the drive motor according to the sprayer's control system.
Drive assembly problems can produce symptoms such as failure to start, abnormal mechanical noise, irregular movement, or failure to operate the pumping mechanism. However, these symptoms may also result from electrical supply problems, fluid section faults, or other conditions.
For this reason, replacement decisions should follow appropriate troubleshooting rather than relying on symptoms alone. A motor that does not operate, for example, does not automatically indicate that the complete motor assembly must be replaced.
Likewise, a sprayer that runs without producing the expected fluid pressure may require inspection of the fluid section, suction arrangement, or pressure-control components before a drive repair is considered.
Mechanical components should be inspected for visible wear, damaged teeth, abnormal movement, loose connections, or other service-related conditions where accessible and appropriate. Internal disassembly should follow the applicable manufacturer procedure.
The RentSpray 600 Impact is organized separately from the standard RentSpray 600 in the parts catalog. Components with similar names or appearances should not be assumed interchangeable without confirming the exact Titan reference.
Before ordering, identify the required component in the RentSpray 600 Impact Drive Assembly diagram and compare its part number with the corresponding product listing. Check any model revisions, replacement-number updates, and product contents.
Some replacement products may consist of individual components, while others may be supplied as complete assemblies. The description of each product should be reviewed carefully to determine which items are included.
Electrical components, including motor control equipment, require particular attention to compatibility and safe installation. Repairs involving wiring, motor control circuits, or internal electrical systems should be performed by qualified personnel.
AllTitanParts organizes the RentSpray 600 Impact parts collection into individual assemblies so equipment owners, contractors, and technicians can locate the system associated with their repair.
Browse the Titan RentSpray 600 Impact Drive Assembly parts category to compare available motor, gear, crankshaft, slider, housing, and control components for maintenance and equipment repair.
Key Titan RentSpray 600 Impact Drive Assembly Components
The following selected Titan references identify major components associated with the RentSpray 600 Impact drive mechanism. Confirm current part numbers, model applicability, and assembly contents before ordering.
Main Housing Assembly
Titan 805-204A identifies a main housing assembly associated with the RentSpray 600 Impact drive system.
The housing provides structural support and positioning for specified drive components. Check the product listing to confirm the supplied contents.
Slider Assembly
Titan 0508208 identifies a slider assembly used in the mechanical drive arrangement.
The slider participates in transmitting reciprocating movement toward the pumping mechanism. Correct positioning and condition are important during service.
Second Stage Gear
Titan 704-176 identifies a second stage gear associated with the RentSpray 600 Impact drive assembly.
This gear forms part of the mechanical transmission that transfers rotational movement through the drive system.
Crankshaft/Gear Assembly
Titan 704-173A identifies a crankshaft and gear assembly used in the mechanical drive arrangement.
The crankshaft mechanism supports the conversion of rotational motion into the reciprocating movement required by the pump.
Motor Assembly
Titan 805-264A identifies a motor assembly associated with the RentSpray 600 Impact drive system.
The electric motor supplies rotational power to the drive mechanism. Electrical and mechanical compatibility must be confirmed before replacement.
Motor Controller Complete
Titan 805-837 identifies a complete motor controller associated with the RentSpray 600 Impact electrical drive arrangement.
The controller is involved in motor operation and requires appropriate electrical diagnostics and qualified installation.
Titan RentSpray 600 Impact Drive Assembly Parts Reference
Use this selected parts reference to identify drive components by their Titan part numbers and general functions.
| Titan Part Number | Component | General Function |
|---|---|---|
| 805-204A | Main Housing Assembly | Supports and positions specified drive components. |
| 0508208 | Slider Assembly | Transmits reciprocating movement toward the pump. |
| 704-176 | Second Stage Gear | Transfers rotational movement through the gear train. |
| 704-173A | Crankshaft/Gear Assembly | Supports conversion of rotational movement into reciprocating motion. |
| 805-264A | Motor Assembly | Provides rotational power for the mechanical drive. |
| 805-837 | Motor Controller Complete | Controls electrical operation of the drive motor. |
Parts identification note: This table is a selected reference, not a complete drive assembly inventory. Check the applicable model diagram, product details, and any updated manufacturer references before purchasing.
How the Titan RentSpray 600 Impact Drive Assembly Works
Electric Motor Operation
The electric motor generates rotational movement that powers the mechanical drive. Motor performance depends on suitable electrical supply, functional controls, and the condition of the associated mechanical components.
Gear Transmission
The drive gear arrangement transfers motor rotation through the mechanical system. The second stage gear and associated gear components participate in this transmission process.
Crankshaft Movement
The crankshaft and gear mechanism converts rotational movement into the motion required by the reciprocating pump arrangement.
Slider Transmission
The slider assembly transfers the reciprocating motion generated by the crankshaft mechanism toward the fluid section. Wear or damage in the mechanical transmission may interfere with proper pumping action.
Drive Housing Support
The main housing provides the structural arrangement for specified drive components. Correct installation and alignment are important when servicing the internal mechanism.
Motor Control
The motor controller participates in regulating electrical operation of the motor. Control-related problems require appropriate testing because similar symptoms can result from different electrical or mechanical faults.
Common RentSpray 600 Impact Drive Assembly Problems
Drive-related symptoms may originate from the motor, controller, transmission, fluid section, or electrical supply. Use the following table as a general inspection guide rather than a definitive diagnosis.
| Observed Symptom | Possible Inspection Area | Recommended Action |
|---|---|---|
| Motor does not start | Electrical supply, motor, or controller | Follow safe electrical diagnostics before replacing components. |
| Abnormal grinding noise | Gear train or mechanical transmission | Stop operation and inspect the mechanism using the applicable service procedure. |
| Motor operates but pump does not cycle | Crankshaft, slider, or pump connection | Investigate the mechanical drive and fluid section connection. |
| Irregular mechanical movement | Drive components or pump resistance | Check for mechanical damage and related fluid section faults. |
| Unexpected motor shutdown | Electrical control, power supply, or mechanical load | Stop operation and perform qualified diagnostics. |
| Motor cycles but pressure is low | Fluid section, suction system, or drive | Inspect the fluid system and verify drive operation before ordering parts. |
Safety: Before servicing the drive assembly, switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure relief procedure. Do not place hands near moving mechanisms. Electrical testing and internal motor control repairs should be performed by qualified personnel.
Maintaining the Titan RentSpray 600 Impact Drive Assembly
Drive system maintenance should follow the manufacturer's service procedures and any requirements applicable to the specific component.
Monitor Unusual Noise
Investigate abnormal grinding, knocking, or other unexpected sounds before continued operation.
Inspect Accessible Housing Areas
Check for visible damage, looseness, or contamination without removing protective components during operation.
Check Mechanical Components
During authorized service, inspect specified gears, crankshaft parts, and slider components for wear or damage.
Follow Lubrication Instructions
Use only the lubricants, amounts, and service intervals specified for the applicable drive mechanism.
Protect Electrical Components
Keep electrical housings and connections protected from inappropriate cleaning methods and contamination.
Verify Repairs Before Use
Ensure serviced components are installed correctly and that required protective covers are restored before operation.
How to Order Titan RentSpray 600 Impact Drive Assembly Parts
1. Confirm the Model
Verify that your sprayer is the Titan RentSpray 600 Impact and check any applicable equipment revision.
2. Locate the Drive Component

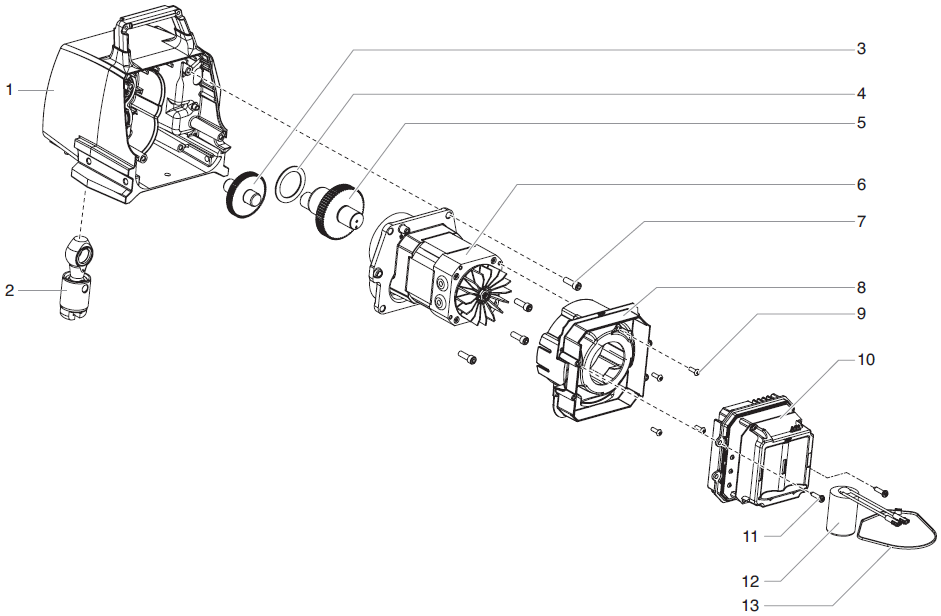

Use the drive assembly diagram to identify the motor, housing, gear, slider, crankshaft, or control component.
3. Match the Part Number
Compare the complete Titan reference with the product listing and any confirmed replacement-number information.
4. Confirm Product Details
Check compatibility, assembly contents, quantity, and availability before placing an order.
Related Titan RentSpray 600 Impact Parts Categories
Browse the corresponding assembly category if your repair involves the pump, suction arrangement, equipment structure, or support system.
Frequently Asked Questions About RentSpray 600 Impact Drive Assembly Parts
What is the Titan RentSpray 600 Impact Drive Assembly?
It is the mechanical and electrical drive arrangement that supplies and transmits motor power to the reciprocating pump mechanism.
Which motor assembly is associated with the RentSpray 600 Impact?
Titan 805-264A is identified as a motor assembly associated with the RentSpray 600 Impact drive system. Confirm the exact model and product reference before ordering.
What does the Titan 704-176 second stage gear do?
The second stage gear forms part of the mechanical transmission that transfers rotational movement through the drive system.
What is the function of the Titan 0508208 slider assembly?
The slider assembly participates in transferring reciprocating motion from the drive mechanism toward the fluid section.
Why does my RentSpray 600 Impact motor run without building pressure?
Possible causes include suction restrictions, fluid section valve problems, worn pump components, or mechanical drive faults. Inspect the relevant systems before replacing parts.
Are RentSpray 600 and RentSpray 600 Impact drive parts interchangeable?
Not automatically. The models have separate parts categories. Confirm compatibility using the exact manufacturer reference and applicable equipment information.
Where can I get help identifying RentSpray 600 Impact drive parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial number, diagram reference, and the component part number if available.
Shop Titan RentSpray 600 Impact Drive Assembly Parts
Find replacement motor, gear, crankshaft, slider, housing, and control components for your Titan RentSpray 600 Impact. Compare Titan part numbers and identify the correct drive assembly parts for maintenance and repair.
Shop Drive Assembly Parts Call 713-931-0006
