Titan RentSpray 600 Impact Suction Set Assembly Parts
Shop Titan RentSpray 600 Impact Suction Set Assembly replacement parts at AllTitanParts. Identify suction components, return tubes, inlet screens, clips, and related hardware for your RentSpray 600 Impact airless paint sprayer. Browse the assembly diagram, compare Titan part numbers, and find replacement components for material intake, priming, fluid return, and suction system maintenance.
Shop Titan RentSpray 600 Impact Suction Set Replacement Parts
The Titan RentSpray 600 Impact Suction Set Assembly is part of the fluid intake arrangement used by the RentSpray 600 Impact airless paint sprayer. Its purpose is to provide a path for coating material to enter the pump and to support the return flow associated with the equipment's priming and fluid circulation functions.
The suction set operates alongside the fluid section and pressure-control system. When the sprayer is operating correctly, coating material is drawn through the suction arrangement toward the pump. The pump then moves material through the fluid system according to the selected operating mode.
The suction assembly includes components associated with the intake and return pathways. Identified RentSpray 600 Impact suction references include Titan 0558672A Suction Set Assembly, Titan 0558659A Return Tube, and Titan 700-805 Inlet Screen Filter.
These components perform different functions. The suction set provides the main material intake arrangement, the return tube carries material through the return pathway, and the inlet screen helps intercept debris before it enters the pump.
Additional retention components may be required to keep the suction arrangement properly positioned. Clips, ties, and other supporting hardware should be selected using the appropriate diagram references rather than by appearance alone.
Proper suction performance is essential for reliable priming and fluid delivery. A blocked inlet screen, damaged suction component, loose connection, or unsuitable replacement part may interfere with the movement of coating material into the pump.
When a sprayer fails to prime, the suction set is one of several systems that should be inspected. However, priming problems can also result from fluid section valves, pump wear, operating settings, or other conditions. The cause should be established before replacing components.
Regular inspection can help identify damaged intake components, restricted screens, and problems at accessible connections. Cleaning and replacement procedures should follow the applicable equipment instructions and the coating manufacturer's recommendations.
The RentSpray 600 Impact has a separate parts organization from the standard RentSpray 600. Although some Titan components may be used across multiple models, interchangeability should be confirmed by the exact part number and applicable compatibility information.
Before ordering a suction set component, compare the product listing with the complete equipment model and the illustrated assembly position. Check whether the product is supplied individually or as a complete assembly, and confirm any included fittings, screens, seals, or retention hardware.
AllTitanParts provides model-specific categories to help customers identify the correct components for their equipment. The Suction Set Assembly page focuses on the intake and return arrangement, while other categories cover the fluid section, drive, skid, main assembly, and high rider cart.
Whether you are replacing a damaged return tube, servicing a restricted inlet screen, or identifying a complete suction set, the Titan RentSpray 600 Impact Suction Set Assembly category provides a focused starting point for your repair.
Key Titan RentSpray 600 Impact Suction Set Components
The following parts and service areas are associated with the RentSpray 600 Impact suction arrangement. Use the complete Titan reference and applicable diagram position to confirm each replacement.
Suction Set Assembly
Titan 0558672A identifies a suction set assembly associated with the RentSpray 600 Impact intake system.
The assembly supports the transfer of coating material from the supply container toward the pump. Confirm the supplied components and model compatibility before purchasing.
Return Tube
Titan 0558659A is identified as a return tube used within the RentSpray 600 Impact suction set arrangement.
The return tube provides a designated pathway for material returning through the sprayer's fluid circulation or priming arrangement.
Inlet Screen Filter
Titan 700-805 is an inlet screen filter associated with the material intake pathway.
Its screening function helps reduce the entry of larger debris into the pump. Inspect the screen for contamination or damage and use the correct replacement reference.
Retention Clip
Titan 0279459 is identified as a clip in the RentSpray 600 Impact suction set parts references.
Clips help retain components in designated positions. Match the diagram item and complete part number before replacement.
Tie Wrap
Titan 9850638 is identified as a tie wrap associated with the suction set parts arrangement.
This type of retention component may help secure designated hoses or related components. Use the specified installation position and replacement part.
Connections and Sealing Areas
Suction systems rely on correctly fitted connections to maintain a suitable material intake pathway.
If a connection or seal requires service, identify the exact component from the assembly illustration. Do not substitute unverified fittings or sealing materials.
Titan RentSpray 600 Impact Suction Set Parts Reference
Use this selected reference table to identify suction set components and their general functions. Confirm the individual product listing before ordering.
| Titan Part Number | Component | General Function |
|---|---|---|
| 0558672A | Suction Set Assembly | Supports material intake from the coating supply. |
| 0558659A | Return Tube | Routes returned material through the fluid system. |
| 700-805 | Inlet Screen Filter | Helps screen debris from incoming coating material. |
| 0279459 | Clip | Retains a designated component in position. |
| 9850638 | Tie Wrap | Provides specified component retention. |
Ordering note: This table is a selected parts reference rather than the complete suction set bill of materials. Check current availability, component quantities, included items, and any updated manufacturer references.
How the RentSpray 600 Impact Suction Set Works
Material Intake
The suction arrangement provides a pathway for coating material to enter the sprayer. When the pumping system operates correctly, material is drawn from the supply container toward the inlet of the fluid section.
Inlet Screening
The inlet screen helps intercept debris in the incoming material. A heavily restricted or damaged screen may affect the material supply to the pump and should be inspected during routine maintenance.
Priming and Return Flow
The return tube forms part of the material return arrangement used during applicable operating and priming procedures. Its correct positioning is important for returning material to the designated location.
Connection Integrity
Suction connections should be correctly installed and free from damage. Air entering the intake pathway can interfere with priming, while loose return components can create unwanted material discharge or spillage.
Relationship to the Fluid Section
The suction set supplies coating material to the fluid section, but it does not perform the pumping action itself. Problems with inlet valves, piston components, or other internal pump parts should be investigated through the Fluid Section Assembly.
Common RentSpray 600 Impact Suction Set Problems
Suction-related symptoms can have multiple causes. Use the following inspection guide to help narrow the possible problem before purchasing replacement components.
| Symptom | Possible Cause | Recommended Inspection |
|---|---|---|
| Sprayer fails to prime | Restricted inlet screen, air entry, or pump valve problem | Inspect the suction set, inlet screen, connections, and fluid section. |
| Reduced material intake | Screen contamination or suction restriction | Check the intake pathway and clean or replace components as specified. |
| Air bubbles during priming | Possible air entry at an intake connection | Inspect the relevant connections and seals after pressure relief. |
| Return tube leaks or shifts | Damaged tube or incorrect retention | Check the return tube and specified retaining components. |
| Contamination enters the system | Damaged screen or unsuitable material preparation | Inspect the screen and follow coating preparation requirements. |
| Irregular fluid delivery | Intake restriction or internal pump condition | Inspect the suction arrangement and diagnose the fluid section if necessary. |
Safety: Before removing the suction set or servicing the fluid system, switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure relief procedure. Never inspect a pressurized fluid leak with your hands. High-pressure injection injuries require immediate emergency medical treatment.
Maintaining the Titan RentSpray 600 Impact Suction Set
Routine maintenance helps keep the material intake and return pathways in suitable operating condition.
Inspect the Inlet Screen
Check for coating buildup, debris, and visible damage. Clean or replace the screen using the applicable service instructions.
Examine Suction Components
Inspect accessible suction components for cracks, wear, deterioration, or physical damage that could affect material intake.
Check the Return Tube
Confirm that the return tube is in suitable condition and correctly positioned for the specified operating procedure.
Inspect Retaining Components
Check clips, ties, and other specified retention hardware. Replace missing or damaged components with the correct references.
Flush the Fluid Pathway
Follow the manufacturer's flushing procedure using materials suitable for the coating and equipment.
Store Components Properly
Protect cleaned intake and return components from damage and contamination during storage.
How to Order Titan RentSpray 600 Impact Suction Set Parts
1. Identify the Sprayer
Confirm the complete Titan RentSpray 600 Impact model designation and any relevant equipment revision.
2. Locate the Component

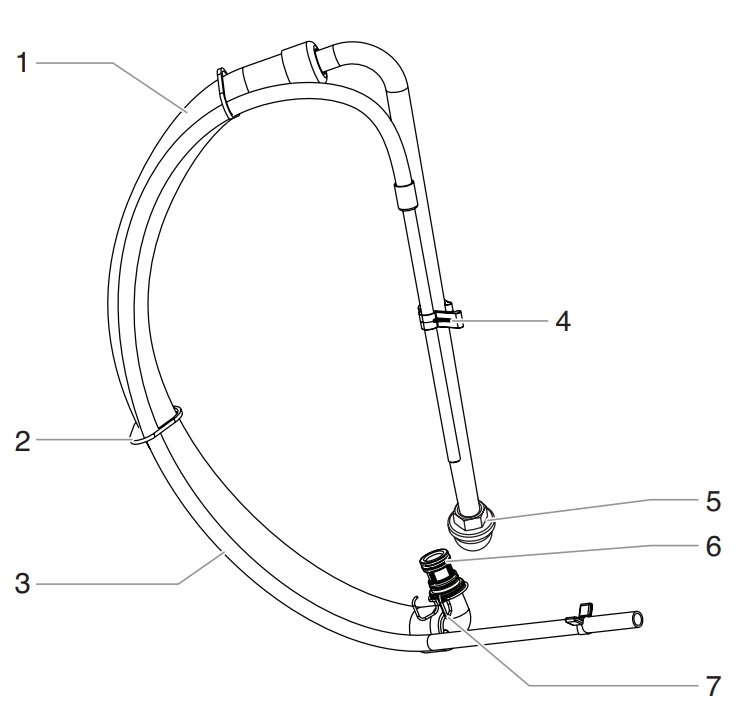

Use the Suction Set Assembly diagram to identify the required intake, return, or retaining component.
3. Match the Part Number
Compare the complete Titan reference with the current product listing and any confirmed replacement number.
4. Confirm the Contents
Check whether the product is supplied individually or as an assembly, and verify compatibility before checkout.
Related Titan RentSpray 600 Impact Parts Categories
Browse other RentSpray 600 Impact assembly sections when your repair involves the pump, drive system, support structure, or main equipment components.
Frequently Asked Questions About RentSpray 600 Impact Suction Set Parts
What is the Titan RentSpray 600 Impact Suction Set Assembly?
It is the component arrangement associated with drawing coating material toward the pump and supporting the return flow used during applicable priming and circulation procedures.
What is the part number for the RentSpray 600 Impact suction set?
Titan 0558672A is identified as a Suction Set Assembly associated with the RentSpray 600 Impact. Confirm the current product listing and included components before ordering.
Which return tube is associated with the RentSpray 600 Impact?
Titan 0558659A is identified as a return tube in the RentSpray 600 Impact suction set references. Match the complete part number to your equipment.
What does the Titan 700-805 inlet screen do?
The inlet screen helps intercept debris from coating material entering the suction pathway. A blocked or damaged screen may interfere with material intake.
Why will my RentSpray 600 Impact not prime?
Possible causes include a restricted inlet screen, air entry at suction connections, unsuitable material supply conditions, or problems within the fluid section. Follow the appropriate diagnostic procedure before replacing parts.
Are RentSpray 600 and RentSpray 600 Impact suction parts interchangeable?
Not automatically. The models have separate parts categories. Confirm compatibility through the complete manufacturer part number and applicable equipment reference.
How can I get help identifying RentSpray 600 Impact suction parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, serial number, diagram position, and the component reference if available.
Shop Titan RentSpray 600 Impact Suction Set Assembly Parts
Find suction set components for your Titan RentSpray 600 Impact airless sprayer. Browse replacement suction assemblies, return tubes, inlet screens, and related retention hardware. Compare Titan part numbers and confirm compatibility before ordering.
Shop Suction Set Parts Call 713-931-0006
