Titan RentSpray 600 Impact Skid Assembly Parts
Shop Titan RentSpray 600 Impact Skid Assembly replacement parts at AllTitanParts. Explore the skid assembly diagram, identify support and mounting components, and find replacement hardware for your RentSpray 600 Impact airless paint sprayer. Compare Titan part references before ordering parts for equipment stability, base maintenance, and skid configuration repairs.
Shop Titan RentSpray 600 Impact Skid Assembly Replacement Parts
The Titan RentSpray 600 Impact Skid Assembly is associated with the base and support arrangement of the RentSpray 600 Impact airless paint sprayer. It provides a dedicated parts category for identifying components used in the skid-mounted equipment configuration.
The skid arrangement is important because an airless sprayer must remain adequately supported during normal operation, setup, cleaning, and service. Support components help position the equipment and provide mounting locations for the relevant sprayer structure.
Unlike the pump's fluid section, which handles pressurized coating material, or the drive assembly, which transfers motor power to the pumping mechanism, the skid assembly primarily concerns the equipment's support and mounting arrangement.
The RentSpray 600 Impact parts organization also includes a separate High Rider Cart Assembly category. Customers should identify whether their sprayer uses the skid configuration or the wheeled cart configuration before selecting replacement support components.
Parts associated with a skid assembly may include base-related components, protective supports, attachment hardware, and other items shown in the relevant diagram. Exact inclusion and availability must be confirmed through the model-specific parts listing.
The RentSpray 600 Impact model parts index identifies paint cup and foot rubber components in the skid assembly section. These items illustrate how the category covers equipment support and associated service components rather than the internal pumping mechanism.
Damage to a skid support component can affect how the sprayer rests on a working surface. Missing or worn protective supports may also allow unwanted movement or uneven contact during equipment handling.
When inspecting a skid-mounted sprayer, look for visible damage, deformation, looseness, missing hardware, or deterioration of accessible support components. The condition of the surrounding mounting arrangement should also be assessed before replacement.
An unstable sprayer does not always require replacement of the complete skid arrangement. Depending on the confirmed cause and available parts, the repair may involve a single support component, attachment item, or other individually serviceable part.
Correct part identification is especially important for mounting hardware. Fasteners and retaining components may differ in thread, length, material, or installation requirements even when they appear similar.
Customers should use the complete Titan part number and diagram position rather than relying on appearance or approximate dimensions. Product listings should also be checked for replacement-number updates and applicable model restrictions.
The standard Titan RentSpray 600 and the Titan RentSpray 600 Impact are organized under separate equipment categories. Shared model-family branding does not establish that their skid components are interchangeable.
Routine inspection of the skid arrangement is a useful part of overall sprayer maintenance. Equipment should be placed on a suitable, stable surface, and damaged structural components should be addressed before continued operation.
The Skid Assembly category helps equipment owners, contractors, maintenance teams, and service technicians identify the support-related replacement components required for the RentSpray 600 Impact configuration.
Browse the Titan RentSpray 600 Impact Skid Assembly parts listing to locate available components, review their manufacturer references, and select the appropriate replacement for your equipment.
Understanding RentSpray 600 Impact Skid Assembly Components
The following cards explain relevant skid support functions and maintenance considerations. They are not a complete inventory of confirmed products in the category.

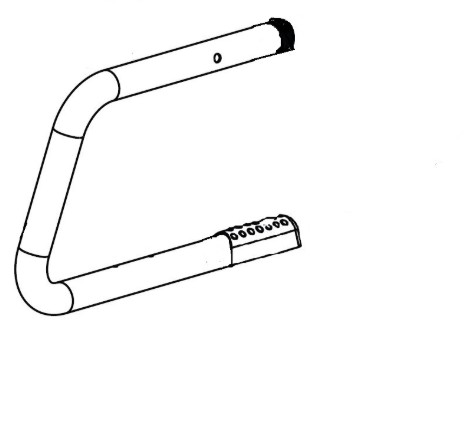

Skid Support Structure
The skid configuration provides a support arrangement for positioning the sprayer during operation and servicing.
Inspect structural areas for deformation, cracking, or other damage. Confirm the exact replacement reference if a support component requires service.
Foot Rubber Components
Foot rubber components are identified within the RentSpray 600 Impact skid assembly category.
These components provide protective contact points between designated support areas and the surface beneath the equipment. Check for wear, damage, or missing pieces.
Paint Cup Components
The RentSpray 600 Impact skid parts category identifies paint cup components as part of the assembly listing.
Confirm the component's exact function, installation location, and Titan part reference before ordering a replacement.
Fasteners and Connections
Mounting hardware helps secure specified components to the skid arrangement.
Inspect damaged or missing fasteners and use only the correct hardware identified by the applicable diagram or service information.
Support Alignment
The support arrangement should hold the equipment in its intended operating position.
Check for uneven contact, looseness, or damage that could affect stability. Investigate the cause before replacing components.

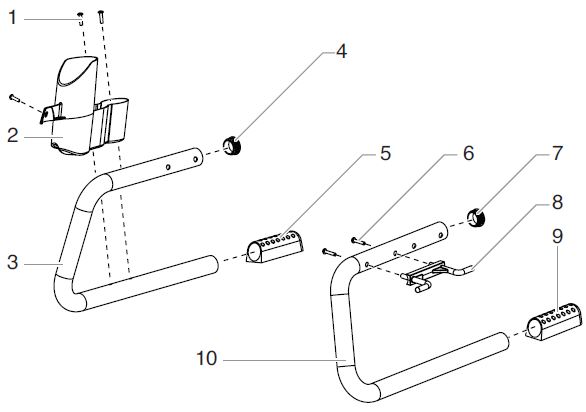

Illustrated Skid References
The assembly diagram provides a structured reference for locating skid-related components.
Compare the illustration, item position, manufacturer part number, and product description before purchasing.
Titan RentSpray 600 Impact Skid Assembly Parts Identification
Use this guide to narrow your search to the appropriate skid component. Exact part numbers, quantities, and fitment should be confirmed from the product listing.
| Component Area | What to Check | Service Consideration |
|---|---|---|
| Skid Support | Structural condition and mounting alignment | Confirm the correct support configuration. |
| Foot Rubber | Wear, damage, or missing support contact points | Match the illustrated component before replacement. |
| Paint Cup | Condition and correct installation location | Check the listed part number and supplied contents. |
| Mounting Hardware | Loose, missing, or damaged fasteners | Use the specified replacement hardware. |
| Support Connections | Attachment condition and alignment | Follow the applicable installation procedure. |
| Assembly Identification | Diagram item and Titan part number | Check model and revision compatibility. |
Compatibility note: Do not assume that skid components from the standard RentSpray 600 or another Titan model fit the RentSpray 600 Impact. Confirm compatibility using the complete part number and model-specific diagram.
How the RentSpray 600 Impact Skid Assembly Supports the Sprayer
Stable Equipment Positioning
A skid-mounted sprayer requires an appropriate support arrangement to maintain its intended position during use. Damaged or missing support components may contribute to instability, especially when the equipment is placed on an uneven surface.
Protection at Contact Points
Protective foot components provide designated contact areas between the equipment and the surface beneath it. Their condition should be checked during routine inspection.
Mounting and Retention
The skid arrangement may rely on specified mounting and retaining hardware. Correct component selection and installation help maintain the intended support configuration.
Relationship to Other Assemblies
The skid assembly supports the equipment but does not replace the functions of the fluid section, motor, drive mechanism, or suction system. Symptoms involving pressure generation, material intake, or electrical operation should be diagnosed through the corresponding equipment systems.
Skid Versus High Rider Cart Configuration
The RentSpray 600 Impact has separate skid and high rider cart parts categories. Select the support assembly that matches the actual configuration of your sprayer. Do not assume that parts from the two arrangements are interchangeable.
Common Titan RentSpray 600 Impact Skid Assembly Problems
Use the following inspection guide to evaluate visible support and mounting problems before selecting replacement parts.
| Observed Problem | Possible Inspection Area | Recommended Action |
|---|---|---|
| Sprayer rocks or sits unevenly | Support contact points and skid alignment | Check the surface, foot components, and skid condition. |
| Missing or damaged foot rubber | Protective support component | Identify the correct replacement from the skid diagram. |
| Loose base component | Mounting or retaining hardware | Inspect the specified hardware and follow the correct installation procedure. |
| Visible skid damage | Support structure | Stop using the damaged support arrangement and assess the required repair. |
| Accessory support damage | Paint cup or related attachment | Match the affected component to its diagram reference. |
| Unusual vibration | Skid mounting and drive system | Inspect support hardware and investigate possible mechanical causes. |
Safety: Switch off the sprayer, disconnect electrical power, and follow the manufacturer's pressure relief procedure before inspecting or repairing components. Place equipment on a stable surface and do not operate a sprayer with damaged structural support.
Maintaining the Titan RentSpray 600 Impact Skid Assembly
Routine inspection of accessible skid components can help identify visible damage and support-related maintenance needs.
Inspect Support Components
Check the skid for cracking, distortion, corrosion, or other visible deterioration.
Check Foot Rubber
Inspect protective foot components for wear, looseness, or missing pieces.
Review Mounting Hardware
Identify damaged or missing fasteners and replace them with the specified components.
Keep the Base Clean
Remove accumulated coating residue and debris using suitable cleaning methods.
Confirm Stable Placement
Position the sprayer on a suitable level surface and investigate unwanted movement before operation.
Check After Transportation
Inspect the support arrangement for impact damage or loosened components after equipment handling or transport.
How to Order Titan RentSpray 600 Impact Skid Assembly Parts
1. Confirm Your Model
Verify that your equipment is the Titan RentSpray 600 Impact and identify its support configuration.
2. Locate the Skid Component
Use the skid assembly illustration to identify the damaged or missing part.
3. Match the Part Number
Compare the complete Titan reference and any confirmed replacement-number information.
4. Review Before Checkout
Confirm product contents, quantity, model compatibility, and current availability.
Related Titan RentSpray 600 Impact Assemblies
If your repair involves a different equipment system, browse the related assembly categories below.
Frequently Asked Questions About RentSpray 600 Impact Skid Assembly Parts
What is the Titan RentSpray 600 Impact Skid Assembly?
It is the parts category associated with the skid-mounted support arrangement of the Titan RentSpray 600 Impact airless sprayer.
What parts are associated with the RentSpray 600 Impact skid?
The model parts index identifies paint cup and foot rubber components in the skid assembly section. Review the category diagram for the complete current parts listing.
How do I identify the correct skid replacement part?
Confirm the RentSpray 600 Impact model, locate the required component in the skid diagram, and match its complete Titan part number to the product listing.
Are the skid and high rider cart assemblies interchangeable?
Not automatically. They represent different support configurations. Only use components across configurations when the exact manufacturer references confirm compatibility.
Can worn foot rubber affect sprayer stability?
Worn or missing support contact components may contribute to uneven positioning or unwanted movement. Inspect the skid and the surface beneath the equipment to identify the cause.
Can I purchase individual skid components?
Individual replacement parts may be available depending on the component. Check the current product listing to confirm whether the required item is sold separately or included in an assembly.
Where can I get help finding RentSpray 600 Impact skid parts?
Contact AllTitanParts at 713-931-0006 with your equipment model, serial number, diagram reference, and a description of the required component.
Shop Titan RentSpray 600 Impact Skid Assembly Parts
Find replacement components for your Titan RentSpray 600 Impact Skid Assembly. Browse the parts category, compare manufacturer references, and identify support-related components for skid maintenance and equipment repair.
Shop Skid Assembly Parts Call 713-931-0006
