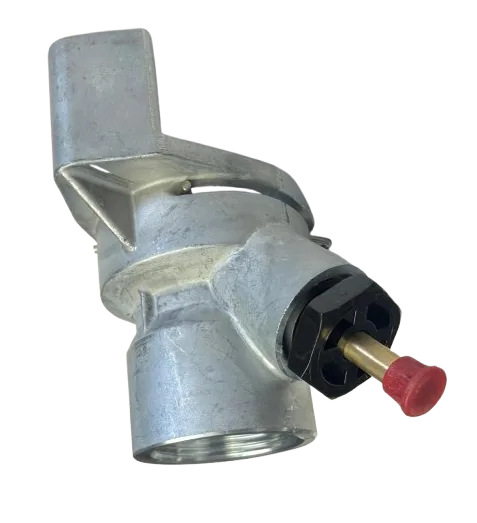

Titan 805-234A Pusher Assembly (High-rider)
OEM Titan Inlet Service Component
Titan 805-234A Pusher Assembly is an OEM inlet-area component specified for compatible upright-cart pump arrangements, allowing the inlet ball to be freed during the prescribed setup procedure.
Compatibility Table
The pusher allows the inlet ball to be mechanically freed during setup. Inspect the pusher, O-ring, retaining clip, and suction connection together before ordering.
Titan Inlet and Fluid Section Service Components
Titan 805-234A Pusher Assembly for Upright Cart Pump Inlet Service
Titan 805-234A is an OEM pusher assembly specified for compatible upright-cart pump arrangements. It provides the inlet-ball pusher used during setup, allowing the ball to be freed as part of the prescribed preparation sequence.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan pusher assembly specified for compatible upright-cart pump inlet arrangements. Provides the inlet-ball pusher used during setup. |
| Function | Provides a way to mechanically free the inlet ball during the prescribed preparation sequence. Titan setup guidance calls for depressing the pusher stem to check that the ball is free. |
| Specification | Assembly includes O-ring per referenced diagrams. One third-party listing identifies the included O-ring as 9871160 and notes a foot valve housing clip. Exact dimensions and package contents not independently established; confirm sales-package contents and verify against the illustrated parts list for your specific model revision. |
| Industrial Applications | Professional airless sprayer repair, pump inlet service, priming system maintenance, and rental fleet equipment restoration. |
| Documented Applications | Specified Impact 440, 540, and 640 high-rider configurations; RentSpray 600 Impact upright cart; MultiFinish 440. Confirm 805-234A in the exact machine's parts diagram before ordering. Note that 805-216A is assigned to skid/low-rider configurations, while 805-234A applies to the upright cart arrangement. |
| OEM Part Number | 805-234A Pusher Assembly. |
| Related Components | Titan 9871160 O-ring (included per referenced descriptions); Titan 805-350 Pusher Assembly Clip (listed separately); inlet ball and seat; suction tube and connection. These are separately identified components; confirm package contents before ordering additional items. |
| Common Problems Solved | Physical damage to the pusher assembly; restricted movement from contamination; leakage at the O-ring or mating surfaces; loose retention from clip wear; difficulty freeing the inlet ball during setup. |
| Target Users / Markets | Painting contractors, equipment maintenance technicians, rental fleet operators, and repair shops servicing compatible Titan airless sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fitment in specified upright-cart pump inlet applications. |
| Commercial Benefits | Restores proper inlet ball function; supports reliable priming and setup; maintains pump inlet serviceability; reduces avoidable downtime. |
Follow the pressure-relief procedure and disconnect power before disassembly. Confirm 805-234A in the correct pump diagram. Inspect the assembly, O-ring, retaining clip, and adjacent valve components. Reassemble following the manual's component arrangement and connection instructions. Complete the prescribed setup, priming, and leak inspection. Never check a pressurized leak with your hand. Persistent intake problems may require further diagnosis of valve contamination, suction leaks, or damaged sealing components.
