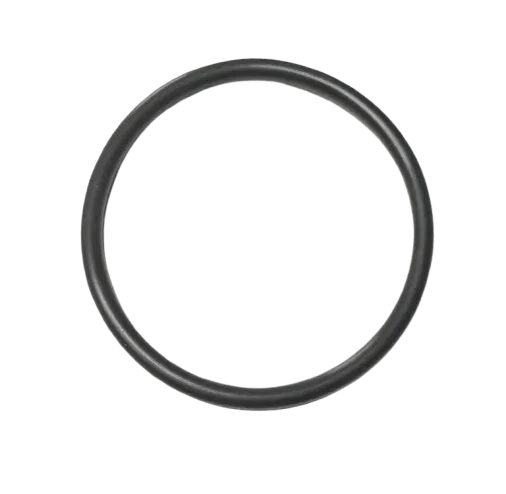

Titan 800-332 Viton O-Ring
OEM Titan Inlet Valve Sealing Component
Titan 800-332 Viton O-Ring is an OEM fluoroelastomer seal used at the inlet valve assembly on compatible Titan airless sprayers, helping maintain a secure seal and prevent fluid leakage at the valve interface.
Compatibility Table
Inspect the inlet-valve housing and O-ring groove for damage or debris. Confirm the correct seal part number before installation. The 800-332 is not interchangeable with the 762-058 solely because both are O-rings.
Titan Fluid Section Sealing and Pump Maintenance
Titan 800-332 Viton O-Ring for Inlet Valve Sealing
Titan 800-332 is an OEM Viton (fluoroelastomer) O-ring designed for specified pump and inlet-valve interfaces on compatible Titan airless sprayers. It helps contain fluid, maintain assembly integrity, and protect against leakage at the sealing point identified in the manufacturer parts diagram.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan Viton O-ring used for sealing at specified pump and inlet-valve interfaces on compatible airless sprayers. Associated with the Titan 805-351A Inlet Valve assembly. |
| Function | Provides a compressed elastomer seal at the designated groove or mating surface, containing fluid and preventing leakage or bypass at the inlet valve interface. |
| Specification | Viton fluoroelastomer construction. Offers resistance to many oils, chemicals, and elevated temperatures. Not every solvent or coating formulation is compatible with every fluoroelastomer compound; follow Titan fluid compatibility recommendations. Exact dimensions not independently established; verify against the illustrated parts list for your specific model revision. |
| Industrial Applications | Professional sprayer repair, fluid section rebuilds, inlet valve service, and rental fleet equipment restoration. |
| Compatible Titan Machines | Impact 340, 400, 440, 540, 640, 840; Impact X 440, X 540I; MultiFinish 440; Advantage 400, 500, 700, 1100; PowrTex 1200SF; Helix FR, VR; 840I, 840IX, 1140I, 1140IX. Additional catalog-listed applications may apply. Always confirm the exact assembly and machine revision against your parts diagram. |
| OEM Part Number | 800-332 Viton O-Ring. |
| Related Components | 800-333 PTFE Back-Up Ring; 805-351A Inlet Valve; 805-350 Pusher Assembly Clip; 0532242A Pusher Assembly; 762-058 PTFE Seat O-Ring (not interchangeable). These are separately identified components and are not included with the O-ring. |
| Common Problems Solved | Visible cuts or tears; flattening; hardening or cracking; swelling or deformation; leakage at the seal interface; pressure instability or poor priming when traced to a defective O-ring. |
| Target Users / Markets | Painting contractors, rental fleets, maintenance crews, and repair shops servicing compatible Titan sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fitment in compatible sprayer fluid systems. |
| Commercial Benefits | Restores leak-free sealing, prevents fluid leaks and pressure loss, maintains system integrity, and extends equipment service life. |
Switch off the sprayer, isolate electrical power, and complete the manufacturer pressure-relief procedure before disassembling any fluid-handling component. Locate 800-332 in the correct model-specific parts diagram and identify the exact sealing interface. Inspect the old seal for cuts, cracks, compression damage, swelling, and deterioration. Check the groove and surrounding surfaces for debris, burrs, or damage. Confirm the replacement seal is undamaged and use only a lubricant permitted by the equipment and coating manufacturers. Position the O-ring according to the manufacturer instructions without cutting, twisting, overstretching, or pinching it. Reassemble following the prescribed sequence and tightening requirements, then inspect the serviced interface for leakage before returning the sprayer to normal use.
