Titan RentSpray 450 Airless Sprayer Parts and Assembly Diagrams
Find replacement parts for the Titan RentSpray 450 Airless Sprayer at AllTitanParts. Browse seven organized equipment categories covering the main assembly, motor assembly, gear box assembly, siphon assembly, stand assembly, fluid section assembly and accessories. Identify components such as motor brushes, gears, siphon hoses, pump pistons, valve parts and structural hardware using the corresponding assembly diagrams. Compare the complete Titan part number with your equipment before ordering the parts needed for maintenance or repair.
Shop Titan RentSpray 450 Replacement Parts by Assembly
The Titan RentSpray 450 Airless Sprayer uses interconnected electrical, mechanical and fluid-handling components to deliver coating material through its spraying system. Maintaining these components requires selecting replacement parts that match the equipment's specific assembly arrangement.
AllTitanParts organizes the RentSpray 450 parts catalog into seven dedicated categories. Each category focuses on a different equipment area, allowing customers to narrow their search without sorting through unrelated components.
The Main Assembly contains parts associated with the primary equipment arrangement. The Motor Assembly covers electrical drive components, including the wire assembly and motor brush kit. The Gear Box Assembly contains mechanical transmission components, including the gear assembly and second-stage gear.
The Siphon Assembly addresses fluid intake and return components, while the Stand Assembly contains structural support parts such as the drip cup and leg assembly. The Fluid Section Assembly includes pumping components such as the piston assembly and upper piston guide. A separate Accessories category covers additional spraying equipment.
Using the correct diagram is especially important when different components produce similar operating symptoms. A sprayer that fails to prime may require inspection of the siphon system or fluid section, while unusual mechanical noise may involve the gearbox or connected drive components.
Browse the relevant assembly, locate the illustrated part and verify its complete Titan part number before purchasing. Where applicable, also check the equipment revision, documented replacement numbers and whether the listing includes an individual component or a complete assembly.
Explore All Seven Titan RentSpray 450 Parts Categories
Select the assembly that corresponds to the component you need to inspect or replace. The following categories reflect the RentSpray 450 parts organization.

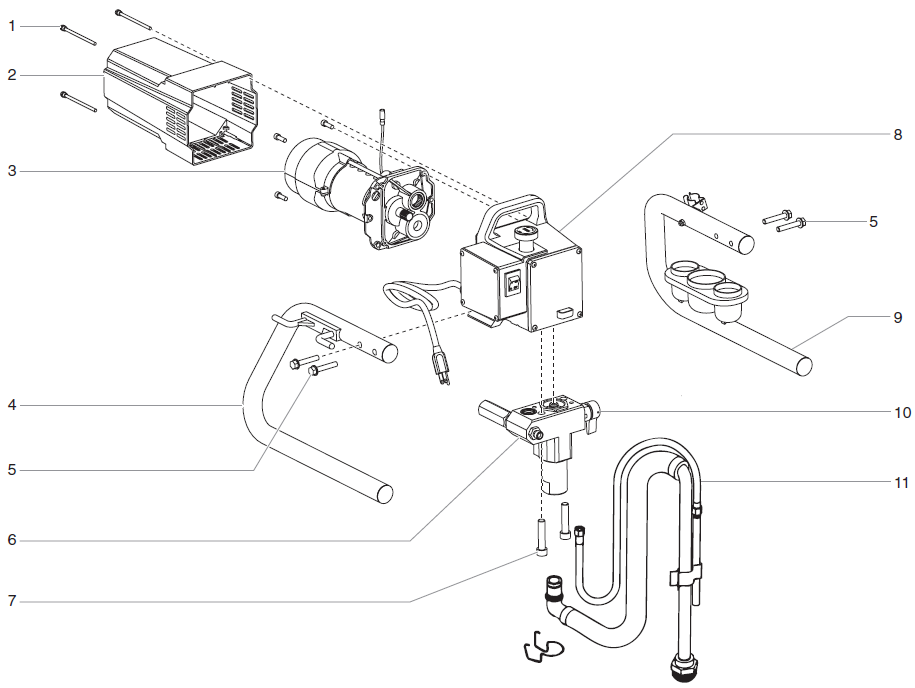

RentSpray 450 Main Assembly
The main assembly category covers the sprayer's primary equipment arrangement and associated components. Review this section when identifying body-related hardware, primary mounting connections or other items shown in the main assembly illustration.
Best for: Main equipment components and diagram-identified hardware.

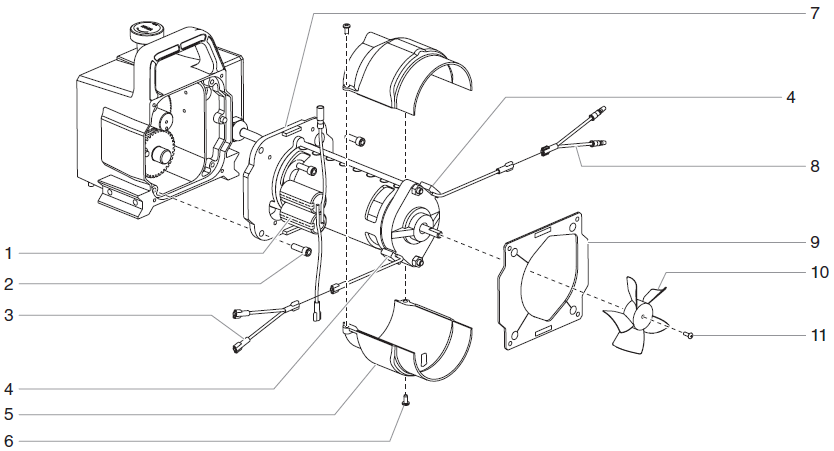

Shop Main Assembly PartsRentSpray 450 Motor Assembly
The motor assembly contains electrical drive components used to power the pumping system. Listed examples include the Titan 704-269 Wire Assembly, 704-276 Motor Brush Kit, 704-277 Complete Motor Assembly and 704-250 Motor Fan.
Best for: Motor brushes, wiring, cooling components and motor-related repairs.

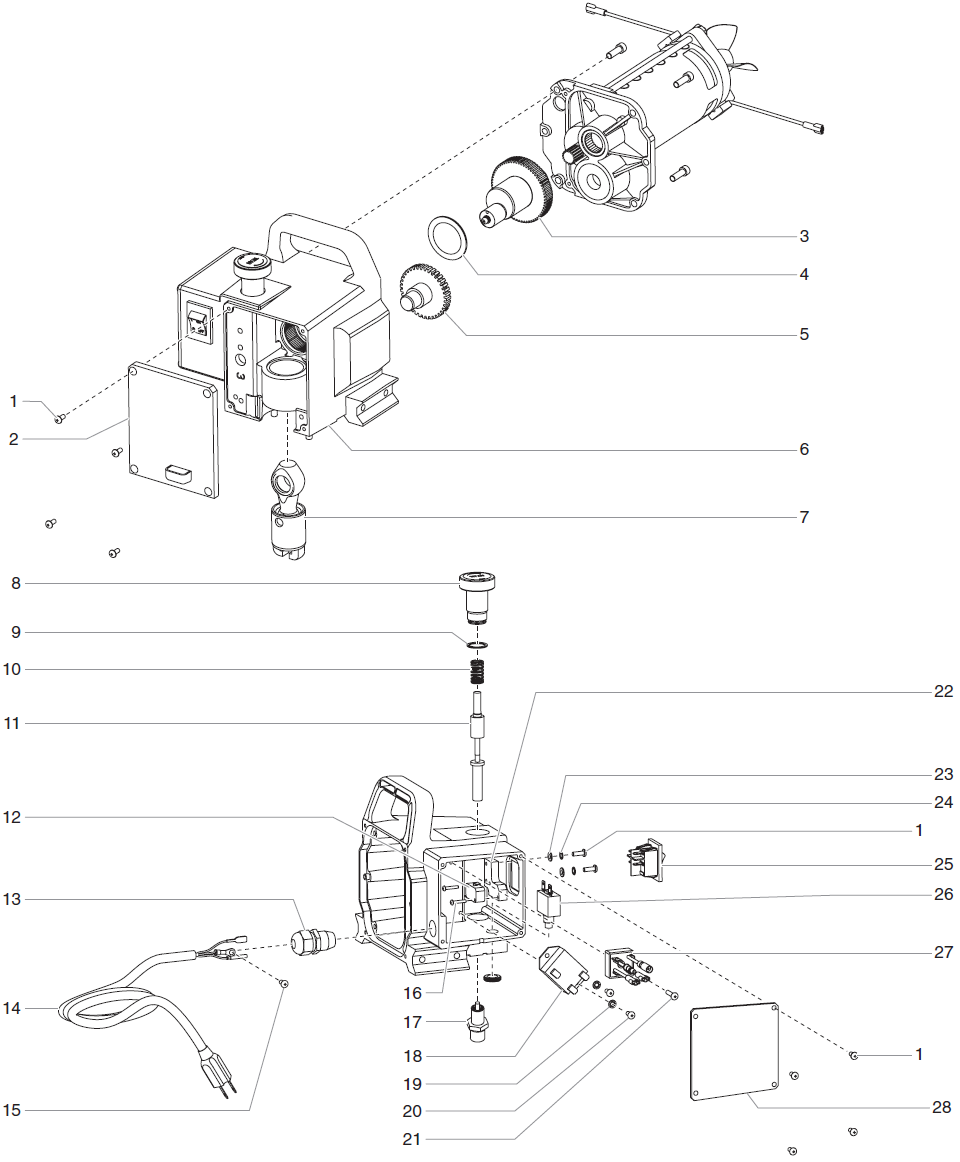

Shop Motor Assembly PartsRentSpray 450 Gear Box Assembly
The gearbox transfers mechanical motion from the motor toward the pumping mechanism. The category identifies the Gear Assembly and 2nd Stage Gear as service components. Inspect this area when diagnosing damaged gears, abnormal mechanical noise or interrupted drive movement.
Best for: Gear replacement and mechanical drive service.

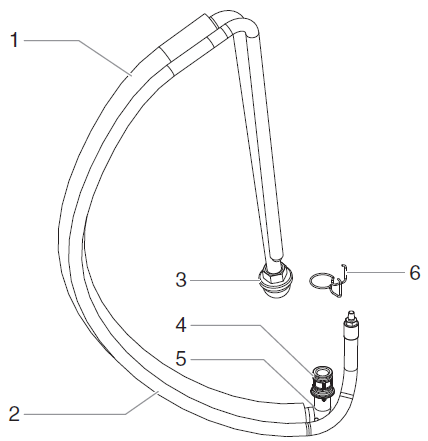

Shop Gear Box PartsRentSpray 450 Siphon Assembly
The siphon assembly forms part of the material intake and return arrangement. Identified components include the Siphon Hose and Return Hose Assembly. Inspect the relevant connections when diagnosing restricted material intake, damaged hoses or priming difficulties.
Best for: Siphon hose and return hose service.

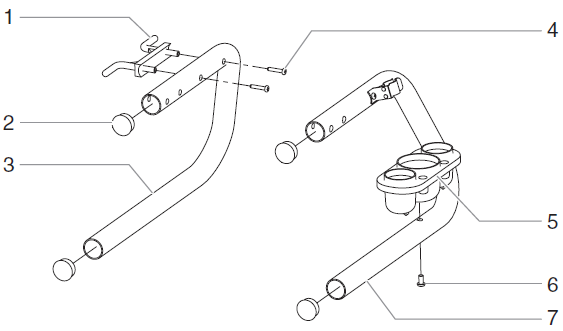

Shop Siphon Assembly PartsRentSpray 450 Stand Assembly
The stand assembly supports the sprayer's equipment arrangement. Identified components include the Drip Cup and Leg Assembly. Review this category when replacing damaged support components or inspecting the stand's structural connections.
Best for: Drip cup, leg assembly and stand support repairs.

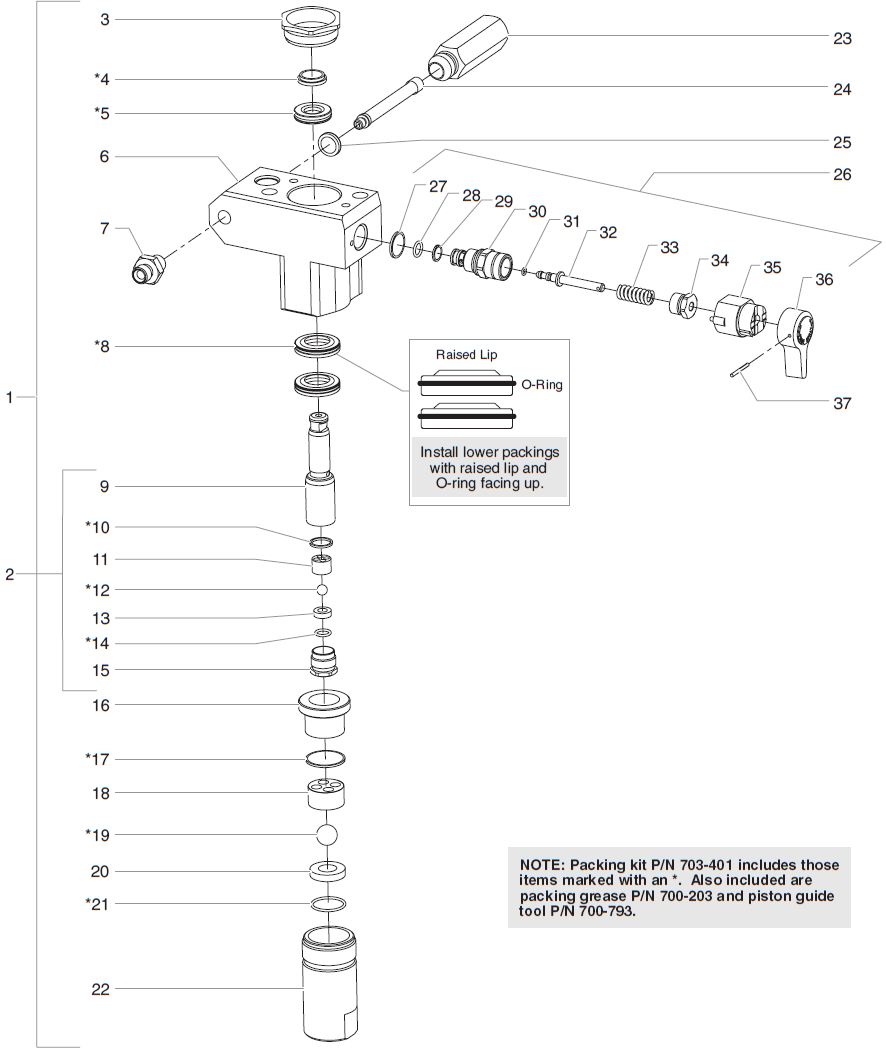

Shop Stand Assembly PartsRentSpray 450 Fluid Section Assembly
The fluid section contains pumping components responsible for moving and pressurizing coating material. The Piston Assembly and Upper Piston Guide are identified in this category. Inspect the pump when diagnosing fluid leakage, pressure loss or irregular pumping performance.
Best for: Piston, pump guide and fluid section repairs.
Shop Fluid Section PartsRentSpray 450 Accessories
Explore accessory listings associated with the RentSpray 450. Depending on current inventory and verified compatibility, accessory selection may involve spray application, material delivery or equipment maintenance products. Check individual product specifications before ordering.
Best for: Compatible spraying and maintenance accessories.
Explore AccessoriesTitan RentSpray 450 Replacement Parts Identification Guide
Use the following examples to understand which assembly contains the component you need. Exact part numbers should be confirmed from the individual assembly listing and applicable equipment diagram.
Titan RentSpray 450 Motor Assembly Parts
The RentSpray 450 Motor Assembly contains the electrical drive components that supply mechanical power to the sprayer. Its dedicated parts listing includes several identifiable Titan replacement references.
Titan 704-276 Motor Brush Kit
The motor brush kit supports electrical contact within the applicable motor design. Inspect brush wear and related components according to the specified motor service procedure.
Titan 704-269 Wire Assembly
The wire assembly forms part of the designated electrical connection arrangement. Confirm the complete replacement reference and connection configuration before installation.
Titan 704-277 Complete Motor Assembly
The complete motor assembly is listed for the RentSpray 450 motor category. Check the equipment identification and supplied assembly contents before selecting a full motor replacement.
Titan 704-250 Motor Fan
The motor fan supports the designated cooling arrangement. Inspect for damage or obstruction and use the correct replacement reference when service is required.
Other listed motor components include the Titan 704-363 Capacitor Kit, 700-681 Motor Mount Screw, 704-285A Fan Shroud, 704-322 Screw, 704-258 Wire Adapter Assembly and 704-331 Gasket Housing. Electrical repairs should be performed by appropriately qualified personnel using the applicable service instructions.
How the Titan RentSpray 450 Airless Sprayer Works
The RentSpray 450 uses an electrically driven pumping arrangement to move coating material through the spraying system. Its principal assemblies perform distinct but connected functions.
The motor provides mechanical power, and the gearbox transfers movement toward the pump. The fluid section uses the resulting motion to draw in and pressurize coating material. The siphon assembly provides the designated material intake and return paths.
Within the fluid section, the piston assembly and related pumping components work with the valve and sealing arrangement to move material in the intended direction. The stand supports the equipment, while compatible accessories provide the interface for spraying and material delivery.
Because these systems interact, diagnosing a fault requires distinguishing between electrical drive problems, mechanical transmission problems, suction restrictions and fluid section wear. Use the appropriate assembly diagram and manufacturer service procedure to identify the affected component.
Titan RentSpray 450 Troubleshooting and Repair Guide
Operating symptoms can help narrow the inspection area, but they do not establish a specific failed part. Review the following common conditions before selecting a replacement assembly.
Sprayer Will Not Start
Check the power supply and applicable electrical controls using the specified diagnostic procedure. Motor brushes, wiring or other electrical components may require inspection.
Motor Runs but Pump Does Not Cycle
Inspect the mechanical drive connection between the motor, gearbox and fluid section. Damaged gears or disconnected drive components may interrupt pumping movement.
Sprayer Will Not Prime
Inspect the siphon hose, fluid intake connections and applicable pump valve arrangement. Air entry, restrictions or valve problems may interfere with priming.
Low or Inconsistent Pressure
Review the fluid section, valve sealing arrangement, pump components and pressure control system. A worn pumping component or material restriction may affect delivery.
Grinding or Unusual Noise
Stop operation and inspect the motor drive and gearbox according to the service instructions. Damaged gears, worn mechanical components or loose hardware may produce abnormal noise.
Fluid Leakage
Locate the affected connection or sealing area only after safely relieving pressure. Inspect the relevant fluid section, siphon or accessory components for damage.
Safety reminder: Airless sprayers can cause serious high-pressure fluid injection injuries. Disconnect electrical power and follow the complete manufacturer-specified pressure relief procedure before servicing. Never use your hands to locate a pressurized leak. Electrical and internal drive repairs require the appropriate technical expertise.
Maintaining Your Titan RentSpray 450 Airless Sprayer
Regular maintenance can help identify wear and operating changes before they develop into larger repair requirements. Follow the applicable RentSpray 450 operating and service instructions for maintenance intervals, cleaning procedures and replacement criteria.
Clean the Fluid System
Flush the equipment using the specified procedure and a cleaning material compatible with the coating and sprayer components.
Inspect Siphon Components
Check accessible siphon and return hoses for damage, restrictions and insecure connections after pressure relief.
Monitor Mechanical Noise
Investigate new or unusual sounds from the motor and gearbox before continuing operation.
Inspect Pump Sealing
Check for visible leakage and other signs of fluid section wear. Use the specified repair procedure and replacement components.
Check Stand Connections
Inspect the leg assembly, drip cup and designated mounting hardware for damage or looseness.
Inspect Spray Accessories
Examine compatible hoses, guns, tips and filters for wear, restrictions or damage. Replace defective components with correctly rated parts.
How to Find the Correct Titan RentSpray 450 Part Number
The most reliable way to select a replacement is to match the equipment, assembly diagram and complete Titan part number. Components that appear similar may differ in their dimensions, electrical requirements or installation arrangements.
1. Identify the Sprayer
Confirm that the machine is the Titan RentSpray 450 and record its available model and serial identification details.
2. Select the Assembly
Choose the Main, Motor, Gear Box, Siphon, Stand or Fluid Section category corresponding to the required component.
3. Locate the Diagram Item
Find the component in the illustrated assembly and record its reference number and complete Titan part number.
4. Confirm the Replacement
Check any documented supersession, model revision, supplied quantity and assembly contents before ordering.
Important: Do not assume that parts from the RentSpray 400, RentSpray Plus or another Titan sprayer are interchangeable with RentSpray 450 components. Compatibility must be established by the applicable part reference and documented fitment.
Frequently Asked Questions About Titan RentSpray 450 Parts
Where can I find Titan RentSpray 450 replacement parts?
AllTitanParts organizes RentSpray 450 replacement parts into Main, Motor, Gear Box, Siphon, Stand and Fluid Section assembly categories, plus an Accessories category. Select the relevant assembly to identify the required component.
How many RentSpray 450 parts categories are available?
The RentSpray 450 catalog identifies seven subcategories: Main Assembly, Motor Assembly, Gear Box Assembly, Siphon Assembly, Stand Assembly, Fluid Section Assembly and Accessories.
Which motor brush kit is listed for the RentSpray 450?
The RentSpray 450 Motor Assembly category lists the Titan 704-276 Motor Brush Kit. Confirm the applicable motor configuration and service requirements before purchasing.
What components are identified in the RentSpray 450 gearbox?
The Gear Box Assembly category identifies the Gear Assembly and 2nd Stage Gear. Use the gearbox illustration to locate the correct replacement part number.
What should I inspect if my RentSpray 450 will not prime?
Inspect the siphon hose, material supply, fluid intake connections and applicable pump valves according to the manufacturer's diagnostic procedure. The Siphon Assembly and Fluid Section Assembly are useful starting points.
Which parts are associated with the RentSpray 450 Fluid Section Assembly?
The category identifies the Piston Assembly and Upper Piston Guide among its components. Consult the fluid section diagram for additional parts and exact replacement references.
Can I use RentSpray 400 parts on the RentSpray 450?
Do not assume interchangeability. Some Titan parts may be used across multiple models, but each replacement must be checked against its documented RentSpray 450 compatibility and part number.
Browse Related Titan RentSpray Parts
Use these links to navigate the RentSpray 450 assembly catalog or explore the wider Titan RentSpray product family.
Find the Right Titan RentSpray 450 Replacement Parts
Explore the Titan RentSpray 450 parts catalog to locate motor components, gears, siphon hoses, stand hardware, pump parts and compatible accessories. Select the appropriate assembly diagram, verify the complete Titan part number and order the replacement needed for your repair.
