Titan RentSpray 450 Motor Assembly Parts
Shop replacement components for the Titan RentSpray 450 Motor Assembly at AllTitanParts. Explore motor repair parts including the Titan 704-276 Motor Brush Kit, 704-269 Wire Assembly, 704-277 Complete Motor Assembly, 704-250 Motor Fan, 704-363 Capacitor Kit and other motor-related components. Identify the correct replacement using the motor assembly diagram, compare the complete Titan part number and select the component required for your RentSpray 450 airless paint sprayer repair.
Shop Titan RentSpray 450 Motor Assembly Replacement Parts
The Titan RentSpray 450 Motor Assembly provides the mechanical power required to operate the airless sprayer's pumping system. Working with the gearbox and fluid section, the motor converts electrical energy into rotational movement that drives the pumping mechanism.
The motor assembly contains several serviceable components associated with electrical connections, motor operation, cooling and mounting. These components perform different functions, making accurate part identification important when diagnosing electrical or mechanical drive problems.
AllTitanParts identifies several RentSpray 450 motor components, including the Titan 704-276 Motor Brush Kit, 704-269 Wire Assembly, 704-277 Complete Motor Assembly and 704-250 Motor Fan. Additional references associated with this motor category include the Titan 704-363 Capacitor Kit, 700-681 Motor Mount Screw, 704-285A Fan Shroud, 704-322 Screw, 704-258 Wire Adapter Assembly and 704-331 Gasket Housing.
Motor problems can produce symptoms such as failure to start, intermittent operation, unusual noise or inadequate drive movement. However, similar symptoms can also result from electrical supply problems, damaged gearbox components, pressure control faults or resistance within the fluid section.
Before ordering a replacement motor component, inspect the relevant system using the appropriate service procedure. Identify the affected item in the illustrated motor assembly and compare its complete Titan part number with the replacement listing.
Whether the repair involves replacing motor brushes, servicing a wire connection, inspecting the cooling fan or replacing the complete motor assembly, accurate component identification helps prevent unnecessary replacement of unrelated parts.
Titan RentSpray 450 Motor Assembly Components
Explore the following Titan motor component references associated with the RentSpray 450. Each item serves a designated function in the motor assembly, its electrical connections or its supporting hardware.
Titan 704-276 Motor Brush Kit
The motor brush kit contains replacement components for the designated brush arrangement. Motor brushes provide electrical contact within a brushed motor design and may wear during operation. Inspect brush condition and related contact surfaces according to the applicable service instructions. Confirm the kit contents before ordering.

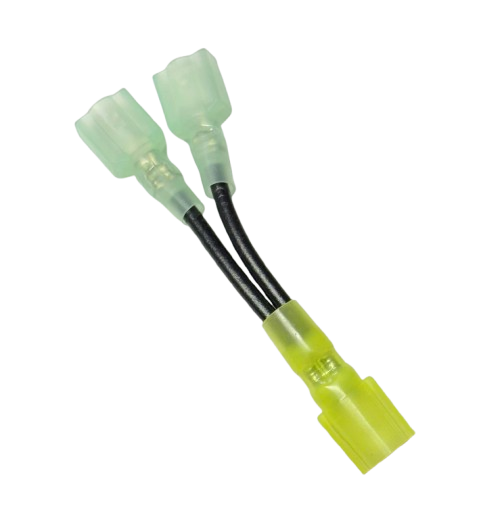

Titan 704-269 Wire Assembly
The wire assembly forms part of the motor's designated electrical connection arrangement. Damaged insulation, loose connections or defective conductors may affect electrical operation. Confirm the replacement configuration and connection positions before installation.
Titan 704-277 Complete Motor Assembly
The complete motor assembly is a replacement option when diagnosis establishes that the motor requires replacement rather than repair of an individual service component. Verify the equipment revision, mounting arrangement, electrical requirements and supplied contents before ordering.

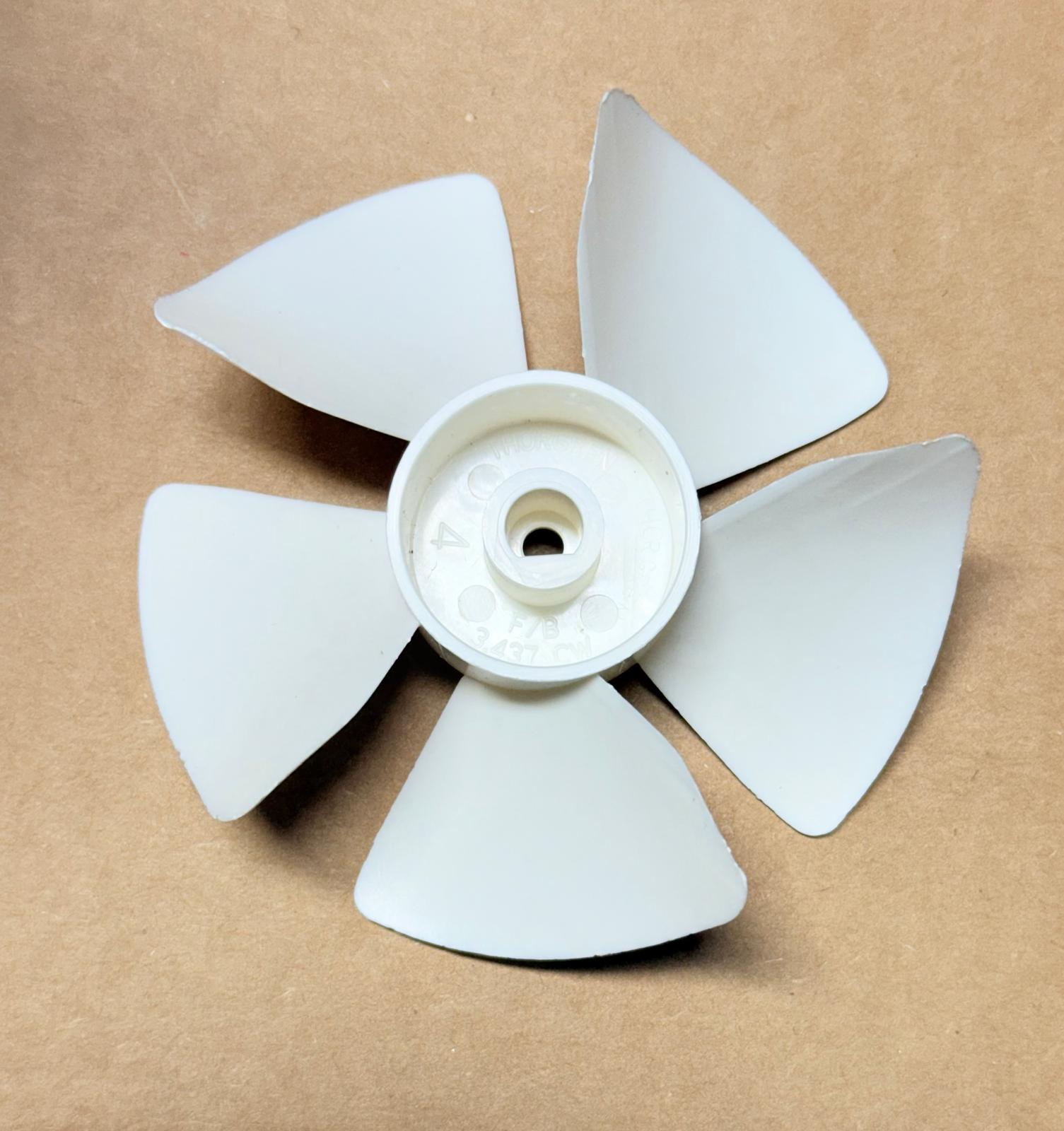

Titan 704-250 Motor Fan
The motor fan supports the designated cooling arrangement. A damaged or obstructed fan can interfere with airflow around the motor. Inspect for physical damage, debris and correct attachment according to the applicable service procedure.
Titan 704-363 Capacitor Kit
The capacitor kit is associated with the motor's electrical arrangement. Capacitor-related faults require appropriate electrical diagnosis. Confirm the exact replacement specifications and observe all capacitor discharge and electrical safety precautions during service.
Titan 700-681 Motor Mount Screw
The motor mount screw is designated for a specific mounting location. Correct hardware helps maintain the intended mechanical connection. Match the complete Titan reference and follow the specified installation and tightening instructions.

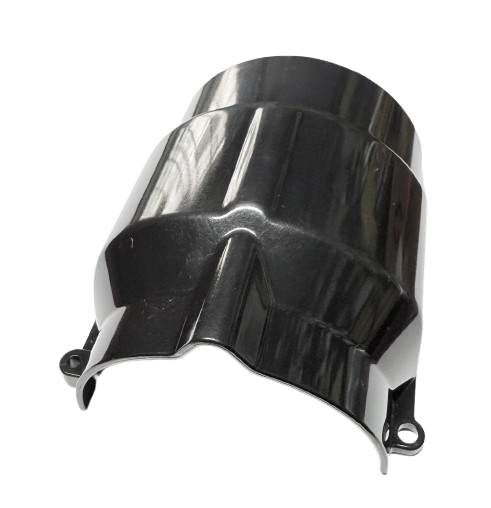

Titan 704-285A Fan Shroud
The fan shroud forms part of the motor's cooling and protective arrangement. Inspect for cracks, distortion, obstruction or missing mounting hardware. Replace damaged components with the correct part reference.
Titan 704-322 Screw
This screw is identified as a motor assembly hardware component. Confirm its exact illustrated position and specified quantity before ordering. Do not substitute hardware based only on apparent size or thread similarity.

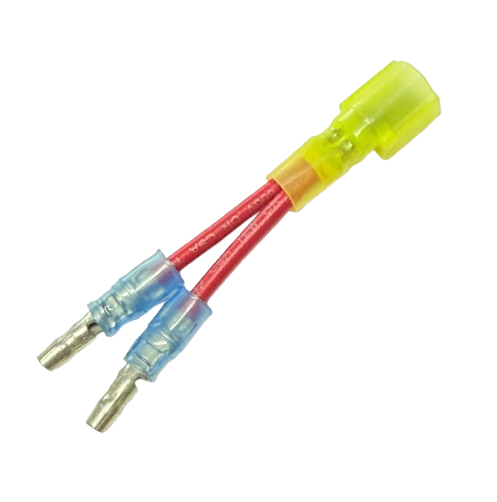

Titan 704-258 Wire Adapter Assembly
The wire adapter assembly provides its designated electrical connection arrangement. Inspect the applicable connectors and conductors when diagnosing electrical faults. Match the replacement to the correct motor configuration.
Titan 704-331 Gasket Housing
The gasket housing is identified in the motor assembly parts references. Its specific installation position and relationship to adjacent components should be confirmed from the illustrated breakdown before replacement.
Parts verification: These references are associated with the RentSpray 450 Motor Assembly in the previously identified catalog information. Check the current product listings for availability, supersessions, equipment revisions and exact supplied contents.
Titan RentSpray 450 Motor Assembly Parts List
Use this reference table to locate motor components by their Titan part numbers. The service areas are provided for identification and do not replace the illustrated assembly or manufacturer repair instructions.
The correct replacement may depend on the motor configuration and equipment revision. Refer to the corresponding illustration for item positions and quantities, and confirm any updated Titan replacement reference before purchase.
How the Titan RentSpray 450 Motor Assembly Works
The motor assembly provides the electrical-to-mechanical energy conversion needed to operate the RentSpray 450 pumping system. When the appropriate operating conditions are met, the motor produces rotational movement that is transferred through the gearbox.
The gearbox transmits the motor's movement toward the fluid section. The fluid section then performs the pumping action required to draw coating material from the supply and deliver it through the spraying system.
Within the motor assembly, the electrical connections provide the designated power path. The motor brush arrangement supports electrical contact in the applicable motor design, while the fan and fan shroud are associated with motor cooling.
Mounting hardware maintains the specified connection between the motor and its supporting equipment structure. Damaged mounting components can contribute to movement, vibration or alignment problems.
Because the motor operates as part of a larger system, a failure to start or develop normal pumping movement does not automatically indicate that the complete motor assembly requires replacement. The electrical supply, controls, gearbox and fluid section should be considered during diagnosis.
Titan RentSpray 450 Motor Troubleshooting Guide
Motor operating symptoms may help identify areas requiring inspection. The following conditions describe possible causes rather than confirmed component failures.
Motor Will Not Start
Inspect the power source and relevant electrical controls using the specified diagnostic procedure. Wiring faults, brush wear or other electrical problems may require further investigation. Do not assume the complete motor has failed.
Intermittent Motor Operation
Check for damaged electrical connections and possible brush-related wear. Other equipment controls may produce similar symptoms. Diagnosis should be completed before replacing components.
Unusual Motor Noise
Stop operation and inspect for mechanical damage or loose components. The gearbox and fluid section should also be considered because noise can travel through connected assemblies.
Motor Overheating
Inspect the motor fan and fan shroud for damage or obstruction. Excessive mechanical loading, operating conditions and electrical faults may also contribute to overheating.
Motor Runs but Pump Does Not Move
Inspect the mechanical connection between the motor, gearbox and fluid section. Damaged gears or disconnected drive components may interrupt the transfer of movement.
Excessive Vibration
Check the designated motor mounting hardware and adjacent mechanical assemblies for damage or looseness. Investigate unusual vibration before continuing operation.
Electrical and pressure safety: Disconnect the sprayer from its power source and follow the complete manufacturer-specified pressure relief procedure before service. Capacitors may retain electrical energy after power is disconnected. Electrical testing, capacitor service and internal motor repairs should be performed by appropriately qualified personnel. Never bypass protective components or safety controls.
Motor Brush Kit vs. Complete Motor Assembly: Which Replacement Do You Need?
The RentSpray 450 motor category includes both individual service components and a complete motor assembly. Choosing between them depends on the diagnosed condition and the applicable service instructions.
Titan 704-276 Motor Brush Kit
Consider the motor brush kit when inspection identifies worn or damaged brushes and the motor is otherwise serviceable. Verify the brush kit contents and follow the specified installation and inspection procedure.
Repair focus: Brush-related maintenance.
Titan 704-277 Complete Motor Assembly
Consider the complete motor assembly when qualified diagnosis establishes that replacing individual service parts is insufficient or inappropriate. Confirm the supplied configuration and equipment compatibility.
Repair focus: Complete motor replacement.
Other Motor Service Parts
The wire assembly, motor fan, capacitor kit, fan shroud and mounting hardware address other designated motor service areas. Select these items only when the corresponding fault has been identified.
Repair focus: Targeted component replacement.
Maintaining the Titan RentSpray 450 Motor Assembly
Motor maintenance should follow the applicable RentSpray 450 service instructions. Routine inspection can help identify visible damage, restricted cooling airflow and loose mounting connections before further operation.
Inspect Motor Brushes
Check the designated motor brush arrangement according to the specified maintenance procedure. Replace worn components using the correct kit.
Maintain Cooling Airflow
Keep designated cooling openings clear of coating buildup and debris. Inspect the motor fan and fan shroud for visible damage.
Check Electrical Connections
Have qualified personnel inspect damaged wiring, connectors and other electrical components using the appropriate safety procedures.
Inspect Motor Mounting
Check the designated mounting screws and supporting connections for damage or looseness. Follow the specified tightening instructions.
Investigate Unusual Noise
Stop using the equipment when new or abnormal mechanical noise develops. Inspect the motor and connected drive assemblies.
Use Correct Replacement Parts
Match the complete Titan part number and applicable motor configuration. Avoid unverified electrical or mechanical substitutions.
Motor Assembly vs. Gear Box and Fluid Section Parts
The RentSpray 450 motor, gearbox and fluid section work together, but each has a separate repair category. Identifying the correct system can reduce unnecessary replacement costs.
Motor Assembly
Provides mechanical power from the electrical drive system. This category includes the motor brush kit, complete motor assembly, wiring components, fan and related hardware.
Gear Box Assembly
Transfers motor movement toward the pump. The category includes mechanical transmission components such as the gear assembly and second-stage gear.
Fluid Section Assembly
Performs the fluid pumping action. Identified components include the piston assembly and upper piston guide, along with other pump-related service parts.
How to Order the Correct Titan RentSpray 450 Motor Parts
Use the illustrated motor assembly and the equipment identification information to confirm the required replacement before ordering.
1. Confirm the Equipment
Verify the Titan RentSpray 450 model and record any relevant serial number or equipment revision.
2. Diagnose the Motor Fault
Identify whether the issue involves the motor brushes, electrical connections, cooling arrangement, mounting hardware or complete motor.
3. Match the Titan Part Number
Locate the component in the motor assembly diagram and compare the complete part number with the replacement listing.
4. Verify the Replacement
Confirm any supersession, electrical specification, supplied contents and applicable installation requirements before purchasing.
Compatibility reminder: Do not assume that motor components from the Titan RentSpray 400 or another Titan airless sprayer fit the RentSpray 450. Confirm compatibility through the correct Titan part reference and equipment configuration.
Frequently Asked Questions About Titan RentSpray 450 Motor Assembly Parts
What does the Titan RentSpray 450 Motor Assembly do?
The motor assembly converts electrical energy into mechanical movement that is transferred through the gearbox to operate the sprayer's fluid pumping system.
Which motor brush kit is listed for the Titan RentSpray 450?
The RentSpray 450 motor parts references identify the Titan 704-276 Motor Brush Kit. Confirm the applicable motor configuration and kit contents before ordering.
What is the part number for the complete RentSpray 450 motor assembly?
The Titan 704-277 Complete Motor Assembly is identified in the RentSpray 450 motor category. Verify the equipment revision and current replacement listing before purchase.
Can worn motor brushes prevent the sprayer from starting?
Worn or damaged brushes can interfere with operation in a brushed motor. However, power supply, wiring, controls and other electrical faults may produce similar symptoms. Diagnosis is required before replacement.
Which RentSpray 450 parts support motor cooling?
The motor category identifies the Titan 704-250 Motor Fan and 704-285A Fan Shroud. These components are associated with the designated motor cooling arrangement.
Should I replace the motor if it runs but the pump does not move?
Not necessarily. The gearbox and mechanical drive connection should also be inspected because they transfer motor movement to the fluid section. Replace the motor only when diagnosis identifies it as the failed component.
Where can I get help identifying Titan RentSpray 450 motor parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, motor assembly diagram reference and any available Titan part number.
Related Titan RentSpray 450 Parts and Assemblies
Explore related RentSpray 450 categories when the diagnosed problem involves the gearbox, fluid section, siphon system or another equipment assembly.
