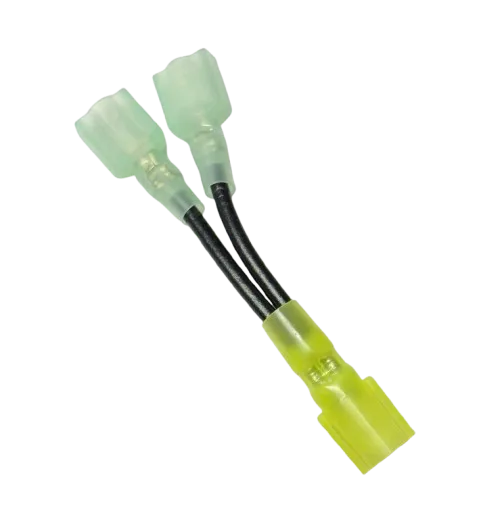

Titan 704-269 Wire Assembly
OEM Titan Electrical Harness
Titan 704-269 Wire Assembly is a genuine OEM electrical harness that connects the motor, pressure control board, and on/off switch on compatible Titan and SprayTech airless sprayers, ensuring reliable power delivery and safe operation.
Compatibility
Replace immediately if you see frayed wires, corroded terminals, melted insulation, or if the sprayer fails to start or operates intermittently. Always replace with a genuine OEM harness.
Titan Electrical Harness Replacement
Titan 704-269 Wire Assembly for Sprayer Electrical System Service
Titan 704-269 is a genuine OEM electrical harness used across SprayTech and Titan airless sprayer platforms. It connects the motor, pressure control board, and on/off switch, ensuring proper power distribution and control signal transmission. Replacing a damaged harness restores reliable operation and eliminates safety hazards.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine Titan OEM wire assembly (electrical harness) for SprayTech and Titan airless sprayer electrical systems. Pre-terminated with correct connectors and appropriate wire gauge. |
| Function | Supplies electricity from power cord to motor and controls; carries control signals between pressure transducer, board, and motor; provides safety grounding to prevent electrical shock. |
| Compatible Titan Machines | Titan 440i (primary fit, confirmed in owner's manual); Titan 640i; RentSpray 450; Performer 640i; SprayTech Airless Advantage EPX2255. Also compatible with RentSprayPlus and 340 International Model. Always confirm fitment using your exact model's parts diagram and serial number. |
| OEM Part Number | 704-269 Wire Assembly. Listed as "Wire Assembly (Black)" in the Titan 440i manual. |
| Replacement Indicators | Frayed or broken wires; corroded terminals; intermittent operation; burned or melted insulation; complete failure to start; erratic pressure control. |
| Related Parts Commonly Serviced Together | Pressure control board (test for function if harness was damaged); motor (check terminals and windings for burn marks); switch/potentiometer (inspect for proper operation). |
| Common Problems Solved | Restores reliable power distribution, eliminates intermittent operation, fixes failure to start, resolves erratic pressure control, and reduces electrical fault and fire risk. |
| Why Genuine OEM | Pre-terminated OEM connectors ensure correct fitment and reliable connection. Titan recommends full replacement with OEM harness rather than repair; repairs may introduce electrical resistance, heat points, or improper connections leading to failure or fire hazard. |
Service guidance: Disconnect power before servicing. If the sprayer exhibits intermittent power, fails to start, or has erratic pressure control, inspect the wire assembly for damage. Replace immediately if any fraying, corrosion, or broken wires are found. For safety and reliability, use only genuine OEM replacement.
Frequently Asked Questions
Quick answers for confirming fitment and identifying when replacement is needed.
