Titan RentSpray 450 Fluid Section Assembly Parts
Shop replacement components for the Titan RentSpray 450 Fluid Section Assembly at AllTitanParts. Explore the pumping components responsible for moving and pressurizing coating material in your RentSpray 450 airless paint sprayer. Find the piston assembly, upper piston guide and other diagram-listed fluid section parts needed for pump maintenance, mechanical wear repairs and fluid delivery troubleshooting. Use the illustrated parts breakdown to identify the correct component and verify its complete Titan part number before ordering.
Shop Titan RentSpray 450 Fluid Section Assembly Replacement Parts
The Titan RentSpray 450 Fluid Section Assembly is a central part of the airless sprayer's pumping system. It works with the mechanical drive arrangement to move coating material from the intake pathway toward the spray outlet under pressure. Proper operation of this assembly is important for maintaining consistent material delivery during spraying.
During operation, the motor supplies mechanical power through the connected drive system. The fluid section uses this movement to perform the pumping action. Its internal components must remain correctly aligned and in serviceable condition to support the intended movement of coating material.
The RentSpray 450 Fluid Section Assembly category information identifies the Piston Assembly and Upper Piston Guide as replacement component descriptions. These parts are associated with the pump's moving mechanism and should be inspected when diagnosing abnormal piston movement, mechanical wear or related pumping problems.
Fluid section problems may appear as poor priming, inconsistent pressure, reduced material output, leakage or unusual pump movement. However, these symptoms do not automatically establish that the piston or piston guide has failed. The siphon system, inlet components, outlet pathway and mechanical drive may also require inspection.

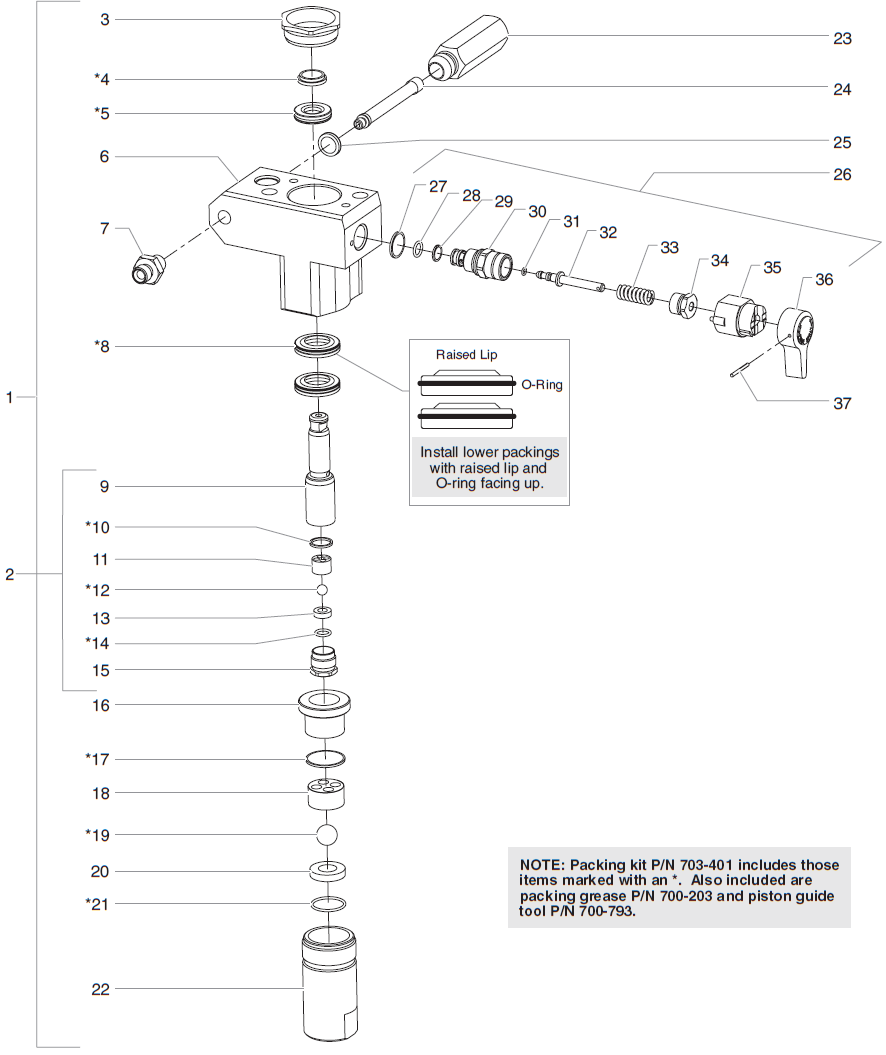

Selecting the correct replacement begins with identifying the affected component. Compare the illustrated fluid section diagram, equipment identification and complete Titan part number. Where a replacement is supplied as a kit or assembly, verify its included components before purchasing.
AllTitanParts provides a dedicated category for Titan RentSpray 450 Fluid Section Assembly parts, helping equipment owners and repair technicians locate components for pump inspection, maintenance and repair without confusing fluid section parts with motor, gearbox or siphon assembly components.
Understanding the Titan RentSpray 450 Fluid Section Components
The fluid section contains the components required for the designated pumping action. The Piston Assembly and Upper Piston Guide are identified RentSpray 450 component names. Other mechanical and fluid-handling areas below are discussed for inspection purposes and should be verified against the actual fluid section diagram before being treated as separately available replacement parts.

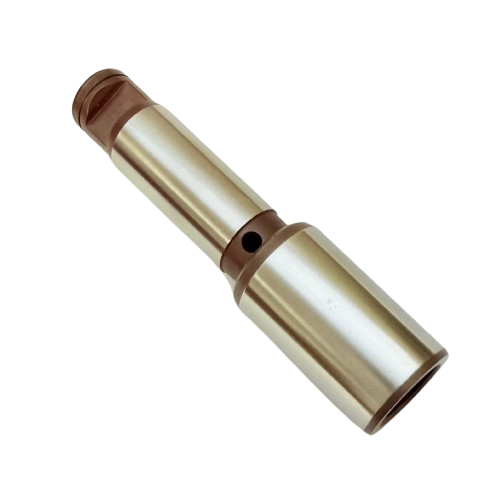

Titan RentSpray 450 Piston Assembly
The piston assembly is an identified component in the RentSpray 450 fluid section category. It participates in the pumping mechanism that moves coating material through the sprayer. Inspect the relevant piston surfaces and connections when diagnosing mechanical wear, abnormal movement or pumping problems. Confirm the exact part number and supplied assembly contents.

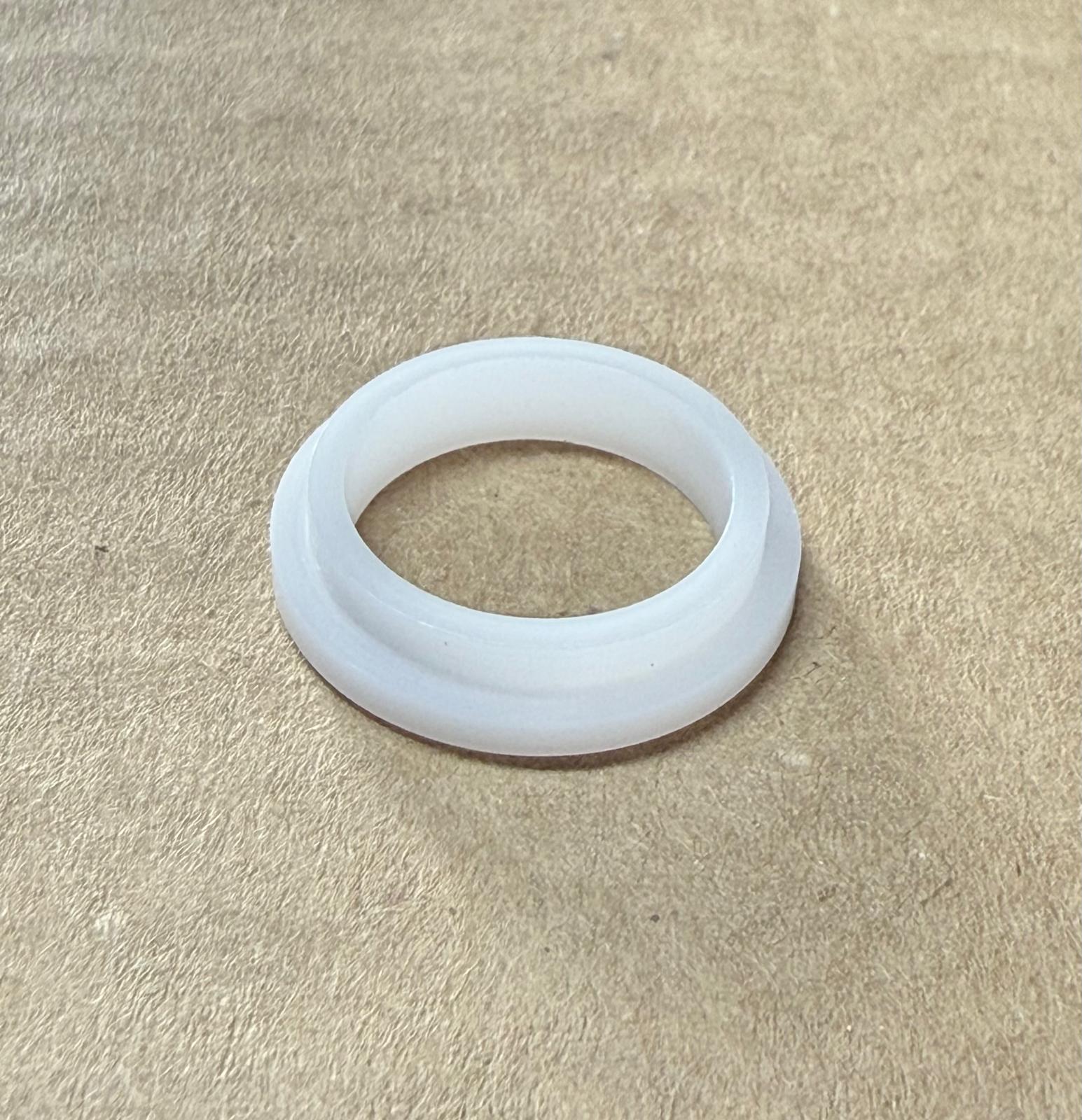

Titan RentSpray 450 Upper Piston Guide
The upper piston guide is an identified component associated with the piston movement arrangement. Its role is to support the intended positioning and guidance of the moving mechanism. Inspect for damage or unacceptable wear according to the applicable service procedure. Match the exact Titan reference before replacement.

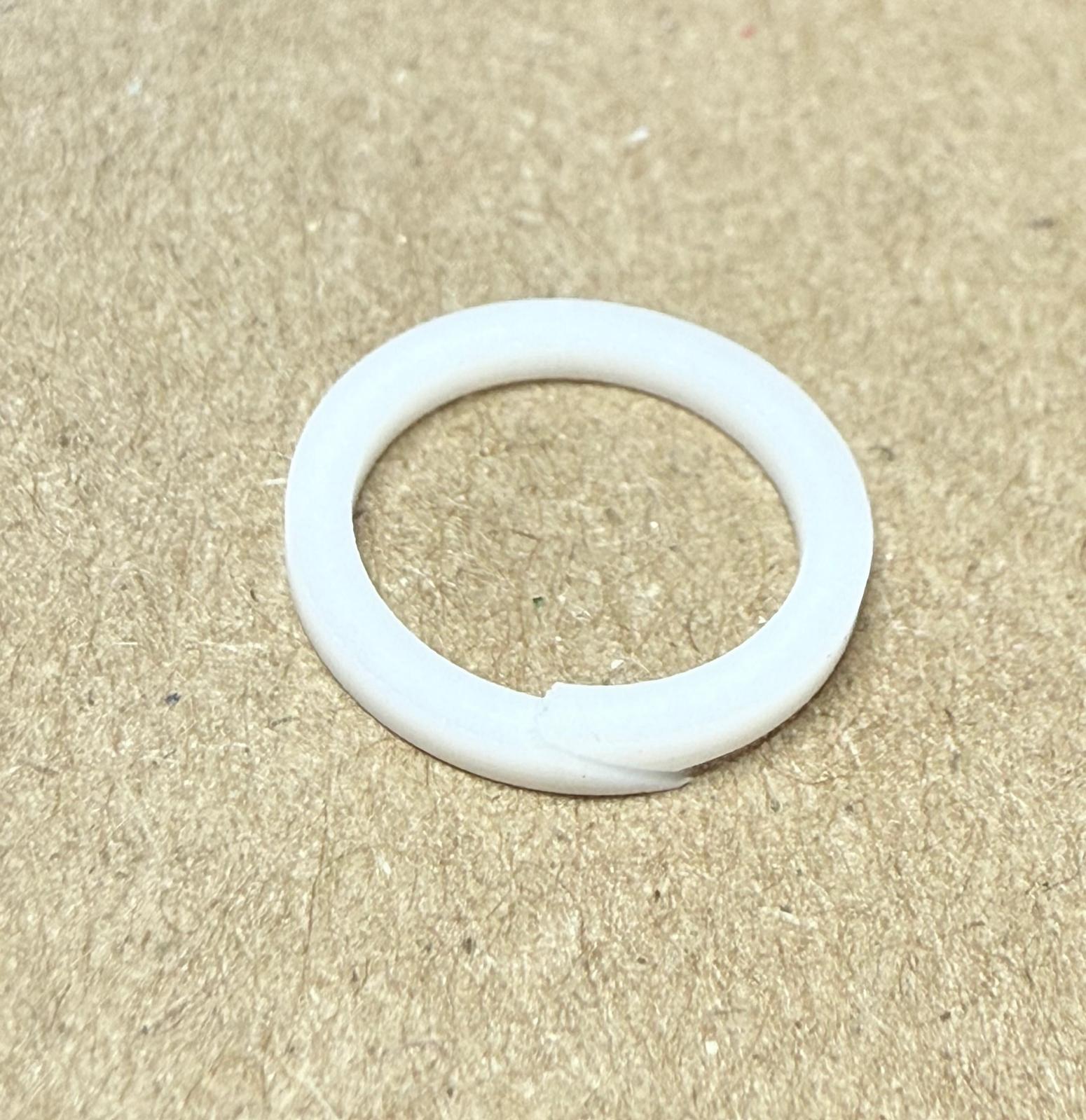

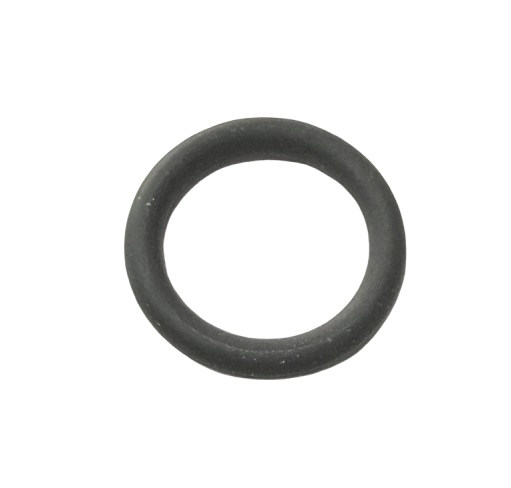

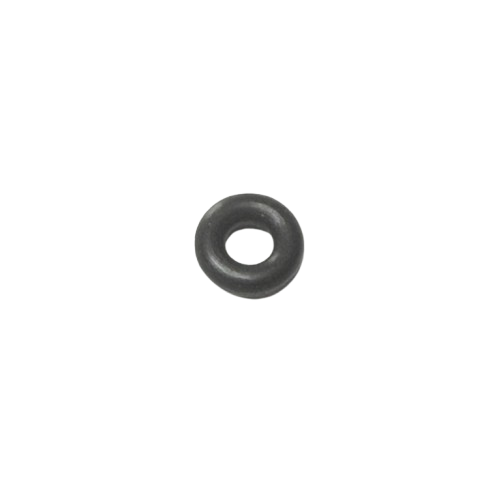

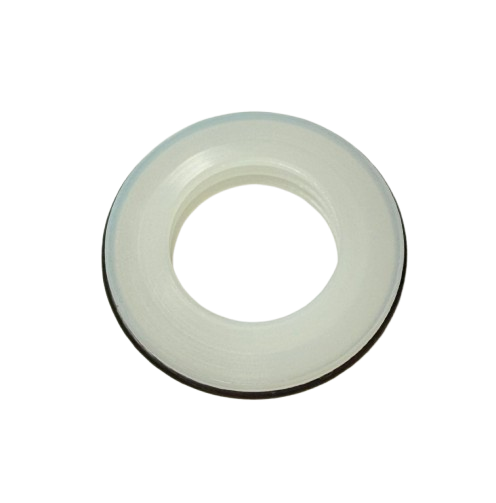

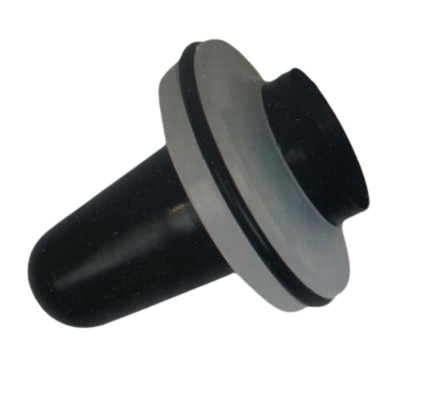

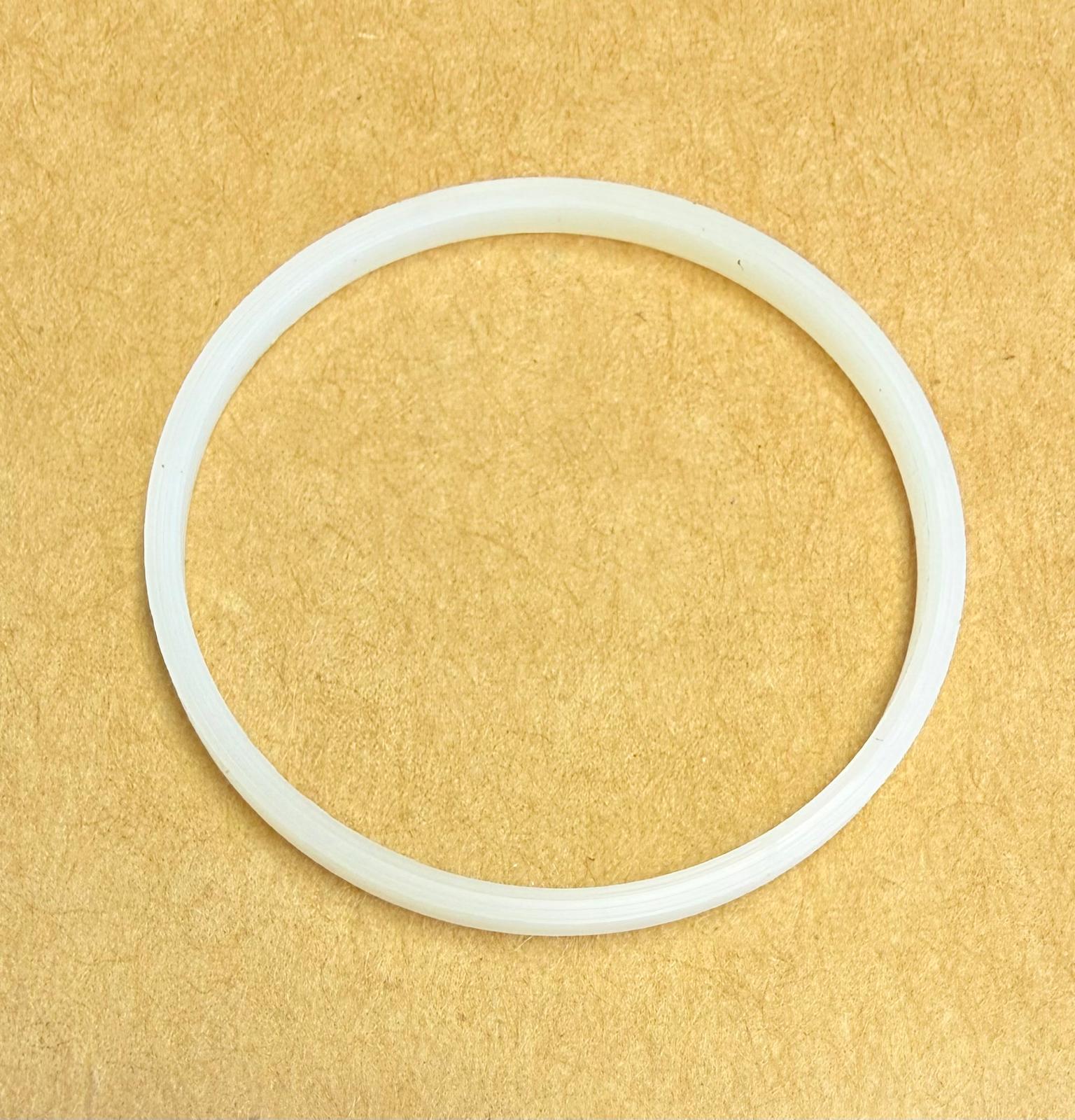

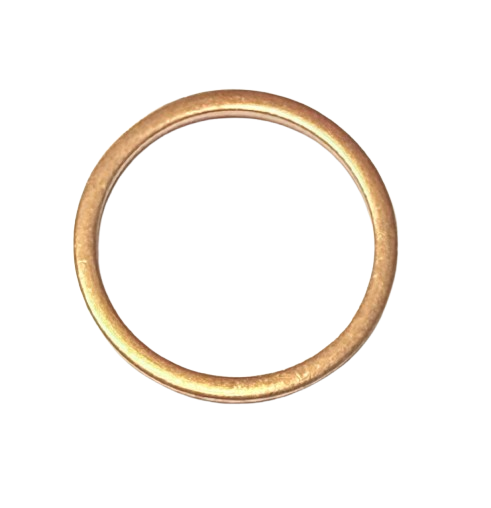

Pump Sealing Components
Sealing components are important in reciprocating pump designs because they help control material movement and leakage. Inspect the applicable seals or packings when the service documentation identifies them as possible causes of a fault. Their exact arrangement and separate availability for this category are not confirmed.

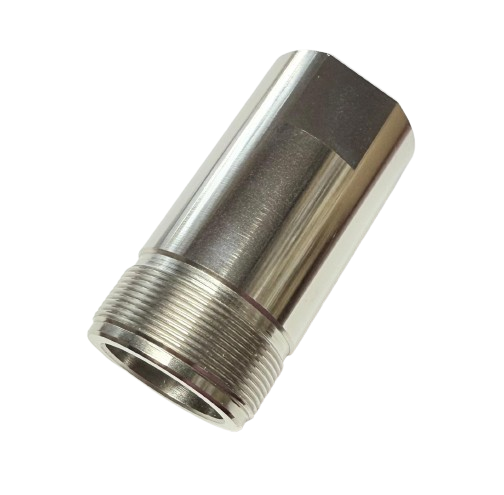

Pump Inlet Components
The inlet arrangement receives coating material from the siphon system. Restrictions or valve-related faults may interfere with priming and material intake. Inspect the correct inlet components according to the relevant equipment diagram and service instructions.

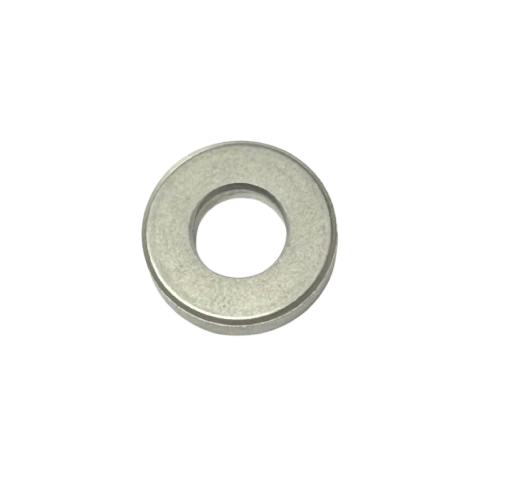

Pump Outlet Components
The outlet pathway carries material from the pumping mechanism toward the connected spray equipment. Outlet restrictions or valve problems can affect delivery. Confirm the applicable component location and replacement reference before ordering.
Mechanical Drive Connection
The fluid section depends on movement transferred through the motor and gearbox arrangement. If the pump does not cycle normally, inspect the relevant mechanical connection before concluding that the piston assembly requires replacement.
Component verification: The Piston Assembly and Upper Piston Guide are the identified component descriptions for this RentSpray 450 category. Specific part numbers, dimensions, materials, kit contents and additional individual fluid section components have not been independently confirmed.
Titan RentSpray 450 Fluid Section Assembly Parts Identification Guide
Use the table below to distinguish the identified piston components from other fluid section inspection areas. Match each required replacement to the correct illustrated component position and complete Titan part number.
The exact replacement number may depend on the equipment configuration and documented part supersessions. Do not select a piston, guide or sealing component based only on visual similarity.
How the Titan RentSpray 450 Fluid Section Assembly Works
The fluid section is responsible for the pumping action required to move coating material through the RentSpray 450 airless sprayer. It operates as part of a system that includes the motor, gearbox, siphon assembly and spray delivery equipment.
The motor generates mechanical movement, and the gearbox transfers that movement toward the fluid section. The connected piston mechanism then performs the designated pumping motion.
The piston assembly is associated with this movement, while the upper piston guide supports the intended alignment of the relevant moving component. Proper mechanical condition is important because damage or excessive wear can interfere with the pumping mechanism.
Coating material enters the pumping system through the designated inlet pathway. The fluid section moves material toward the outlet according to the sprayer's pump and valve arrangement.
The condition of the applicable valves and seals can also influence priming, pressure development and fluid delivery. Their exact configuration should be determined from the relevant RentSpray 450 service information rather than assumed from another Titan model.
Because these components operate together, diagnosing a pumping problem requires considering the complete fluid path and mechanical drive. Replacing a piston assembly will not necessarily resolve a problem caused by a blocked siphon hose, faulty inlet component or damaged gearbox connection.
Titan RentSpray 450 Fluid Section Troubleshooting Guide
Pump performance problems may involve the fluid section, but similar symptoms can originate elsewhere in the sprayer. Use the following guidance to identify areas for inspection before purchasing replacement parts.
Sprayer Will Not Prime
Check the coating supply, siphon hose and suction connections. If the intake pathway is serviceable, inspect the applicable inlet valve and fluid section components according to the troubleshooting instructions.
Low or Inconsistent Pressure
Possible causes include pump wear, valve problems, restrictions or air entering the intake system. Inspect the relevant fluid section components and connected equipment before selecting a replacement.
Fluid Leakage Near the Pump
After completing the specified pressure relief procedure, inspect the affected location. Damaged sealing components or connections may require service. Identify the actual leak source before ordering parts.
Abnormal Piston Movement
Inspect the piston assembly, upper piston guide and associated mechanical connections for damage or wear. Follow the specified disassembly and inspection procedure.
Motor Runs but Pump Does Not Cycle
Inspect the gearbox and mechanical drive connection. Interrupted movement transfer may prevent the fluid section from operating even when the motor is running.
Reduced Material Output

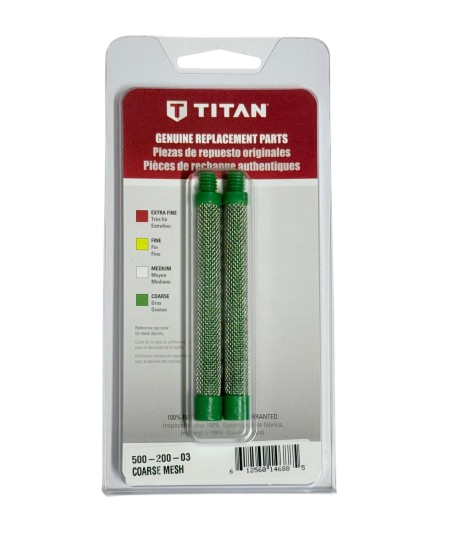

Check the intake pathway, applicable filters, fluid section and spray delivery components for restrictions or wear. Confirm the cause before replacing the piston or other pumping parts.
Service safety: Airless sprayers can produce dangerous high-pressure fluid injection injuries. Disconnect electrical power and complete the manufacturer-specified pressure relief procedure before servicing the fluid section. Never use your hands to locate pressurized leaks. Follow the applicable instructions for disassembly, inspection and reassembly.
Piston Assembly vs. Upper Piston Guide: Which Part Do You Need?
The piston assembly and upper piston guide perform different roles within the pumping mechanism. Selecting the correct component depends on the diagnosed fault and the applicable illustrated parts reference.
Piston Assembly Replacement
Consider the piston assembly when inspection identifies damage, excessive wear or another defect affecting the designated piston mechanism.
Confirm whether the replacement is supplied as a complete assembly and determine which components are included.
Primary focus: Piston movement and pumping mechanism repair.
Upper Piston Guide Replacement
Consider the upper piston guide when inspection establishes damage or unacceptable wear affecting the designated piston guidance arrangement.
Check the associated piston components and verify the correct guide reference before purchasing.
Primary focus: Piston guidance and alignment.
If diagnosis identifies a sealing or valve problem rather than a piston or guide defect, use the corresponding parts illustration to locate the required component. Do not replace unrelated mechanical parts solely because the sprayer has lost pressure.
Maintaining the Titan RentSpray 450 Fluid Section Assembly
Fluid section maintenance should follow the applicable RentSpray 450 operating and service instructions. Proper cleaning, inspection and replacement procedures help identify wear and maintain the intended pumping operation.
Flush After Use
Follow the specified flushing procedure using a cleaning material compatible with the coating and sprayer components. Prevent unnecessary material buildup in the fluid pathway.
Inspect the Piston Assembly
During authorized service, inspect the piston assembly for visible damage, wear or conditions that interfere with the intended pumping movement.
Check the Upper Piston Guide
Inspect the designated guide for damage or wear according to the applicable service instructions. Confirm alignment and installation requirements during reassembly.
Monitor Leakage
Investigate visible fluid leakage using the required pressure relief and inspection procedures. Replace only the components identified by diagnosis.
Follow Lubrication Instructions
Use only the lubricants and maintenance intervals specified for the applicable RentSpray 450 components. Do not assume the requirements of another Titan sprayer apply.
Verify Replacement Parts
Match the complete Titan part number, illustrated position and equipment configuration before installing a replacement piston, guide or other fluid section component.
Fluid Section Assembly vs. Other RentSpray 450 Assemblies
Several RentSpray 450 assemblies contribute to the overall spraying process. Identifying which assembly performs each function helps narrow the repair to the correct parts category.
Fluid Section Assembly
Performs the pumping action that moves and pressurizes coating material. Identified components include the Piston Assembly and Upper Piston Guide.
Siphon Assembly
Provides the material intake and return pathways. Identified components include the Siphon Hose and Return Hose Assembly.
Gear Box Assembly
Transfers mechanical movement from the motor toward the pumping mechanism. Identified components include the Gear Assembly and 2nd Stage Gear.
Motor Assembly
Generates mechanical movement using electrical power. Its identified components include motor brushes, wiring, motor cooling parts and the complete motor assembly.
How to Order Titan RentSpray 450 Fluid Section Assembly Parts
Accurate replacement selection requires the correct sprayer model, diagnosed component and illustrated part reference. Follow these steps before ordering.
1. Confirm the Sprayer Model
Verify that your equipment is the Titan RentSpray 450 and record available model revision or serial information.
2. Identify the Failed Component
Determine whether the repair requires the Piston Assembly, Upper Piston Guide or another diagram-listed component.
3. Match the Titan Part Number
Locate the component in the illustrated fluid section breakdown and compare the complete Titan reference with the replacement listing.
4. Confirm the Replacement Details
Check documented supersessions, equipment application, supplied contents and any specified installation requirements.
Compatibility reminder: Do not assume that piston assemblies, piston guides or other fluid section parts from the Titan RentSpray 400 or another Titan sprayer fit the RentSpray 450. Verify the documented part number and equipment application before purchase.
Frequently Asked Questions About Titan RentSpray 450 Fluid Section Parts
What does the Titan RentSpray 450 Fluid Section Assembly do?
The fluid section performs the pumping action that moves and pressurizes coating material. It operates with the motor, gearbox, siphon assembly and connected spray delivery equipment.
Which components are identified in the RentSpray 450 Fluid Section Assembly?
The established category information identifies the Piston Assembly and Upper Piston Guide. Consult the applicable illustrated parts breakdown for exact Titan part numbers and additional listed components.
What can cause low pressure in a Titan RentSpray 450?
Possible causes include fluid section wear, inlet or outlet valve problems, material intake restrictions and other fluid delivery faults. Diagnose the relevant systems before replacing a component.
When should I replace the RentSpray 450 Piston Assembly?
Consider replacement when the applicable service inspection establishes damage, unacceptable wear or another defect affecting the piston mechanism. Confirm the correct Titan part number and supplied contents.
What is the purpose of the Upper Piston Guide?
The upper piston guide supports the intended guidance and positioning of the applicable piston mechanism. Its exact installation arrangement should be verified from the RentSpray 450 service documentation.
Are RentSpray 400 and RentSpray 450 fluid section parts interchangeable?
Compatibility must be confirmed for each component. Do not assume piston assemblies, guides or sealing components from different RentSpray models are interchangeable without matching the documented Titan part number and application.
Where can I get help identifying RentSpray 450 fluid section parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, fluid section diagram reference and any available Titan part number.
