Titan RentSpray 400 Airless Sprayer Parts and Assemblies
Find replacement components for the Titan RentSpray 400 Airless Sprayer at AllTitanParts. Browse illustrated parts categories for the main assembly, electric motor, suction set, gearbox, stand and fluid section, along with related spraying accessories. Identify service components such as motor fans, capacitor assemblies, gear assemblies, pressure control knobs, inlet hardware, valve assemblies, pump seals and structural support parts. Compare diagram positions and complete Titan part numbers to select the correct replacement for your RentSpray 400 repair.
Shop Titan RentSpray 400 Airless Sprayer Replacement Parts
The Titan RentSpray 400 Airless Sprayer uses interconnected mechanical, electrical and fluid-handling systems to draw coating material from a supply container, pressurize it and deliver it through an airless spray gun. Each system contains components that may require inspection, servicing or replacement during the equipment's working life.
AllTitanParts organizes the RentSpray 400 into dedicated assembly categories, helping customers locate components by their position within the machine. Instead of searching through unrelated replacement parts, you can begin with the relevant system, review its illustrated diagram and identify the individual component needed for a repair.
The category includes separate sections for the main assembly, motor assembly, suction set assembly, gear box assembly, stand assembly, fluid section assembly and accessories. This structure is useful when diagnosing problems such as failure to prime, inconsistent fluid pressure, motor-related faults, mechanical drive issues or damaged supporting hardware.
Always match the exact Titan part number and any applicable model revision before ordering. Replacement parts with similar names or appearances may have different dimensions, connection arrangements or service applications.
Explore Titan RentSpray 400 Airless Sprayer Assembly Categories
Choose the assembly associated with the component you need. Each category focuses on a different part of the RentSpray 400 equipment system.
RentSpray 400 Main Assembly

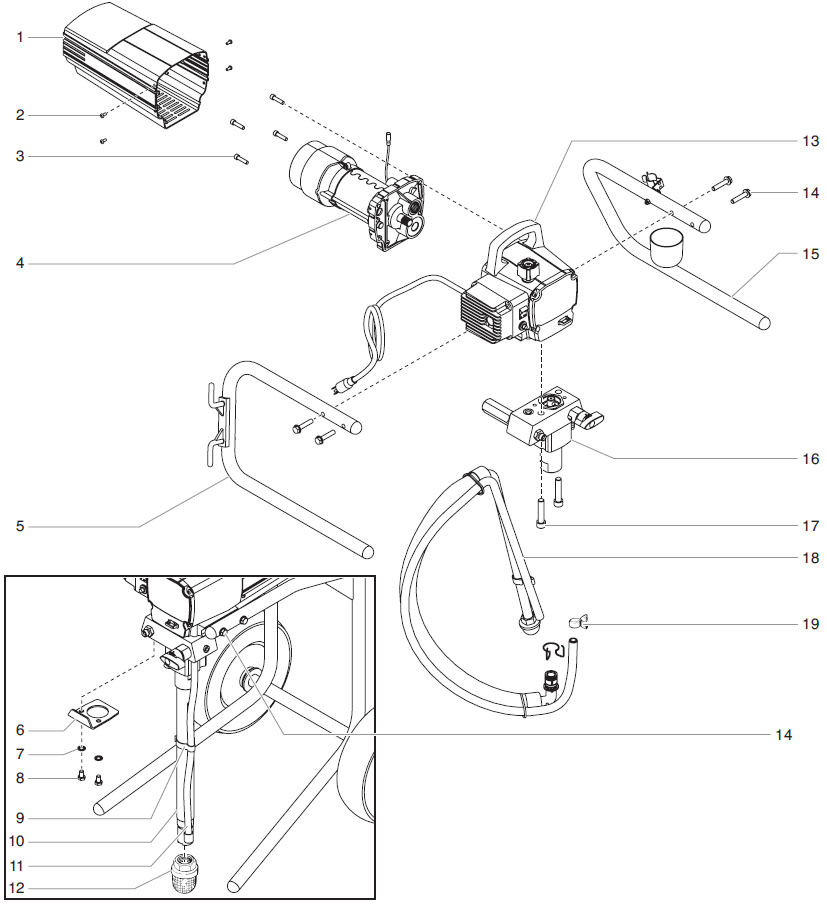

Browse the main assembly diagram to identify components associated with the sprayer's primary equipment arrangement. Review the illustrated positions, fasteners and connected parts to determine which items require replacement.
Shop Main Assembly Parts »RentSpray 400 Motor Assembly

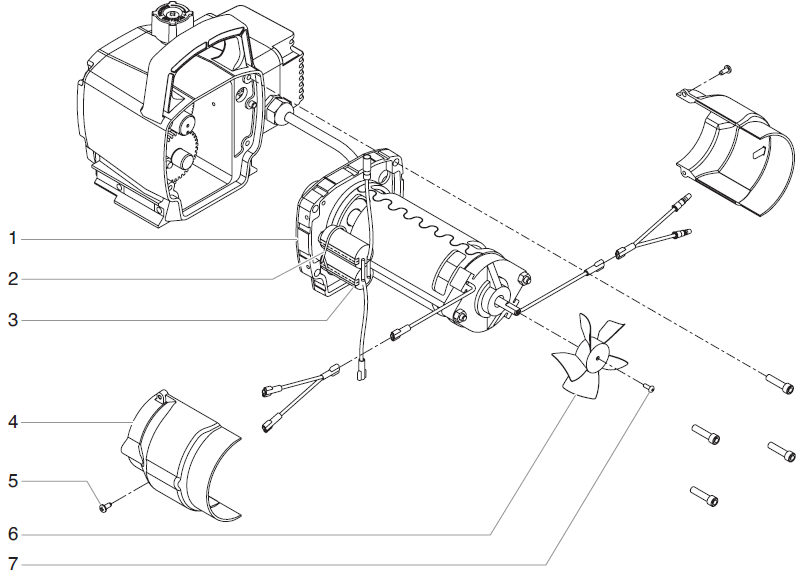

The motor assembly provides mechanical power for the pumping system. The RentSpray 400 motor category identifies service areas including the capacitor assembly and motor fan. Inspect electrical and mechanical components using the appropriate service procedures.
Shop Motor Assembly Parts »RentSpray 400 Suction Set Assembly

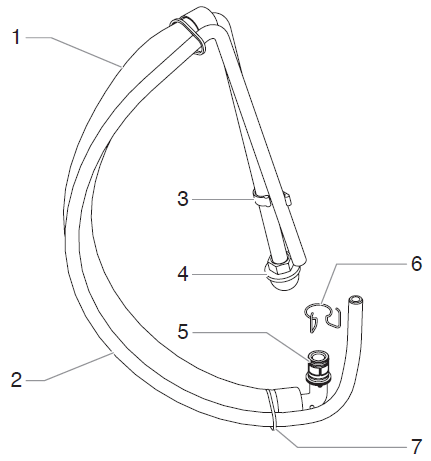

The suction set forms part of the coating intake system. Its category identifies components including a tie wrap and retaining clip. Check the intake arrangement for restrictions, damaged connections or loose retaining hardware when investigating priming problems.
Shop Suction Set Parts »RentSpray 400 Gear Box Assembly

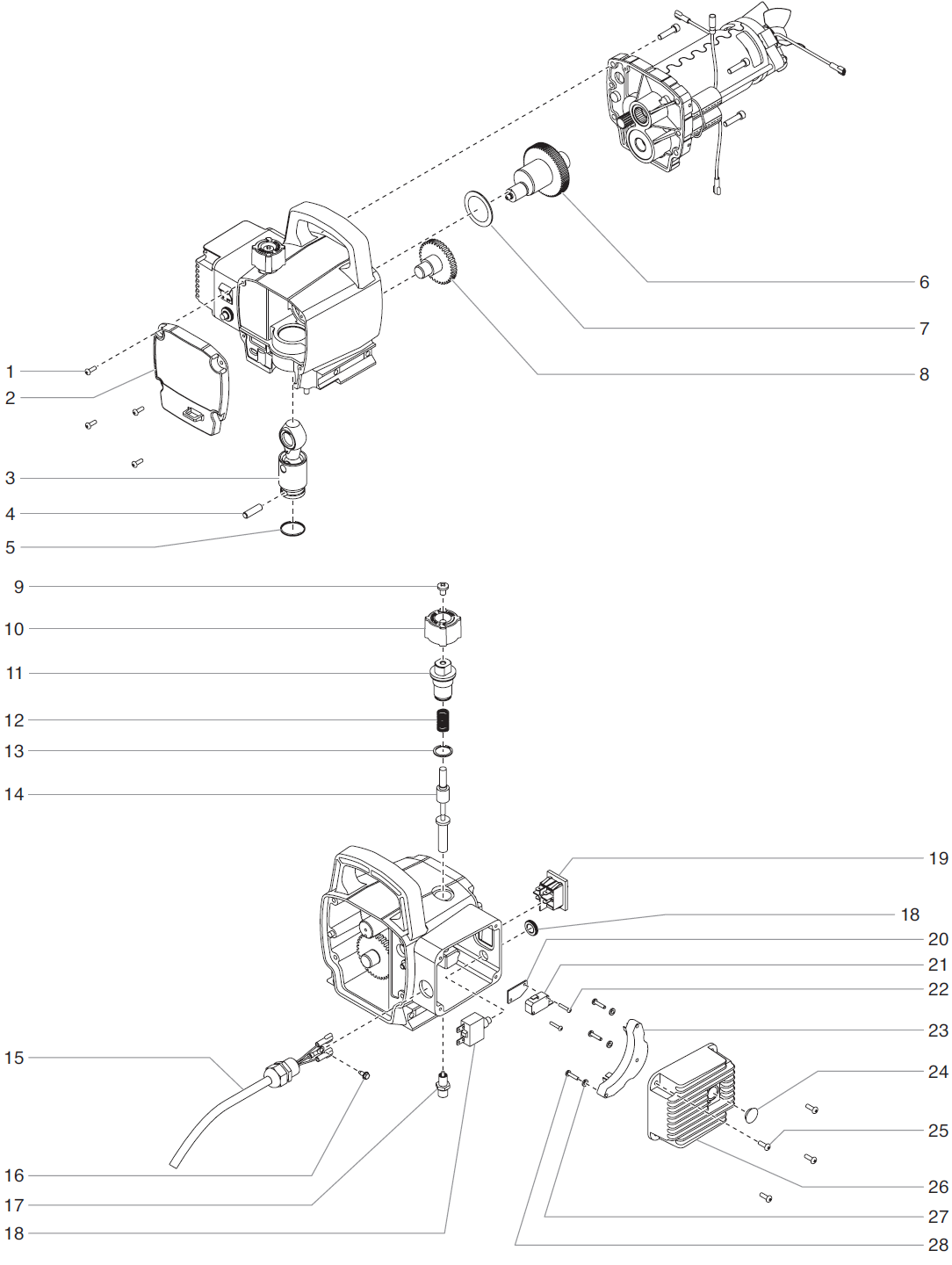

The gearbox transmits mechanical motion between the motor and pumping mechanism. The category identifies the gear assembly and pressure knob among its service components. Examine the relevant drive and adjustment components when diagnosing mechanical problems.
Shop Gear Box Parts »RentSpray 400 Stand Assembly

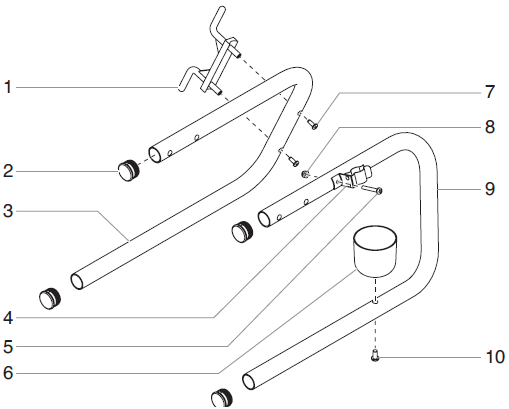

The stand supports the sprayer during operation and handling. Its parts category identifies the left leg assembly and right leg assembly. Inspect structural members, contact areas and mounting connections for damage or instability.
Shop Stand Assembly Parts »RentSpray 400 Fluid Section Assembly

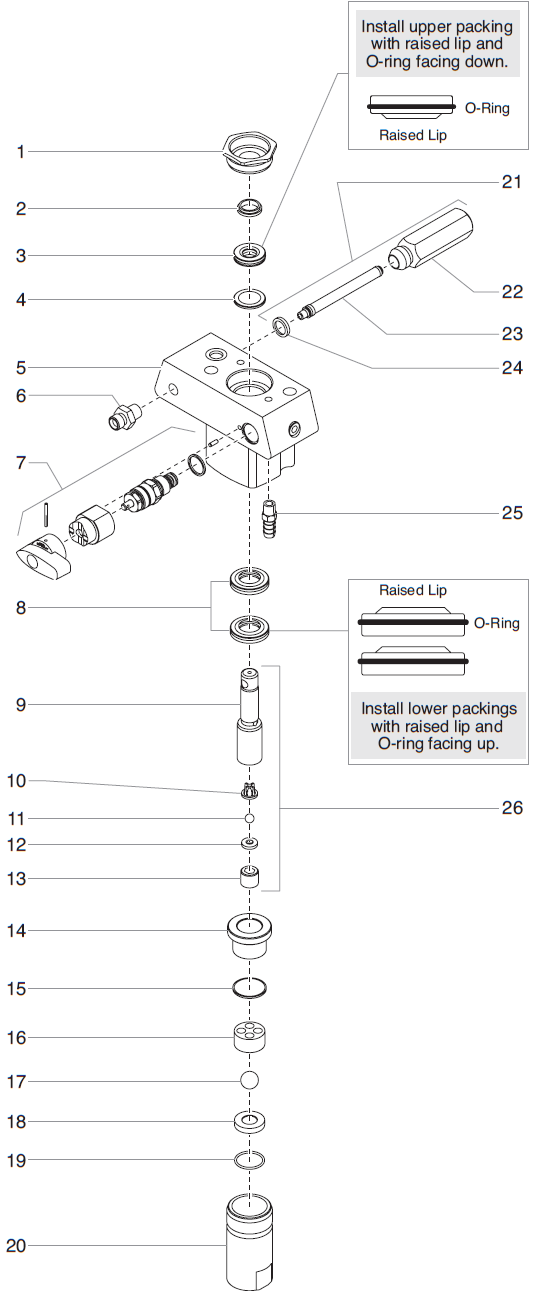

The fluid section contains pumping and valve components involved in coating pressurization. Browse replacement items such as the repacking kit, piston assembly, inlet and outlet valve components, filter assembly and bypass valve assembly.
Shop Fluid Section Parts »RentSpray 400 Accessories
Explore the accessories category when looking for spraying equipment and application-related items. Confirm the accessory's part number, connection type, pressure rating and compatibility with the RentSpray 400 before purchase.
Shop Sprayer Accessories »Titan RentSpray 400 Fluid Section Replacement Parts
The RentSpray 400 fluid section category identifies individual replacement components for pump maintenance and repair. The following examples are associated with that assembly listing. Confirm each item's current replacement reference and availability before ordering.
Replacement identification: The part numbers above are shown in the RentSpray 400 fluid section category. Some product listings identify replacement or superseding numbers. Check the current product listing and applicable parts diagram before selecting a replacement.
How the Titan RentSpray 400 Airless Sprayer Works
The RentSpray 400 uses a motor-driven pumping system to deliver coating material under pressure. During operation, the motor supplies mechanical power through the drive mechanism, which operates the fluid section. The suction system provides a path for material to enter the pump, while the outlet fluid system directs pressurized material toward the spray gun.
Inside the pumping system, the piston, packing components and inlet and outlet check valves work together to move coating material through the fluid section. The packing components help control leakage around moving parts, while the check valves regulate the direction of fluid movement during pumping cycles.
The bypass valve assembly forms part of the fluid control arrangement used during priming and related operating procedures. A properly functioning fluid section, clear suction path and suitable spray accessories are all important for consistent material delivery.
When diagnosing a problem, consider the complete system rather than replacing components based on symptoms alone. A priming issue, for example, may involve the suction set, intake valve or bypass valve, while an irregular spray pattern may originate from the spray tip, filters or fluid pressure conditions.
Titan RentSpray 400 Troubleshooting and Repair Guidance
Use the symptom to identify the most relevant assembly for inspection. The following guidance describes possible causes, not confirmed diagnoses.
Sprayer Will Not Prime
Inspect the suction set for restrictions or air leaks. Check the applicable intake valve and bypass valve components, then follow the manufacturer's priming procedure.
Inconsistent Spray Pressure
Inspect the fluid section, filters, valve components and pressure control system. Worn pump packings or valve seating surfaces can contribute to pressure problems.
Motor Does Not Operate
Check the power supply and relevant electrical controls using the specified diagnostic procedure. Motor and capacitor service should be performed by appropriately qualified personnel.
Unusual Drive Noise
Inspect the gearbox and connected mechanical drive components for wear or damage. Stop using the machine if abnormal mechanical noise suggests a developing failure.
Fluid Leakage
Identify the exact leak location after completing pressure relief. Check the relevant seals, fittings, pump packings and valve connections before selecting parts.
Unstable Sprayer Stand
Inspect the left and right leg assemblies and mounting hardware for damage or looseness. Repair structural faults before returning the sprayer to service.
Safety reminder: Airless spray systems operate under high pressure and can cause serious injection injuries. Turn off and disconnect the sprayer, engage the trigger lock where appropriate and follow the manufacturer's pressure relief procedure before servicing. Never inspect pressurized leaks with your hands. Electrical repairs require appropriate precautions and qualified service.
Maintaining Your Titan RentSpray 400 Airless Sprayer
Routine cleaning, inspection and correct replacement-part selection help maintain the condition of the RentSpray 400. Follow the operating manual for maintenance intervals, lubrication requirements and service procedures.
Clean the Fluid System
Flush the sprayer according to the manufacturer's instructions using cleaning materials suitable for the coating and equipment.
Inspect Filters and Intake
Check the suction path and designated filter elements for buildup, restrictions or damage.
Check Fluid Section Seals
Monitor accessible pump components for leakage and follow the specified procedure when packing or valve service is required.
Inspect Structural Hardware
Check the stand, mounting points and accessible fasteners for damage or looseness.
How to Order the Correct Titan RentSpray 400 Parts
1. Identify Your Sprayer
Confirm that your equipment is the Titan RentSpray 400 and record the model and serial information where available.
2. Select the Assembly
Choose the main, motor, suction, gearbox, stand or fluid section category corresponding to the required repair.
3. Match the Part Number
Locate the component in the illustrated diagram and compare the complete Titan reference with the replacement listing.
4. Confirm the Replacement
Review any superseded part numbers, supplied contents, quantity and compatibility notes before purchasing.
Frequently Asked Questions About Titan RentSpray 400 Parts
What assemblies are available for the Titan RentSpray 400 Airless Sprayer?
AllTitanParts organizes the RentSpray 400 into main assembly, motor assembly, suction set assembly, gear box assembly, stand assembly, fluid section assembly and accessories categories.
Where can I find Titan RentSpray 400 pump repair parts?
Browse the RentSpray 400 Fluid Section Assembly category for pump components including packing kits, valve parts, the piston assembly and filter-related components.
What is the Titan 0551533 Repacking Kit used for?
Titan 0551533 is listed in the RentSpray 400 fluid section category as a repacking kit used for specified pump packing maintenance. Confirm the current kit contents and replacement references before ordering.
Which assembly should I check if my RentSpray 400 will not prime?
Begin with the suction set and fluid section. Inspect the intake path and applicable inlet and bypass valve components using the manufacturer's troubleshooting instructions.
Can I use RentSpray Plus parts on a RentSpray 400?
Do not assume the parts are interchangeable. Match the complete Titan part number and confirm documented compatibility for the specific sprayer model.
How do I identify the correct RentSpray 400 motor or gearbox component?
Open the appropriate assembly category, identify the component in its diagram and compare the complete part number with the product listing. Electrical components should be serviced by qualified personnel.
Where can I get help finding RentSpray 400 replacement parts?
Contact AllTitanParts at 713-931-0006 with the sprayer model, assembly diagram position and any available Titan part number.
Browse RentSpray 400 Replacement Parts by Assembly
Use these category links to locate parts for the specific RentSpray 400 system requiring service.
Shop Titan RentSpray 400 Airless Sprayer Replacement Parts
Browse Titan RentSpray 400 assembly diagrams and replacement parts for motor, gearbox, suction, stand and fluid section repairs. Match the exact part number, review the product listing and select the components needed to service your sprayer.
Shop RentSpray 400 Parts Call 713-931-0006
