Titan RentSpray 400 Fluid Section Assembly Parts
Shop replacement components for the Titan RentSpray 400 Fluid Section Assembly at AllTitanParts. Find pump repair parts including the Titan 0551533 Repacking Kit, 0551531 Pump Block, 0507690 Bypass Valve Assembly, 0551536 Piston Assembly, intake and outlet valve components, seals and filter parts. Restore the affected fluid section components by identifying the correct part numbers from the illustrated assembly and matching them to your sprayer's equipment configuration.
Shop Titan RentSpray 400 Fluid Section Replacement Parts
The Titan RentSpray 400 Fluid Section Assembly contains the components responsible for moving and pressurizing coating material in the airless sprayer. Working with the motor and mechanical drive system, the fluid section uses piston movement and check valves to draw material into the pump and deliver it toward the spray hose and gun.
The fluid section is exposed to repeated pumping cycles, pressure changes and contact with coating materials. Over time, packings, valve components, seals and other service parts may require inspection or replacement. A damaged sealing surface, worn packing or valve obstruction can interfere with priming, pressure development or material delivery.
AllTitanParts lists specific RentSpray 400 fluid section components, including the Titan 0551533 Repacking Kit, 0551535 Spacer, 0551531 Pump Block, 0507690 Bypass Valve Assembly, 50164 Outlet Valve Ball, 704-558 Outlet Valve Seat, 0551534 Intake Valve Seat and 0551532 Filter Assembly.
Additional listed parts include the Titan 13481 Outlet Valve Retainer, 700-821 Teflon Ring/Seal, 560-038 Handle Seal, 9885612 Fitting, 0551536 Piston Assembly and 0551509 Lower Seal Packing Tool. These items serve different locations and maintenance functions, so the required replacement should be identified from the assembly diagram before ordering.
Browse the individual fluid section listings to locate the appropriate replacement for a diagnosed pump problem. Confirm the complete Titan part number, equipment revision, supplied contents and any documented supersession before purchasing.
Titan RentSpray 400 Fluid Section Components and Functions
The following replacement components are identified in the RentSpray 400 Fluid Section Assembly category. Each serves a specific function in the pump, fluid control arrangement or maintenance process.

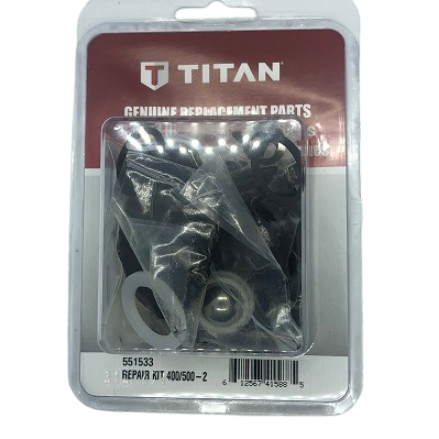

Titan 0551533 Repacking Kit
The repacking kit is used when servicing the pump's packing arrangement. Packings help maintain the intended seal around moving pump components. Worn or damaged packings may contribute to fluid leakage or pressure problems. Confirm the supplied kit contents before installation.

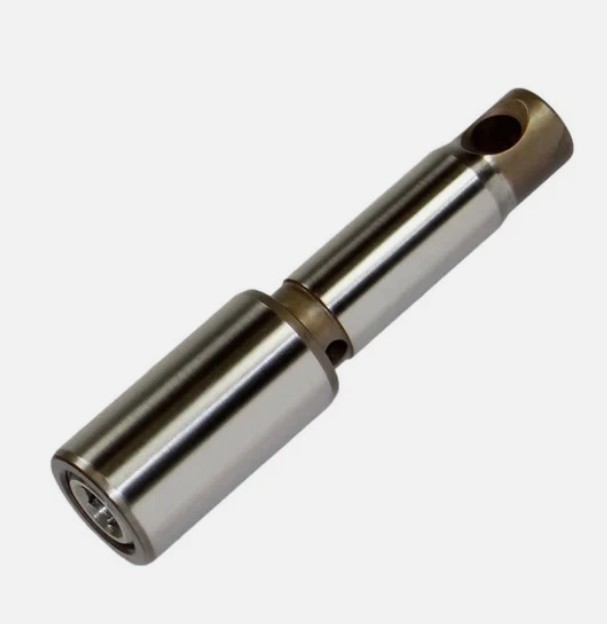

Titan 0551536 Piston Assembly
The piston assembly performs the reciprocating movement required by the fluid pumping mechanism. Damage or wear to piston-related components can affect pumping performance and sealing. Inspect the assembly according to the specified service procedure.

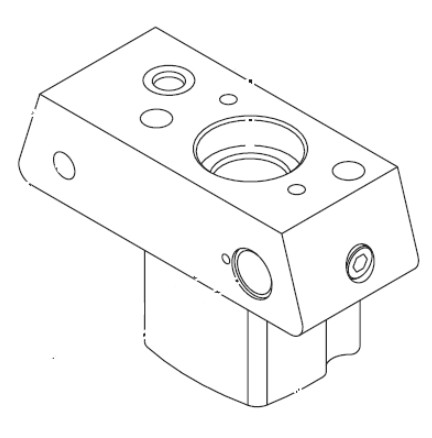

Titan 0551531 Pump Block
The pump block provides the designated structure and fluid passages for connected pumping components. Inspect relevant sealing surfaces, threaded connections and valve locations when diagnosing damage or fluid leakage. Confirm the replacement configuration before ordering.
Titan 0507690 Bypass Valve Assembly
The bypass valve assembly forms part of the fluid routing arrangement used during the sprayer's priming and spraying procedures. Problems with its sealing or operation can interfere with normal fluid control. Match the exact valve assembly reference before replacement.
Titan 50164 Outlet Valve Ball
The outlet valve ball operates with its corresponding seat to control the direction of fluid movement. Damage, contamination or improper seating can interfere with the valve's sealing function. Inspect the related outlet components during service.
Titan 704-558 Outlet Valve Seat
The outlet valve seat provides the sealing surface for the corresponding outlet ball. A damaged or contaminated seat may prevent the valve from sealing correctly. Check both the seat and ball when diagnosing outlet valve problems.
Titan 0551534 Intake Valve Seat
The intake valve seat forms part of the inlet check valve arrangement. Its sealing condition affects how material enters the pumping chamber. Inspect for wear, coating buildup or surface damage when the pump experiences priming problems.

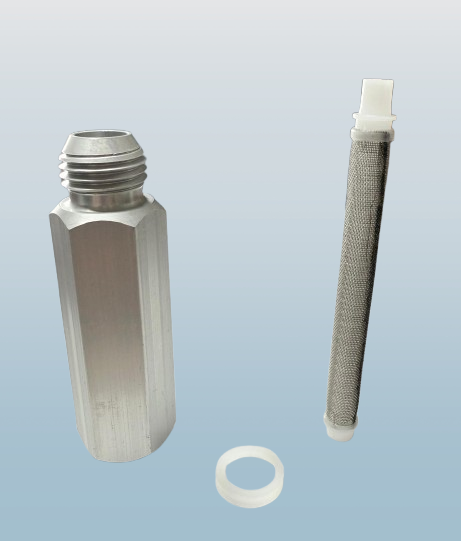

Titan 0551532 Filter Assembly
The filter assembly supports fluid filtration within the specified sprayer arrangement. A restricted filter can interfere with material flow. Inspect and service the filter according to the applicable cleaning and replacement instructions.

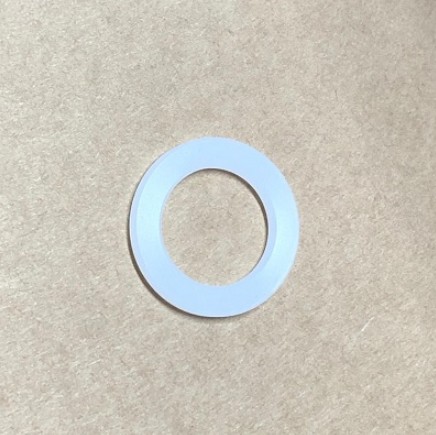

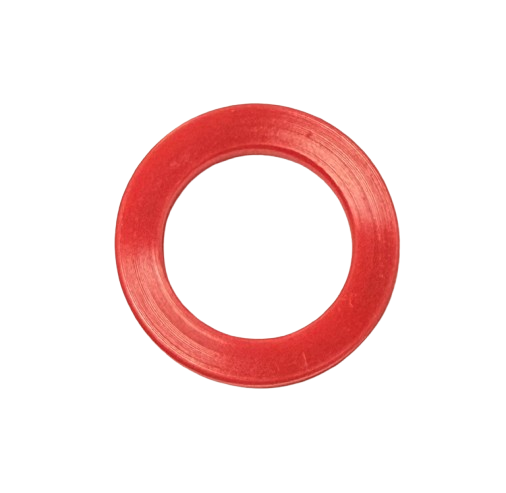

Titan 0551535 Spacer
The spacer maintains its designated positioning or separation within the fluid section assembly. Confirm the illustrated location and correct replacement reference before installation. Do not substitute an unverified spacer with a similar appearance.
Titan 13481 Outlet Valve Retainer
The outlet valve retainer secures designated components within the outlet valve arrangement. Damaged retaining surfaces or incorrect installation may affect the valve assembly. Verify the corresponding diagram position and replacement number.
Titan 700-821 Teflon Ring/Seal
The ring or seal is used at its specified sealing location in the fluid section. A worn or damaged seal can affect the intended connection. Confirm the correct installation position and material compatibility before replacement.
Titan 560-038 Handle Seal
The handle seal serves its designated sealing location in the filter or fluid control arrangement. Inspect the applicable connection when leakage is present and confirm the exact seal reference before ordering.

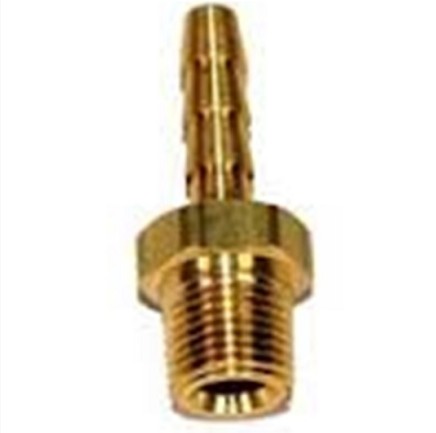

Titan 9885612 Fitting
The fitting provides the specified connection within the fluid section arrangement. Correct thread configuration and installation are important for connection integrity. Verify the listed fitting specification before replacement.

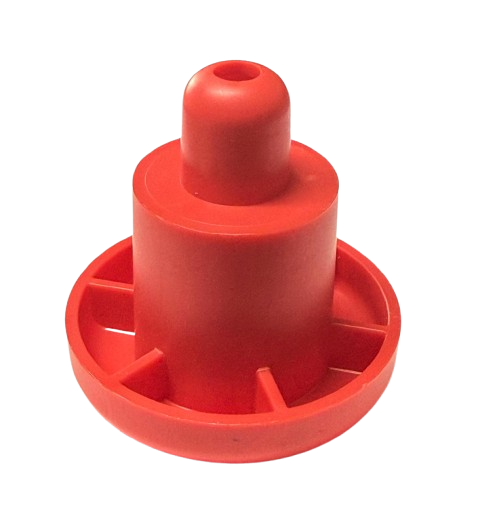

Titan 0551509 Lower Seal Packing Tool
This service tool supports the specified lower seal packing procedure. It is a maintenance tool rather than a normal operating component of the pump. Use it only as directed by the applicable service instructions.
Titan RentSpray 400 Fluid Section Parts List
Use these published component references to narrow your search for replacement parts. Diagram item numbers are included where shown on the category page. The list does not establish every item required for a complete fluid section rebuild.
Replacement identification: Some individual product listings reference earlier or replacement Titan part numbers. Confirm any supersession, the applicable equipment revision and the contents supplied with each replacement before purchasing.
How the Titan RentSpray 400 Fluid Section Works
The fluid section operates through repeated pumping cycles. Mechanical motion from the motor and gearbox drives the piston assembly, creating the pressure changes required to move coating material through the pump.
During the intake portion of the pumping cycle, material enters through the inlet flow path. The intake check valve allows flow in the intended direction and helps prevent reverse movement. The condition of the intake valve seat is important for this sealing function.
As the piston continues its pumping cycle, material moves toward the outlet valve. The outlet ball and seat operate together to control fluid movement. Damage or contamination at these sealing surfaces can interfere with pressure development.
The pump packing arrangement provides sealing around designated moving components. Worn packings may allow fluid leakage and affect normal operation. The Titan 0551533 Repacking Kit is associated with this maintenance area.
The bypass valve assembly controls its designated fluid routing function during priming and spraying. The filter assembly supports material filtration, while the pump block provides the relevant structural and connection arrangement for these components.
Because these parts interact, a pressure or priming problem may involve more than one service area. Inspect the relevant components using the manufacturer's diagnostic and repair instructions before selecting replacements.
Titan RentSpray 400 Fluid Section Troubleshooting
Pump symptoms may be associated with worn packings, damaged check valve components, intake restrictions or fluid routing problems. The following examples describe possible inspection areas, not confirmed diagnoses.
Sprayer Will Not Prime
Inspect the material supply, suction connections, intake valve and bypass valve arrangement. A restricted inlet or a valve that does not seal correctly may interfere with priming.
Pump Does Not Build Pressure
Review the inlet and outlet check valves, piston assembly, packings and bypass valve. A damaged valve seat or worn sealing component may contribute to pressure loss.
Fluid Leakage Around the Pump
Inspect the relevant packing and sealing locations after following the pressure relief procedure. The Titan 0551533 Repacking Kit or another specified seal may be required depending on the diagnosed fault.
Irregular Pump Cycling
Inspect the mechanical drive and fluid section for abnormal resistance, worn components or valve sealing problems. Pressure control and suction issues may also affect operation.
Restricted Material Flow
Check the applicable suction path, filter assembly and fluid passages for coating buildup or debris. Follow the specified cleaning instructions and inspect for damaged components.
Prime and Spray Switching Problems
Inspect the bypass valve assembly and its designated sealing components. Confirm whether the problem involves the valve mechanism, associated seals or another fluid control component.
High-pressure safety: Airless spray equipment can cause serious fluid injection injuries. Disconnect electrical power and follow the complete manufacturer-specified pressure relief procedure before servicing the pump, valves, filter or fluid connections. Never use your hands to locate a pressurized leak. Do not loosen fittings while the system is pressurized.
Maintaining the Titan RentSpray 400 Fluid Section Assembly
Appropriate cleaning and inspection help identify conditions that may affect pump operation. Follow the RentSpray 400 operating and service instructions for flushing, packing maintenance, valve inspection and storage procedures.
Flush the Fluid System
Use the specified flushing procedure and a cleaning material compatible with the coating and equipment to reduce buildup in the pump and fluid passages.
Inspect Pump Packings
Check for leakage and other signs of packing wear. Replace worn components using the appropriate kit and installation procedure.
Check Valve Components
Inspect accessible inlet and outlet valve components during the specified maintenance process. Replace damaged balls, seats or retainers with the correct references.
Maintain the Filter Assembly
Inspect the designated filter components for restrictions and damage. Follow the appropriate cleaning or replacement procedure.
Choosing Between a Repacking Kit, Valve Parts and Piston Assembly
Different pump symptoms may require different fluid section components. A complete fluid section rebuild is not necessarily required when the fault is isolated to a single replaceable item.
Repacking Kit
Consider the Titan 0551533 Repacking Kit when diagnosis identifies worn pump packing components. Verify the kit contents and applicable service procedure.
Valve Components
Review the Titan 50164 Outlet Valve Ball, 704-558 Outlet Valve Seat, 0551534 Intake Valve Seat and related components when check valve damage is identified.
Piston Assembly
Consider the Titan 0551536 Piston Assembly when inspection identifies damage or wear affecting the piston mechanism. Confirm whether associated seals or other parts are also required.
How to Order the Correct RentSpray 400 Fluid Section Parts
1. Confirm Your Sprayer
Verify that your equipment is the Titan RentSpray 400 and record available model and serial identification information.
2. Identify the Pump Component
Use the fluid section illustration to identify the affected part and record its diagram item number.
3. Match the Titan Part Number
Compare the complete part number and any documented replacement reference with the individual product listing.
4. Verify the Supplied Contents
Confirm whether the listing is for an individual seal, valve component, repacking kit, piston assembly or service tool.
Frequently Asked Questions About Titan RentSpray 400 Fluid Section Parts
What does the Titan RentSpray 400 Fluid Section Assembly do?
The fluid section uses piston movement, check valves and sealing components to draw in coating material and deliver it under pressure toward the spray system.
Which repacking kit is listed for the RentSpray 400 fluid section?
The category lists the Titan 0551533 Repacking Kit. Verify its compatibility with your equipment revision and confirm the supplied contents before installation.
What is the Titan 0551536 Piston Assembly used for?
The piston assembly forms part of the reciprocating pumping mechanism that moves coating material through the fluid section.
Which outlet valve parts are listed for the RentSpray 400?
The category includes the Titan 50164 Outlet Valve Ball, 704-558 Outlet Valve Seat and 13481 Outlet Valve Retainer. Confirm the correct combination and installation procedure using the applicable assembly diagram.
Can a worn intake valve seat cause priming problems?
A damaged or contaminated intake valve seat may prevent the inlet check valve from sealing properly and contribute to priming problems. Suction and bypass valve faults can produce similar symptoms.
What does the Titan 0507690 Bypass Valve Assembly do?
The bypass valve assembly forms part of the fluid routing arrangement used during priming and spraying. Its condition can affect how fluid is directed through the system.
Where can I get help identifying RentSpray 400 fluid section parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, fluid section diagram item number and any available Titan part number.
Related Titan RentSpray 400 Parts and Assemblies
If the diagnosed fault involves another equipment system, explore these related RentSpray 400 assembly categories.
Shop Titan RentSpray 400 Fluid Section Assembly Parts
Find Titan RentSpray 400 pump repair components, including repacking kits, piston assemblies, intake and outlet valve parts, bypass valve assemblies, filters and seals. Browse the fluid section parts list and select the correct Titan replacement reference for your repair.
Shop Fluid Section Parts Call 713-931-0006
