Titan RentSpray 400 Motor Assembly Parts
Shop replacement components for the Titan RentSpray 400 Motor Assembly at AllTitanParts. Explore motor-related service components, including the capacitor assembly and motor cooling fan, along with applicable mounting hardware and electrical connections identified in the assembly diagram. The motor provides mechanical power for the airless sprayer's pumping system. Locate the correct replacement by comparing the illustrated component position, complete Titan part number and relevant equipment specifications before ordering.
Shop Titan RentSpray 400 Motor Assembly Replacement Parts
The Titan RentSpray 400 Motor Assembly is part of the electrical drive system responsible for supplying mechanical power to the sprayer's pumping mechanism. During normal operation, the motor works with the gearbox and fluid section to support the movement and pressurization of coating material.
The motor assembly includes electrical and mechanical components that must function together under the equipment's intended operating conditions. A fault involving motor operation, cooling or associated electrical components may prevent the sprayer from starting or maintaining normal pumping performance.
The RentSpray 400 motor parts category is useful when identifying service components such as the motor fan and capacitor assembly. These parts perform different functions, so the cause of a motor-related problem should be established through appropriate diagnostic procedures before a replacement is selected.
The motor fan supports the equipment's cooling arrangement, while the capacitor assembly performs its designated function within the motor electrical circuit. Other components, including electrical connections, covers and mounting hardware, should be identified only when they appear in the applicable RentSpray 400 parts diagram.
AllTitanParts provides the RentSpray 400 Motor Assembly category to help customers locate replacement parts by assembly position. Compare the complete Titan part number, product description and equipment configuration before purchasing. Electrical components should be inspected and serviced by qualified personnel.
Understanding Titan RentSpray 400 Motor Assembly Components
The following component groups describe important motor service areas. The motor fan and capacitor assembly are identified motor-related components. Additional parts and their availability must be confirmed using the applicable assembly illustration and individual product listings.
Electric Motor
The electric motor converts electrical energy into mechanical motion used by the sprayer's drive system. Motor problems can interrupt pumping operation. Confirm whether the motor is supplied as a complete replacement or serviced through separately listed components before ordering.

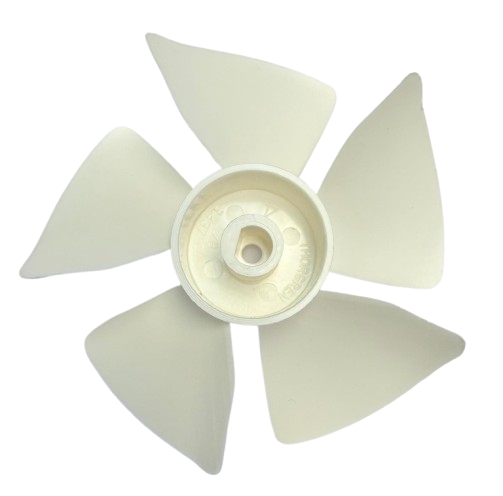

Motor Cooling Fan
The motor fan supports airflow through the designated cooling arrangement. A damaged, obstructed or improperly fitted fan may reduce cooling effectiveness. Inspect its condition and verify the correct replacement reference before installation.

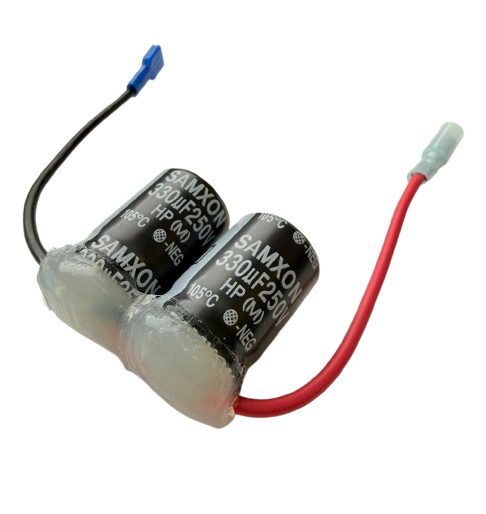

Capacitor Assembly
The capacitor assembly forms part of the motor's electrical system. A defective capacitor can contribute to motor operating problems, depending on the circuit design. Replacement requires the exact electrical specification and correct Titan part number. Service should be performed by qualified personnel.
Motor Housing and Covers
Where separately specified, housing and cover components protect designated motor areas and help maintain the intended equipment arrangement. Inspect for cracks, missing attachments and damage that may expose electrical or moving components.
Motor Mounting Hardware
Mounting hardware secures the motor in its specified position relative to the drive system. Loose or damaged connections can affect alignment and equipment operation. Confirm fastener dimensions and part references from the applicable diagram.
Electrical Connections
Electrical connections provide the required circuit paths between designated motor components. Damaged insulation, loose terminals or overheated connections require appropriate inspection. Do not substitute electrical components without confirming their specifications.
Motor Drive Interface
The motor transfers mechanical power to the connected drive mechanism. Inspect the relevant coupling or drive connection when mechanical motion is interrupted. Gearbox components should be identified in the separate RentSpray 400 Gear Box Assembly category.
Associated Motor Hardware
Any additional retainers, brackets, screws or service components must be matched to the actual motor assembly diagram. Check whether the replacement is sold individually or included with another component.
Titan RentSpray 400 Motor Assembly Parts Identification Guide
Use the assembly diagram to identify the component requiring service. This guide describes the function and selection requirements for relevant motor service areas without assigning unconfirmed part numbers.
Important: The motor fan and capacitor assembly are identified service components for this motor category. The other component groups describe general inspection areas and are not confirmation of separately stocked parts. Verify individual product listings and the applicable assembly diagram before purchase.
How the Titan RentSpray 400 Motor Assembly Works
The RentSpray 400 Motor Assembly supplies the mechanical power required by the sprayer's pumping system. When the equipment is operating under the appropriate electrical and control conditions, the motor produces rotational motion that is transmitted through the connected drive arrangement.
The gearbox transfers mechanical motion toward the fluid section, where the pumping mechanism moves coating material through the inlet and outlet flow paths. The motor and gearbox therefore perform related but distinct functions, and their components are organized into separate replacement parts categories.
Motor cooling is also important during operation. The fan supports the designated airflow arrangement, while the motor's electrical components perform the functions required by its circuit design. Damage to cooling or electrical components can interfere with normal motor operation.
A motor-related symptom does not always indicate that the complete motor requires replacement. Mechanical resistance from the drive system, electrical supply problems, damaged connections or a defective associated component can produce similar operating symptoms.
For accurate repair planning, identify the affected system, follow the applicable diagnostic procedure and match the required replacement component to its complete Titan reference.
Titan RentSpray 400 Motor Troubleshooting and Repair
Motor operating problems can originate from electrical, cooling or mechanical causes. The following symptoms identify possible areas for professional inspection and should not be treated as confirmed diagnoses.
Motor Will Not Start
Confirm that the electrical supply and external operating conditions meet the equipment requirements. Qualified personnel should inspect the applicable controls, motor circuit and capacitor assembly when indicated by the service procedure.
Motor Starts but Pump Does Not Operate
Inspect the relationship between the motor, gearbox and fluid section. A mechanical drive problem may prevent the pumping mechanism from operating even when the motor receives power.
Excessive Motor Heating
Stop operation and allow the equipment to cool safely. Inspect the designated cooling path, motor fan and operating conditions. Electrical or mechanical loading problems may also require investigation.
Unusual Motor Noise
Unusual sounds may indicate damaged motor components, fan interference, loose mounting hardware or problems in the connected drive system. Stop using the machine until the cause is identified.
Motor Stops During Operation
Review the equipment's operating conditions and applicable electrical protection system. Investigate cooling, supply voltage and mechanical loading through the specified diagnostic process.
Visible Electrical Damage
Discontinue use if electrical insulation, connectors or motor components show signs of overheating or physical damage. Have the equipment inspected by qualified service personnel.
Electrical safety: Disconnect the sprayer from electrical power and follow the manufacturer's pressure relief procedure before servicing. Capacitors can retain hazardous electrical energy after power is removed. Only qualified personnel should test, discharge or replace electrical components using the applicable service instructions. Never bypass electrical protection devices.
Maintaining the Titan RentSpray 400 Motor Assembly
Routine inspection of accessible motor components can help identify conditions that require service. Follow the applicable RentSpray 400 maintenance instructions and avoid opening electrical enclosures unless qualified to perform the work.
Keep Cooling Areas Clear
Inspect accessible ventilation areas for coating buildup, dust or other obstructions that may interfere with the intended airflow.
Inspect the Motor Fan
Check for visible fan damage or obstruction with the equipment safely disconnected. Replace damaged components using the specified reference.
Check Mounting Security
Inspect designated mounting connections for looseness or damage and follow the appropriate tightening specifications.
Monitor Operating Conditions
Stop using the sprayer if abnormal heating, noise, vibration or electrical symptoms develop. Arrange appropriate diagnosis before further operation.
Motor Assembly vs. Gear Box Assembly: Which Parts Do You Need?
The RentSpray 400 Motor Assembly and Gear Box Assembly work together but contain different service components. Identifying the correct system helps prevent purchasing a replacement from the wrong category.
Motor Assembly
Focuses on the electrical motor and associated components, including the motor fan and capacitor assembly.
Review this category when the diagnosed repair involves a motor-specific electrical or cooling component.
Gear Box Assembly
Focuses on the mechanical drive components that transfer motor motion toward the fluid section.
Review this category when diagnosis indicates a gear, drive or associated gearbox component requires replacement.
If the motor operates but the pump does not cycle, do not assume either assembly is defective without further diagnosis. Follow the manufacturer's procedures for isolating electrical, drive and fluid section problems.
How to Order the Correct RentSpray 400 Motor Replacement Parts
1. Confirm Your Sprayer
Identify the Titan RentSpray 400 Airless Sprayer and record available model, serial and equipment identification information.
2. Identify the Motor Component
Locate the affected component in the motor assembly illustration and record its diagram reference.
3. Match the Titan Part Number
Compare the complete replacement number, including any suffix, with the corresponding product listing.
4. Verify Electrical Specifications
For electrical components, confirm the required ratings, connection design and replacement specification before ordering or installation.
Frequently Asked Questions About Titan RentSpray 400 Motor Parts
What does the Titan RentSpray 400 Motor Assembly do?
The motor assembly supplies mechanical power to the sprayer's drive system, allowing the connected pumping mechanism to operate under the appropriate conditions.
What motor replacement parts are associated with the RentSpray 400?
The motor fan and capacitor assembly are identified motor-related service components. The complete list of parts and their exact references should be confirmed from the RentSpray 400 Motor Assembly diagram.
Can a faulty capacitor cause motor starting problems?
A defective capacitor may contribute to motor operation problems, depending on the circuit design. Diagnosis and replacement should be performed by qualified personnel using the correct electrical specifications.
What happens if the RentSpray 400 motor fan is damaged?
A damaged or obstructed fan can reduce the effectiveness of the motor cooling arrangement. Stop operation if overheating or abnormal fan noise occurs and arrange appropriate inspection.
Is the motor assembly the same as the gearbox assembly?
No. The motor assembly supplies mechanical power, while the gearbox transfers motion toward the pumping mechanism. AllTitanParts organizes these systems into separate parts categories.
Can I use a RentSpray Plus motor part on the RentSpray 400?
Do not assume compatibility between different RentSpray models. Confirm the complete Titan part number, applicable model and required electrical or mechanical specifications.
Where can I get help identifying RentSpray 400 motor parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, motor assembly diagram position and any available Titan part number.
Related Titan RentSpray 400 Parts and Assemblies
If the required replacement is not part of the motor assembly, explore the related RentSpray 400 categories to identify the correct component for the affected equipment system.
Shop Titan RentSpray 400 Motor Assembly Replacement Parts
Browse Titan RentSpray 400 Motor Assembly parts for motor maintenance and repair. Locate the correct motor fan, capacitor assembly or other diagram-identified replacement component by matching the complete Titan part number and applicable equipment specifications.
