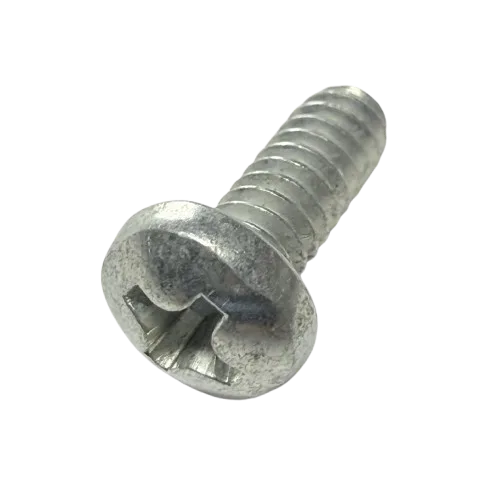

Part number 9804916 is a fuse block screw designed to secure fuses and maintain electrical connections within the fuse block assembly on compatible Advantage, Impact, RentSpray, and SprayTech equipment. This precision fastener ensures proper contact pressure for reliable circuit protection and prevents loose connections that could cause electrical failures or intermittent operation. Replacing a missing, stripped, or corroded fuse block screw restores secure fuse retention and ensures consistent electrical system performance.
| Part Number | 9804916 |
|---|---|
| Part Description | Fuse Block Screw |
| Brand | Advantage / Impact / RentSpray / SprayTech |
| Fits | Advantage 400, 500; Impact 1140, 410, 640, 840, 740‑840, 840 I and IA, 1140 I and IA, 1040, 640 I and IA, 740; RentSpray 400; SprayTech AirCoat (Model 0508074A); SprayTech Airless EPX2155, EPX2255, EP2105, EP2205 |
| Condition | New |
The 9804916 Fuse Block Screw is a small but critical fastener used to secure fuses within the fuse block assembly on compatible Advantage, Impact, RentSpray, and SprayTech sprayers. It ensures that fuses remain firmly seated and maintain proper electrical contact, which is essential for reliable circuit protection and preventing electrical failures.
Over time, fuse block screws can become stripped, corroded, or lost during maintenance. A missing or damaged screw can allow fuses to vibrate loose, causing intermittent power loss, blown fuses, or complete electrical failure. Replacing the screw restores secure fuse retention, ensures consistent electrical contact, and maintains the integrity of the machine's protection circuits.
| Fuse retention | Secures fuses in place within the fuse block |
|---|---|
| Electrical contact | Maintains proper pressure for reliable circuit connection |
| Vibration resistance | Prevents fuses from loosening due to machine vibration |
| Stripped threads | Screw no longer tightens properly |
|---|---|
| Corrosion / rust | Visible corrosion compromising electrical contact |
| Missing screw | Screw absent, leaving fuse unsecured |
| Head damage | Drive features worn, making removal/installation difficult |
Part number 9804916 is compatible with the following equipment models. Always confirm fitment using the correct parts diagram for your exact model and serial number.
| Model | Component |
|---|---|
| Advantage 400 | Fuse Block Screw |
| Advantage 500 | Fuse Block Screw |
| Impact 1140 | Fuse Block Screw |
| Impact 410 | Fuse Block Screw |
| Impact 640 | Fuse Block Screw |
| Impact 840 | Fuse Block Screw |
| Impact 740‑840 | Fuse Block Screw |
| Impact 840 I and IA | Fuse Block Screw |
| Impact 1140 I and IA | Fuse Block Screw |
| Impact 1040 | Fuse Block Screw |
| Impact 640 I and IA | Fuse Block Screw |
| Impact 740 | Fuse Block Screw |
| RentSpray 400 | Fuse Block Screw |
| SprayTech AirCoat 0508074A | Fuse Block Screw |
| SprayTech Airless EPX2155 | Fuse Block Screw |
| SprayTech Airless EPX2255 | Fuse Block Screw |
| SprayTech Airless EP2105 | Fuse Block Screw |
| SprayTech Airless EP2205 | Fuse Block Screw |
Fuse block screw issues may involve associated components. When servicing the fuse block screw, these parts are commonly inspected or replaced at the same time.
Inspect fuses for signs of blowing or corrosion; replace if necessary.
Check for cracks, melting, or corrosion in the fuse block itself.
Ensure wire connections to the fuse block are clean and tight.
