Titan RentSpray 500 Fluid Section Assembly Parts
Find replacement components for the Titan RentSpray 500 Fluid Section Assembly at AllTitanParts. Explore the airless sprayer's pumping and pressure-related components, including the piston assembly, upper piston guide, pump block and pressure sensor assembly. Use the illustrated parts breakdown to identify worn or damaged components, match their complete Titan part numbers and select the appropriate replacement for maintaining the fluid delivery system of your RentSpray 500 airless paint sprayer.
Shop Titan RentSpray 500 Fluid Section Assembly Replacement Parts
The Titan RentSpray 500 Fluid Section Assembly is a dedicated replacement parts category for components associated with the pumping and fluid pressure system of the RentSpray 500 airless paint sprayer. It helps painting contractors, equipment owners, rental operators and service technicians identify replacement components for the fluid section without confusing them with parts assigned to the motor, drive or cart assemblies.
The fluid section is a critical part of an airless spraying system because it receives coating material and develops the pressure required for fluid delivery. Its performance depends on the mechanical condition of the pumping components, the integrity of fluid-handling connections and the correct operation of associated pressure-related equipment.
Identified components associated with the RentSpray 500 Fluid Section Assembly include the Titan 704-560 Piston Assembly, Titan 700-587 Upper Piston Guide, Titan 704-492A Pressure Sensor Assembly and Titan 805-324A Pump Block. These components perform different functions within the pumping and pressure-related arrangement.
During equipment operation, pumping components are subjected to repeated mechanical movement and contact with coating material. Over time, wear, contamination or damage may affect fluid delivery, pressure development and the reliability of the pumping mechanism.
A sprayer that struggles to prime, develops inconsistent pressure or experiences fluid leakage may require inspection of the fluid section. However, these symptoms can also originate from material supply restrictions, spray accessories, pressure controls or the drive mechanism. The actual cause should be identified before parts are replaced.

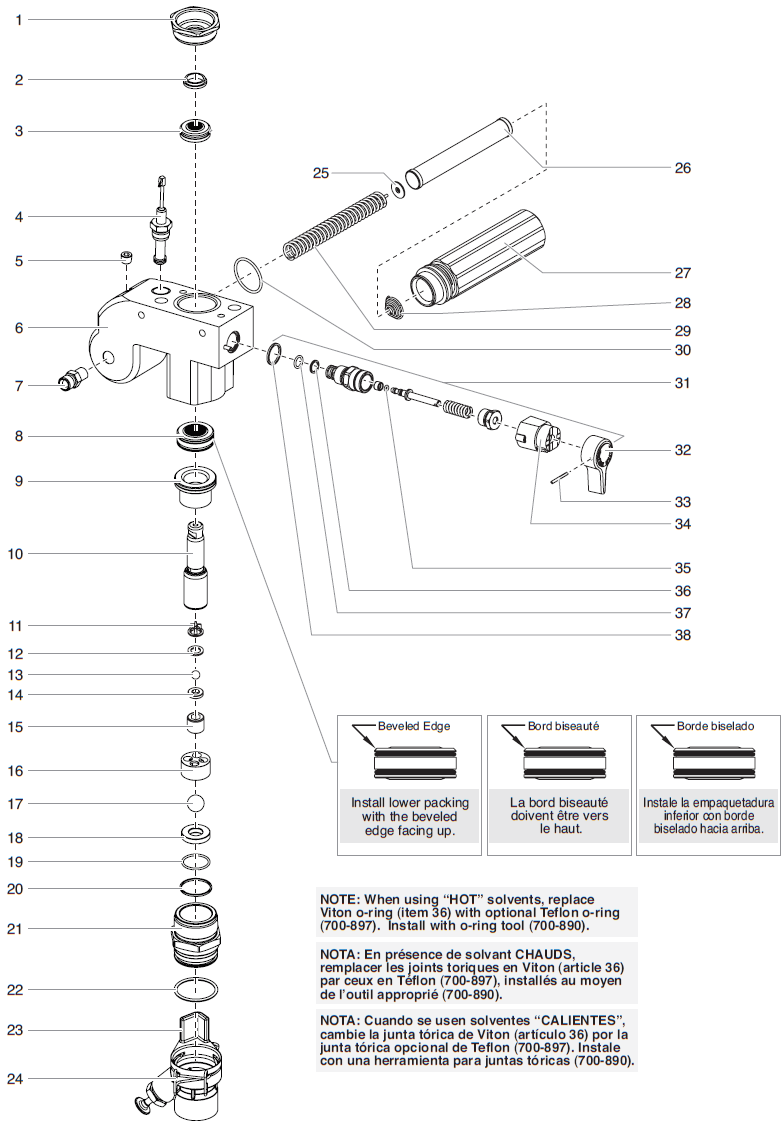

The illustrated Fluid Section Assembly diagram helps customers distinguish the individual pumping components and identify their correct manufacturer references. It is particularly useful when servicing assemblies that contain several related parts or components that resemble those used in other Titan sprayer models.
Before ordering, confirm that the equipment is a Titan RentSpray 500, locate the affected component in the applicable fluid section illustration and compare its complete Titan part number with the corresponding product listing.
AllTitanParts organizes the Fluid Section Assembly separately from the Main Assembly, Drive Assembly, Cart Assembly and Accessories categories so customers can focus on the components relevant to the pumping system and select replacements with greater confidence.
Understanding the Titan RentSpray 500 Fluid Section Assembly
The fluid section contains components associated with pumping action, fluid containment and pressure-related operation. The following component descriptions explain important inspection and replacement considerations.
Titan 704-560 Piston Assembly
The Piston Assembly is associated with the reciprocating pumping action of the fluid section. Inspect its condition when investigating mechanical wear, fluid leakage or reduced pumping performance. Confirm the complete assembly contents before replacement.
Titan 700-587 Upper Piston Guide
The Upper Piston Guide is associated with the intended movement and positioning of the piston. Inspect for damage or wear according to the applicable service procedure. Verify its correct orientation and related installation requirements.
Titan 704-492A Pressure Sensor Assembly
The Pressure Sensor Assembly is associated with the sprayer's pressure-related control arrangement. Electrical or pressure-control symptoms require appropriate diagnosis before the sensor is identified as defective.
Titan 805-324A Pump Block
The Pump Block forms part of the fluid section arrangement. Inspect the applicable mounting, fluid-handling and component interface areas when evaluating damage or leakage. Verify the correct replacement reference.
Sealing and Wear Components
Pumping systems depend on correctly specified sealing surfaces and wear components. Check the applicable RentSpray 500 diagram to determine which seals, packings or related items are individually identified and serviceable.
Other Fluid Section Components
Additional fittings, valves, fasteners or service items may appear in the applicable fluid section diagram. Their exact part numbers, specifications and availability must be verified individually.
Titan RentSpray 500 Fluid Section Assembly Parts Identification Guide
Use this reference table to identify previously documented fluid section components and understand the checks required when selecting replacements.
Important: This table is a reference to previously identified RentSpray 500 Fluid Section Assembly components, not a complete inventory. Confirm current part applicability, diagram positions, product contents and equipment revisions before ordering. Do not substitute components based solely on appearance.
How the Titan RentSpray 500 Fluid Section Assembly Works
The fluid section is responsible for the pumping process that supplies pressurized coating material to the sprayer's fluid delivery system. It works together with the motor, drive mechanism and pressure-related controls to support airless spraying.
The motor generates mechanical power, while the drive assembly transfers and converts movement to operate the pumping mechanism. This movement is transmitted to the fluid section, where the piston assembly participates in the pumping cycle.
As the pumping mechanism operates, coating material is drawn into the appropriate fluid pathway and delivered under pressure through the designated outlet system. Correct fluid movement depends on the condition of the pumping components and the integrity of the relevant fluid-handling connections.
The Titan 704-560 Piston Assembly is associated with this pumping action. Damage or wear affecting the piston may interfere with normal operation, although reduced pressure alone does not establish that the piston is defective.
The Titan 700-587 Upper Piston Guide is associated with the intended positioning and movement of the piston. Its condition should be evaluated when servicing related pumping components.
The Titan 805-324A Pump Block forms part of the fluid section structure. Its interfaces with other components should be inspected when investigating damage, improper assembly or fluid leakage.
The Titan 704-492A Pressure Sensor Assembly is associated with the pressure-related control arrangement. A pressure-control malfunction may involve electrical components, sensor operation, the fluid system or other equipment conditions, so diagnosis is required before replacement.
The fluid section must operate with correctly specified components and suitable fluid-handling connections. Installing an incompatible component can affect pressure containment, mechanical operation or equipment safety.
When servicing the pumping system, follow the applicable RentSpray 500 procedure for pressure relief, disassembly, inspection, replacement, lubrication and reassembly. Never loosen fluid section components while the equipment remains pressurized.
Common Titan RentSpray 500 Fluid Section Repair Requirements
Different pumping symptoms may require different inspections. The following situations help distinguish potential fluid section problems from issues originating elsewhere in the sprayer.
Piston Wear
Repeated pumping movement may cause wear over time. Inspect the piston and related service components when the applicable diagnostic procedure indicates a possible internal pumping problem.
Fluid Leakage
Visible leakage may involve seals, fittings, component interfaces or damaged fluid-handling parts. Relieve pressure and identify the actual leak source before selecting replacements.
Pressure Irregularities
Pressure fluctuations can involve the pump, fluid supply, controls or connected spray equipment. The pressure sensor should not be replaced without appropriate testing.
Damaged Pump Components
Inspect the pump block, piston guide and other applicable parts for physical damage or abnormal wear. Verify whether the affected item is serviced individually or as an assembly.
Contamination and Restrictions
Coating residue or foreign material may interfere with normal fluid movement. Inspect the designated fluid pathway using the prescribed cleaning procedure.
Incorrect Replacement Components
A visually similar piston, guide or pump component may have different specifications. Always match the complete Titan part reference and applicable equipment revision.
Fluid Section Assembly vs. Other Titan RentSpray 500 Assemblies
The RentSpray 500 catalog separates replacement components into five assembly categories. Use the functional distinctions below to identify the section most relevant to your repair.
Fluid Section Assembly
Contains pumping and pressure-related components, including the Piston Assembly, Upper Piston Guide, Pressure Sensor Assembly and Pump Block.
Drive Assembly
Contains mechanical drive components such as the Slider Assembly, 2nd Stage Gear and Crankshaft/Gear Assembly, which transfer movement to the pumping mechanism.
Main Assembly
Includes components associated with the primary equipment arrangement, such as the Motor Cover, BellyPan Assembly PMDC and Motor Controller Screw.
Cart Assembly
Covers equipment handling, structural support and mobility components, including the previously identified Sleeve Handle and Hub Cap.
Sprayer Accessories
Includes additional equipment-related products such as maintenance supplies and fittings. Check individual product applications before use.
Titan RentSpray 500 Fluid Section Assembly Troubleshooting
Fluid section problems can affect priming, pressure development, fluid delivery and spraying performance. The following symptoms are starting points for diagnosis rather than confirmation that a particular replacement part is defective.
Sprayer Will Not Prime
Check the material supply, inlet conditions and applicable pumping components. Follow the manufacturer troubleshooting procedure to distinguish a fluid restriction from an internal pump problem.
Low Spray Pressure
Investigate material restrictions, spray tip condition, pumping performance and pressure-control operation. Do not assume that low pressure always requires piston replacement.
Inconsistent Fluid Delivery
Irregular fluid output may involve the supply pathway, pumping mechanism or connected spray equipment. Inspect the appropriate system before replacing components.
Leakage Around the Pump
Relieve pressure and identify the leaking location. Check relevant component interfaces, seals and fittings using the prescribed inspection procedure.
Pressure-Control Problems
A pressure-related malfunction may require evaluation of the sensor, electrical controls and pumping system. Testing should be performed by appropriately qualified personnel.
Abnormal Pump Movement
Inspect the pumping mechanism and its mechanical drive connection. Unusual movement may originate in either the fluid section or drive assembly.
High-pressure safety: Airless spraying equipment can cause serious fluid injection injuries. Switch off the sprayer, disconnect electrical power and complete the manufacturer's pressure relief procedure before inspection, disassembly or repair. Never check for leaks with your hands or loosen pressurized fluid connections. Seek immediate emergency medical care for suspected injection injuries.
Maintaining the Titan RentSpray 500 Fluid Section Assembly
Correct cleaning, inspection and maintenance help protect the pumping system from unnecessary wear and contamination. Follow the applicable RentSpray 500 operating instructions and use only specified maintenance materials and service procedures.
Inspect for Fluid Leakage
Check for visible leakage only after completing the required shutdown and pressure relief procedures.
Clean the Fluid Pathway
Flush the equipment according to the manufacturer's instructions using compatible cleaning materials.
Monitor Pump Performance
Investigate changes in priming, fluid delivery or pressure development before continued operation causes additional damage.
Inspect Piston Components
Evaluate the piston and guide during authorized service, following the required disassembly and inspection procedures.
Use Specified Lubricants
Apply only the lubricants and quantities approved for the relevant equipment components and maintenance operations.
Verify Correct Reassembly
Confirm component orientation, specified fasteners, sealing arrangements and pressure-safe connections before returning the sprayer to service.
How to Order the Correct Titan RentSpray 500 Fluid Section Assembly Parts
The correct replacement depends on the sprayer model, fluid section configuration and complete manufacturer part number. Use the following steps to reduce the risk of ordering an incompatible component.
1. Confirm the Equipment Model
Verify that your machine is a Titan RentSpray 500 and record any available serial or revision information.
2. Locate the Fluid Section Item
Identify the affected piston, guide, sensor, pump block or other component in the applicable illustrated parts breakdown.
3. Match the Titan Part Number
Compare the complete manufacturer reference with the product listing and check any documented replacement or supersession.
4. Verify Product Contents
Determine whether the product contains an individual part or complete assembly, and whether associated seals or hardware are supplied.
Do not assume that fluid section components from the RentSpray 450, RentSpray 600 or other Titan airless sprayers are interchangeable with the RentSpray 500. Verify compatibility individually, particularly for pressurized components and electrical pressure-control parts.
Frequently Asked Questions About Titan RentSpray 500 Fluid Section Assembly Parts
What is the Titan RentSpray 500 Fluid Section Assembly?
The Fluid Section Assembly contains components associated with the pumping and pressure-related functions of the Titan RentSpray 500 airless sprayer. It works with the drive system to deliver pressurized coating material.
Which parts are identified in the RentSpray 500 Fluid Section Assembly?
Previously identified examples include the Titan 704-560 Piston Assembly, Titan 700-587 Upper Piston Guide, Titan 704-492A Pressure Sensor Assembly and Titan 805-324A Pump Block. Check the complete diagram for additional components.
What does the Titan 704-560 Piston Assembly do?
The piston assembly participates in the reciprocating pumping action used to move coating material through the fluid section. Its condition is relevant when investigating mechanical wear and pumping performance.
What can cause the RentSpray 500 to lose spray pressure?
Possible causes include fluid supply restrictions, worn pumping components, unsuitable or worn spray accessories, and pressure-control problems. Diagnose the actual fault before selecting replacement parts.
Is the Pressure Sensor Assembly part of the fluid section?
The Titan 704-492A Pressure Sensor Assembly has been identified in the RentSpray 500 Fluid Section Assembly category. Confirm its exact application and follow the appropriate electrical and pressure-control service procedures.
Can RentSpray 450 fluid section parts fit the RentSpray 500?
Compatibility must be established for each component using the complete Titan part number and documented equipment application. Similar-looking pistons, pump blocks and sensors should not be considered interchangeable without verification.
Where can I get help identifying RentSpray 500 Fluid Section Assembly parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, fluid section diagram reference and any available Titan part number.
Related Titan RentSpray 500 Parts and Assemblies
Explore the other RentSpray 500 parts categories when the required component is not shown in the Fluid Section Assembly illustration.
Shop Titan RentSpray 500 Fluid Section Assembly Parts
Find the correct Titan RentSpray 500 Fluid Section Assembly replacement components for your airless sprayer repair. Browse the illustrated parts category, identify the required piston, guide, pump block or pressure-related component and verify its complete Titan part number before ordering.
Shop Fluid Section Parts Call 713-931-0006
