Titan RentSpray 500 Main Assembly Parts
Find replacement components for the Titan RentSpray 500 Main Assembly at AllTitanParts. Explore the primary equipment assembly to identify protective covers, electrical mounting components, fastening hardware and other parts associated with the RentSpray 500 airless paint sprayer. Use the illustrated assembly diagram to locate the required component, compare its complete Titan part number and select the appropriate replacement for equipment maintenance or repair.
Shop Titan RentSpray 500 Main Assembly Replacement Parts
The Titan RentSpray 500 Main Assembly is a dedicated replacement parts category for components associated with the primary equipment arrangement of the RentSpray 500 airless sprayer. It helps equipment owners, painters and service technicians locate components that belong to the main assembly rather than the drive, cart or fluid section assemblies.
The RentSpray 500 relies on interconnected electrical, mechanical and fluid-handling systems. The motor provides power, the drive mechanism transfers movement to the pump, and the fluid section pressurizes coating material for spraying. The main assembly includes supporting equipment components associated with the organization, mounting and protection of these systems.
Identified components associated with the RentSpray 500 Main Assembly include the Titan 805-356A Motor Cover, Titan 805-232 BellyPan Assembly PMDC and Titan 9802266 Motor Controller Screw. These items serve different functions within the equipment arrangement and should be selected according to their individual part references and installation requirements.
A damaged motor cover, missing fastening screw or defective supporting component may require replacement to restore the intended equipment arrangement. However, a symptom involving low spray pressure, pump wear or mechanical drive operation may originate in a different assembly and should be diagnosed separately.

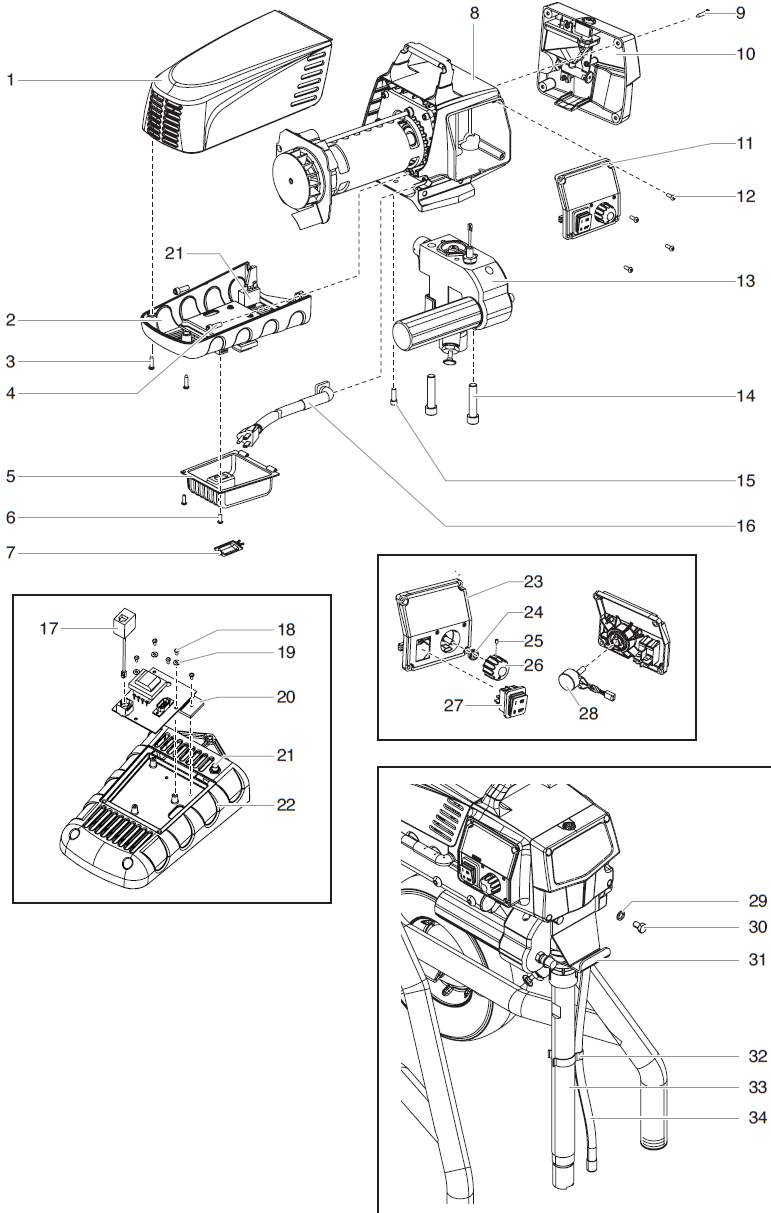

The illustrated parts breakdown is an important reference when identifying the correct replacement. Components from other Titan sprayers may appear similar but differ in dimensions, attachment points, construction or equipment application.
For accurate replacement selection, identify the exact sprayer model, locate the component in the Main Assembly illustration and match the complete Titan part number to the corresponding product listing. Review any documented replacement reference or equipment revision before ordering.
AllTitanParts organizes the RentSpray 500 Main Assembly separately from the Drive Assembly, Cart Assembly, Fluid Section Assembly and Accessories categories to simplify product navigation and help customers locate the parts relevant to their repair.
Understanding the Titan RentSpray 500 Main Assembly
The main assembly includes equipment components associated with the primary sprayer arrangement. The following component and inspection areas are useful when identifying replacement requirements.
Titan 805-356A Motor Cover
The Motor Cover is a protective component associated with the equipment's motor arrangement. Inspect the cover for cracks, impact damage, missing attachment hardware or other conditions that affect its intended installation.
Titan 805-232 BellyPan Assembly PMDC
The BellyPan Assembly PMDC is identified within the main equipment arrangement. Confirm its illustrated position, associated attachment points and exact replacement reference before servicing or replacing the component.
Titan 9802266 Motor Controller Screw
The Motor Controller Screw is fastening hardware associated with the designated motor controller arrangement. Use the specified screw reference rather than substituting a visually similar fastener with unverified dimensions or threading.
Electrical Component Protection
Protective covers and supporting components help maintain the intended arrangement of designated electrical equipment. Inspect for damage or missing hardware and follow the appropriate electrical service procedures.
Mounting and Attachment Points
Equipment components are secured through designated mounting locations. Check for damaged threads, missing hardware or distorted attachment surfaces. Verify the exact replacement item from the relevant diagram.
Additional Main Assembly Parts
Other components may be included in the Main Assembly parts breakdown. Review the available illustrated positions and individual product descriptions to determine their function, quantity and replacement requirements.
Titan RentSpray 500 Main Assembly Parts Identification Guide
Use the following guide when inspecting and selecting identified Main Assembly components. Confirm the exact diagram reference and product details before purchasing.
Parts identification: The named components are examples associated with the RentSpray 500 Main Assembly. This table is not a complete inventory. Verify diagram positions, applicable equipment revisions and supplied quantities before ordering.
How the RentSpray 500 Main Assembly Supports Sprayer Operation
The Titan RentSpray 500 Main Assembly forms part of the equipment's overall structural and component arrangement. Although the motor, drive system and fluid section perform different operating functions, they depend on correctly installed supporting and protective components.
The motor supplies mechanical power through the drive mechanism, which supports movement within the pumping system. Electrical controls and their associated mounting arrangements must remain properly installed to support safe and intended operation.
The Titan 805-356A Motor Cover is associated with protecting the designated motor area. A damaged or missing cover should be assessed against the required equipment configuration before the sprayer is returned to service.
The Titan 805-232 BellyPan Assembly PMDC is another identified main assembly component. Its installation and relationship to adjacent components should be determined from the corresponding equipment illustration and service procedure.
Fastening hardware such as the Titan 9802266 Motor Controller Screw helps secure its designated connection. Missing or incorrect hardware may affect the intended component arrangement, particularly where electrical or protective equipment is involved.
Correct assembly also depends on matching the replacement component to the applicable equipment version. A cover, screw or supporting part that appears similar may differ in attachment details or installation requirements.
When repairing the RentSpray 500, distinguish between components that support the main equipment arrangement and parts that directly perform pumping or mechanical drive functions. This helps identify the correct replacement category and reduces unnecessary part substitution.
Main Assembly vs. Other Titan RentSpray 500 Assemblies
The RentSpray 500 catalog separates replacement components into five categories. Understanding their functions helps customers select the correct section when investigating equipment damage or performance problems.
Main Assembly
Contains components associated with the primary equipment arrangement, including the Motor Cover, BellyPan Assembly PMDC and Motor Controller Screw.
Drive Assembly
Contains mechanical drive components such as the Slider Assembly, 2nd Stage Gear and Crankshaft/Gear Assembly, which are associated with movement transmission to the pump.
Cart Assembly
Covers equipment handling and mobility components, including the Sleeve Handle and Hub Cap. Use this category for cart-related replacement requirements.
Fluid Section Assembly
Contains pumping and pressure-related components, including the Piston Assembly, Upper Piston Guide, Pressure Sensor Assembly and Pump Block.
Sprayer Accessories
Includes additional equipment-related products such as identified lubricants, maintenance products and fittings. Verify the intended application before use.
Titan RentSpray 500 Main Assembly Troubleshooting
Main Assembly troubleshooting focuses on the condition, installation and attachment of the components assigned to the primary equipment arrangement. Diagnose the affected area before ordering replacement parts.
Damaged Motor Cover
Inspect the Titan 805-356A Motor Cover for cracks, broken attachment points or impact damage. Confirm the replacement reference and installation requirements.
Loose Motor Controller Hardware
Check the designated mounting arrangement after disconnecting power. Verify the correct Titan 9802266 screw and follow the applicable electrical service procedure.
Damaged BellyPan Assembly
Inspect the Titan 805-232 BellyPan Assembly PMDC for physical damage or compromised attachment locations. Determine whether the complete assembly requires replacement.
Unusual Equipment Vibration
Check accessible mounting points and protective components. Vibration may also originate from the drive, cart or fluid section and should be diagnosed separately.
Missing Protective Components
Locate the missing item in the appropriate illustrated assembly. Replace it with the correct component before operating equipment that requires the protective part.
Incorrect Replacement Fit
Compare the full Titan part number, diagram position and equipment revision. Similar-looking parts from other RentSpray models may not be interchangeable.
Safety: Disconnect electrical power and complete the manufacturer-specified pressure relief procedure before inspection or repair. Electrical servicing should be performed by qualified personnel. Never operate the sprayer with missing required protective components or damaged high-pressure connections.
Maintaining the Titan RentSpray 500 Main Assembly
Routine inspection helps identify visible damage, missing hardware and deteriorating equipment components. Follow the applicable RentSpray 500 maintenance instructions when inspecting the main assembly.
Inspect the Motor Cover
Check for cracks, deformation, loose attachment points and other visible damage.
Check Mounting Hardware
Inspect designated screws and fasteners for missing components, damaged threads or looseness.
Examine the BellyPan Assembly
Check the component and its accessible mounting areas for visible damage or deterioration.
Keep Equipment Clean
Remove coating residue and debris using approved methods that protect electrical and mechanical components.
Inspect After Transportation
Check the main assembly for impact damage, missing hardware and displaced protective components.
Verify Replacement Components
Match each replacement to its documented Titan reference and required installation location.
How to Order the Correct Titan RentSpray 500 Main Assembly Parts
Use the following steps to select replacement components for the RentSpray 500 Main Assembly.
1. Confirm the Sprayer Model
Verify that the equipment is a Titan RentSpray 500 and record available serial or revision information.
2. Locate the Main Assembly Item
Identify the affected component in the RentSpray 500 Main Assembly illustration.
3. Match the Titan Part Number
Compare the complete part number with the product listing and any documented supersession.
4. Confirm the Supplied Contents
Determine whether the product contains a single component, fastening hardware or a complete assembly.
Do not assume that a motor cover, belly pan or controller screw from the RentSpray 450 or another Titan model will fit the RentSpray 500 without documented compatibility.
Frequently Asked Questions About Titan RentSpray 500 Main Assembly Parts
What is the Titan RentSpray 500 Main Assembly?
The Main Assembly is a dedicated replacement parts category for components associated with the primary equipment arrangement of the Titan RentSpray 500 airless sprayer.
Which components are identified in the RentSpray 500 Main Assembly?
Identified examples include the Titan 805-356A Motor Cover, Titan 805-232 BellyPan Assembly PMDC and Titan 9802266 Motor Controller Screw. Refer to the complete diagram for additional components.
How do I find the correct RentSpray 500 Main Assembly part?
Locate the component in the Main Assembly diagram and match its complete Titan part number with the corresponding product listing. Confirm any applicable equipment revision.
Is the Main Assembly the same as the Drive Assembly?
No. The Drive Assembly contains components associated with mechanical movement transmission, while the Main Assembly covers components assigned to the primary equipment arrangement.
Does the Main Assembly include fluid section repair parts?
The RentSpray 500 has a separate Fluid Section Assembly category for pumping and pressure-related components such as the piston assembly, upper piston guide and pressure sensor assembly.
Can RentSpray 450 Main Assembly parts fit the RentSpray 500?
Compatibility must be confirmed for each component. Do not assume parts from different RentSpray models are interchangeable unless the documented replacement references establish compatibility.
Where can I get help identifying RentSpray 500 replacement parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, assembly diagram reference and any available Titan part number.
Related Titan RentSpray 500 Parts and Assemblies
Explore other RentSpray 500 parts categories when the required replacement is not identified in the Main Assembly illustration.
Shop Titan RentSpray 500 Main Assembly Parts
Find the correct Titan RentSpray 500 Main Assembly replacement components for your sprayer repair. Browse the illustrated parts category, identify the required item and verify its Titan part number before ordering.
Shop Main Assembly Parts Call 713-931-0006
