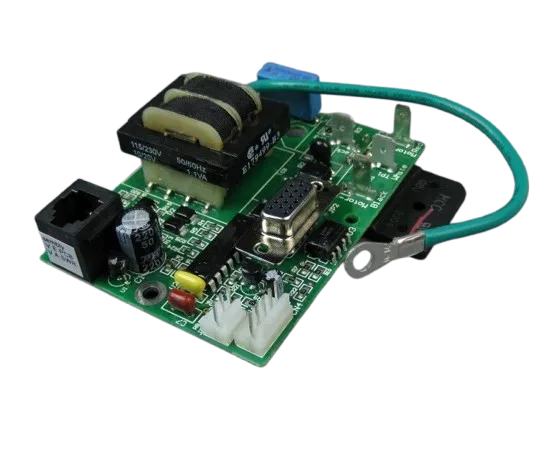

Titan 805-402A Pressure Board Control Assembly
OEM Titan Electronic Control Component
Titan 805-402A Pressure Board Control Assembly is an OEM PC board assembly that forms part of the electronic motor and pressure-control system on designated Impact 440, RentSpray 500, and MultiFinish 440 sprayer configurations.
Compatibility Table
The operator control panel (805-211A) and belly-pan assembly (805-232) are separately identified service assemblies. Have a Titan authorized service center perform electrical work.
Titan Electronic Pressure and Motor-Control Service Parts
Titan 805-402A Pressure Board Control Assembly for Sprayer Service
Titan 805-402A is described in manufacturer documentation as a PC board assembly that forms part of the electronic control system on designated Titan sprayers. Match the installed electrical configuration and review the applicable schematic before selecting this replacement for service.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan PC board assembly identified in designated electronic control systems. Listed as "PC board assembly" in the Titan 440 manual and as "PC BOARD ASSY PKGD 1" by parts suppliers. |
| Function | Forms part of the compatible sprayer's motor and pressure-control circuit. Titan's schematic identifies it alongside the motor, potentiometer, switch, transducer jumper, and other electrical components. |
| Specification | Exact dimensions and electrical specifications not independently established. Control boards contain complex electronics that are not field-repairable. Verify against the illustrated parts list for your specific model revision. |
| Industrial Applications | Professional sprayer repair, electronic control restoration, pressure regulation service, and rental fleet equipment servicing. |
| Compatible Titan Machines | Documented applications include selected Impact 440, RentSpray 500, and MultiFinish 440 configurations. Always confirm 805-402A in the exact machine and electrical configuration. |
| OEM Part Number | 805-402A Pressure Board Control Assembly (also referenced as 0805-402A). |
| Related Components | Pressure transducer/sensor; operator controls (potentiometer, switch); power and motor connections; mounting hardware; enclosure components (belly pan, dust cover). These are separately identified components and are not included with the PC board assembly. |
| Common Problems Solved | Failure to start; intermittent operation; irregular pressure response; visible heat or contamination damage; previous electrical modifications causing control faults. |
| Target Users / Markets | Painting contractors, equipment maintenance technicians, rental fleet operators, and repair shops servicing compatible Titan airless sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fitment in compatible sprayer electronic control systems. |
| Commercial Benefits | Restores precise pressure control, eliminates erratic operation, and ensures reliable sprayer performance. |
Identify the machine by recording the complete model, serial number, electrical version, and installed board reference. Have an authorized service center diagnose the board and connected components. Match 805-402A to the applicable parts list and current replacement requirements. Follow the manufacturer shutdown, pressure-relief, power-isolation, and electrical-service instructions. Have the service provider verify handling, mounting, connections, wiring routing, and any required setup. Confirm correct enclosure reassembly and perform the prescribed electrical and operational checks before normal use.
