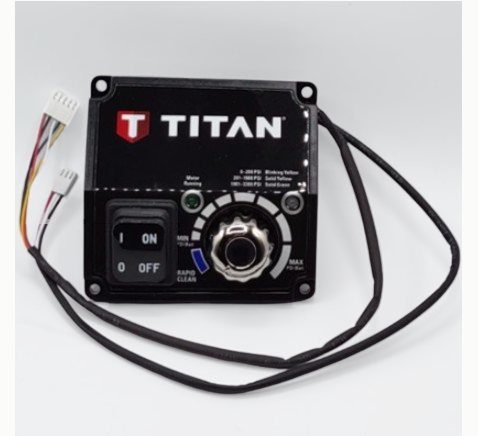

Titan 805-211A Control Panel Assembly Complete

Titan 805-211A Control Panel Assembly Complete

Sourced From:
Titan Tools Inc.



Titan part 805-211A is a complete control panel assembly used to manage and monitor sprayer operations on compatible Impact 440 and RentSpray 500 sprayers. When the original control panel becomes damaged, malfunctions, or develops electrical issues, it can cause operational failures, inaccurate readings, or loss of control functions. This assembly restores proper interface functionality, electrical controls, and operational monitoring for reliable sprayer performance.

Assembly Includes:
  • Control panel housing and mounting frame
  • All switches, buttons, and control interfaces
  • Indicator lights and display components
  • Wiring harness with connectors
  • Circuit boards and electronic controls
  • All necessary mounting hardware
  • Labels and instructional markings
Part Number 805-211A
Part Description Control Panel Assembly Complete
Brand Impact / RentSpray
Fits Impact 440, RentSpray 500
Condition New

Retail Price: $125.9
You save: $13.09 (10.40%)
Our Price: $112.81



Complete Control Panel Assembly for Impact 440 and RentSpray 500 Sprayers

The Titan part 805-211A Control Panel Assembly Complete is the central command interface for compatible Impact and RentSpray sprayers. This complete assembly provides operators with all necessary controls, indicators, and monitoring capabilities to operate the sprayer efficiently and safely. It integrates electrical controls, safety features, and operational feedback in one comprehensive unit.

A malfunctioning control panel can lead to operational failures, inaccurate pressure readings, safety system bypasses, or complete loss of sprayer control. Replacing the complete assembly ensures all interface components, electrical connections, and control systems are properly integrated and functioning as designed.

Electrical Safety Note: Always disconnect power before servicing control panel components. The control panel manages critical safety functions including emergency shutdown, pressure limits, and motor controls. Proper installation is essential for safe operation.

What it does and when to replace it

What the control panel assembly does
Operation control Manages all sprayer functions including power, pressure, and flow
Safety management Controls emergency stops, overload protection, and safety interlocks
System monitoring Provides status indicators, pressure readings, and fault diagnostics
User interface Offers intuitive controls and feedback for operator efficiency
When replacement is recommended
Multiple failures Several controls or indicators malfunction simultaneously
Water/chemical damage Corrosion or contamination affecting multiple components
Physical damage Cracked housing, broken switches, or damaged connectors
Electrical issues Intermittent power, shorts, or unresolved electrical faults

Compatibility

Titan part 805-211A is specifically designed for the following sprayer models. This complete assembly includes all necessary components and hardware for a full control panel replacement.

Brand/Line Models
Impact 440
RentSpray 500

Related parts commonly serviced together

When replacing a control panel assembly, these related electrical and control components are often inspected or replaced to ensure complete system functionality.

Main wiring harness

The complete wiring system connecting the control panel to other components.

Pressure gauge

Instrument that provides pressure readings to the control panel.

Circuit breakers/fuses

Protection devices that work with the control panel's safety systems.

Frequently Asked Questions

The complete assembly includes: control panel housing and mounting frame, all switches, buttons, and control interfaces, indicator lights and display components, wiring harness with connectors, circuit boards and electronic controls, all necessary mounting hardware, and labels/instructional markings. This provides a complete replacement for the operator interface portion of compatible Impact and RentSpray sprayers.

Complete assembly replacement is recommended when: multiple controls or indicators are malfunctioning, there's evidence of water or chemical damage affecting several components, the housing is physically damaged compromising the entire assembly, or when there are persistent electrical issues that can't be traced to a single component. Replacing the complete assembly ensures compatibility between all components and often proves more cost-effective than replacing multiple individual parts separately.

Yes, the 805-211A control panel assembly is designed to work with both Impact 440 and RentSpray 500 models. These sprayers share common control system architectures and panel configurations. Always verify compatibility with your specific model and serial number before ordering.

Installation typically involves: 1) Disconnecting power from the sprayer, 2) Removing the old control panel, 3) Connecting the new panel's wiring harness to the main electrical system (matching wire colors and connections), 4) Mounting the new panel securely with provided hardware, and 5) Testing all functions before returning to service. If you're not experienced with electrical work, have a qualified technician perform the installation.
