Titan 805-233A Fluid Section Assembly
OEM Titan High-Rider Fluid Section Assembly

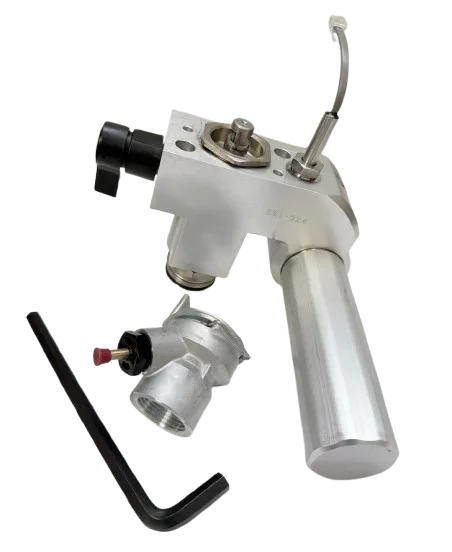

Titan 805-233A Fluid Section Assembly is an OEM complete pumping unit for specified high-rider configurations of Impact 440, 540, 640, and RentSpray 500/600 sprayers, combining the piston, packings, check valves, pump block, filtration, pressure sensor, and PRIME/SPRAY valve.
Compatibility Table
This assembly is for high-rider configurations. Skid and low-rider models use 805-207A. Confirm the installed configuration before ordering.
Titan High-Rider Pump and Fluid Handling Assemblies
Titan 805-233A Fluid Section Assembly for High-Rider Sprayer Service
Titan 805-233A is a service assembly that brings together the specified piston, packings, check valves, pump block, filtration components, pressure sensor, and PRIME/SPRAY arrangement. Review the complete component table below, confirm the installed machine configuration, and plan the repair around the condition of the adjoining drive, suction, and electrical connections.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan complete fluid section assembly for designated high-rider configurations. Listed as 805-233 for high-rider models in official Titan fluid section diagrams. RentSpray 600 Impact manual lists 805-233A for cart configurations. |
| Function | The piston and packings work with the inlet and outlet check valves to move coating material through the fluid section. The filter arrangement screens the material path, while the pressure sensor connects with the compatible control system. The PRIME/SPRAY valve provides priming and spraying flow selection. |
| Specification | Assembly includes pump internals, filter arrangement, pressure sensor (704-492A), PRIME/SPRAY valve, and specified pusher components (805-234A high-rider/cart pusher assembly including O-ring 9871160). Some listed parts are nested within subassemblies and are not additional loose duplicates. Verify against the illustrated parts list for your specific model revision. |
| Industrial Applications | Professional sprayer repair, complete pump replacement, high-rider fluid section servicing, and rental fleet equipment restoration. |
| Compatible Titan Machines | Documented applications include selected high-rider versions of Impact 440, 540, 640, 640I, 640IA, RentSpray 500, and RentSpray 600. Third-party databases also confirm compatibility with Impact 440, 640, and RentSpray 600 Impact. Always confirm 805-233A in the exact machine diagram. |
| OEM Part Number | 805-233A Fluid Section Assembly (also referenced as 805-233 for high-rider models). |
| Related Components | Packing kits; valve and seat kits; manifold and adapter plates; transducer (704-492A); pusher assembly (805-234A); mounting screws; suction tube; return connection; sensor wiring. These are separately identified components and are not included with the fluid section assembly unless noted. |
| Common Problems Solved | Excessive wear across multiple components; pressure loss; poor atomization; inconsistent material flow; frequent component replacement; cracked or corroded fluid section housing. |
| Target Users / Markets | Painting contractors, equipment maintenance technicians, rental fleet operators, and repair shops servicing compatible Titan airless sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fitment in compatible high-rider sprayer fluid sections. |
| Commercial Benefits | Restores optimal pumping performance, reduces installation time, minimizes risk of incompatibility between components, and provides more reliable performance compared to replacing individual parts. |
Confirm the diagnosis and verify the high-rider configuration before ordering. Complete the manual pressure-relief and power-isolation procedures before service. Inspect the drive connection, mounting threads, suction tube, return connection, and sensor wiring. Have an authorized service center perform electrical work. Follow the installation instructions for alignment, fastening, connection, and lubrication. Confirm the supplied pusher arrangement before installation. Never check a pressurized leak with your hand.
