Titan RentSpray 500 Drive Assembly Parts
Find replacement components for the Titan RentSpray 500 Drive Assembly at AllTitanParts. Explore the mechanical drive system of the RentSpray 500 airless paint sprayer, including the slider assembly, second-stage gear, crankshaft and gear assembly, and other diagram-specific drive components. Use the illustrated parts breakdown to identify the required replacement, verify its complete Titan part number and select the appropriate component for mechanical drive maintenance or repair.
Shop Titan RentSpray 500 Drive Assembly Replacement Parts
The Titan RentSpray 500 Drive Assembly contains mechanical components associated with transferring movement from the sprayer's power system to its pumping mechanism. This assembly is important because the fluid section depends on the drive system to produce the reciprocating movement required for pumping coating material.
The RentSpray 500 uses interconnected electrical, mechanical and fluid-handling components. The motor supplies power, the drive components transmit and convert movement, and the fluid section performs the pumping action. When a drive component becomes worn, damaged or incorrectly installed, the mechanical connection between the motor and pumping mechanism may be affected.
Identified replacement components associated with the Titan RentSpray 500 Drive Assembly include the Titan 0508208 Slider Assembly, Titan 704-176 2nd Stage Gear and Titan 704-173A Crankshaft/Gear Assembly. Each component has a different role in the drive arrangement and must be matched to its correct illustrated location.
Mechanical drive problems may appear as abnormal operating noise, irregular movement, reduced pumping performance or an inability to transfer motion effectively to the fluid section. However, similar symptoms can originate from the motor, pump or associated controls, so the underlying fault should be diagnosed before replacing parts.

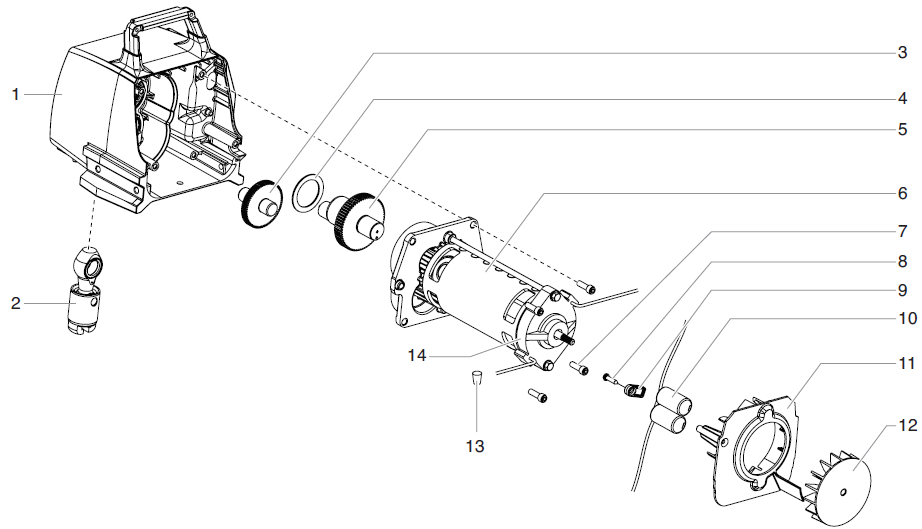

The Drive Assembly parts diagram helps equipment owners and technicians distinguish individual components, identify their relationships and locate the correct manufacturer references. It also helps prevent confusion between drive parts and components assigned to the Main Assembly or Fluid Section Assembly.
Selecting the correct replacement requires more than comparing the appearance of a gear, slider or crankshaft. Components may differ in dimensions, gear geometry, mounting arrangements or compatibility across Titan sprayer models.
Before purchasing, verify that your equipment is a Titan RentSpray 500, locate the required item in the applicable drive illustration and compare its complete Titan part number with the corresponding product listing. Review any documented supersession or equipment revision.
Understanding the Titan RentSpray 500 Drive Assembly
The drive assembly is responsible for transmitting and converting mechanical movement within the sprayer. The following components and inspection areas are relevant when planning drive system maintenance or replacement.
Titan 0508208 Slider Assembly
The Slider Assembly is associated with the drive mechanism that transfers movement toward the pumping system. Inspect for wear, damage and abnormal operating movement. Confirm the complete assembly reference and service requirements before replacement.
Titan 704-176 2nd Stage Gear
The second-stage gear forms part of the mechanical transmission arrangement. Gear condition can affect the transfer of rotational movement. Inspect for visible tooth damage or abnormal wear using the applicable service procedure.
Titan 704-173A Crankshaft/Gear Assembly
The Crankshaft/Gear Assembly is associated with the drive mechanism that converts rotational motion into movement used by the pump. Verify the correct assembly reference, installation orientation and related service requirements.
Gear Engagement
Gear components must operate in the intended arrangement. Damaged teeth, abnormal wear or incorrect assembly may affect movement transmission. Inspect mating components when servicing a damaged gear.
Mechanical Connection Points
The drive mechanism depends on correctly positioned connecting components. Inspect applicable attachment points and moving interfaces for damage, excessive movement or other conditions specified in the service procedure.
Additional Drive Service Parts
Other drive components, hardware or complete assemblies may appear in the applicable diagram. Their individual availability, part numbers and quantities must be established from the relevant product listings.
Titan RentSpray 500 Drive Assembly Parts Identification Guide
Use the following reference to distinguish the identified mechanical drive components and determine the information needed when selecting replacements.
Parts identification: The named components are associated with the RentSpray 500 Drive Assembly in the available category information. This table is not a complete parts inventory. Confirm current diagram references, equipment revisions and product contents before ordering.
How the Titan RentSpray 500 Drive Assembly Works
The drive assembly provides the mechanical connection between the motor's rotational movement and the reciprocating action required by the pumping mechanism. Its components must operate together to transfer motion through the sprayer's drive system.
When the motor operates, rotational movement is transmitted through the mechanical drive arrangement. Gear components help transfer this movement, while the crankshaft and associated components contribute to the conversion of rotation into the movement needed by the pump.
The Titan 704-176 2nd Stage Gear is one of the identified gear components. Its correct operation depends on the condition of the associated gear arrangement. Damaged teeth or abnormal mechanical wear may affect the transmission of movement.
The Titan 704-173A Crankshaft/Gear Assembly is associated with the mechanism that converts rotational movement into pumping motion. Correct positioning and mechanical condition are important when servicing this assembly.
The Titan 0508208 Slider Assembly participates in the mechanical movement arrangement. Damage or wear affecting this component may interfere with the intended motion transfer, although the exact cause of a malfunction must be established through inspection.
The drive mechanism operates in coordination with the fluid section. If the mechanical drive is functioning correctly but the sprayer cannot develop adequate pressure, the fault may involve fluid section components, material supply or pressure-control equipment.
Similarly, if the motor does not operate, the issue may be electrical rather than mechanical. Replacing gears or slider components without diagnosing the motor and control system may not resolve the problem.
For accurate repairs, inspect the affected drive components using the applicable RentSpray 500 service procedure. Verify any required lubrication, installation clearances, fastener specifications and component replacement instructions before reassembly.
Drive Assembly vs. Other Titan RentSpray 500 Assemblies
The RentSpray 500 parts catalog separates the equipment into different categories. Understanding the relationship between these sections helps determine whether a repair requires drive components or parts from another assembly.
Drive Assembly
Contains mechanical movement components, including the Slider Assembly, 2nd Stage Gear and Crankshaft/Gear Assembly.
Main Assembly
Includes primary equipment components such as the Motor Cover, BellyPan Assembly PMDC and Motor Controller Screw.
Fluid Section Assembly
Contains pumping and pressure-related components, including the Piston Assembly, Upper Piston Guide, Pressure Sensor Assembly and Pump Block.
Cart Assembly
Covers equipment handling and mobility components, including the Sleeve Handle and Hub Cap.
Sprayer Accessories
Includes additional equipment-related products, maintenance supplies and fittings. Check individual product requirements before use.
Titan RentSpray 500 Drive Assembly Troubleshooting
Mechanical drive problems can affect the movement transmitted to the pump. The following symptoms may indicate a need for drive system inspection, although they do not independently confirm a defective drive component.
Unusual Gear Noise
Abnormal grinding or mechanical noise may require inspection of the gear arrangement. Check for visible damage, abnormal wear and other conditions identified by the service procedure.
Irregular Pump Movement
Investigate the slider, crankshaft and related mechanical connections. Irregular movement may also involve resistance or damage within the fluid section.
Motor Operates but Pump Does Not
Determine whether mechanical movement is being transferred correctly. Inspect the relevant drive components and avoid operating equipment with suspected internal damage.
Excessive Vibration
Inspect accessible mounting points and the mechanical drive arrangement. Vibration may also originate from the motor, cart or pumping system.
Visible Gear Damage
Damaged gear teeth or abnormal wear require careful evaluation. Inspect associated mating components and verify the correct replacement before reassembly.
Incorrect Replacement Fit
Recheck the complete Titan part number, equipment model and illustrated location. Similar-looking gears and drive components may have different specifications.
Safety: Switch off and disconnect the sprayer from electrical power, then complete the manufacturer-specified pressure relief procedure before inspection or repair. Never place hands near moving drive components or operate the machine with removed protective covers. Internal drive servicing should follow the applicable manufacturer procedure.
Maintaining the Titan RentSpray 500 Drive Assembly
Routine equipment inspection and correct servicing can help identify developing mechanical problems. Follow the applicable RentSpray 500 maintenance instructions and avoid operating the sprayer when unusual drive noise, vibration or mechanical resistance is present.
Inspect Gear Components
Check accessible gears during authorized servicing for damaged teeth, unusual wear or other visible defects.
Examine the Slider Assembly
Inspect the slider and associated mechanical connections according to the prescribed service procedure.
Check the Crankshaft Assembly
Evaluate the relevant crankshaft and gear components when investigating abnormal movement or drive wear.
Follow Lubrication Instructions
Use only the lubricant type, quantity and service method specified for the applicable drive arrangement.
Inspect Mounting Hardware
Check designated fasteners and attachment points for damage, looseness or missing components.
Confirm Correct Reassembly
Verify component orientation, protective covers and all applicable service requirements before returning the sprayer to operation.
How to Order the Correct Titan RentSpray 500 Drive Assembly Parts
The correct drive replacement is determined by the equipment identification, illustrated component position and manufacturer part reference. Follow these steps before ordering.
1. Confirm the Model
Verify that your equipment is a Titan RentSpray 500 and record available serial or revision information.
2. Identify the Drive Component
Locate the required slider, gear, crankshaft assembly or other item in the Drive Assembly illustration.
3. Match the Titan Part Number
Compare the complete manufacturer reference with the product listing and any documented supersession.
4. Verify Assembly Contents
Confirm whether the product is a single component or complete assembly and whether associated hardware is included.
Do not assume that gears, sliders or crankshaft assemblies from the RentSpray 450, RentSpray 600 or other Titan sprayers are interchangeable with the RentSpray 500. Compatibility must be established for each individual part.
Frequently Asked Questions About Titan RentSpray 500 Drive Assembly Parts
What is the Titan RentSpray 500 Drive Assembly?
The Drive Assembly contains mechanical components associated with transferring and converting movement from the sprayer's power system to its pumping mechanism.
Which parts are identified in the RentSpray 500 Drive Assembly?
Identified examples include the Titan 0508208 Slider Assembly, Titan 704-176 2nd Stage Gear and Titan 704-173A Crankshaft/Gear Assembly. Review the complete diagram for other components.
What does the RentSpray 500 Slider Assembly do?
The Slider Assembly is associated with transferring mechanical movement within the drive mechanism. Its condition and correct installation are relevant to the intended pumping motion.
What can cause unusual noise in the RentSpray 500 drive system?
Possible causes include damaged mechanical components, abnormal gear wear or loose equipment connections. The source of the noise must be diagnosed before selecting replacement parts.
Is the Drive Assembly the same as the Fluid Section Assembly?
No. The Drive Assembly transmits mechanical movement, while the Fluid Section Assembly contains components associated with pumping and pressurizing coating material.
Can drive components from other RentSpray models fit the RentSpray 500?
Compatibility must be verified for each part. Do not assume that similar gears, sliders or crankshaft assemblies from different RentSpray models are interchangeable.
Where can I get help identifying RentSpray 500 Drive Assembly parts?
Contact AllTitanParts at 713-931-0006 with your sprayer model, assembly diagram reference and any available Titan part number.
Related Titan RentSpray 500 Parts and Assemblies
Explore the other RentSpray 500 parts categories when the required component is not shown in the Drive Assembly illustration.
Shop Titan RentSpray 500 Drive Assembly Parts
Find the correct Titan RentSpray 500 Drive Assembly replacement components for your sprayer repair. Browse the illustrated parts category, identify the required slider, gear or crankshaft component and verify its Titan part number before ordering.
Shop Drive Assembly Parts Call 713-931-0006
