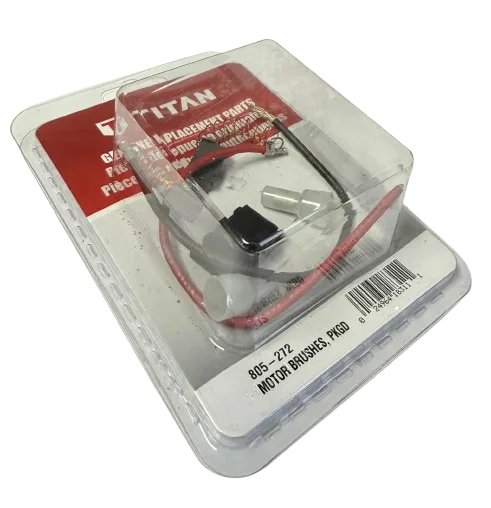

Titan 805-272 Motor Brush Kit
OEM Titan Motor Maintenance Component
Titan 805-272 Motor Brush Kit is an OEM service kit that replaces worn motor brushes in specified brushed-motor Titan sprayers, restoring electrical contact with the commutator and reliable motor operation on compatible Impact 440, MultiFinish 440, and RentSpray 500 configurations. The kit includes a pair of heavy-duty brushes with integrated leads and spring assemblies, plus wire nuts.
Kit Components
- Pair of heavy-duty motor brushes
- Integrated electrical leads
- Spring assemblies for brush tension
- Wire nuts for electrical connections
Compatibility Table
The Impact X 440 uses a brushless motor and does not use this kit. Have an authorized service center perform electrical work using the correct motor instructions.
Titan Motor Service and Replacement Parts
Titan 805-272 Motor Brush Kit for Brushed Motor Service
Titan 805-272 is a service option for specified Titan brushed motors. When inspection confirms worn brushes and the remaining motor components are serviceable, the correct brush kit allows the repair to address that wear without automatically replacing the complete motor.
| Kit Component | Function |
|---|---|
| Heavy-Duty Motor Brushes (Pair) | Provide electrical contact with the rotating commutator to power the motor. |
| Integrated Leads | Attached electrical wiring for connecting the brushes to the motor circuit. |
| Spring Assemblies | Maintain proper pressure on the brushes against the commutator. |
| Wire Nuts | Secure electrical connections during brush installation. |
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | OEM Titan motor brush service kit for compatible brushed motor arrangements. Includes a pair of heavy-duty brushes with integrated leads and spring assemblies to restore motor function and prevent stalling. |
| Function | Motor brushes provide electrical contact with the rotating commutator. They wear through use and require inspection according to the motor's service instructions. New brushes will not correct a damaged commutator or other underlying motor faults. |
| Specification | Applicable diagrams identify included wire nuts. Listed quantities vary by manual; confirm current supplied contents. The parts-list quantity of 1 refers to one kit, not one brush. Verify against the illustrated parts list for your specific model revision. |
| Industrial Applications | Professional sprayer repair, brushed motor maintenance, preventive brush replacement, and rental fleet equipment servicing. |
| Compatible Titan Machines | Documented applications include specified Impact 440, MultiFinish 440, and RentSpray 500 configurations. Parts databases confirm Impact 440 series (Skid, Low Ride, High Ride), 440i, 440e, 640i, 660ex, and MultiFinish 440 compatibility. Always confirm 805-272 for the motor actually installed. |
| OEM Part Number | 805-272 Motor Brush Kit. |
| Related Components | Motor commutator; brush holders and springs; motor assembly (0558373A); capacitor baffle restraint (805-400). These are separately identified components and are not included with the brush kit. |
| Common Problems Solved | Worn brushes causing reduced motor power; intermittent operation; excessive sparking; overheating; eventual motor failure from brush wear. |
| Target Users / Markets | Painting contractors, equipment maintenance technicians, rental fleet operators, and repair shops servicing compatible Titan airless sprayers. |
| OEM & Brand Information | Genuine Titan OEM component designed for correct fitment in compatible brushed motor arrangements. |
| Commercial Benefits | Restores full motor performance, prevents damage to the commutator, extends motor service life, and avoids the cost of complete motor replacement. |
Follow the applicable pressure-relief procedure and disconnect power before service. Have an authorized service center perform electrical work using the correct motor instructions. Follow the specified inspection limits, brush installation procedure, connection method, and any required run-in instructions. Verify the completed repair before returning the sprayer to work. Brushless motors do not use this type of motor brush service kit.
