Titan 730-560 Foot Valve Assembly
OEM Titan Fluid Intake Component

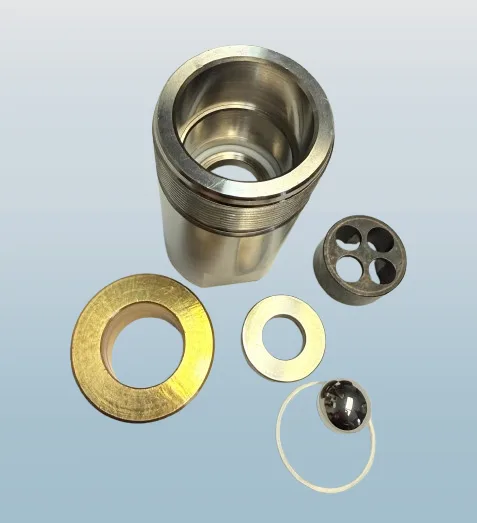

Titan 730-560 Foot Valve Assembly is a genuine OEM complete assembly that maintains pump prime by preventing material backflow on compatible Titan XC-series airless sprayers, ensuring reliable priming and consistent material flow.
Compatibility
Replace if the sprayer loses prime frequently, takes excessive time to prime, or spits material. Inspect the strainer for debris and the check valve for wear.
Titan Fluid Intake Component Replacement
Titan 730-560 Foot Valve Assembly for XC-Series Priming Service
Titan 730-560 is a complete foot valve assembly designed to maintain pump prime by preventing material backflow into the supply container. Located at the end of the suction hose, it contains a one-way check valve that opens on the intake stroke and closes during pressure cycles, ensuring the pump has immediate material available for the next stroke.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM Titan foot valve assembly for compatible XC-series sprayers. Listed in Bedford Precision references for the Epic 690 GXC (Low-Rider & Skid configurations). |
| Function | Maintains pump prime by preventing material backflow into the supply container. Allows material to enter the suction hose on the intake stroke and closes during pressure cycles. The integrated strainer screen filters debris from entering the suction hose. |
| Compatible Titan Machines | Titan 690GXC (primary fit, confirmed in catalog); Titan 440XC; Titan 550XC; Titan 660XC. Always confirm fitment using your exact model's parts diagram and serial number. |
| OEM Part Number | 730-560 Foot Valve Assembly (complete). Bedford Precision notes: "For: Low-Rider & Skid Sprayers". |
| Replacement Indicators | Frequent loss of prime; excessive priming time; spitting or erratic spray; visible debris or damage to the valve assembly; clogged strainer; worn ball/seat allowing backflow; cracked or leaking valve body. |
| Related Parts Commonly Serviced Together | Suction hose (check for cracks, kinks, or deterioration); inlet strainer/filter (clean or replace if clogged); pump inlet fitting (ensure secure connection and sealing). |
| Common Problems Solved | Restores reliable priming, eliminates material backflow, prevents spitting and erratic spray, and ensures consistent material flow. |
| Why Genuine OEM | Complete assembly includes valve body, check mechanism, strainer screen, and all necessary seals for a direct replacement. Exact dimensions ensure proper sealing and reliable one-way flow. |
Service guidance: Relieve system pressure and disconnect power before servicing. The 690 GXC manual describes the procedure: place a wrench on the foot valve housing and unthread it, clean out all debris, examine the foot valve parts and inlet valve seat for damage, and reattach the foot valve assembly. Regular cleaning and inspection of the foot valve strainer helps prevent clogs. During reassembly, ensure all O-rings and seals are lubricated and in position.
