Titan 640i Parts: Find the Component Your Repair Requires
Shop genuine Titan OEM replacement parts for your Titan 640i Airless Sprayer. Browse assembly diagrams, identify component references and check configuration details to prepare an accurate order for maintenance or repair.
Start with Your Sprayer’s Installed Configuration
A clear parts reference makes ordering easier. Identify the assembly being serviced, check your equipment’s model and serial number, then use the relevant diagram to locate the component. Pay particular attention to stand, Low Rider and High Rider arrangements when selecting support or intake parts.
1. Identify the Equipment
Record the model, serial number, electrical configuration and installed frame style.
2. Open the Diagram
Choose the assembly containing the component you need from the categories below.
3. Find the Part Number
Match the numbered diagram position to its listed Titan ordering number.
4. Review Your Selection
Check compatibility notes, required quantities and package contents before purchasing.
Browse Titan 640i Replacement Parts by Assembly
Motor Assembly

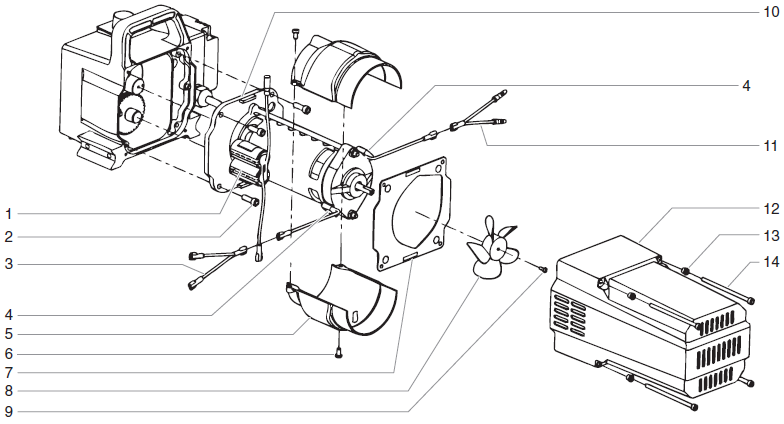

Locate listed motor components, including the motor brush kit, motor fan, fan shroud and mounting hardware. Match electrical replacement parts to the installed motor and applicable documentation.
Shop Motor Assembly PartsGear Box Assembly

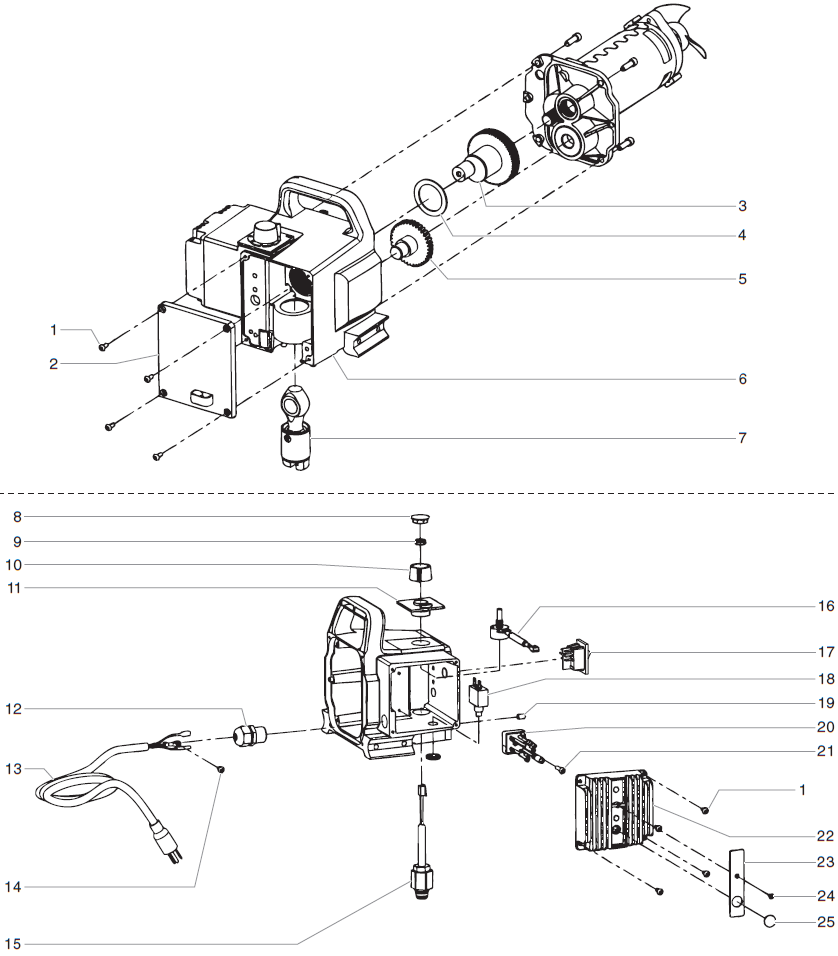

Use the gearbox listing to identify components such as the crankshaft/gear assembly, thrust washer and front cover. Confirm the diagram reference before ordering a drive component.
Shop Gear Box PartsFluid Section Assembly
Consult the fluid section diagram when identifying pump components for service. Compare the installed assembly and individual part references before selecting replacements.
Shop Fluid Section PartsSuction Set Assembly

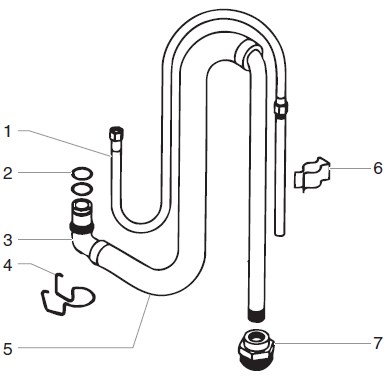

Explore the suction set referenced as P/N 704-300. Check your existing intake arrangement, component connections and product contents before placing an order.
Shop Suction Set PartsStand Assembly

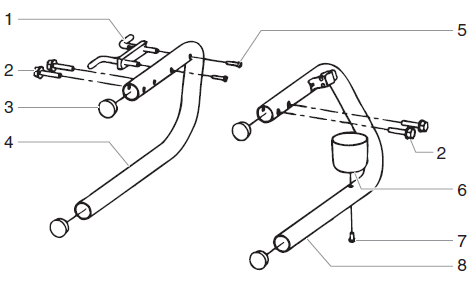

Find the dedicated stand assembly category for stand-mounted equipment. Use its diagram to confirm the required component and hardware quantity.
Shop Stand Assembly PartsLow Rider Assembly

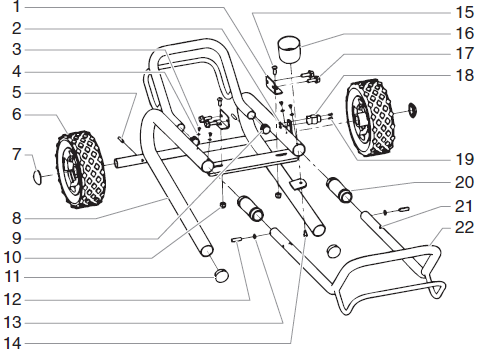

Browse the Low Rider assembly referenced as P/N 705-200. Match your installed frame to the diagram before choosing configuration-specific components.
Shop Low Rider PartsHigh Rider Assembly

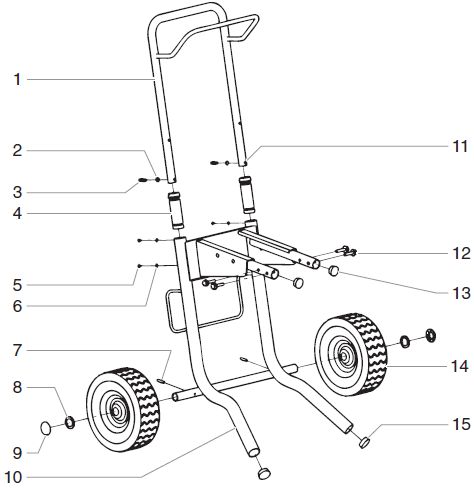

Review the High Rider assembly referenced as P/N 704-236. Confirm the installed configuration and applicable component number when planning frame repairs.
Shop High Rider PartsHigh Rider Siphon Tube Assembly
Use the separate High Rider siphon tube category when identifying intake components for that arrangement. Check it against the equipment currently installed.
Shop High Rider Siphon Tube PartsAccessories
Explore the accessories linked from the 640i catalog. Verify connection compatibility and operating requirements in the individual listing before purchasing.
Shop 640i AccessoriesCheck These Details Before Ordering
| Ordering Detail | What to Verify |
|---|---|
| Model identification | Use the 640i model and serial number to select applicable documentation. |
| Electrical components | Check the installed motor, voltage and specified replacement part. |
| Frame and intake arrangement | Match stand, Low Rider or High Rider components to the installed equipment. |
| Part number and replacement notes | Confirm the ordering number and any documented supersession. |
| Quantity and package contents | Review included components and separately sold hardware. |
An assembly diagram shows component locations and relationships. Review the selected product listing to determine exactly what is included with your purchase.
Featured Service Part: Titan 704-276 Motor Brush Kit
Titan 704-276 Motor Brush Kit is listed in the 640i motor assembly catalog. If inspection identifies a need for brush replacement, confirm the installed motor and applicable parts reference before selecting this kit.
View Titan 704-276 Motor Brush KitPlan Your Repair with the Correct Documentation
Diagnose operating problems using the applicable Titan manual before ordering parts. Difficulty priming, changes in pressure or unusual noise can have several causes. Use inspection findings and diagram references together to identify the required repair.
Complete the manufacturer’s prescribed pressure-relief procedure and disconnect electrical power before maintenance. Follow the manual’s service instructions and use a qualified technician for electrical or internal repairs when required.
Confirm compatibility through part numbers and equipment documentation. Similar names such as 640i, 640ix and Impact 640 do not establish that their components are interchangeable.
Build an Accurate Titan 640i Parts Order
Choose an assembly above to locate your replacement component. For fitment help, have your model, serial number, installed configuration and existing part number ready.
Call 713-931-0006 for Parts AssistanceFrequently Asked Questions
How do I find the correct Titan 640i replacement part?
Which parts categories are available for the 640i?
Is Titan 704-276 listed for the 640i motor assembly?
What references identify the Low Rider and High Rider assemblies?
Does an assembly purchase include every item shown in the diagram?
