Shop Titan 640i Fluid Section Replacement Parts

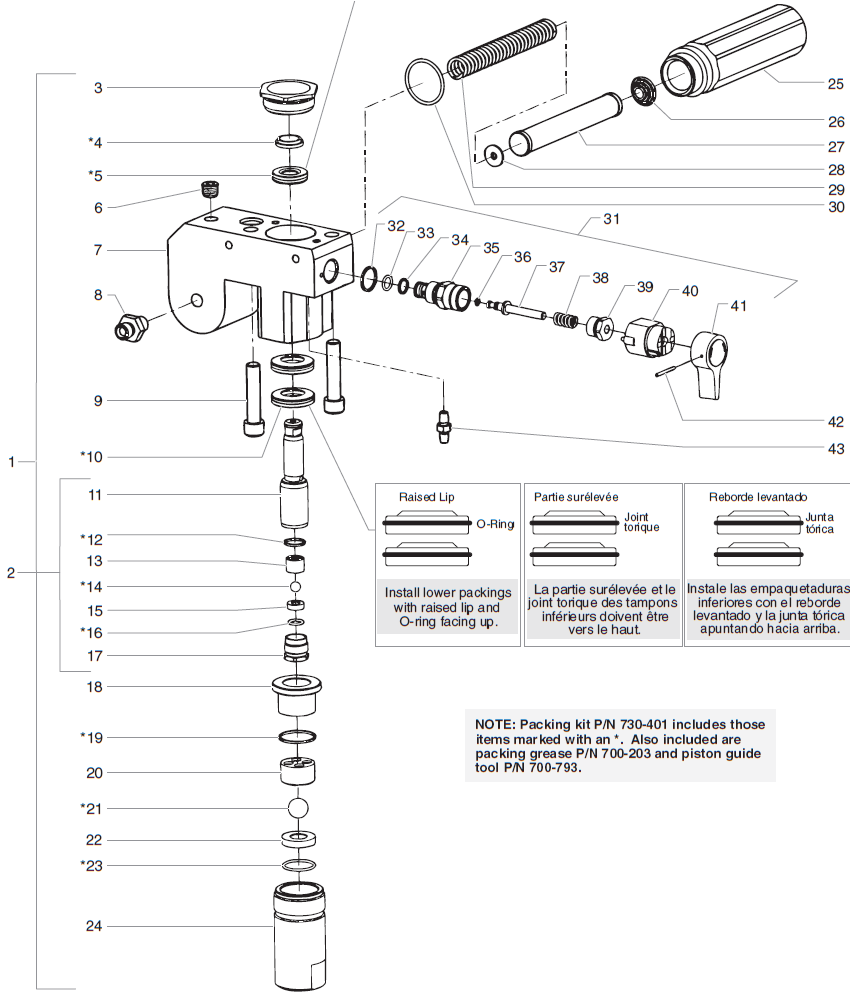

Find service components for the Titan 640i Fluid Section Assembly, including piston components, upper and lower seals, valve parts, filtration items, and prime/spray valve components. Locate the required item in the numbered drawing, then match its individual part number before ordering.
Find the Fluid Section Component You Need
Identify the service area before choosing replacement parts. Compare the component location with the assembly drawing and review the product contents to confirm what is supplied.
Piston and Sealing Components
Browse piston assembly 704-560, piston rod 704-551A, upper seal 700-072A, and lower seal assembly 700-601A. Confirm the required repair scope before selecting individual components.
View Piston and Seal ReferencesInlet and Outlet Valve Parts
Locate the listed valve cages, seats, ball, seals, and housings. Check mating components during inspection rather than choosing a replacement from symptoms alone.
Find Valve Component NumbersFiltration and Prime/Spray Components
Explore the filter housing, manifold filter, springs, adapter, and prime/spray valve components. Match each item to the arrangement fitted to your sprayer.
Check Filter and Valve ReferencesSelected Titan 640i Fluid Section Part Numbers
This reference highlights selected components from the category. Use the complete product list and numbered drawing to locate additional seals, fittings, hardware, and valve service items.
Check the supplied contents: A piston rod, seal, valve seat, or filter does not include the complete fluid section. Confirm kit contents and required quantities on each product listing.
Match Your Fluid Section Before Ordering
Record the sprayer model and serial number, then compare the installed fluid section with the applicable drawing. Use the individual component number, including any letter suffix, to check your replacement.
Review the distinction between a piston rod and a piston assembly before purchasing. Similarly, check whether a sealing product includes one item or an assembled set so your order matches the planned service work.
For filtration components, confirm the specified filter arrangement and mesh requirements for your application. If the pump has been replaced or modified, provide photographs and existing part numbers when requesting assistance.
Plan Fluid Section Service Around the Inspection Findings
Difficulty priming, leakage, or inconsistent pressure can have several causes. Identify the source before selecting parts and inspect the adjoining components when damage or wear is found.
Assess the piston surfaces, guides, and sealing areas together to determine the required repair scope.
Check the relevant ball, seat, cage, seals, and housing when investigating a valve-related problem.
Inspect the filter and supporting components, then follow the prescribed cleaning or replacement instructions.
Explore Related Titan 640i Parts
Visit the relevant assembly when your repair extends beyond the fluid section, or return to the model overview to locate other service components.
Titan 640i Fluid Section Assembly FAQ
Review these questions before choosing your fluid section service parts.
How do I identify the correct fluid section component?
Match your installed fluid section to the assembly drawing, locate the numbered component, and confirm its individual part number and required quantity.
Is a piston rod the same product as a piston assembly?
They are separate listings. Review the contents of each product to determine whether you need the rod or the supplied piston assembly for your repair.
Does poor priming always mean the inlet valve needs replacement?
No. Priming difficulties can have several causes. Assess the equipment and identify the source before selecting valve components or other replacement parts.
Does an individual seal include the complete fluid section?
No. Review the selected product's contents to confirm the sealing components supplied. Complete assembly requirements should be checked separately.
What information helps confirm the correct replacement?
Provide the sprayer model, serial number, existing component number, diagram position, and clear photographs of the installed fluid section.
Need Help Matching Your Titan 640i Fluid Section Part?
Have your sprayer details and component information ready. Contact All Titan Parts for assistance selecting the replacement required for your repair.
Call 713-931-0006 for Parts Assistance
