Shop Titan 640i High Rider Parts for 704-236
Find replacement components for the Titan 640i High Rider Assembly (P/N 704-236). Browse handle hardware, a wheel spacer, hub cap, plugs, pail bracket, and fastening components. Match each item to the numbered drawing and confirm its individual part number before ordering.
Find the High Rider Component You Need
Identify the affected component first. Compare its mounting location with the High Rider drawing and inspect the adjoining connections before selecting a replacement.
Handle Service Components
Locate sleeve handle 590-504, roll pin 590-508, and snap button 9841504. Match the required component to the installed handle arrangement.
View Handle Component ReferencesWheel Spacer and Hub Cap
Find wheel spacer 0294534 at position 8 and hub cap 9890104 at position 9. Confirm the wheel attachment arrangement and required quantity before purchasing.
Check Wheel Attachment PartsPail Bracket and Hardware
Browse pail bracket 704-304, bracket bolt 710-033, and the listed screws, washers, and plugs. Select each item using its individual ordering number.
Find Bracket and Hardware NumbersTitan 640i High Rider Assembly Parts Reference

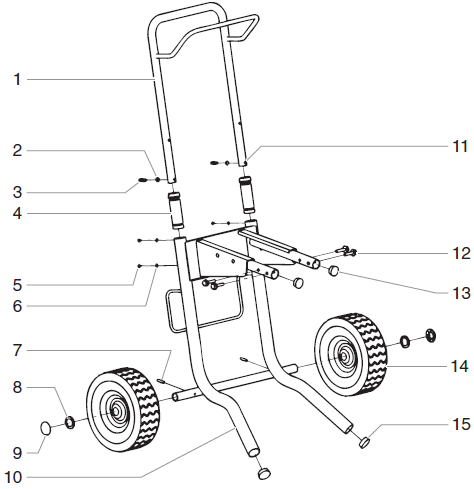

Use this reference alongside the drawing for assembly 704-236. Diagram positions identify component locations rather than quantities supplied.
Check the supplied contents: Individual handle components, spacers, hub caps, plugs, or fasteners do not include a complete High Rider assembly. Confirm larger assembly requirements separately.
Confirm Your High Rider Configuration Before Ordering
Record your sprayer model and serial number and compare the installed support arrangement with the drawing for reference 704-236. Use each component's individual part number when selecting a service item.
Check the handle connections, wheel attachment, and bracket mounting points carefully. Similar appearance does not establish compatibility with Low Rider or stand components.
Review the product contents, required quantity, and current availability before completing your purchase. If the cart has been modified, provide photographs and existing component numbers when requesting assistance.
Inspect the Cart Connections Before Replacement
Identify the cause of loose connections or unwanted movement before choosing replacement parts. Inspect adjoining components when a handle, wheel attachment, or bracket shows damage.
Check the handle components and receiving connections. Establish whether damage is limited to one service item.
Inspect the spacer, hub cap, and surrounding mounting area together when assessing wear or excessive movement.
Check the bracket, bolt, and mating connection before replacement. Follow the applicable installation and tightening instructions.
Explore Other Titan 640i Service Sections
Open the appropriate assembly when your repair involves additional components, or return to the model overview to browse the available service sections.
Titan 640i High Rider Assembly FAQ
What does P/N 704-236 identify?
It identifies the High Rider assembly covered by this category. Select individual service components using their separate ordering numbers.
Which wheel spacer and hub cap are listed?
Wheel spacer 0294534 is listed at position 8, and hub cap 9890104 is listed at position 9. The hub cap listing identifies it as a replacement for 704-355.
Are the pail bracket and bracket bolt separate products?
Yes. Pail bracket 704-304 and pail bracket bolt 710-033 are listed separately. Review each product's contents and confirm which items your repair requires.
Can I use Low Rider components on the High Rider assembly?
Confirm each component by part number and assembly position. Do not assume interchangeability between support configurations.
What information helps confirm the replacement?
Provide the sprayer model, serial number, High Rider configuration, existing component number, and a clear photograph or diagram position.
